Description

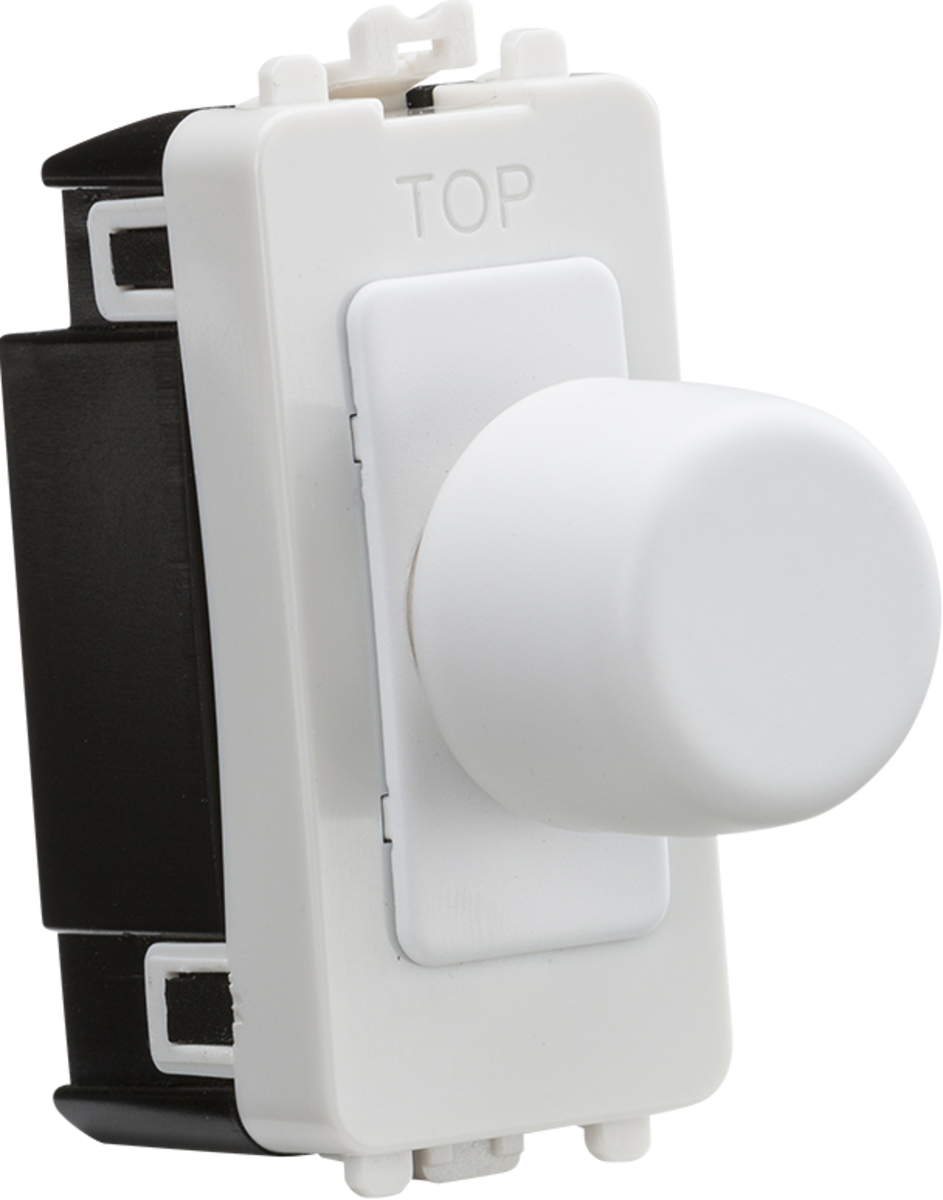

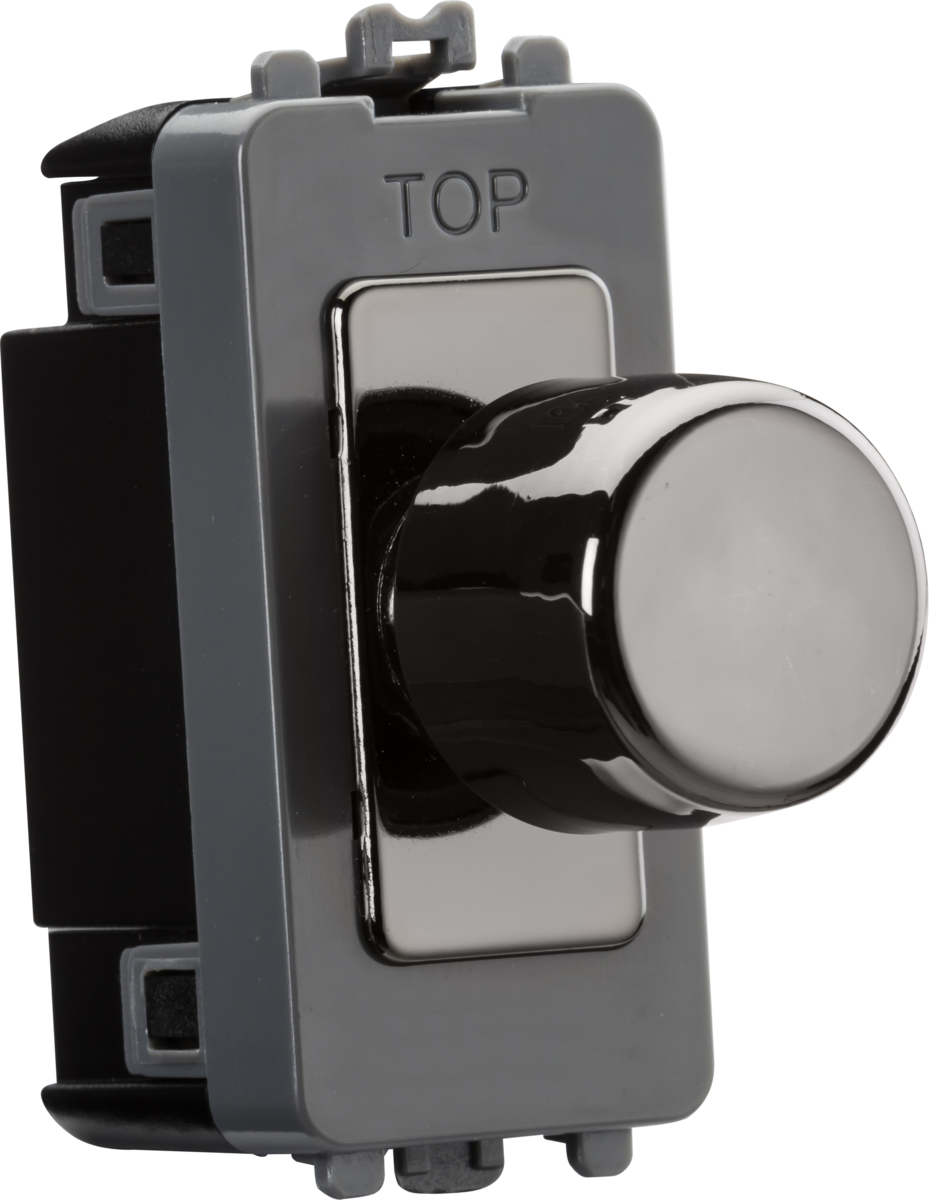

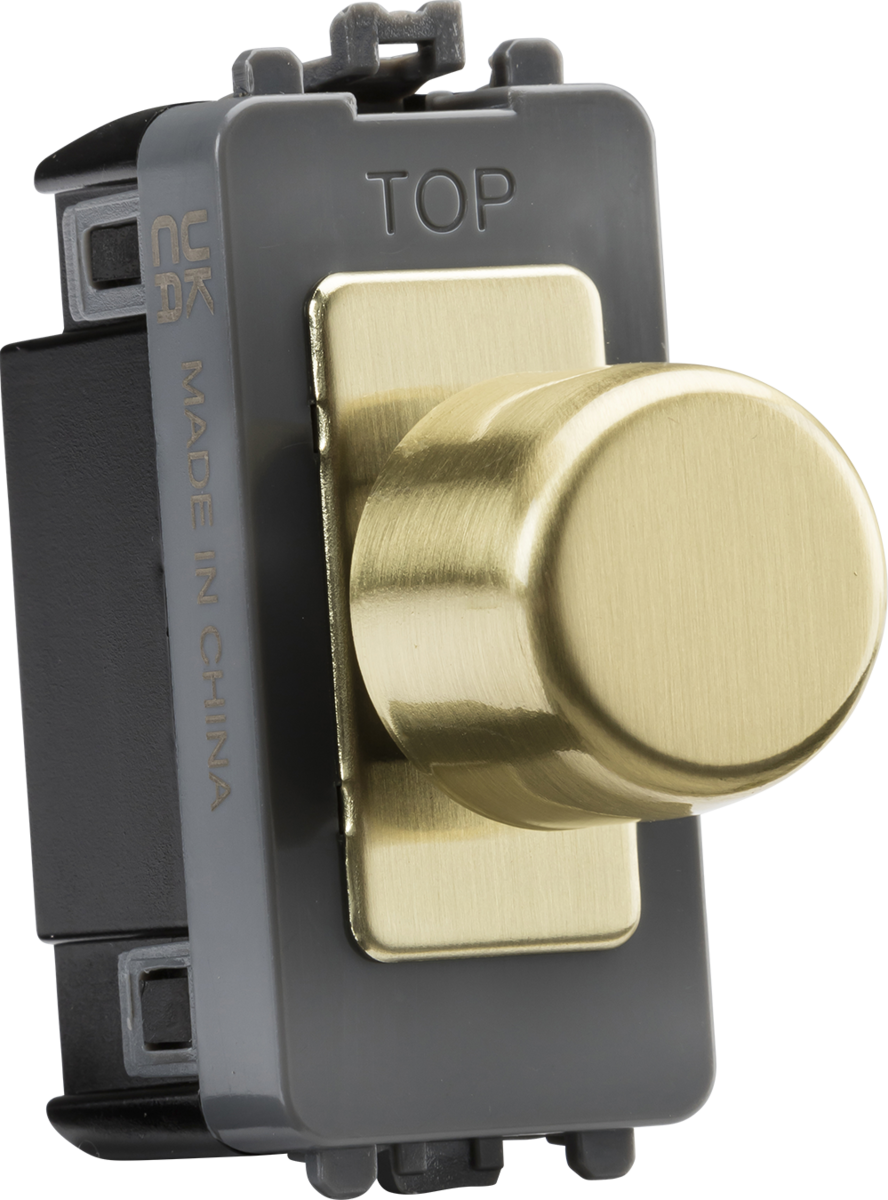

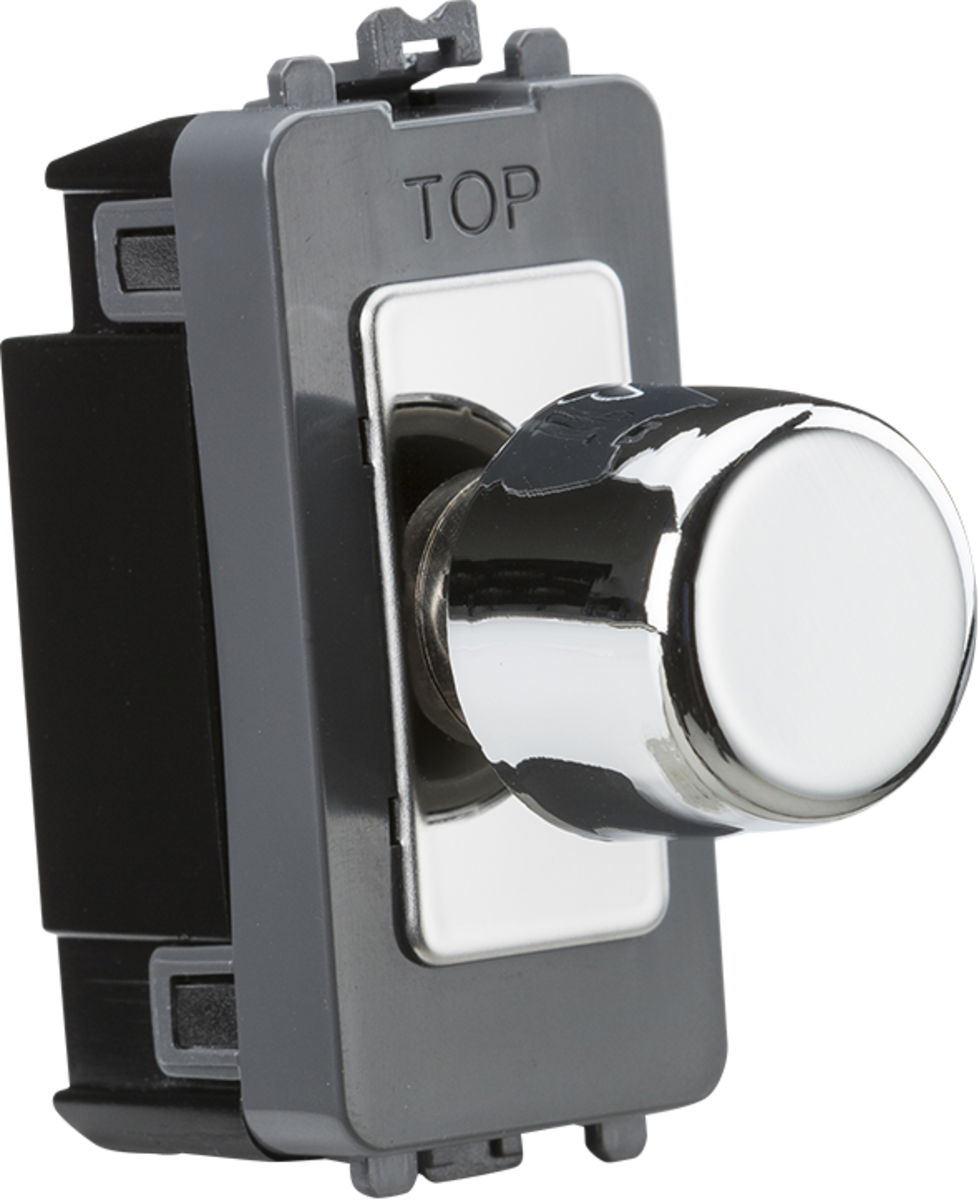

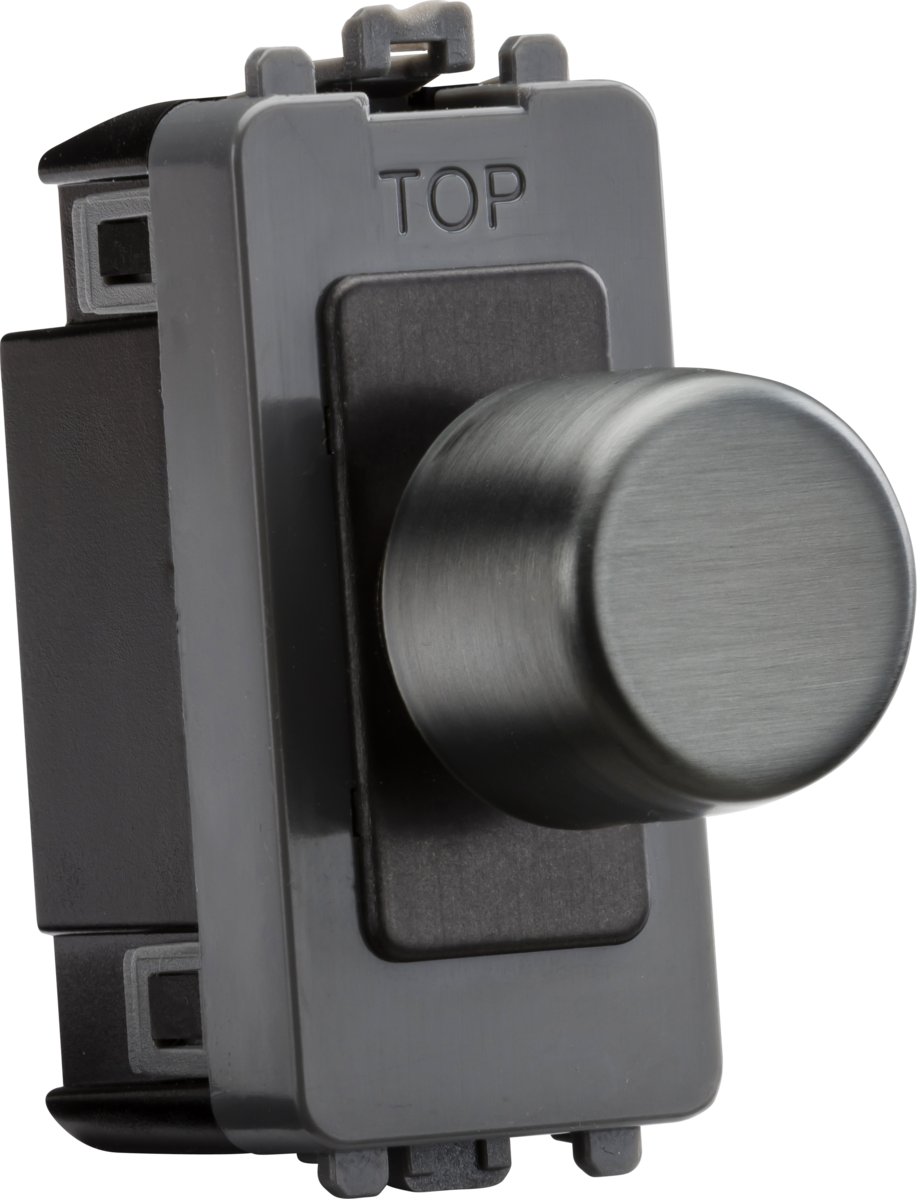

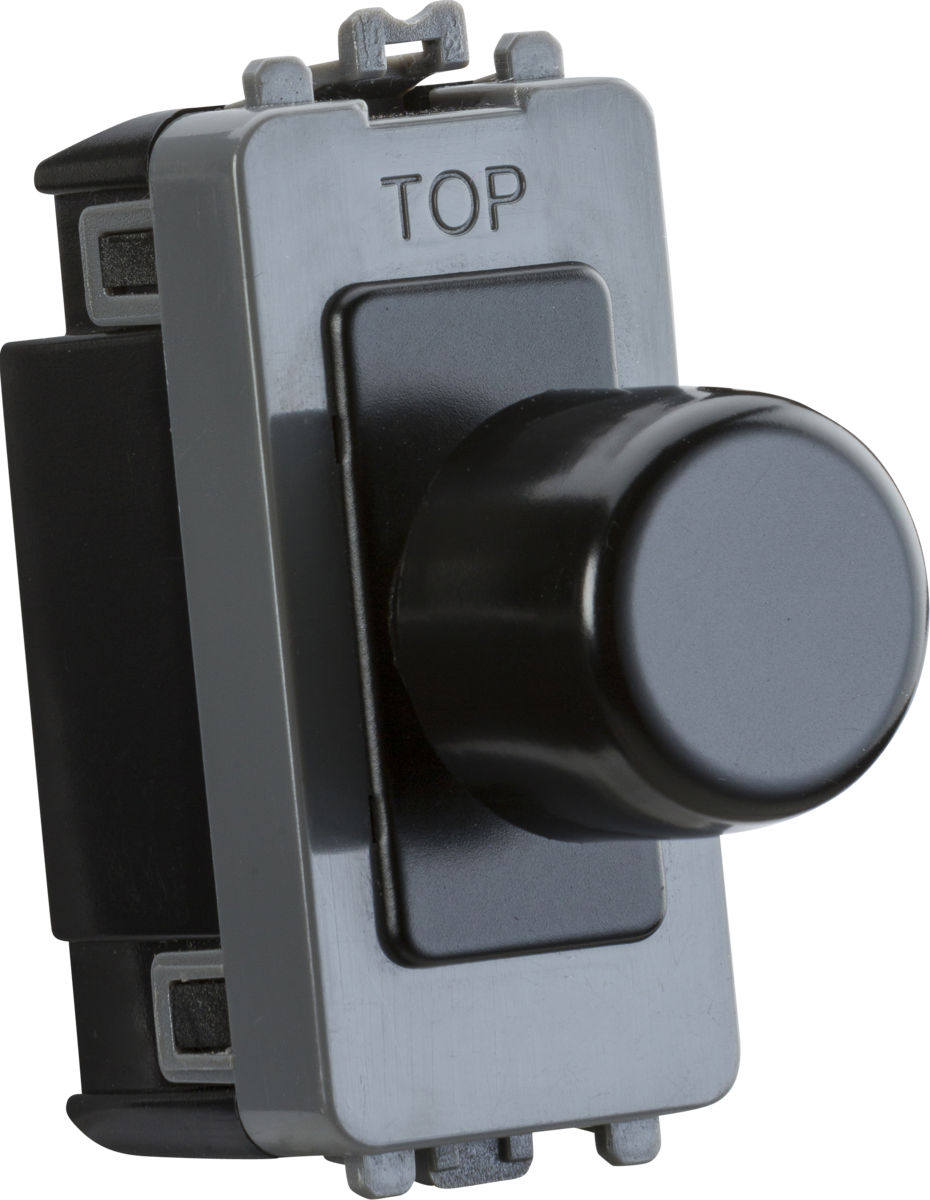

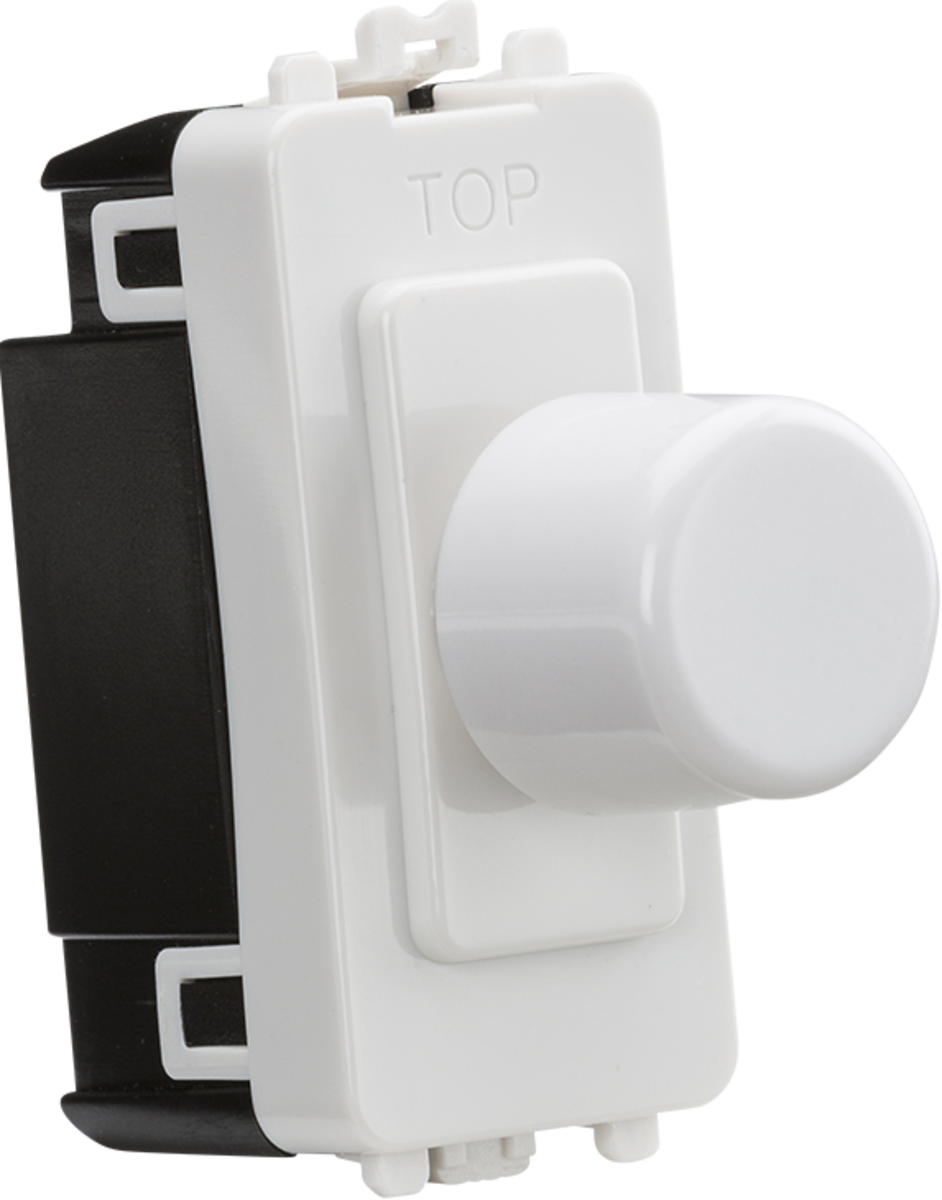

1G 2-way trailing edge dimmer module for use with the Knightsbridge Screwless or Flat Plate systems.
- 10-200W Incandescent
- 10-100W LED
- 2-way
- Press on/off operation
- Trailing edge dimmer technology
- Certified to EN 60669-2
NB: PLEASE CHECK WITH LAMP MANUFACTURER FOR COMPATIBILITY WE RECOMMEND A MAXIMUM OF 10-12 LAMPS PER GRID DIMMER TO PREVENT ANY INRUSH CURRENT PROBLEMS
- 10-200W Incandescent
- 10-100W LED
- 2-way
- Press on/off operation
- Trailing edge dimmer technology
- Certified to EN 60669-2
NB: PLEASE CHECK WITH LAMP MANUFACTURER FOR COMPATIBILITY WE RECOMMEND A MAXIMUM OF 10-12 LAMPS PER GRID DIMMER TO PREVENT ANY INRUSH CURRENT PROBLEMS
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | GDM200 |

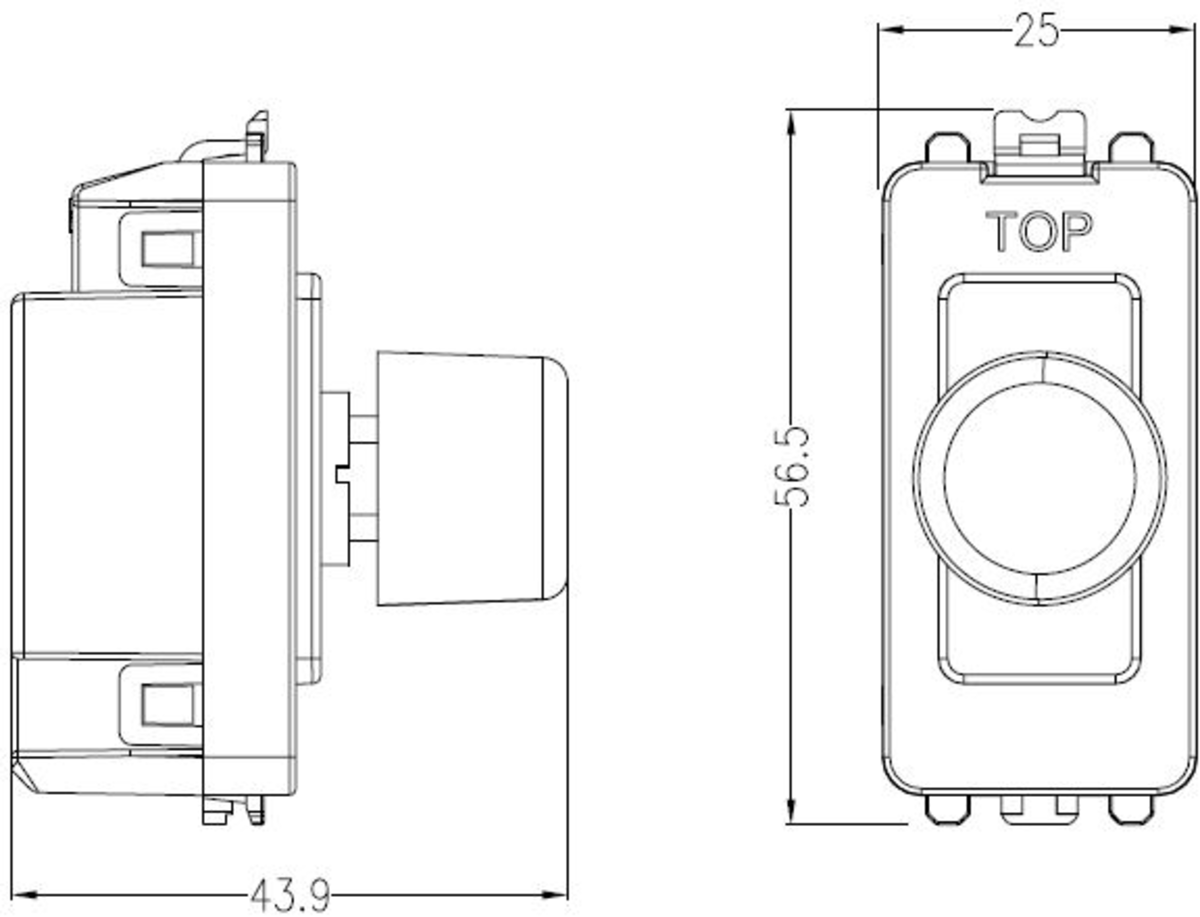

| Height (mm) | 56.5 |
| Width (mm) | 25 |
| Projection (mm) | 23 |
| Recessed Depth (mm) | 23 |
| Min. Mounting Box Depth (mm) | 35 |
| Material | ABS |
| Material2 | Steel |
| Finish | Anthracite, Brushed Brass, Black Nickel, Matt Black |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Warranty (Years) | 15 |
| Commodity Code | 8536 5080 90 |
