Description
230V IP20 2.5W Constant Current Dimmable Under Cabinet lights in Brushed Chrome/white Effect
- Pack of 3
- Suitable for surface and recessed mounting
- Slim profile
- Dimmable*
- Compatible with up to 6 lights

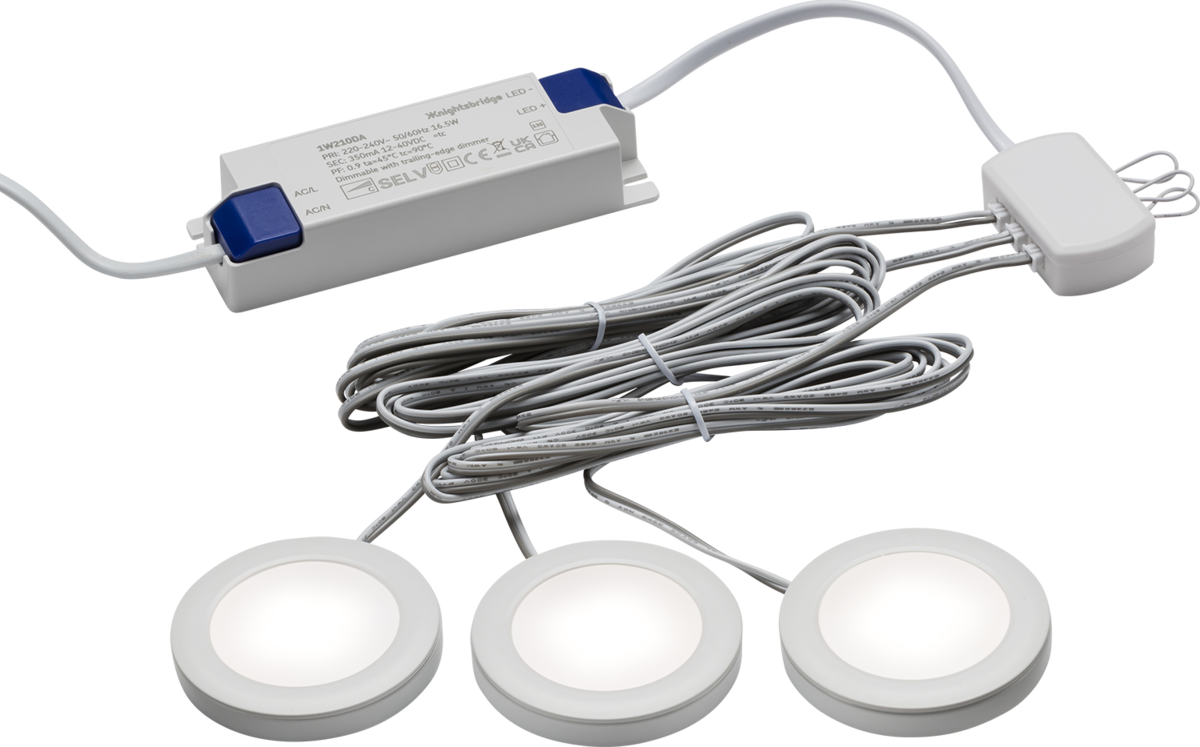

- Supplied with ; 3 x 2.5W lights, 6 way connection box, dimmable driver
- Each fitting comes with 2.5m cable
- 220lm (per lamp) *Recommended to be used with Trailing Edge dimmers
- please check compatibility before installation.
- Pack of 3
- Suitable for surface and recessed mounting
- Slim profile
- Dimmable*
- Compatible with up to 6 lights
- Supplied with ; 3 x 2.5W lights, 6 way connection box, dimmable driver
- Each fitting comes with 2.5m cable
- 220lm (per lamp) *Recommended to be used with Trailing Edge dimmers
- please check compatibility before installation.
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | UNDKIT3BCCW, UNDKIT3BCWW, UNDKIT3WCW, UNDKIT3WWW |

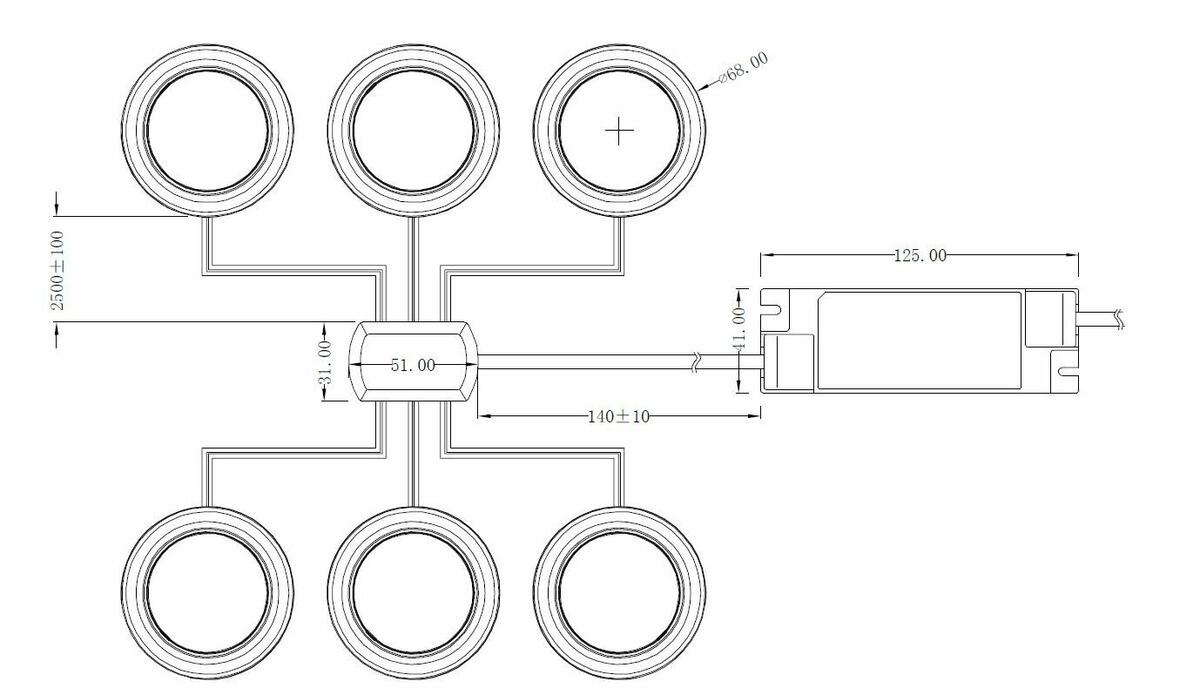

| Diameter (mm) | 68 |
| Projection (mm) | 11 |
| Cut-out Diameter (mm) | 63 |
| Material | Polycarbonate |
| Material2 | Pressed Steel |
| Finish | Brushed Chrome, White |
| Class | II |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Cable Length (m) | 2.5 |
| Diffuser | Opal |
| Lamp Technology | SMD LED |
| Lamp Included | Yes |
| Dimmable | Trailing-edge only* |
| Rated Life (Hours) | 25000 |
| Beam Angle (°) | 100 |
| Colour Temperature (K) | 3000, 4000 |
| Light Colour | Warm White, Neutral White |
| Lumens (lm) | 200 |
| Lumens (Light Source only) | 300 |
| Wattage (W) | 2.5 |
| Efficacy | 62.49 |
| CRI | 80 |
| Driver Type | Constant Current |
| Warranty (Years) | 3 |
| Commodity Code | 9405423990 |
