Description

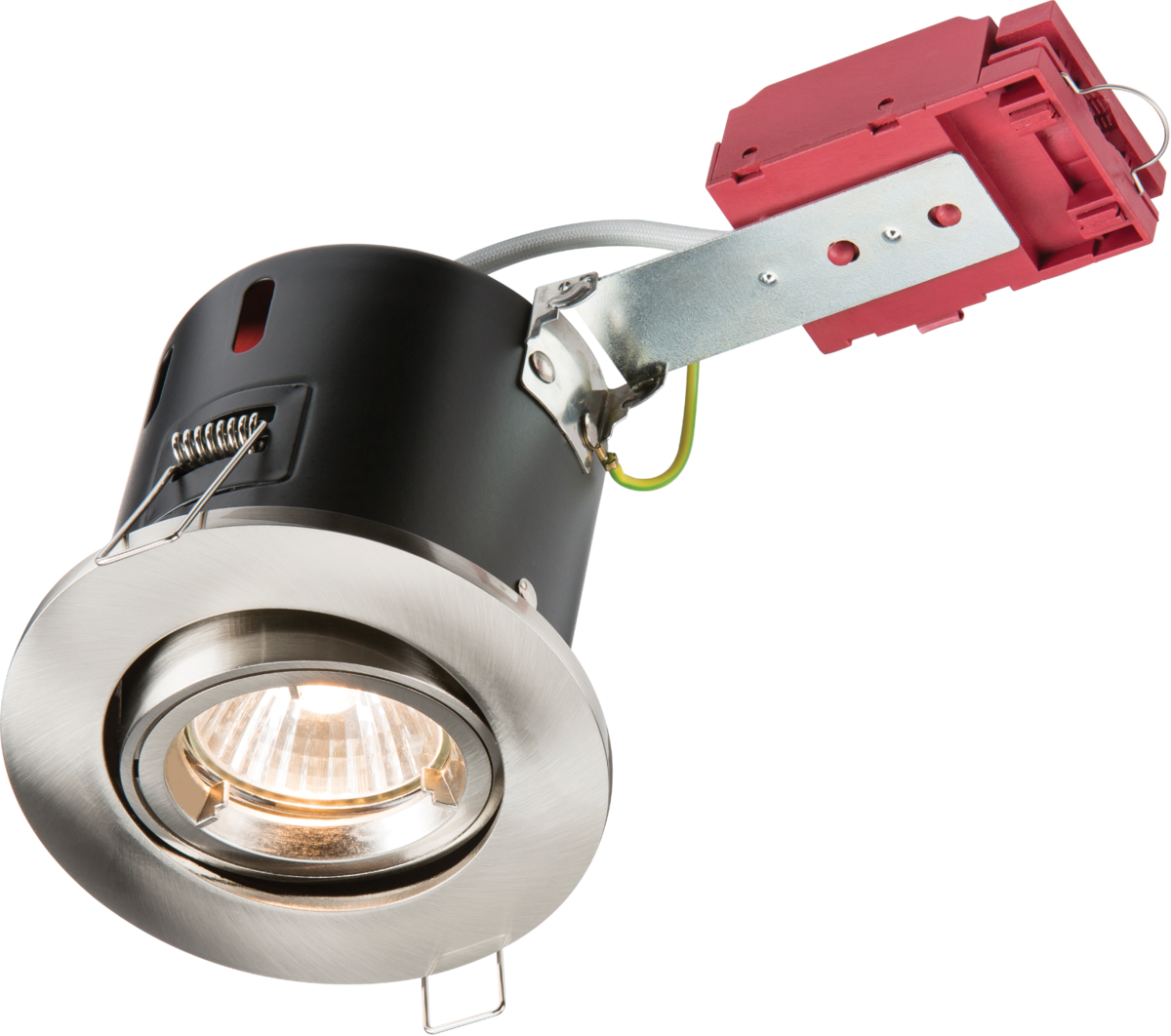

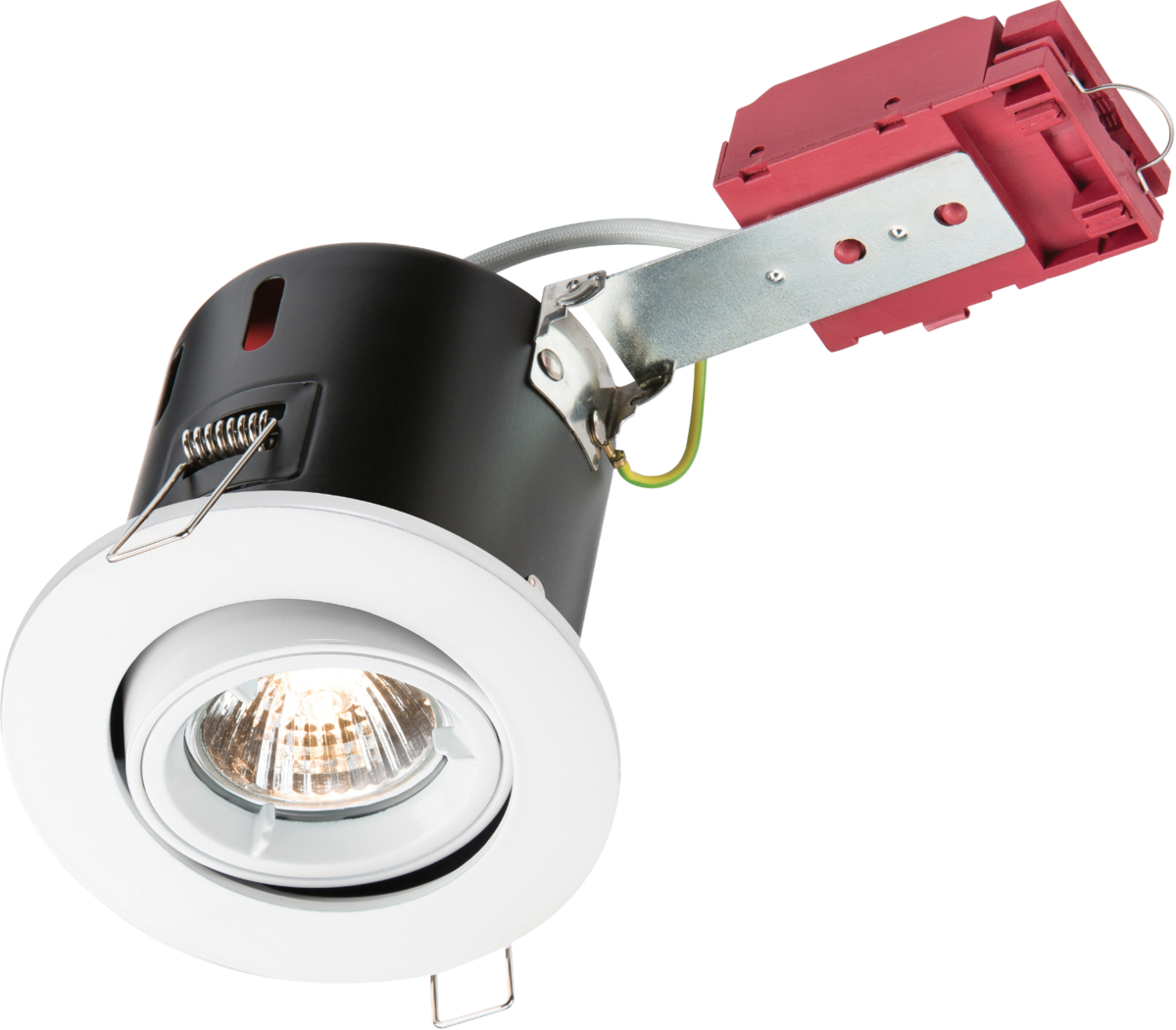

IP20 Die-Cast GU10 Tilt Insulation Compatible Fire-Rated Downlight. GU10 230V 50W max lamp. Twist and lock front ring for easy lamp replacement. Compatible with standard GU10 Halogen and ideal for all retrofit LED and CFL lamps up to 60mm in length. Electrical termination via 10 Amp connector block within secure enclosure supplied with cord grip. Spring clip fixings with a recommended maximum ceiling thickness of 30mm.
Tested to: - BS476 Part 21 & 23
- Building Regulations Part B (Fire Safety) compliant
- Tested to 30/60/90mins
- Solid Wood Joists
6W Cool and Warm white LED Non Dimmable bulbs are available separately-Please select from drop down menu
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | VFRSGICB, VFRSGICC, VFRSGICCBR, VFRSGICW |

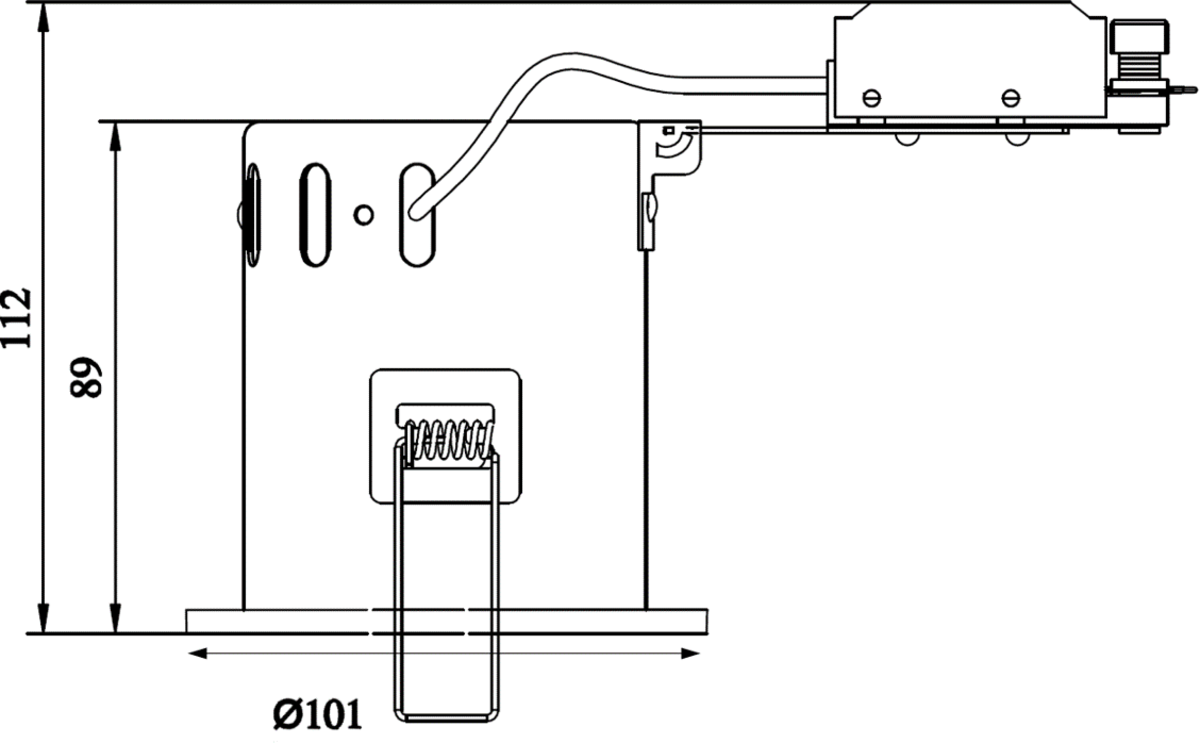

| Diameter (mm) | 101 |
| Height (mm) | 84 |
| Projection (mm) | 5 |
| Recessed Depth (mm) | 105 |
| Cut-out Diameter (mm) | 84 |
| Tilt (°) | 15 |
| Material | Pressed steel |
| Material2 | Aluminium |
| Finish | Brass, Chrome, Brushed Chrome, White |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Lamp Technology | Halogen / LED Compatible |
| Lamp Base | GU10 |
| Lamp Included | No |
| Dimmable | Lamp dependent |
| Max. Wattage | 50 |
| Warranty (Years) | 1 |
| Commodity Code | 9405500090 |
