Description

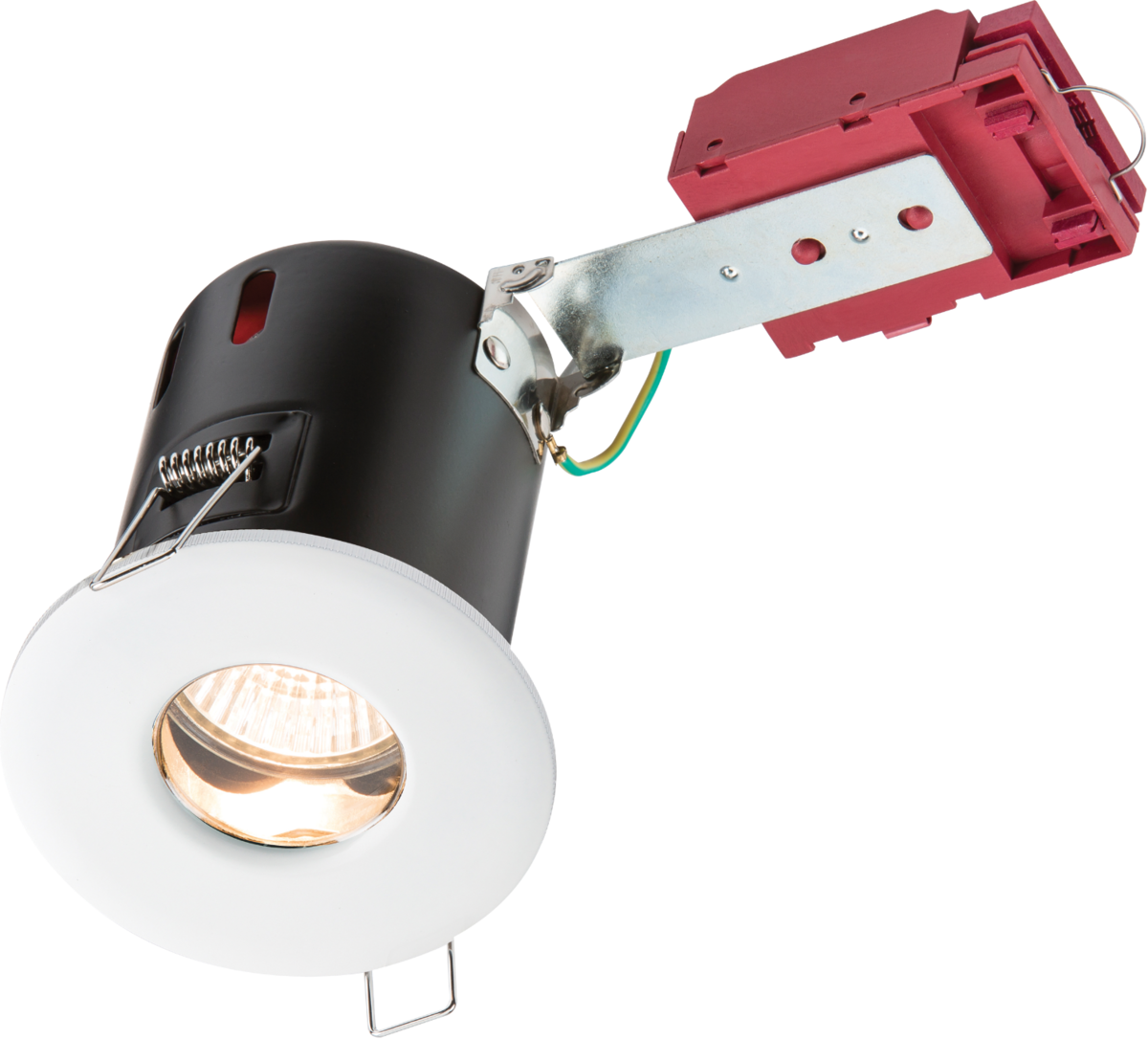

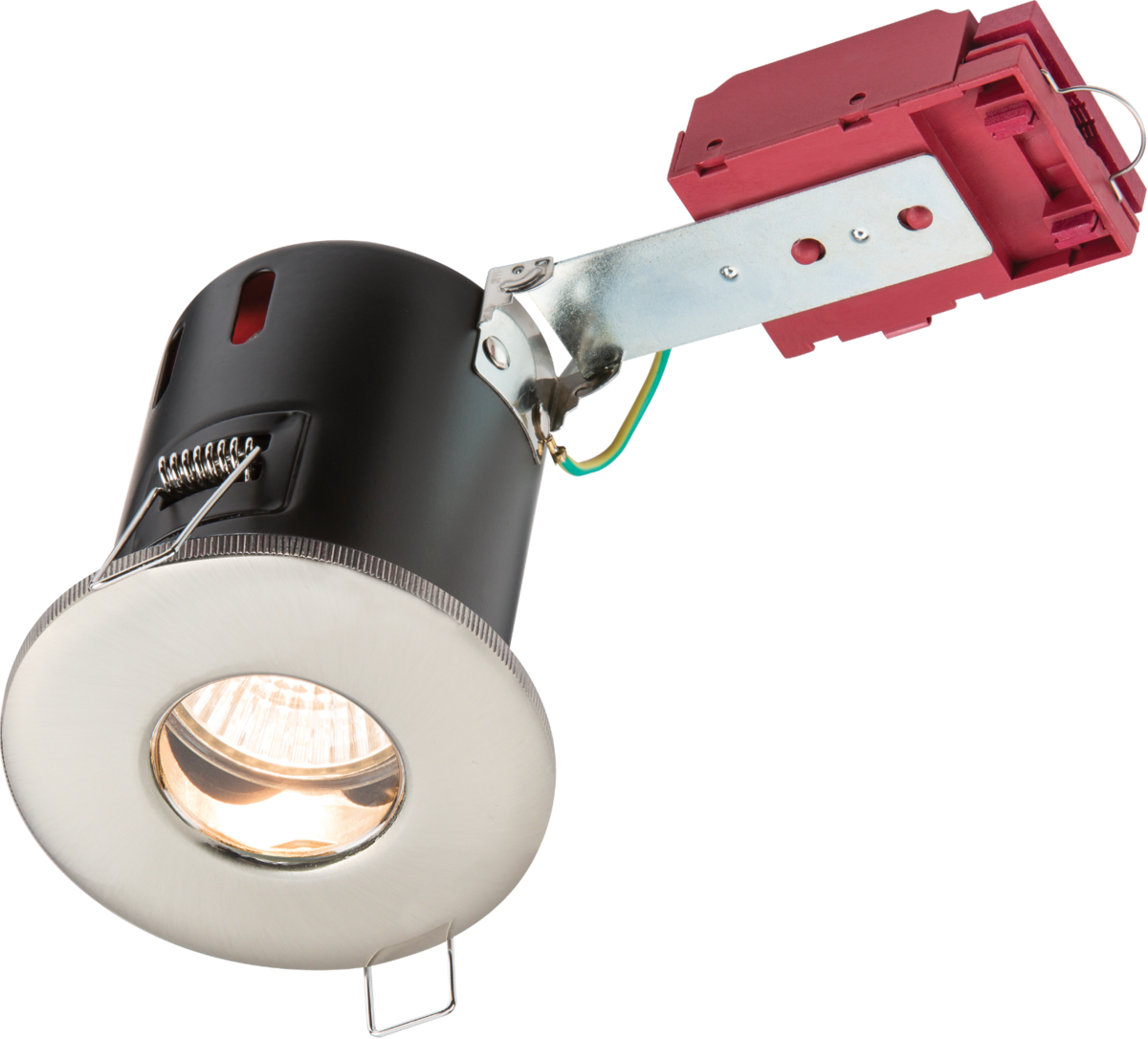

IP65 Die-Cast GU10 Insulation Compatible Downlight. GU10 35W max. Class 1, must be earthed. Twist and lock front ring to secure lamp. Compatible with standard GU10 Halogen and ideal for true retrofit LED and CFL lamps. Electrical termination via 10 Amp connector block within secure enclosure comes with cord grip. Dimmable. Spring clip fixings with a recommended maximum ceiling thickness of 30mm.
Tested to: - BS476 Part 21 & 23
- Building Regulations Part B (Fire Safety) compliant
- Tested to 30/60/90mins
- Solid Wood Joists
6W Cool and Warm White Bulbs are available separately. Please select from drop down menu
Tested to: - BS476 Part 21 & 23
- Building Regulations Part B (Fire Safety) compliant
- Tested to 30/60/90mins
- Solid Wood Joists
6W Cool and Warm White Bulbs are available separately. Please select from drop down menu
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | VFRSHGICB, VFRSHGICC, VFRSHGICCBR, VFRSHGICW |
| Diameter (mm) | 87 |
| Height (mm) | 92 |
| Projection (mm) | 7 |
| Recessed Depth (mm) | 118 |
| Cut-out Diameter (mm) | 70 |
| Material | Pressed steel |
| Material2 | Aluminium |
| Finish | Brass, Chrome, Brushed Chrome, White |
| Class | I |
| IP Rating | IP65 (IP20 from above) |
| Voltage (V) | 230V 50Hz |
| Lamp Technology | Halogen / LED Compatible |
| Lamp Base | GU10 |
| Lamp Included | No |
| Dimmable | Lamp dependent |
| Max. Wattage | 35 |
| Warranty (Years) | 1 |
| Commodity Code | 9405500090 |
