Description

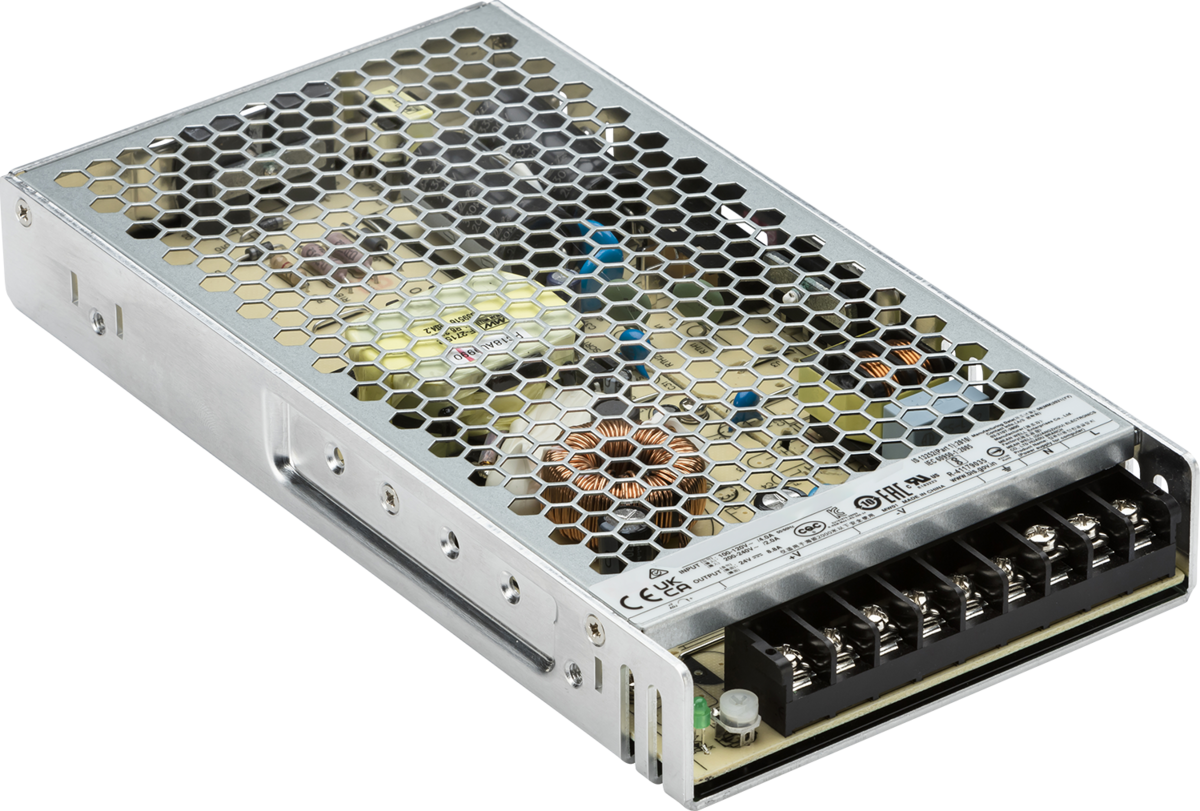

24V constant voltage driver
- Max. output 100W/150W/200W
- Adjustable output voltage
- 90% efficiency at full load
- Input voltage from 100 to 230V
- Short circuit, overload and over voltage protection This product should be placed within a suitable enclosure.
- Max. output 100W/150W/200W
- Adjustable output voltage
- 90% efficiency at full load
- Input voltage from 100 to 230V
- Short circuit, overload and over voltage protection This product should be placed within a suitable enclosure.
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | 24DC100M, 24DC150M, 24DC200M |

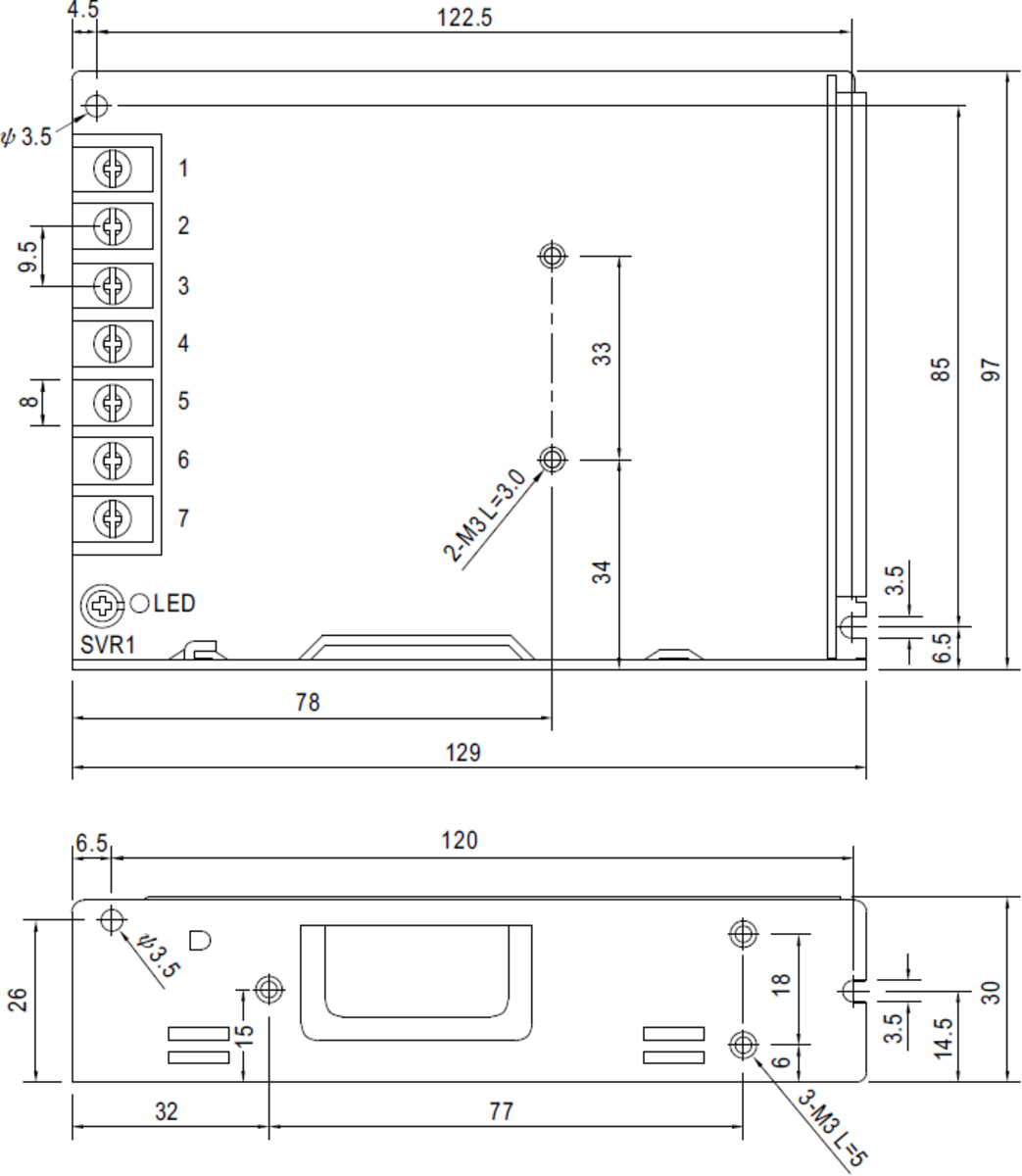

| Length (mm) | 100W = 129, 150W = 159, 200W = 215 |
| Width (mm) | 100 |
| Depth (mm) | 30 |
| Material | Aluminium |
| Material2 | StainlessSteel |
| Finish | Stainless Steel |
| Class | I |
| IP Rating | IP20 |
| Input Voltage (V) | 110/230 |
| Output Voltage (V) | 24 |
| Dimmable | No |
| Driver Type | Constant Voltage |
| Warranty (Years) | 3 |
| Commodity Code | 8537109899 |
