Description
The Curved Edge Range of switches and sockets from Knightsbridge have a gently contoured 7mm plate with soft rounded edges. They are supplied with matching screw cap covers and manufactured to the latest British Standards and backed by a 25-year guarantee.
Gently contoured 7mm plate with rounded edges and anti-microbial properties
- 10AX rated
- 1G, 2G, 3G, 4G, 6G
- All are 2 Way and can be used in 1 Way or 2 Way configuration
- Includes screw cap covers
- Certified to EN 60669-1
Download
Specifications
| Brand | Knightsbridge |
|---|---|
| SKU | CU1000, CU2000, CU3000, CU4000, CU4100, CU4101, CU4200, CU1200, CU1100 |

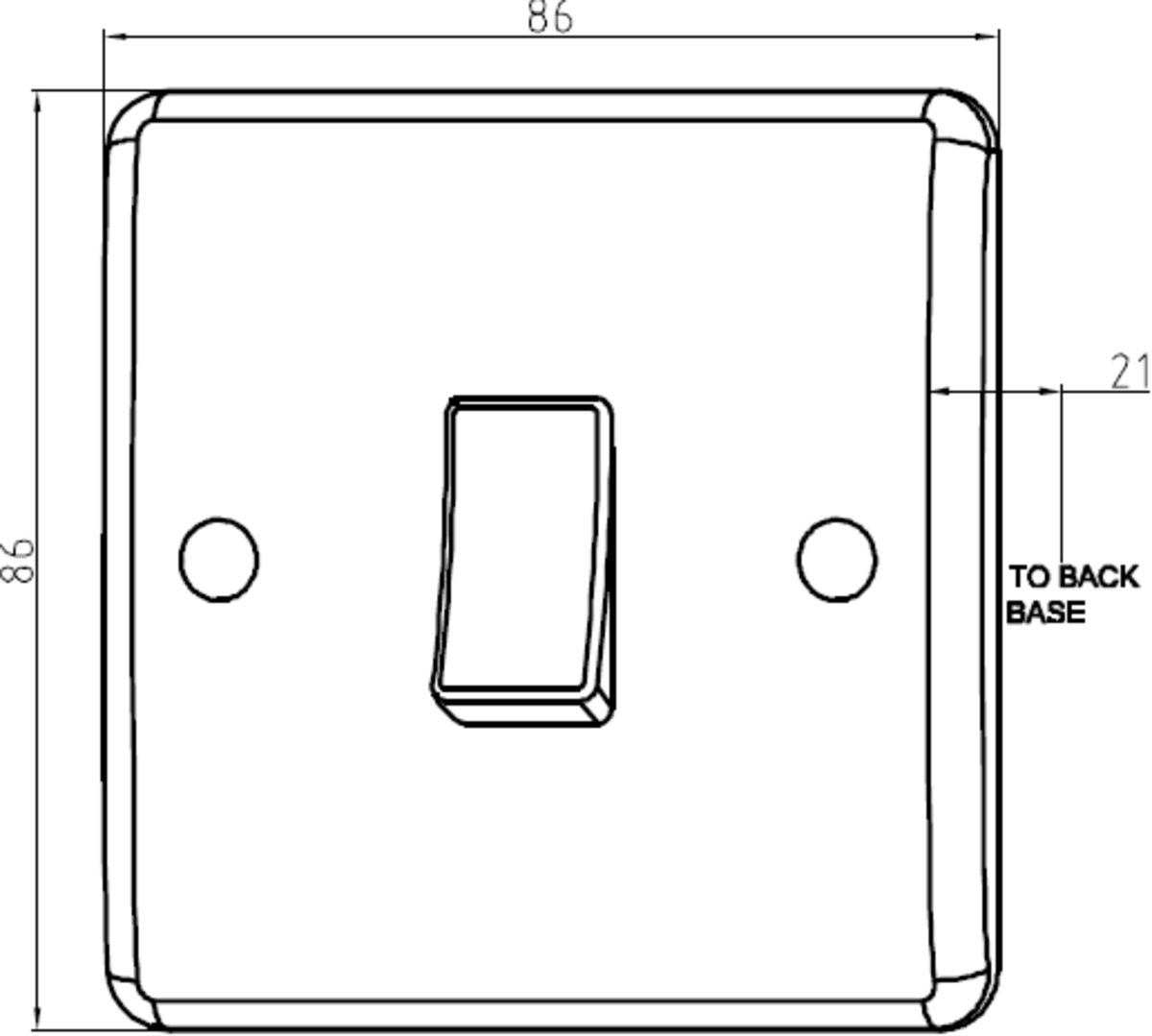

| Height (mm) | 86 |
| Width (mm) | Square = 86, Rectangular = 146 |
| Projection (mm) | 7 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Thermoset resin |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Warranty (Years) | 15 |
| Commodity Code | 8536 5080 90 |
