Description

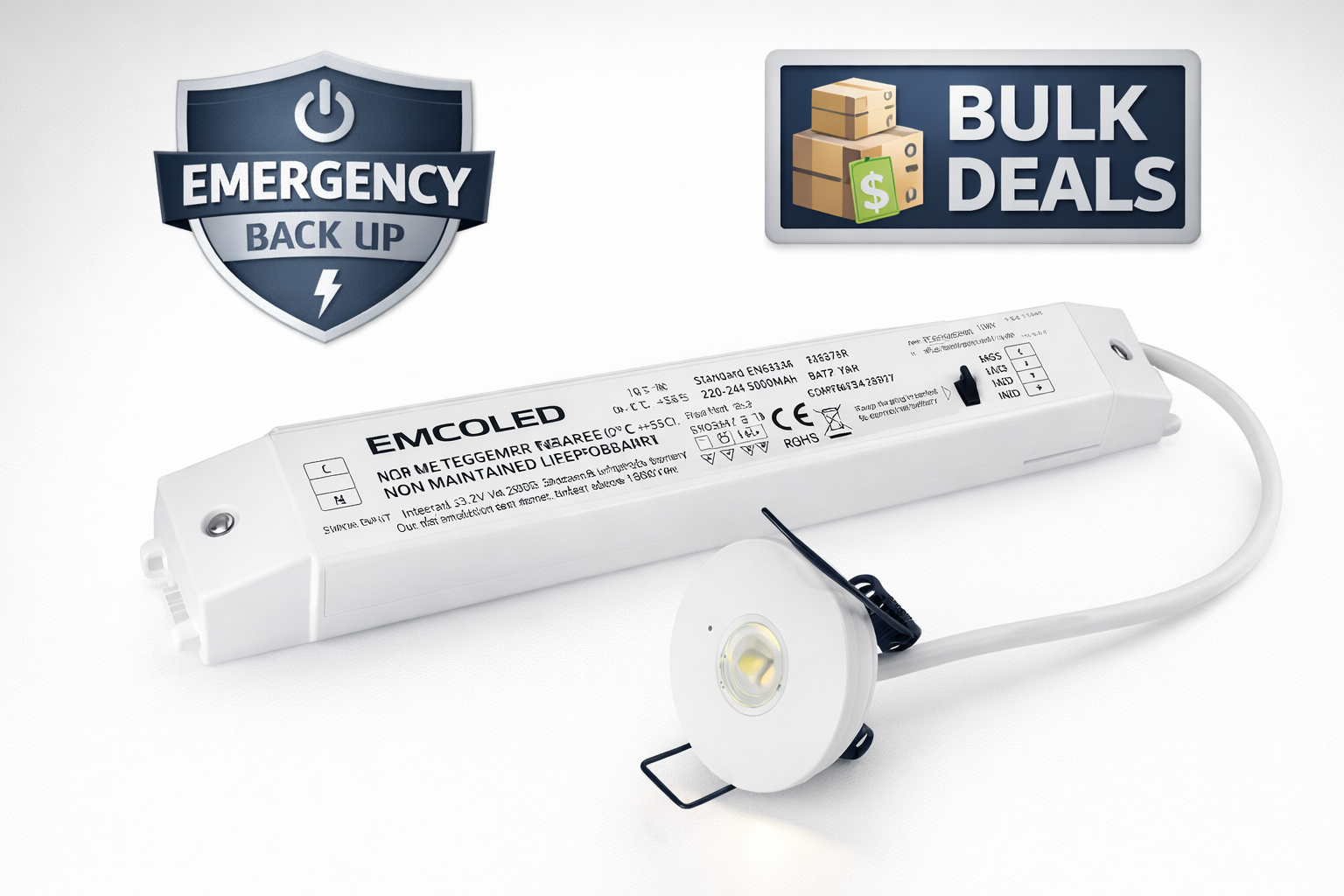

Emco EMLED3NM 3W LED Emergency Downlight (Non-Maintained)
The Emco EMLED3NM is a compact LED emergency downlight designed for discreet installation in commercial and industrial buildings. Engineered for reliability and ease of installation, it is an ideal solution for contractors, facilities managers, landlords, and property owners requiring compliant emergency lighting.
Operating in non-maintained mode, this emergency pin spot remains off during normal operation and automatically illuminates when mains power fails, providing essential guidance lighting along escape routes and circulation areas.
Key Features & Benefits
- Non-maintained emergency operation – activates only during power failure
- 3W LED output delivering up to 180 lumens
- Discreet mini pin spot design for minimal visual impact
- Neutral white light (4000K–4500K) suitable for commercial interiors
- Wide 140° beam angle for effective light distribution
- Push & lock connector for faster, cleaner installation
- Unobtrusive green LED indicator for battery charging status
- Designed to BS EN 60598-2-22 emergency lighting standard
- 5-year manufacturer’s guarantee
Technical Specifications
| Model | EMLED3NM |
| Emergency Type | Non-Maintained |
| Wattage | 3W LED |
| Light Output | 180 lumens (approx. 60 lm/W) |
| Light Colour | Neutral White (4000K–4500K) |
| Beam Angle | 140° |
| Ingress Protection | IP20 (indoor use) |
| Supply Voltage | AC 230V ±5% | 50Hz |
| Running Current | 400mA |
| Battery Type | 3.2V 1500mAh LiFePO4 |
| Operating Temperature | 0°C to +50°C |
| Compliance (Design Intent) | BS EN 60598-2-22 |
| Warranty | 5 Years |
Dimensions (Installer Reference)
- Ceiling Cut-Out: 32mm
- Lamp Diameter: 37mm
- Lamp Depth: 26mm
- Driver Dimensions: 207mm (L) × 24mm (W) × 21mm (H)
Pack Sizes Available

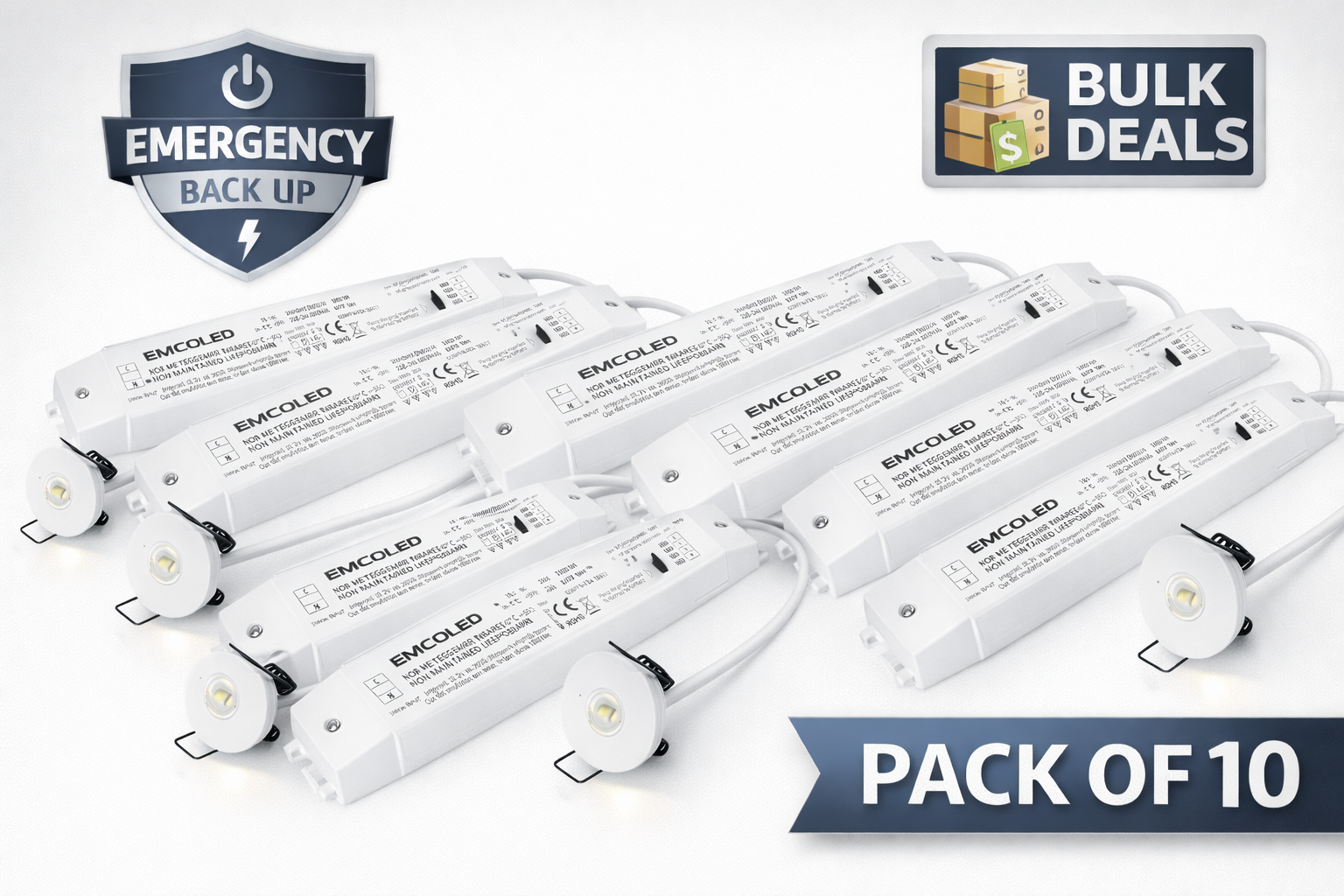

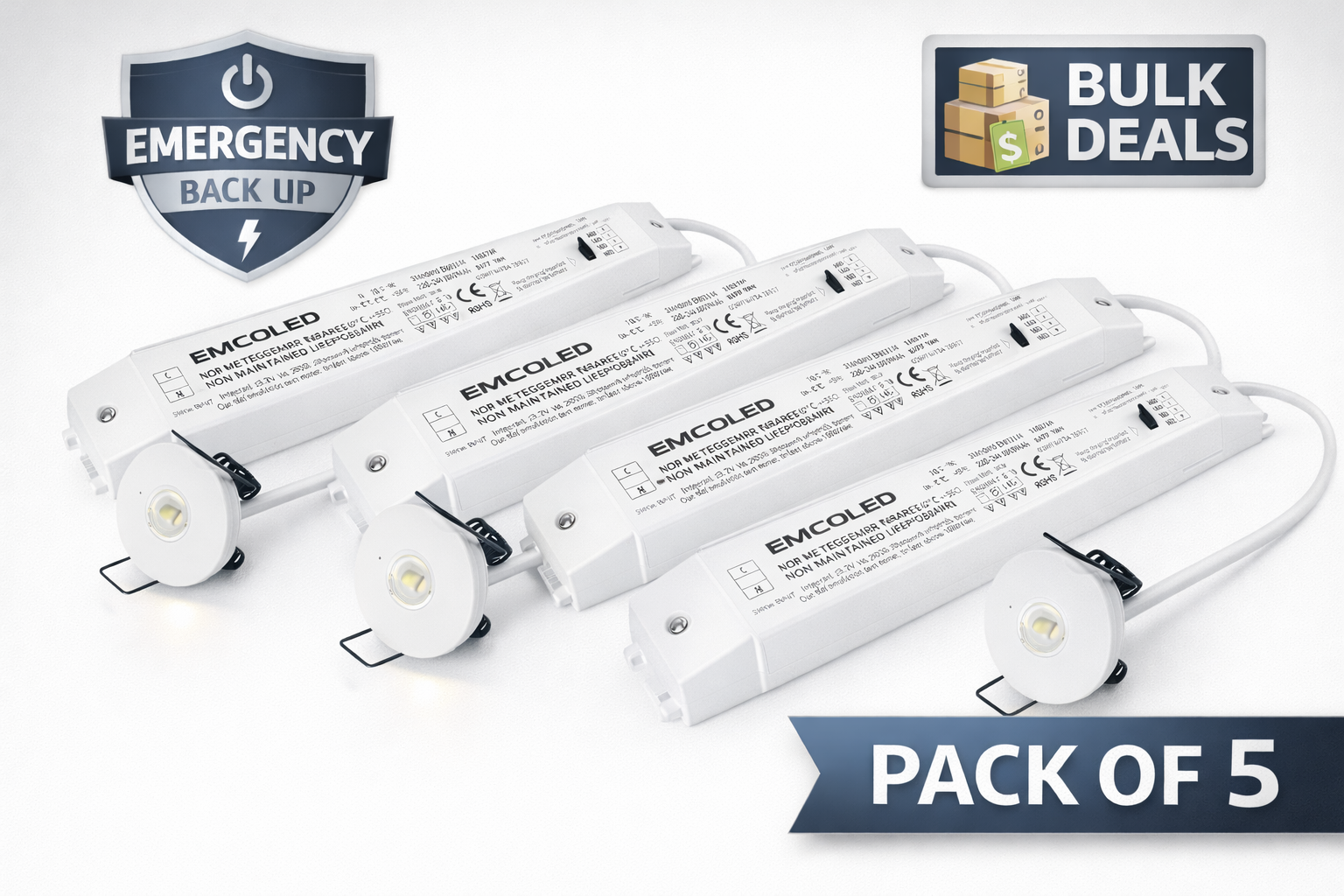

Supplied in multiple pack sizes to suit maintenance requirements, refurbishment projects, and large-scale installations: Pack of 1, 3, 5, 10, or 20.
Frequently Asked Questions
Is this a maintained or non-maintained emergency fitting?
This is a non-maintained emergency downlight, meaning it only operates during a mains power failure.
Where is this emergency downlight typically installed?
It is commonly installed in corridors, stairwells, escape routes, plant rooms, and circulation areas within commercial and industrial properties.
Does it include a battery backup?
Yes. The EMLED3NM includes an internal LiFePO4 battery with a charging indicator for status monitoring.
Is it suitable for wet or outdoor locations?
No. With an IP20 rating, this fitting is designed for indoor, dry environments only.
What light colour does it produce?
The fitting produces a neutral white light between 4000K and 4500K, suitable for commercial spaces.
Is a black finish available?
A black finish may be available upon request, subject to availability.
