Description

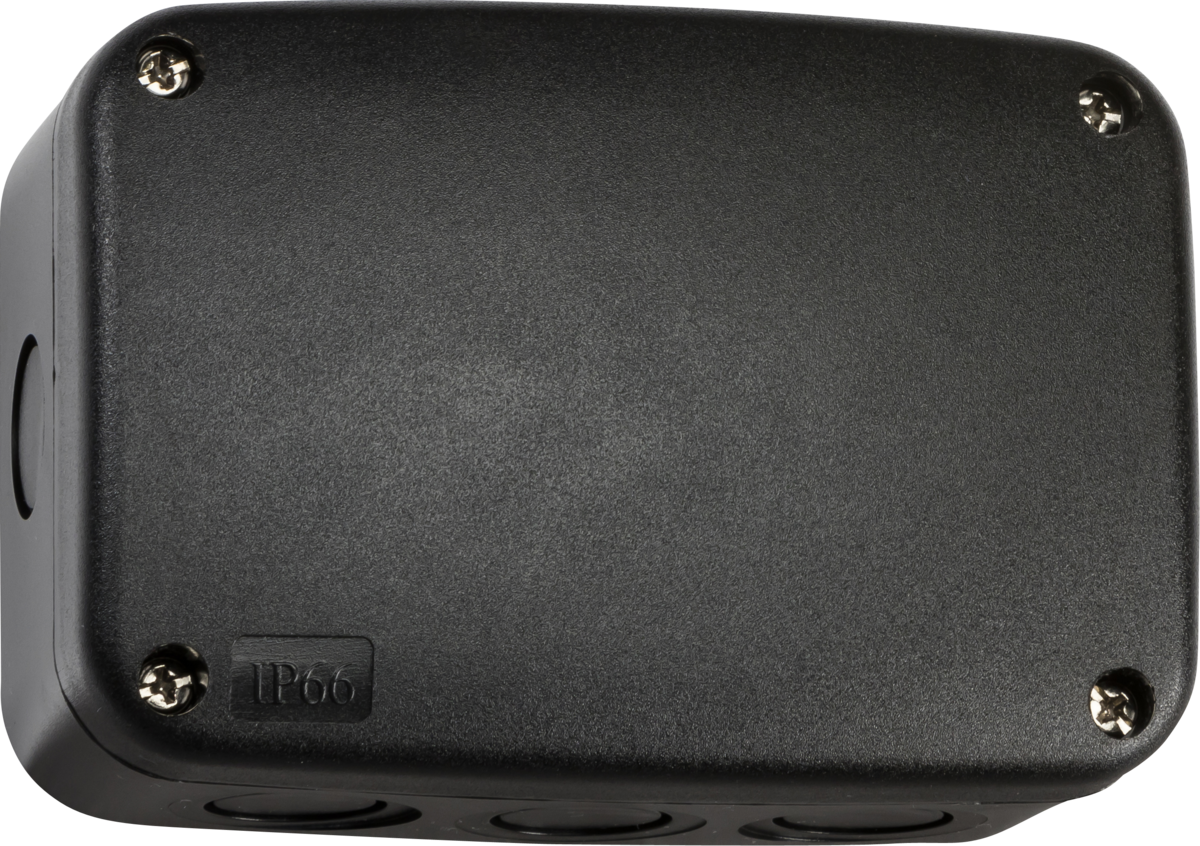

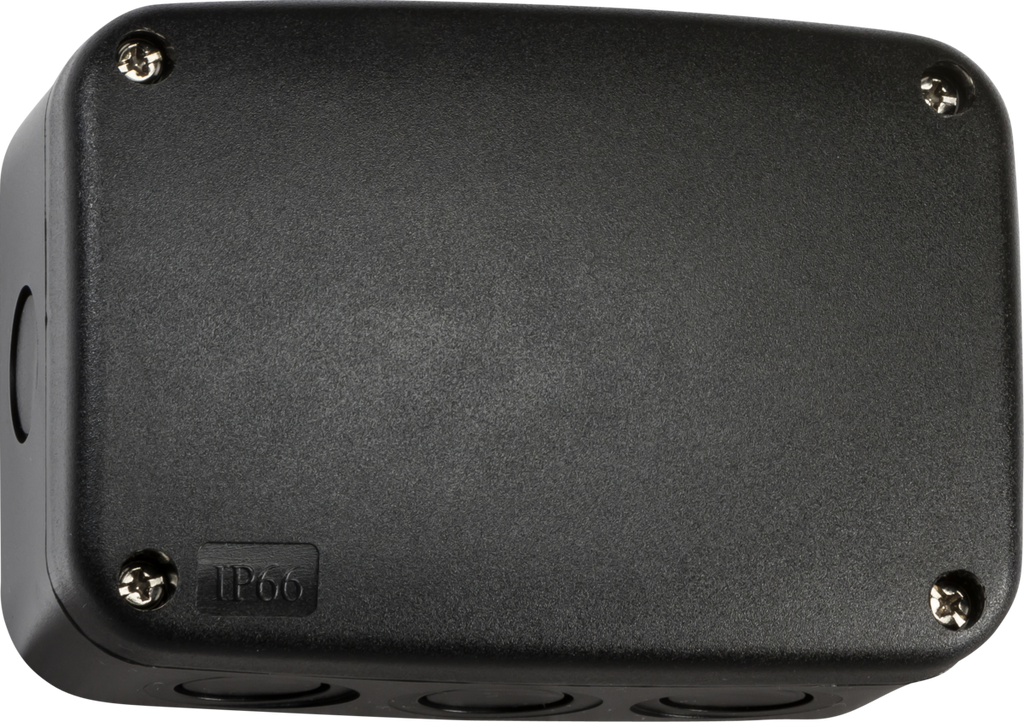

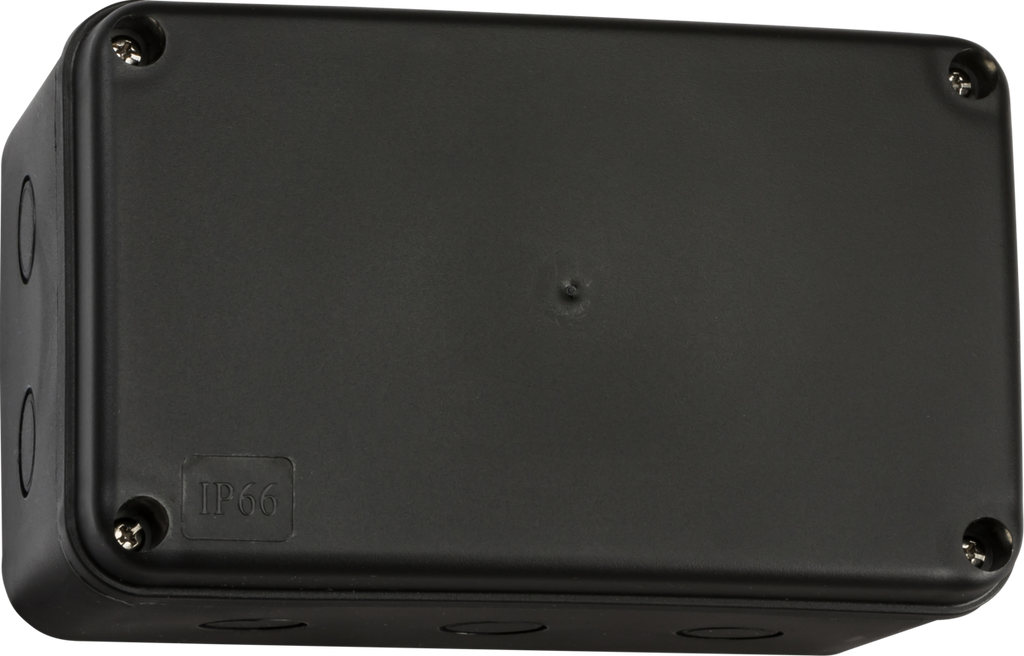

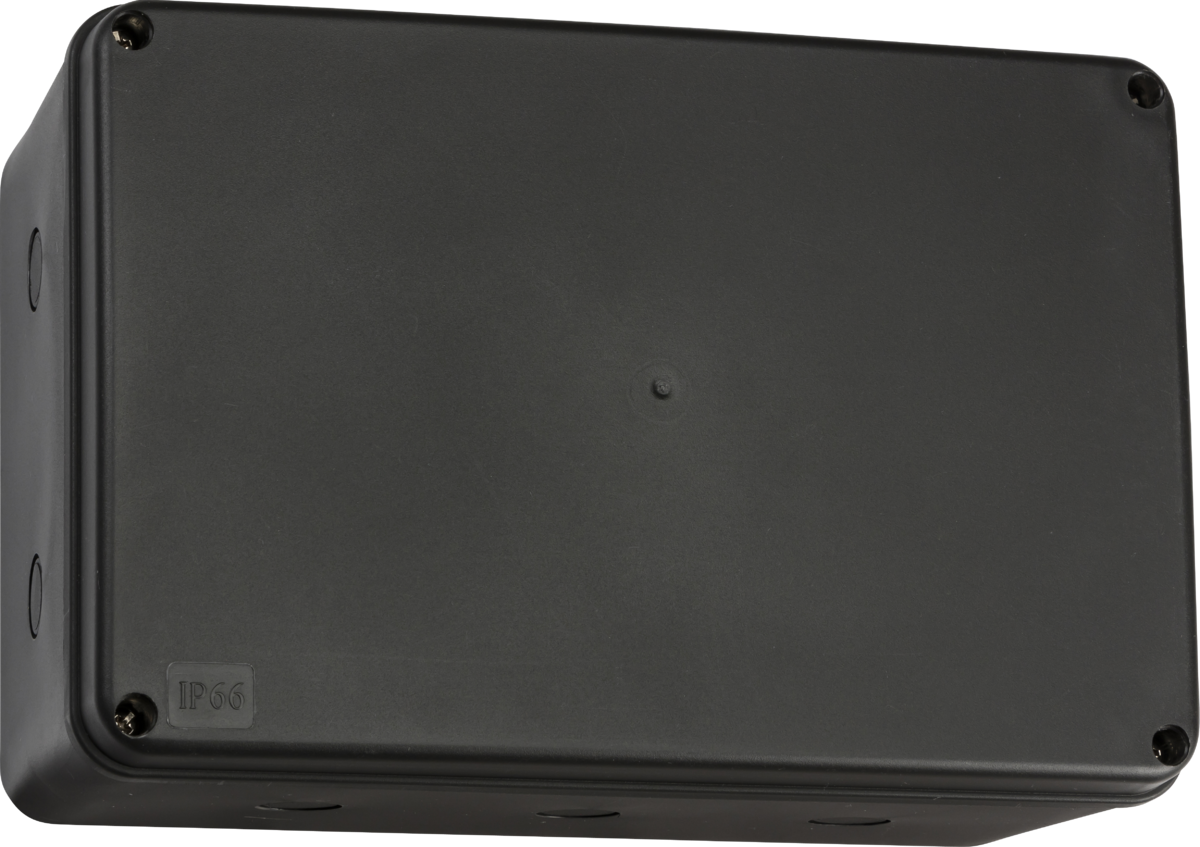

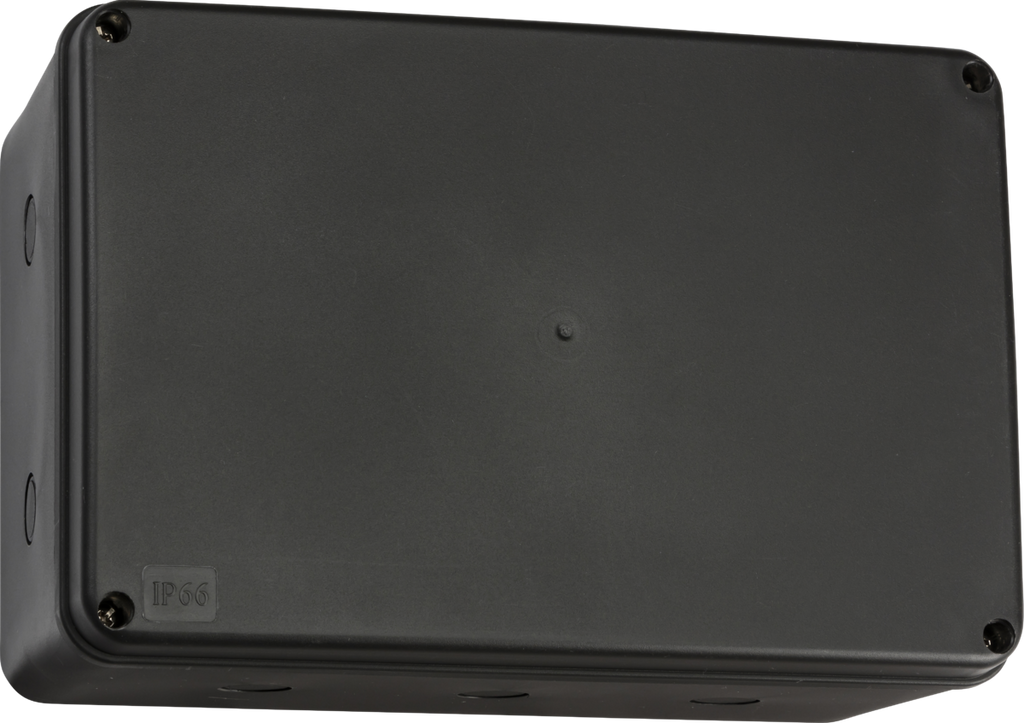

Keep outdoor connections protected—whatever the weather. Our IP66-rated black polycarbonate electrical enclosures deliver reliable waterproof and dust-tight performance for exterior lighting, CCTV, and general electrics. Built to IK06 impact and Class II standards and manufactured in accordance with BS EN 62208, they’re a tough, professional choice with a clean, discreet look.

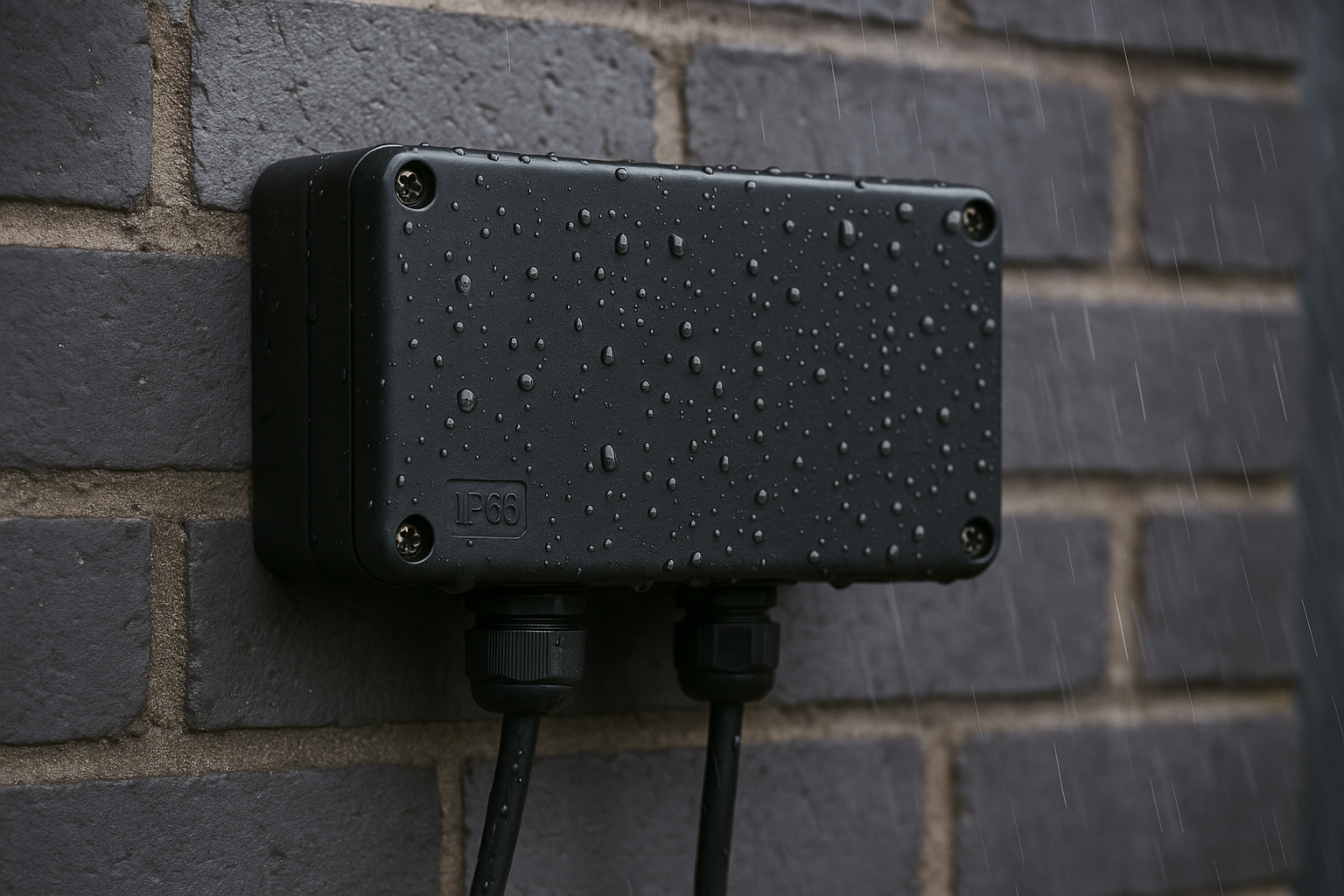

- IP66 weatherproof – sealed against powerful water jets & dust
- IK06 impact resistance – durable polycarbonate construction
- Class II double insulation – enhanced electrical safety
- 20 mm cable entries – multiple knockouts for flexible installs
- 2-year warranty – quality backed
- Finish: Black
- Declaration of Conformity: Held on file
- Origin: China
Choose Your Size
Available in four sizes to suit anything from compact connections to larger control gear. Dimensions are external.
| Size | Part Code | Height (mm) | Width (mm) | Projection (mm) | Cable Entries | Net Weight (kg) | EAN |
|---|---|---|---|---|---|---|---|

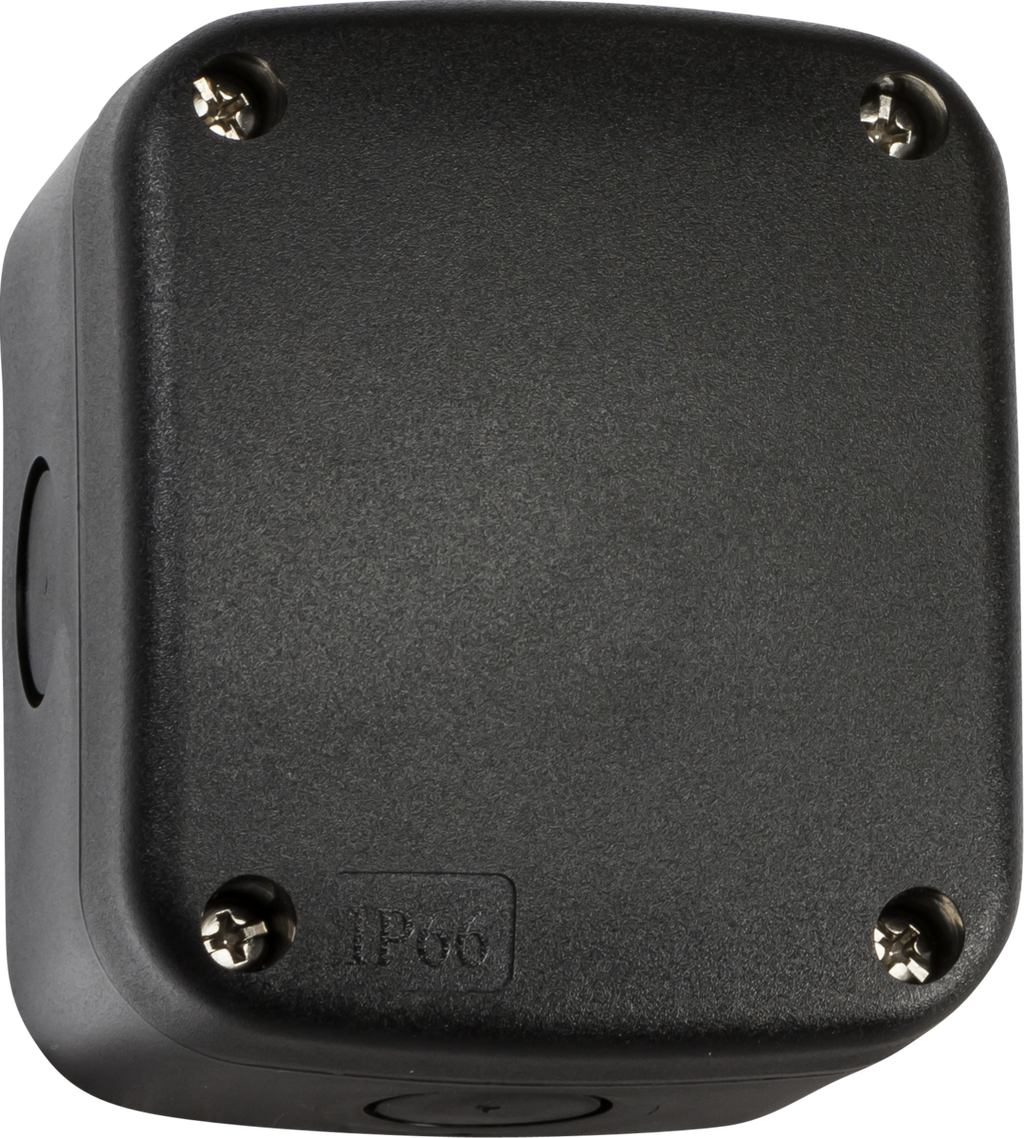

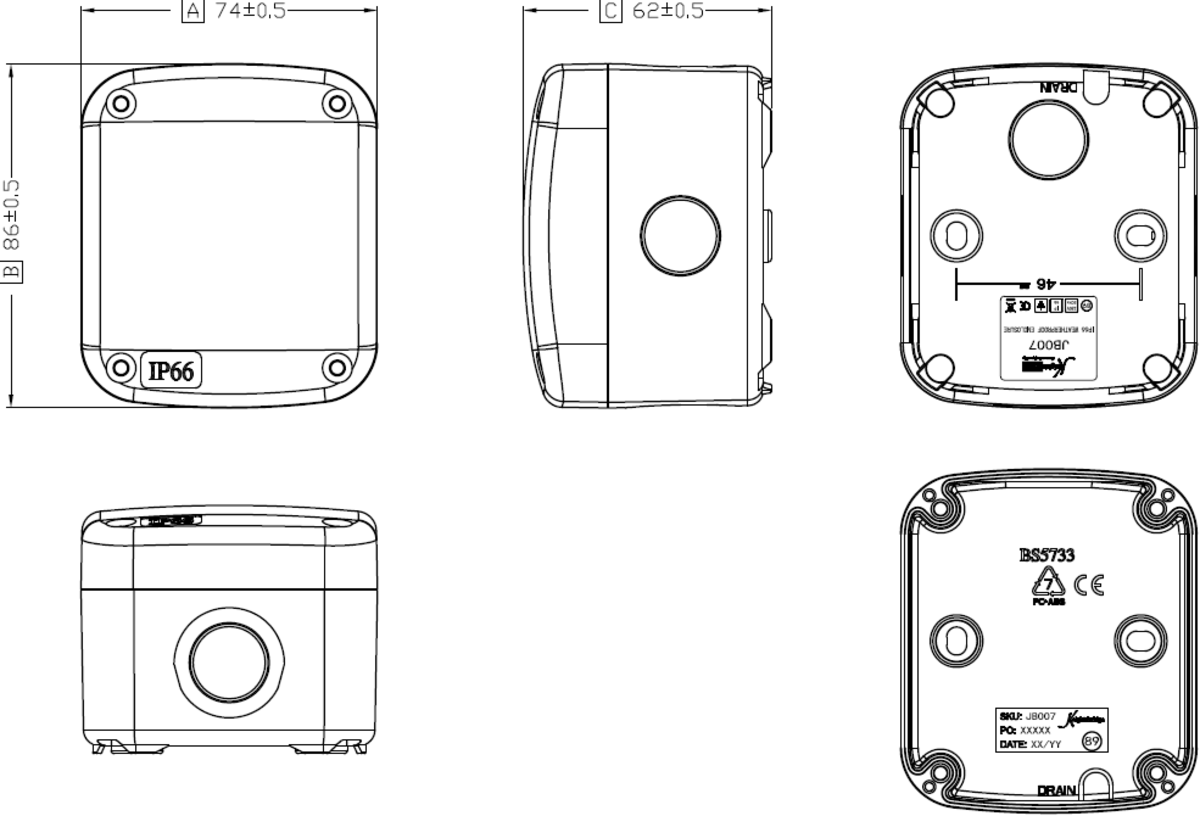

| Small | JB007BK | 86 | 74 | 62 | 5 × 20 mm | 0.095 | 5056270807318 |

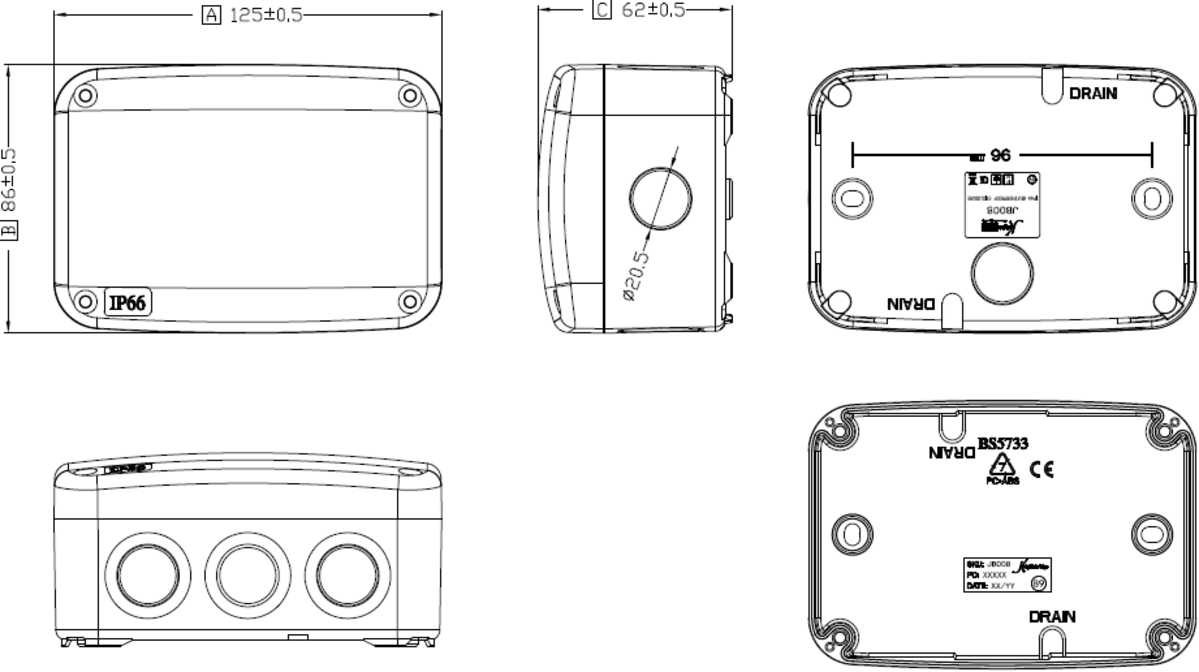

| Medium | JB008BK | 86 | 125 | 62 | 9 × 20 mm | 0.134 | 5056270807325 |
| Large | JB009BK | 111 | 181 | 100 | 10 × 20 mm | 0.22 | 5056270807332 |

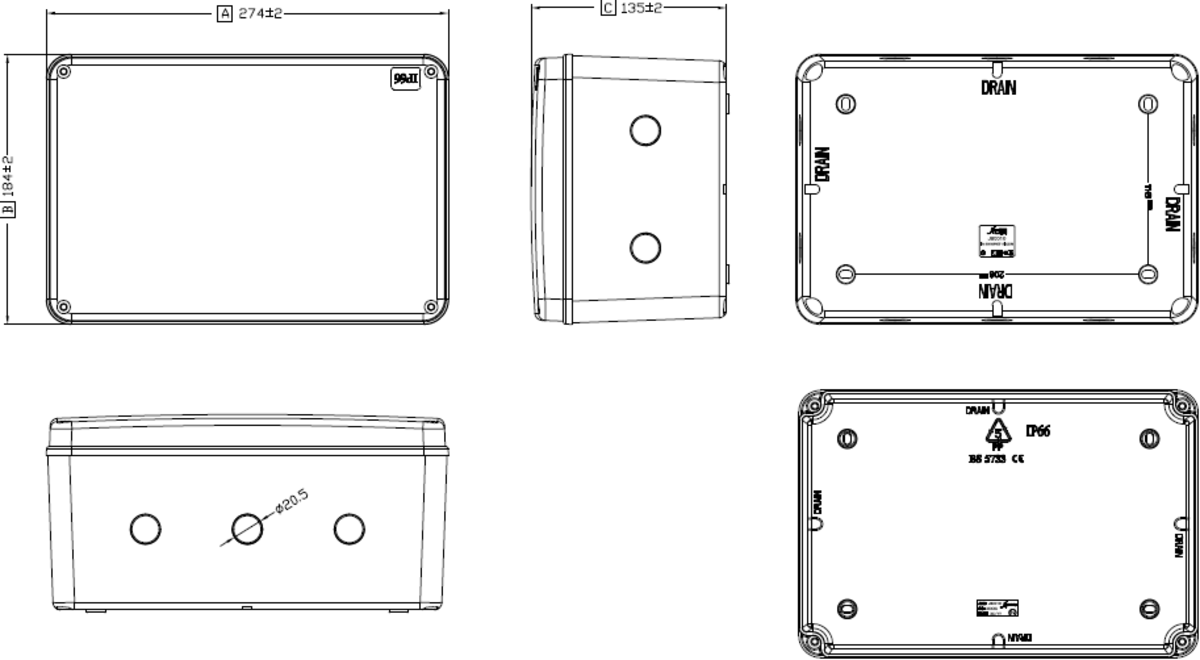

| X-Large | JB0010BK | 184 | 274 | 135 | 10 × 20 mm | 0.51 | 5056270807349 |
Technical Summary
- Construction: Polycarbonate
- Class: II
- IP Rating: IP66
- IK Rating: IK06
- Manufactured to: BS EN 62208
- Finish: Black
- Brand/Source: ML Accessories (mlaccessories.co.uk)
Ideal For

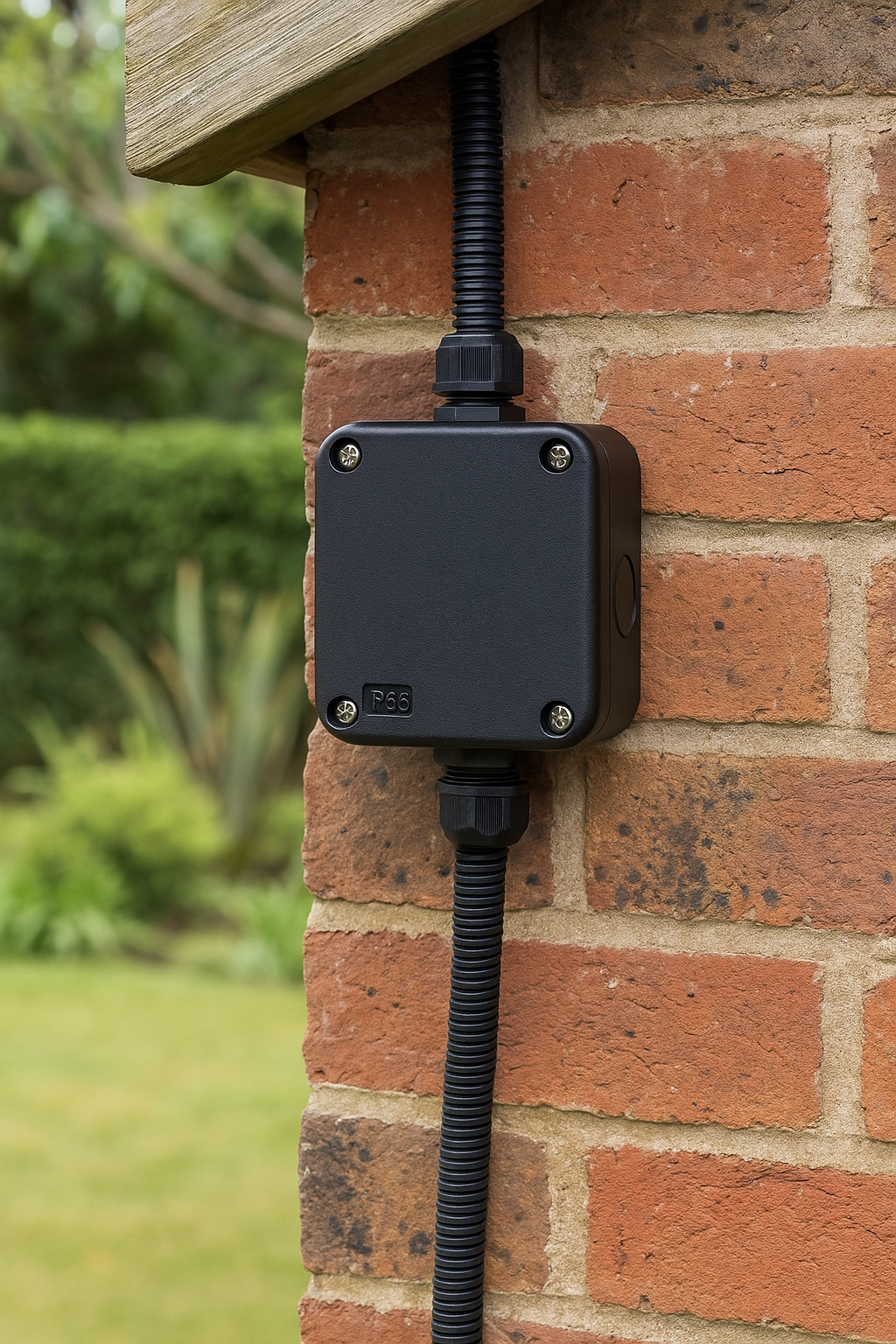

- Garden & driveway lighting junctions
- CCTV camera and security connections

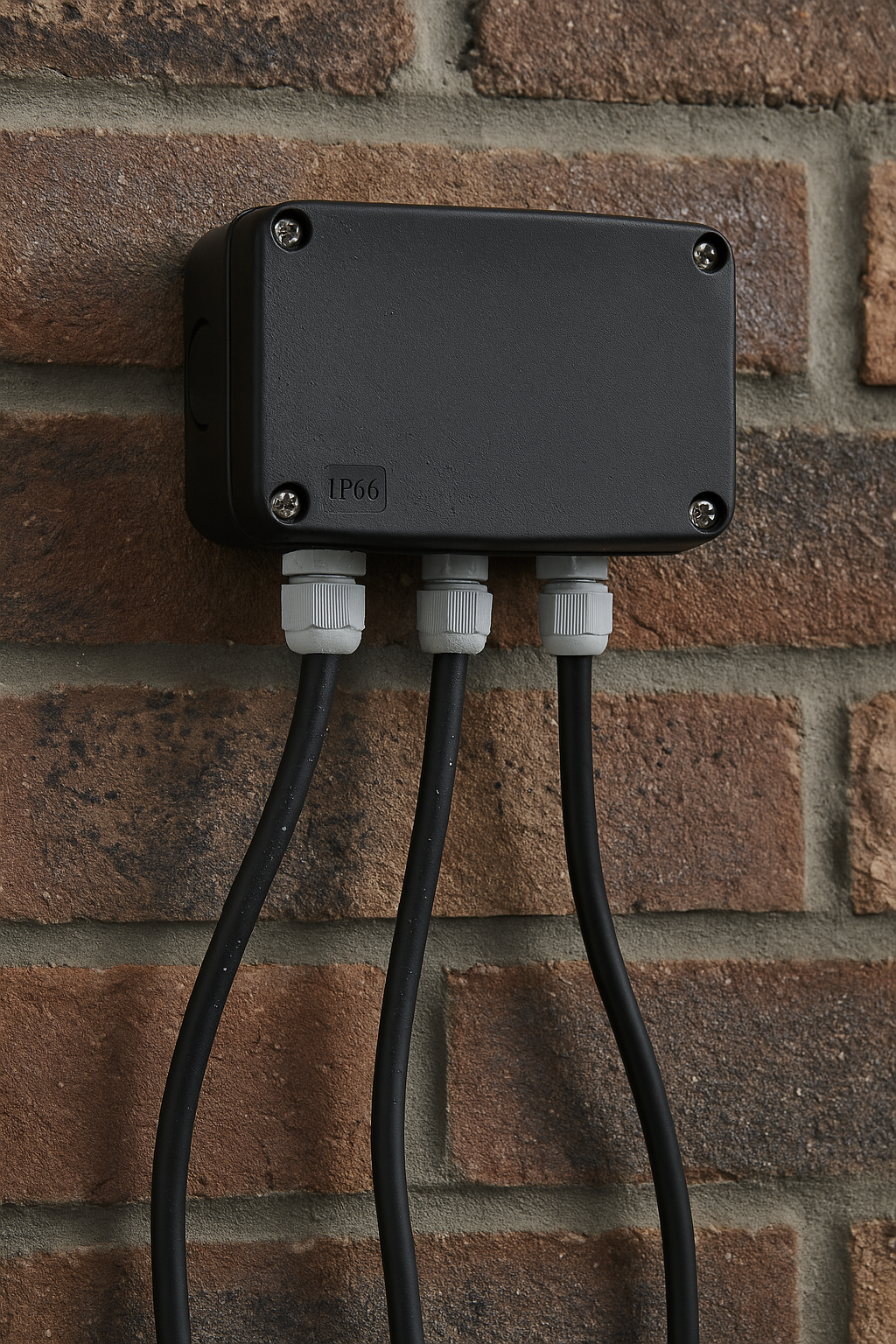

- Outdoor sockets, gates, signage & general electrics
What’s in the Box
1 × IP66 enclosure (size as selected). Cable glands, grommets or accessories supplied separately unless stated.
Installation

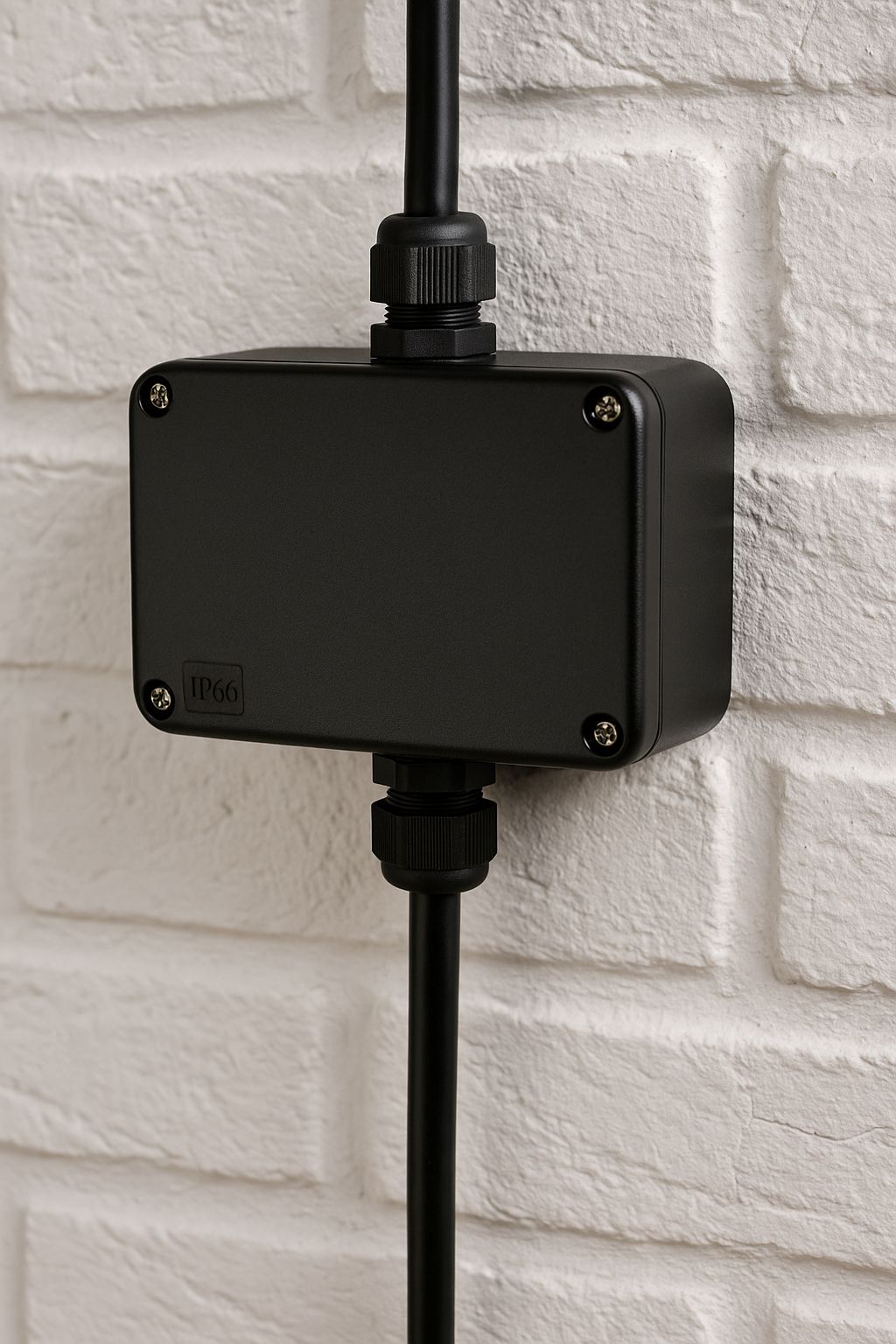

For professional results, mount to a flat surface, use appropriate 20 mm glands/seals, and ensure gasket integrity to maintain IP66. Always follow local wiring regulations; installation by a competent person is recommended.
Warranty
2-year manufacturer warranty.
