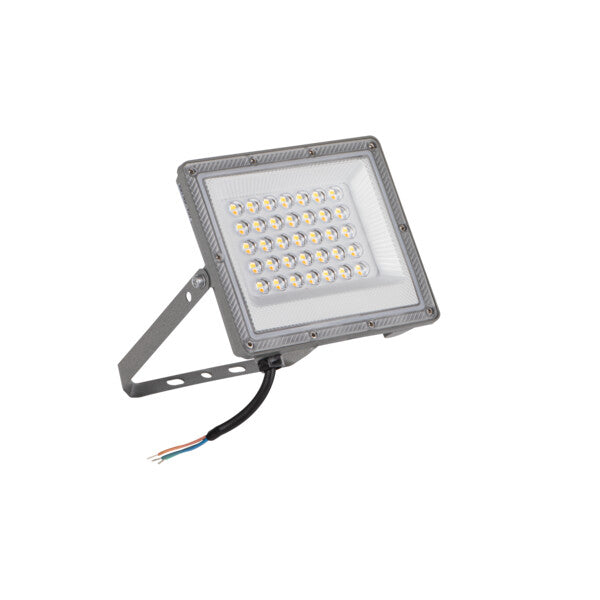

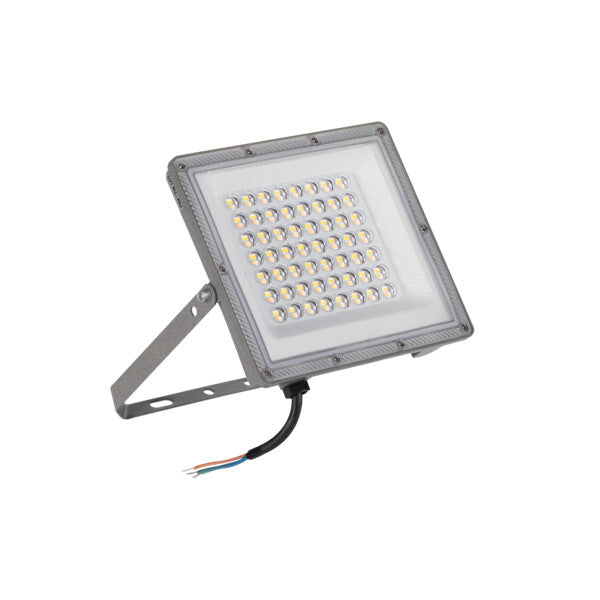

Description

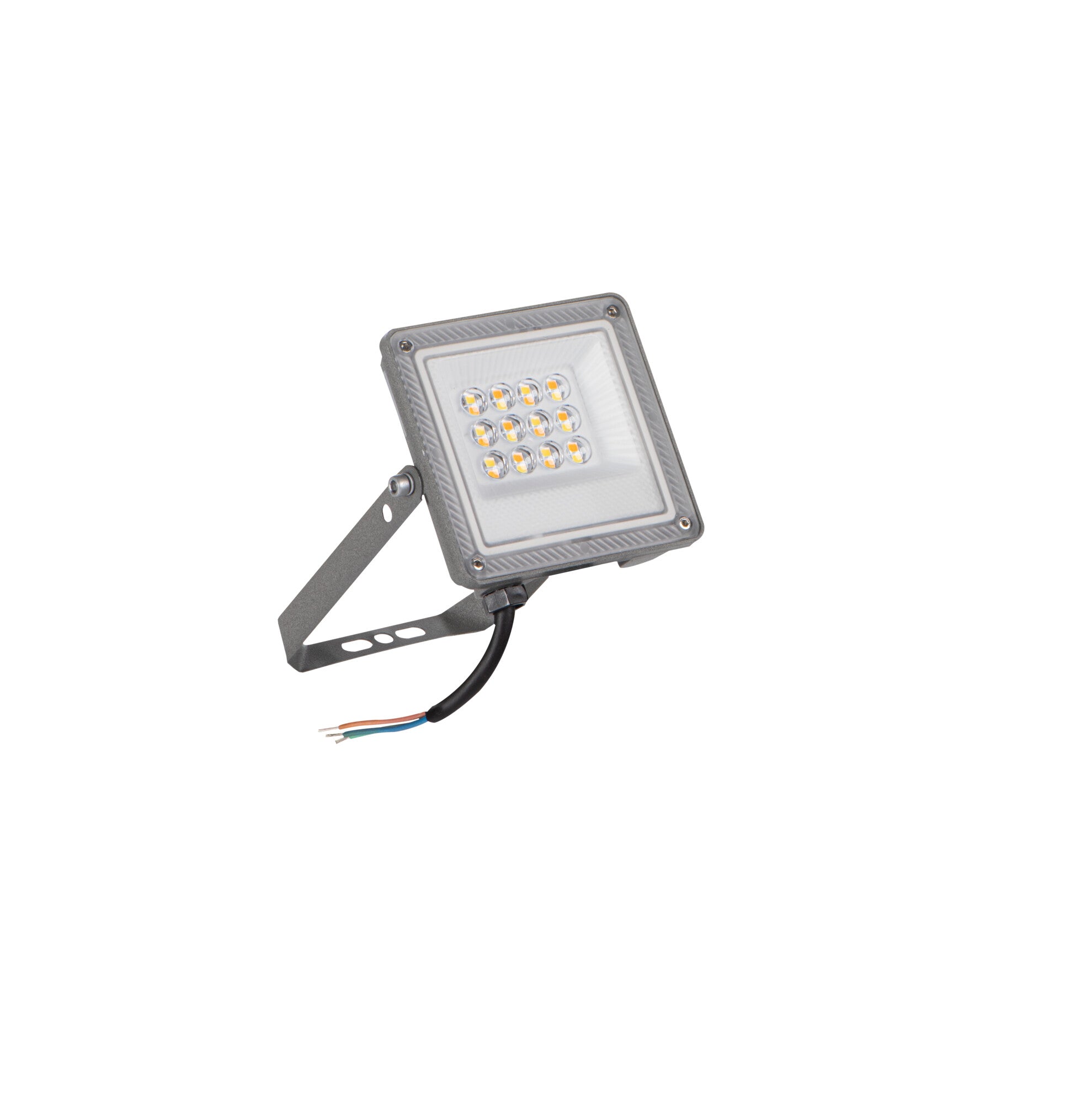

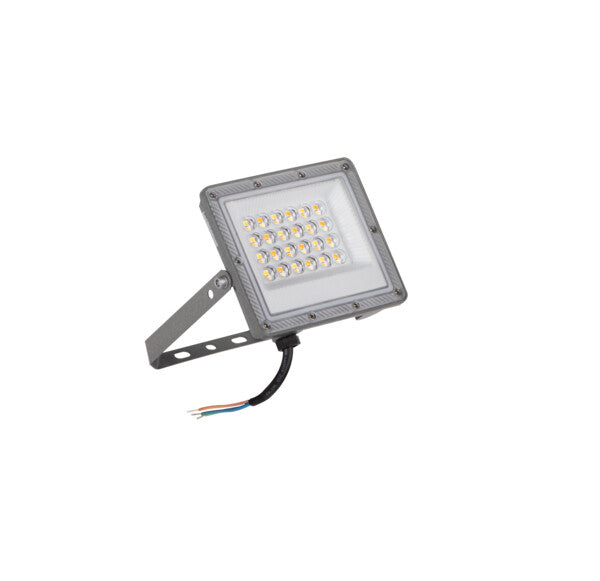

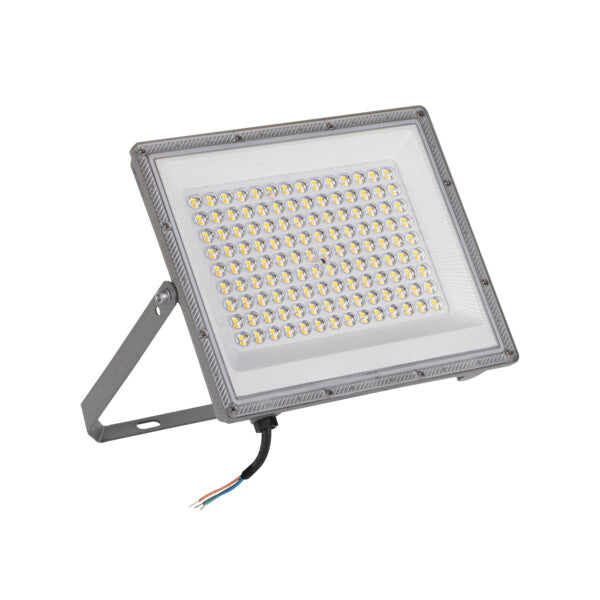

The Kanlux ACETE Series is designed for both residential and commercial use, offering a modern and energy-efficient lighting solution with flexible options for various needs. Here’s an updated and detailed overview of the features, specifications, and benefits for the Kanlux ACETE CCT Series:
Key Features:

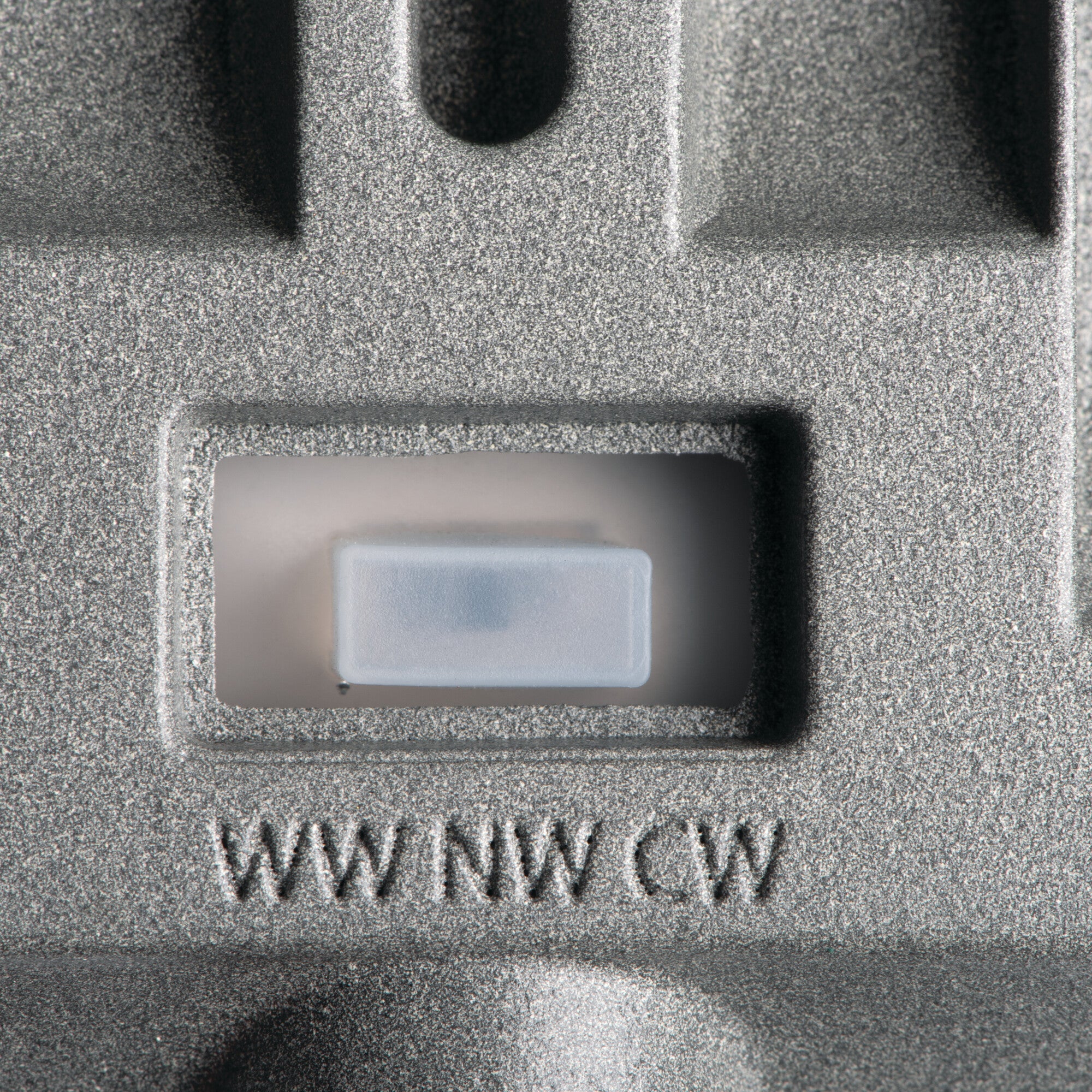

Adjustable Color Temperature (CCT):
3000K (Warm White), 4000K (White), and 6500K (Cold White) options allow for customization based on your lighting requirements and ambiance preferences.
Multiple Power Options:
Available in 5 different power ratings: 10W, 20W, 30W, 50W, and 100W, providing versatility to suit various application sizes, from small areas to large spaces.

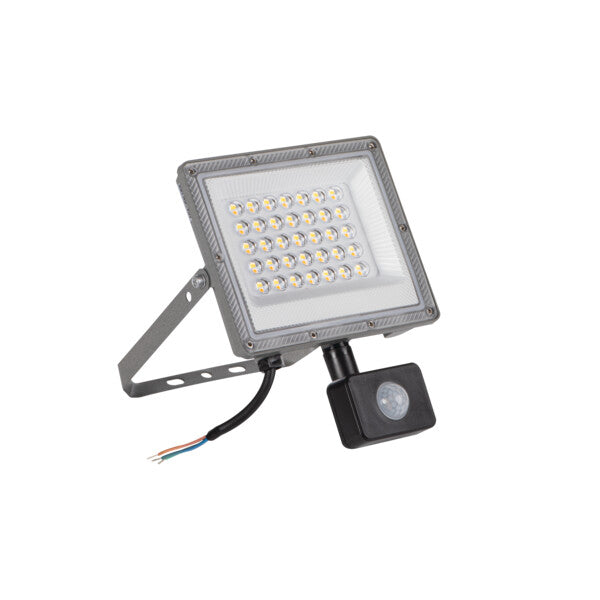

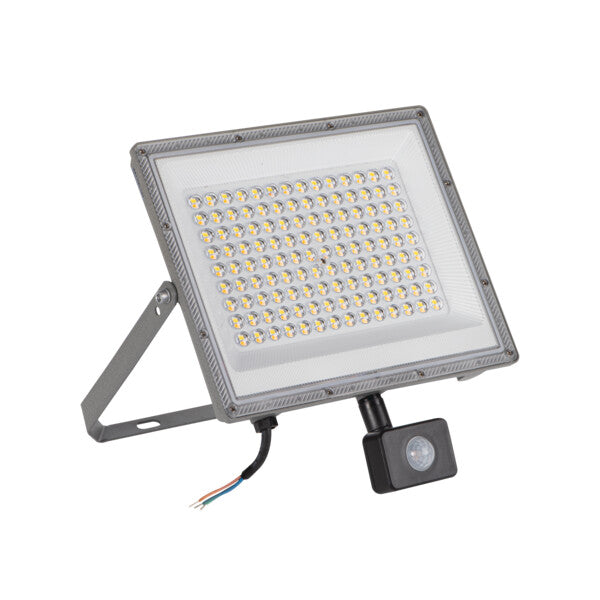

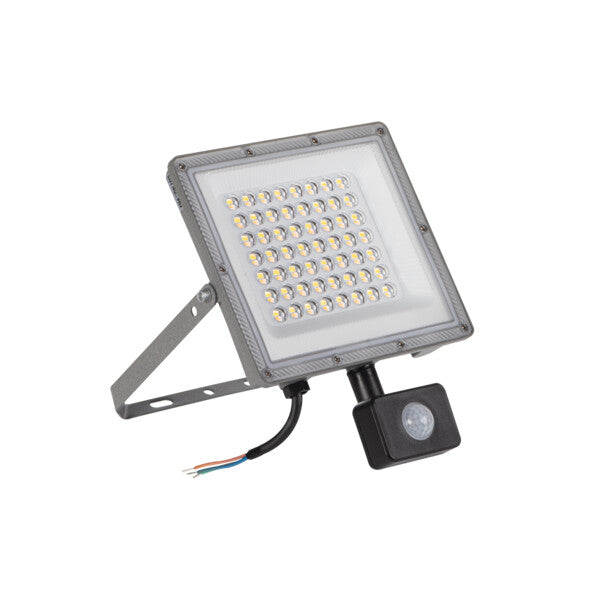

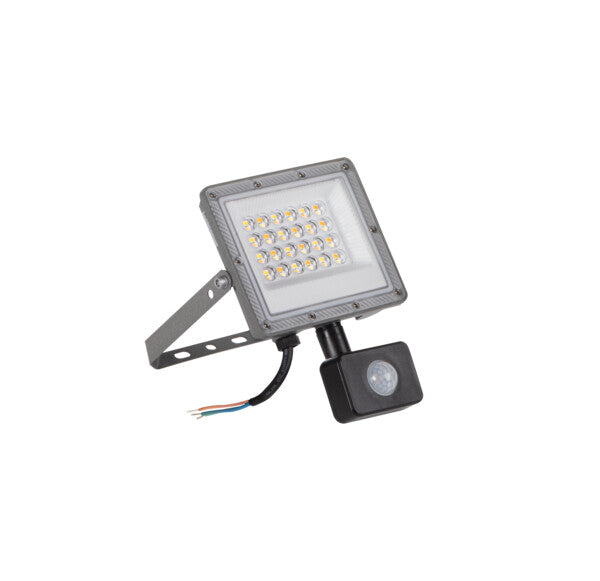

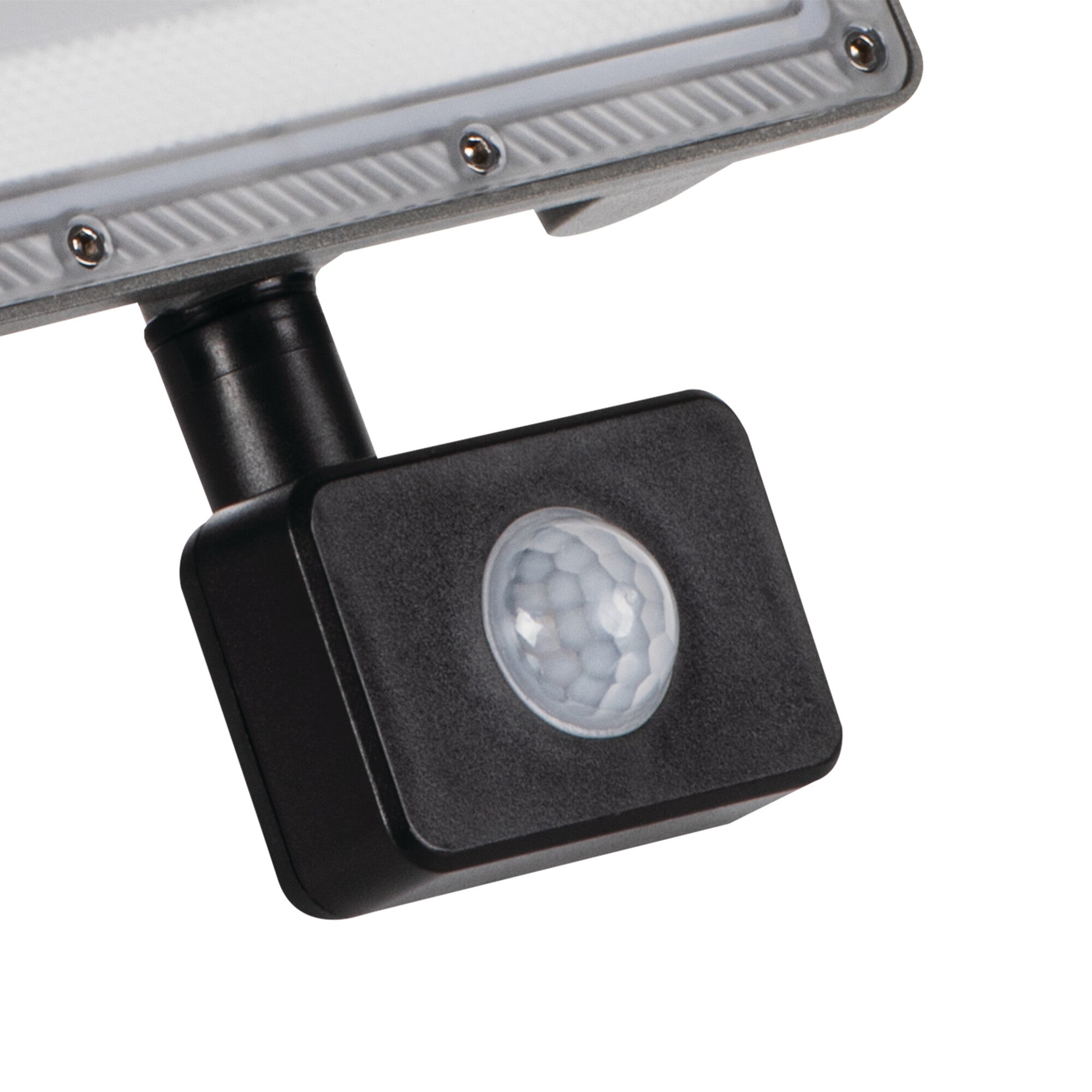

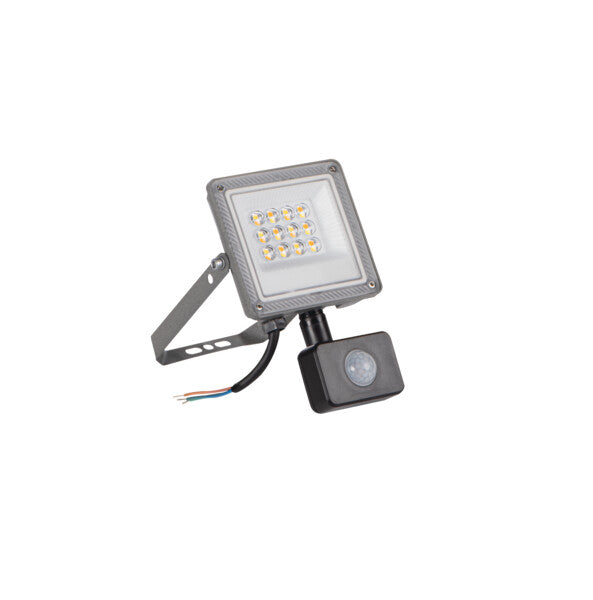

PIR Motion Sensor Version (Optional):
Some models come with an integrated PIR motion sensor, which allows for automatic detection of movement. You can also adjust:
Lighting time
Light intensity
Detection area
Sensor Range: Max 6 meters.
Sensor Working Angle: 120°.
Sensitivity Regulation: Adjustable from 5-2000 lux.
Energy Efficiency:
Luminous Efficiency: 100 lm/W, ensuring low energy consumption while providing effective lighting.
Energy class F.
Durable Construction:
Enclosure: Aluminum Alloy for robust protection against harsh conditions.
Lampshade: PC (Polycarbonate), ensuring excellent light diffusion and weather resistance.

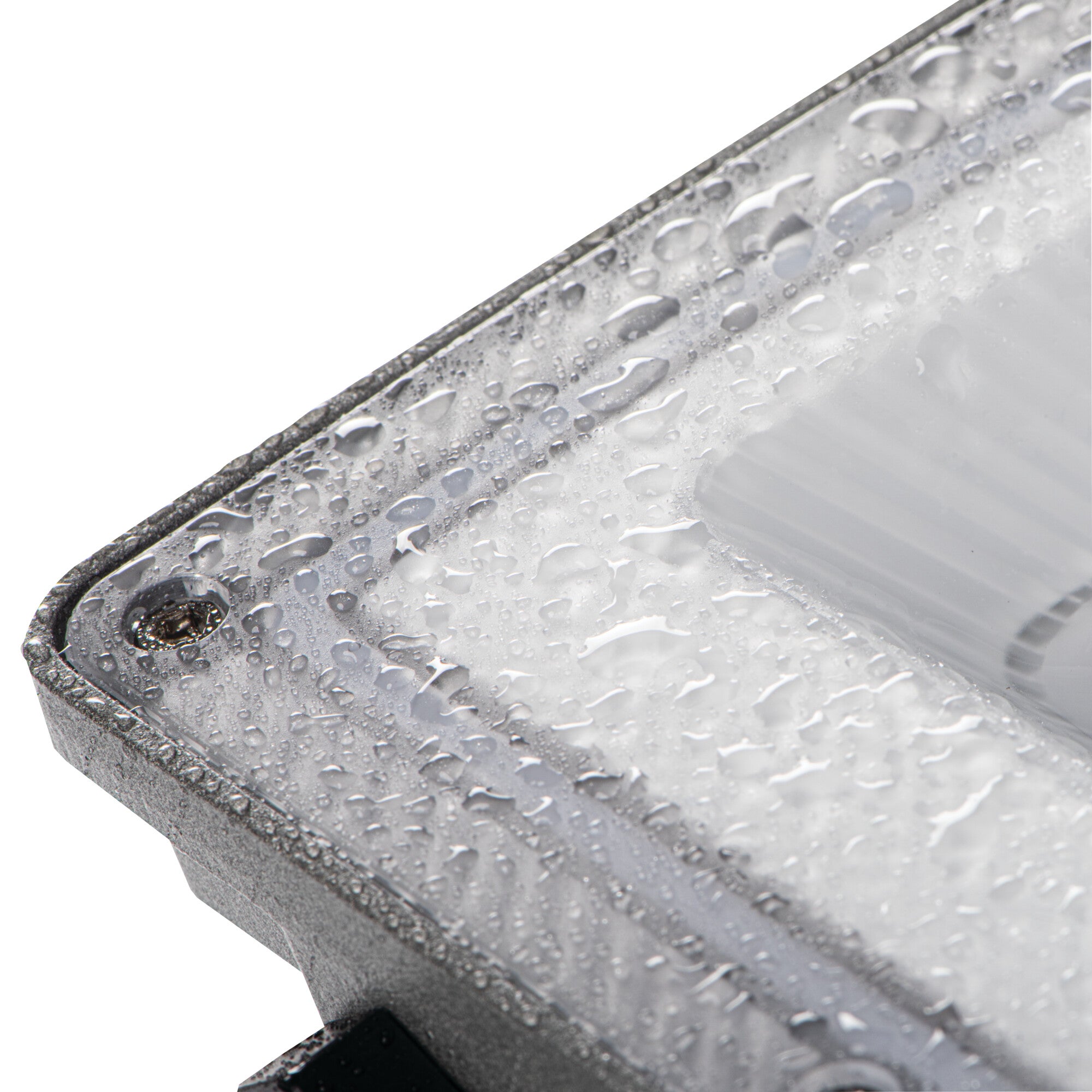

IP Rating:
IP65: For versions without PIR sensor, offering complete dust protection and protection against low-pressure water jets.
IP44: For PIR sensor versions, ensuring basic protection from splashing water.
Wide Light Dispersion: Beam Angle: 90°, ensuring wide and even light coverage for large areas.
Symmetrical Reflector type for consistent lighting distribution.

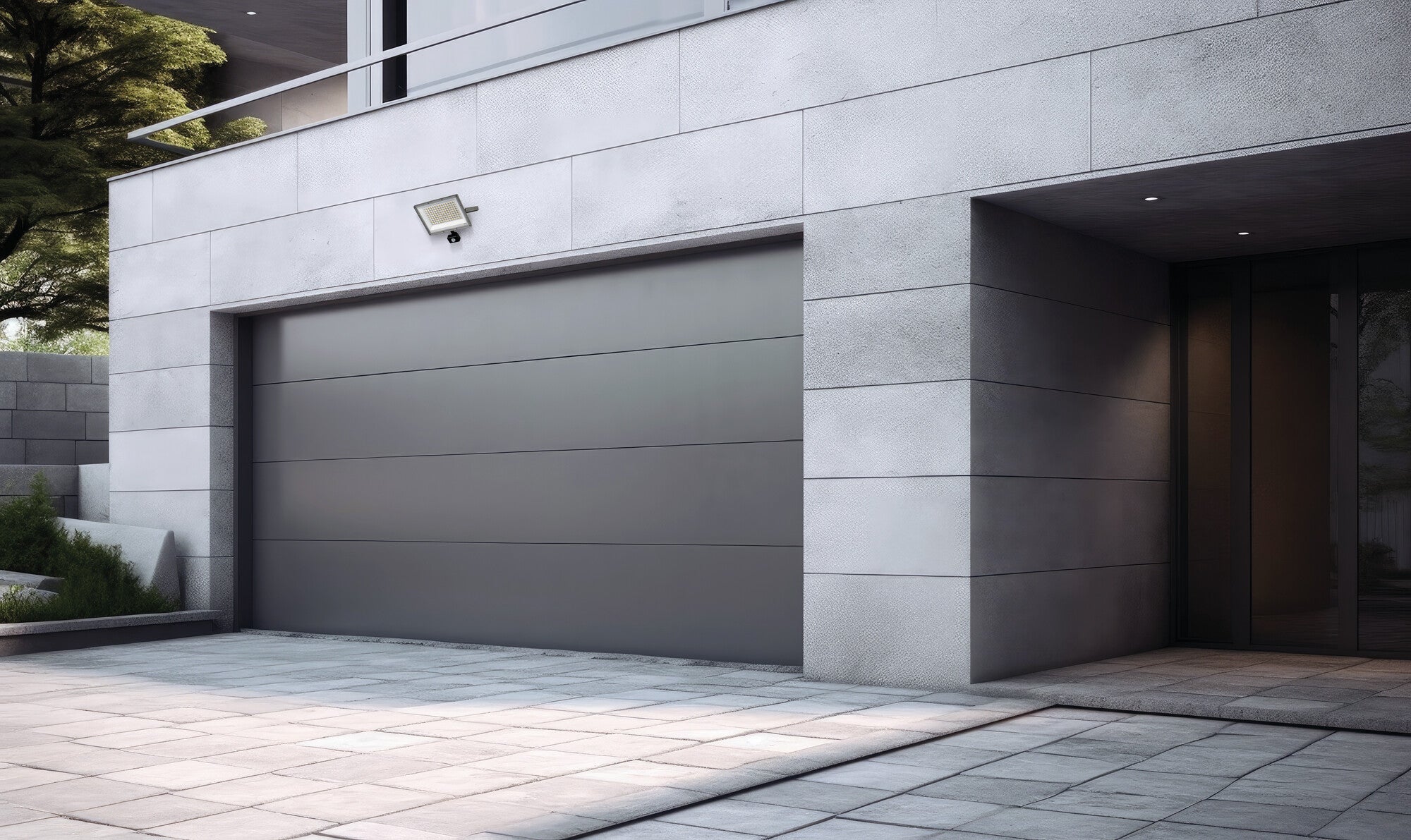

Versatile Mounting:Can be installed on either walls or ceilings.

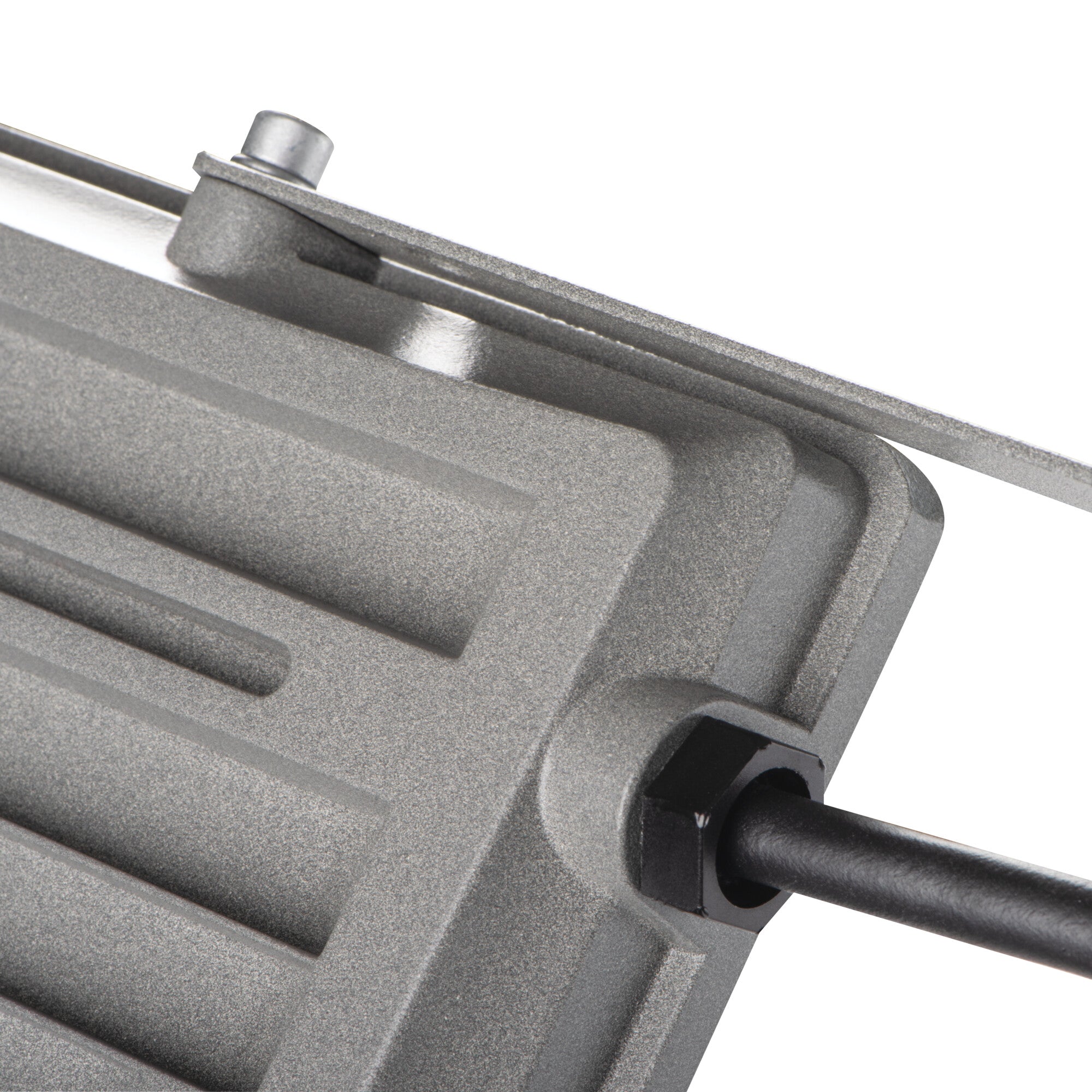

180° adjustable fixture allows for precise light direction control.
Long Lifespan: Service Life: 25,000 hours, reducing maintenance and replacement costs.
No Mercury Content:The floodlights are environmentally friendly with no mercury, supporting green energy initiatives.
Quick Installation: Connection Cable Length: 20 cm, making it easier to install the fixture at the desired location.
Warranty: 2-year warranty for peace of mind.
Specifications
| Brand | Kanlux |
|---|---|
| SKU |
38495, 38495,38496,38496,38497, 38497,38498,38498,38499,38499 |
| Height (mm) |
10W =191, 20W =198, 30W =220, 50W =250, 100W = 304 |
| Width (mm) |
10W =120, 20W =143, 30W =171, 50W =194, 100W =275
|
| Material | Aluminum Alloy |
| Finish | Grey |
| IP Rating | IP65, IP44 |
| Voltage (V) | 220 |

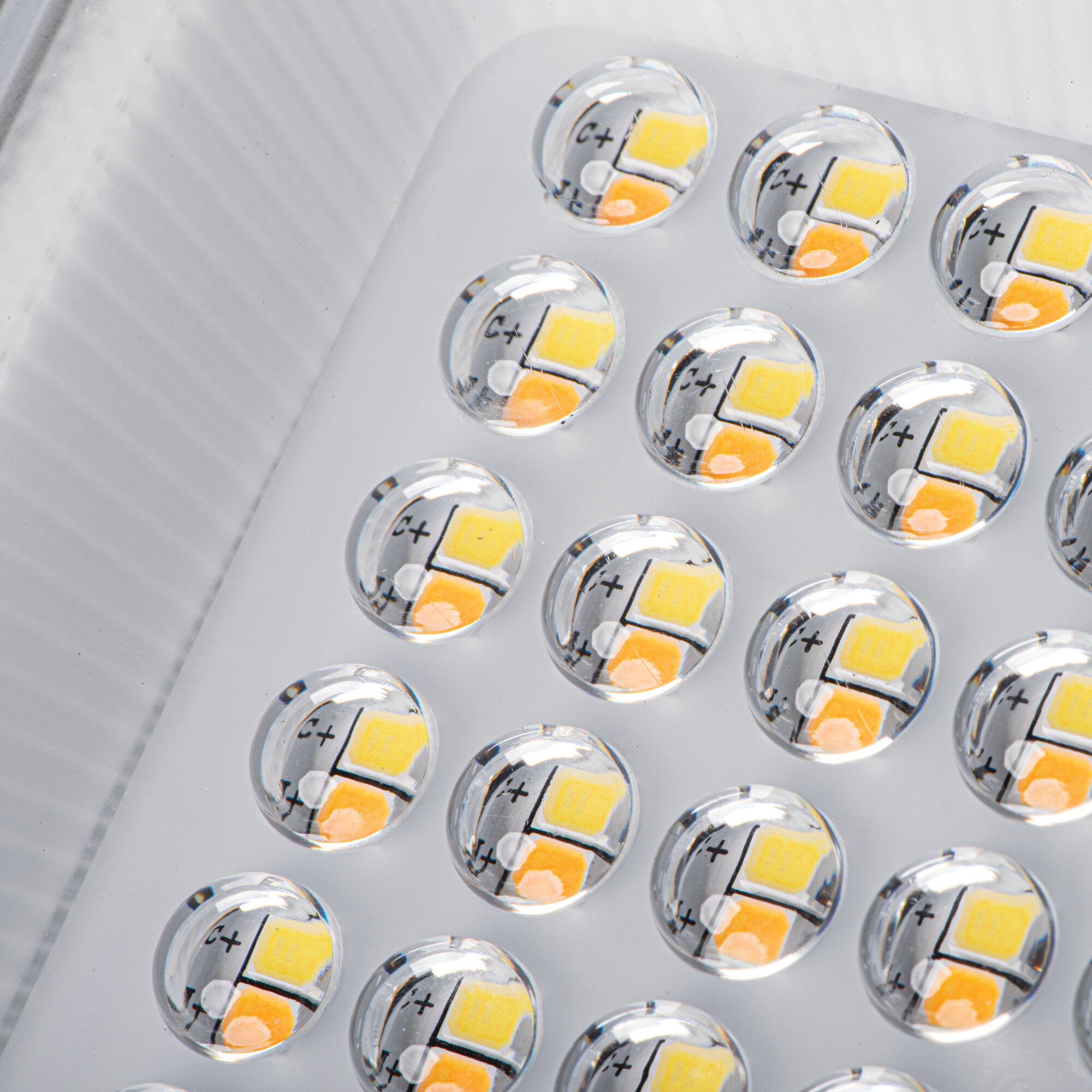

| LED Chip | SMD |
| Dimmable | No |
| Rated Life (Hours) | 25,000 |
| Beam Angle (°) | 90 |
| Colour Temperature (K) | 3000, 4000, 6500 |
| Light Colour | Warm White, Neutral White, Cool White |
| Lumens (lm) |
10W =860 / 1080 / 970, 20W =1600 / 2160 / 1940, 30W =2400 / 3240 / 2910, 50W =4300 / 5400 / 4850, 100W = 8500 / 10800 / 9700 |
| Wattage (W) | 10, 20, 30, 50, 100, |
| CRI | 80 |
| Place of application | Outdoors |
| EAN Code | 5905339384959 |
| Warranty (yr) | 2 |
