Description
Kanlux ATL4 3‑Circuit Track Lighting Kit (1–5 m)
A complete, configurable straight‑run track kit with adjustable Kanlux ATL4 GU10 spot heads. Choose a 1–5 m run in black or white with 2–10 heads, and add warm or cool GU10 lamps if needed.
- 3‑circuit (3‑phase) control – switch up to three lighting groups on one track.
- Precise aiming – each head rotates ~330° and tilts ~90°.
- GU10 replaceable – pick your beam, output and colour temperature.
- Commercial‑grade – robust aluminium spots, IP20, 220–240 V AC, Class I (earth).

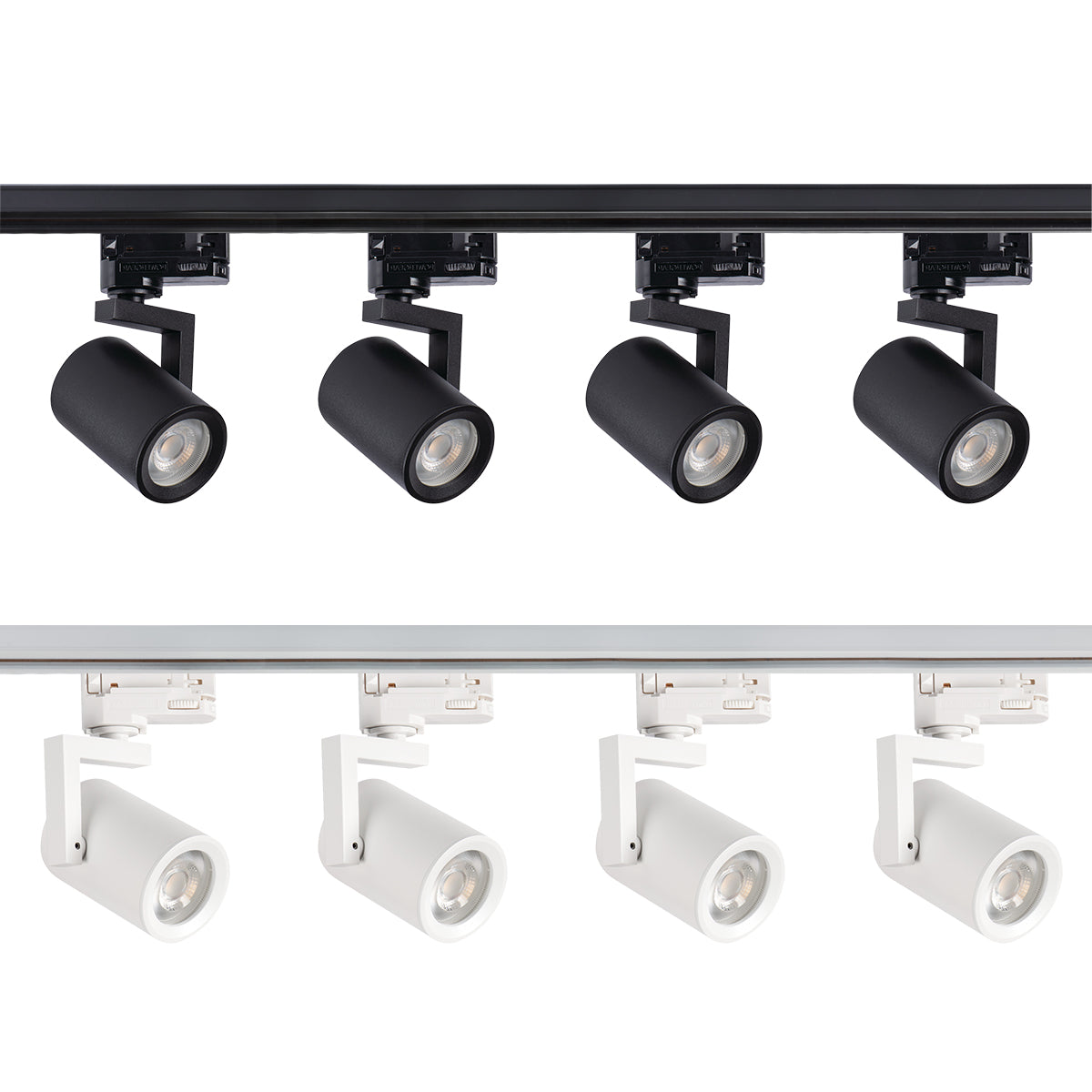

- Finish options – black or white to match your space.
Choose Your Kit
Select length and number of heads to suit your run. (Straight runs; add connectors for corners.)
| Track Length | Spot Heads (ATL4) | Use Case |
|---|---|---|

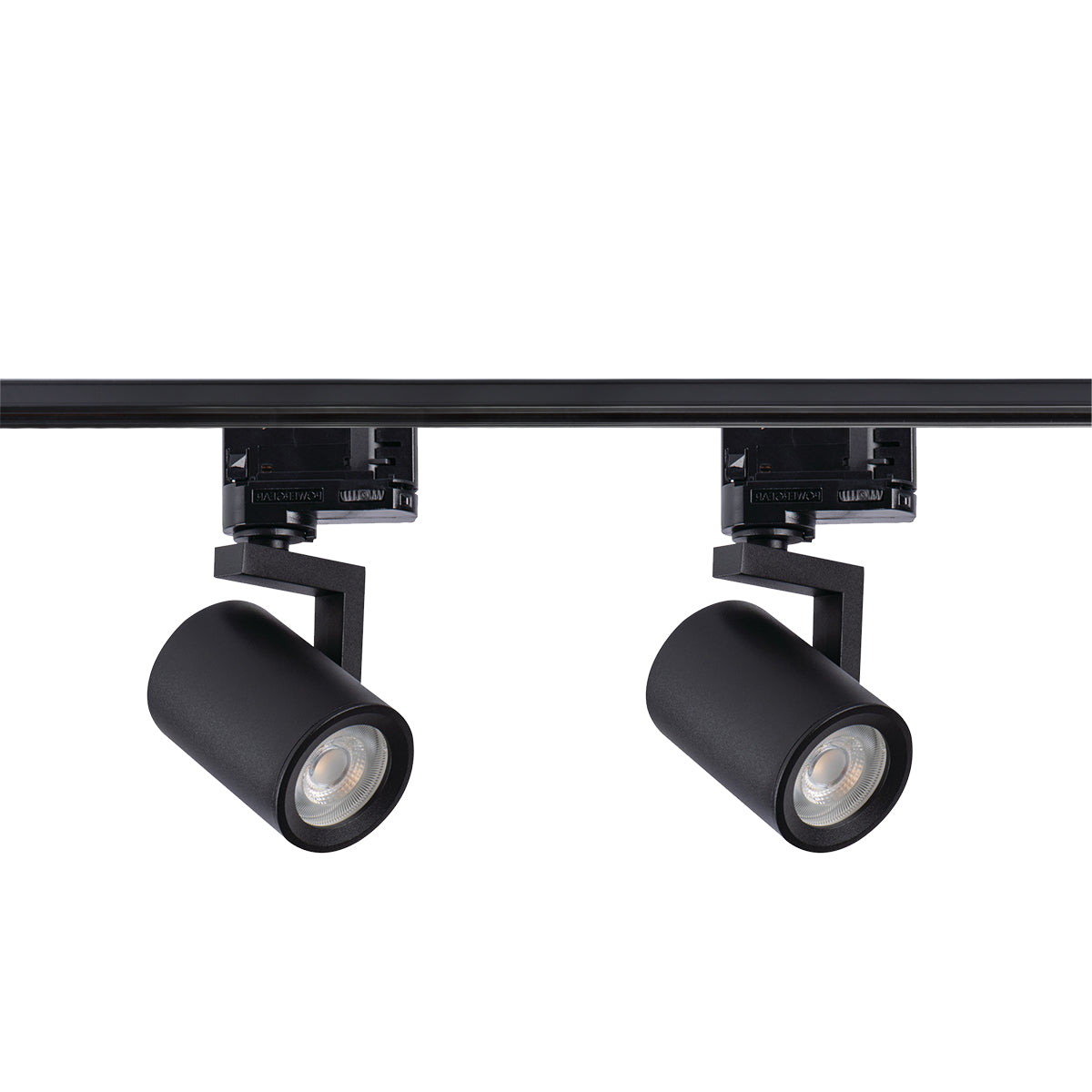

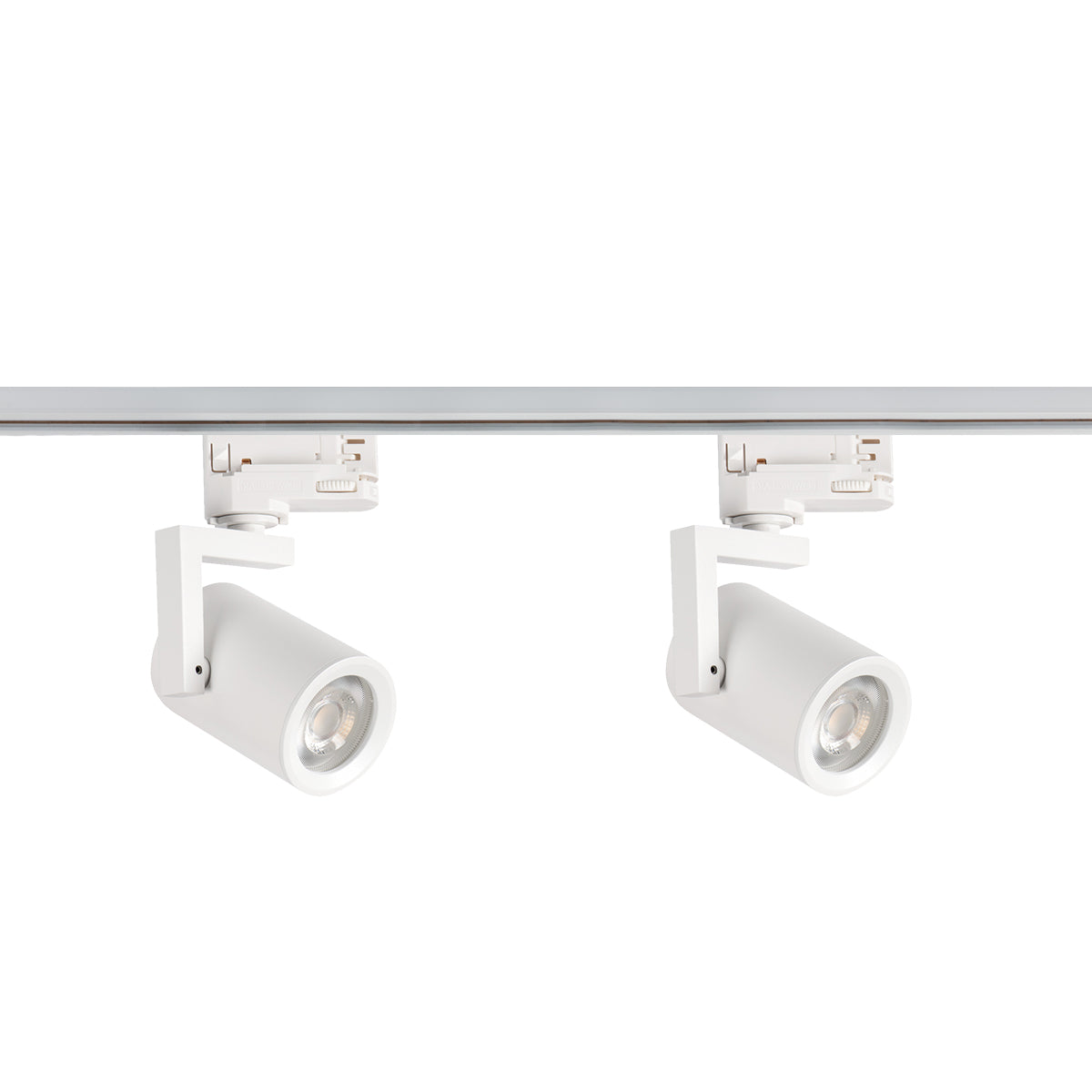

| 1 m | 2 heads | Small displays, short counters |

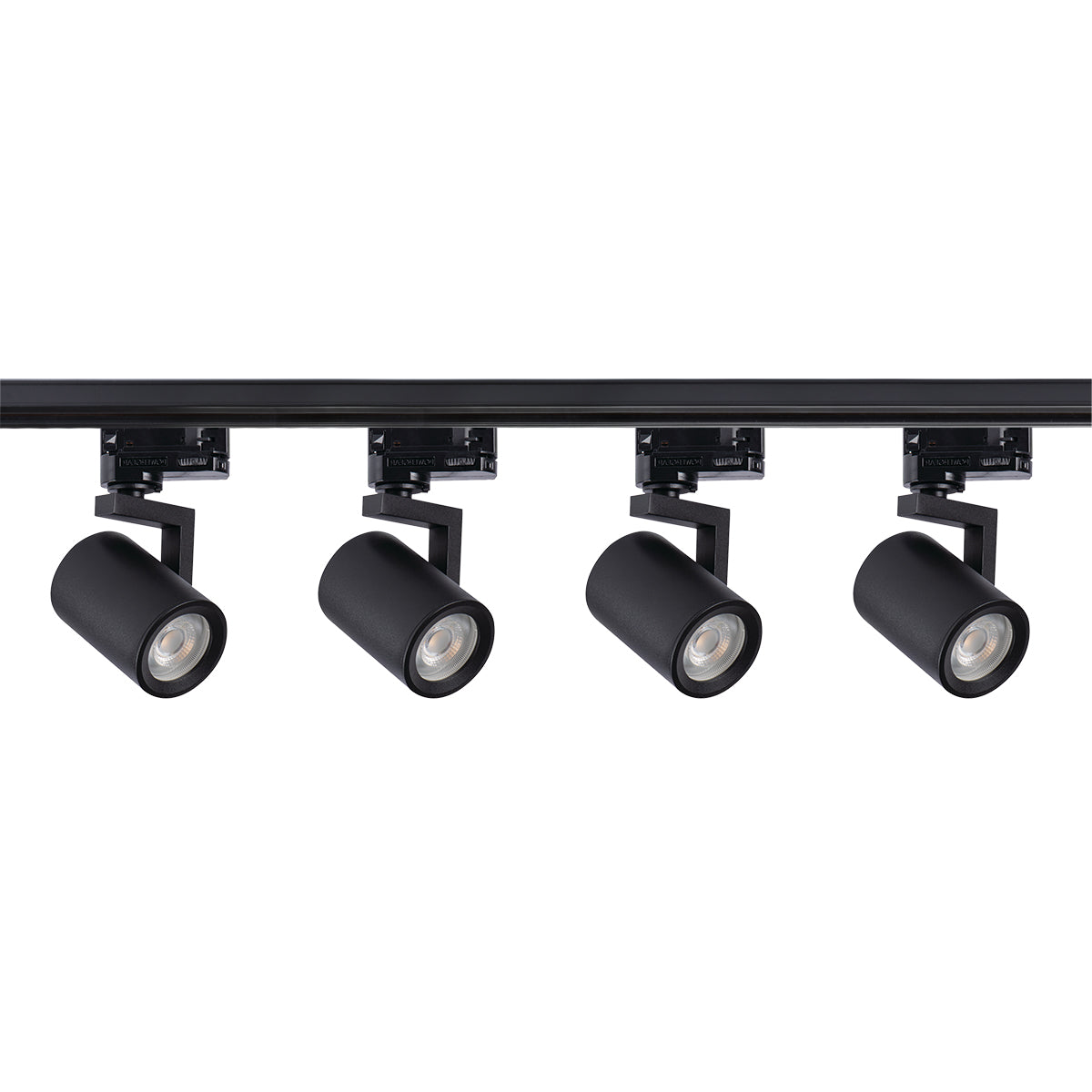

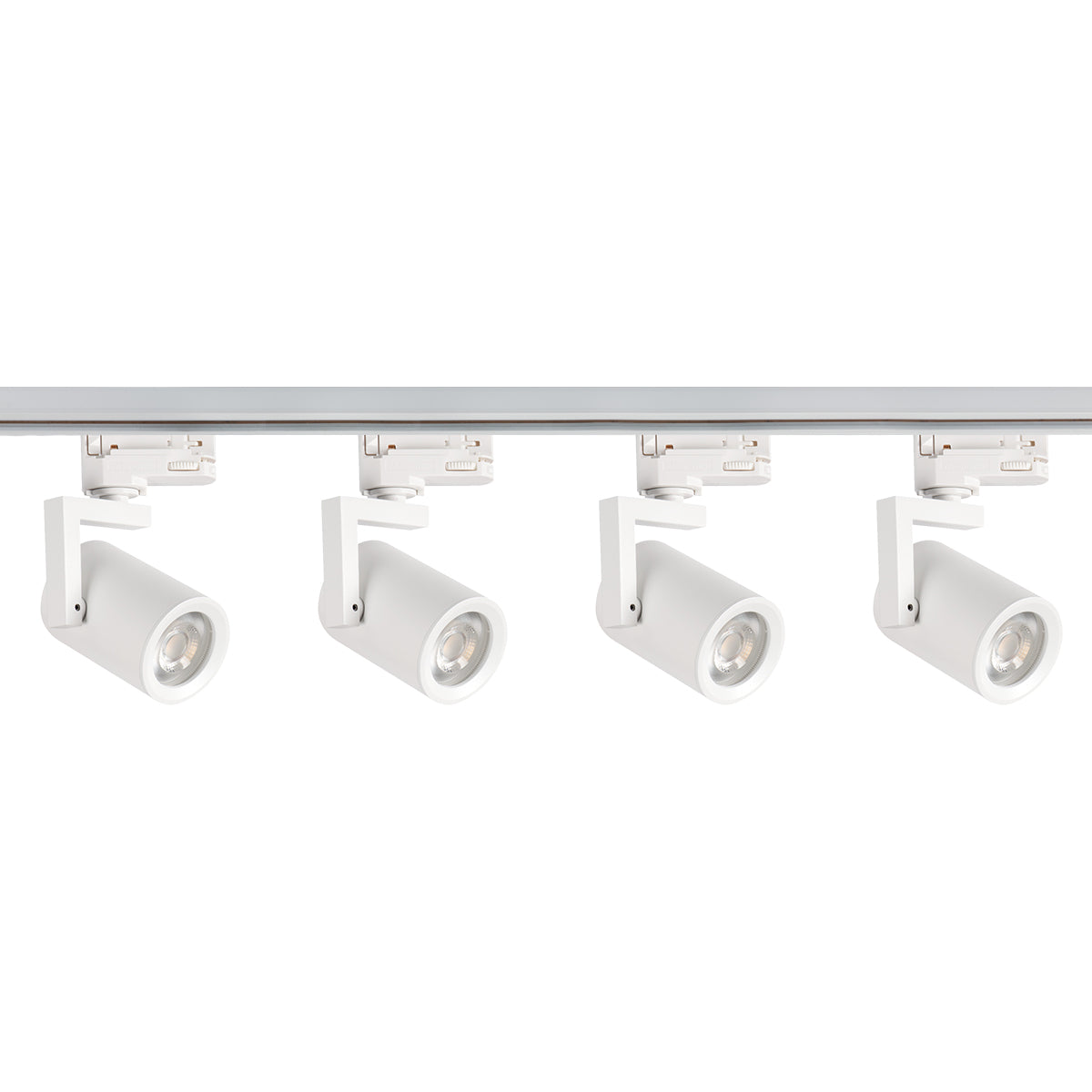

| 2 m | 4 heads | Retail shelves, galley kitchens |

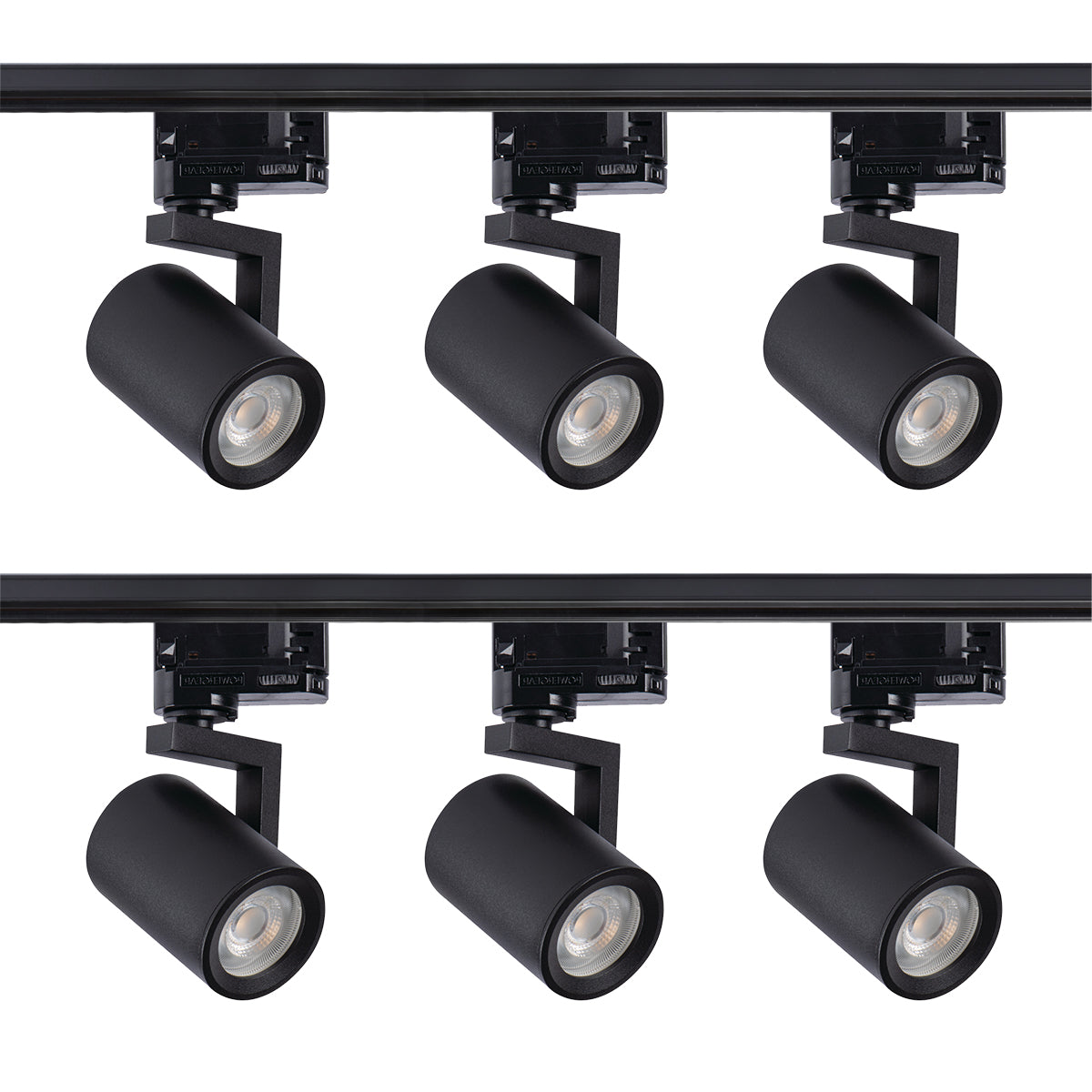

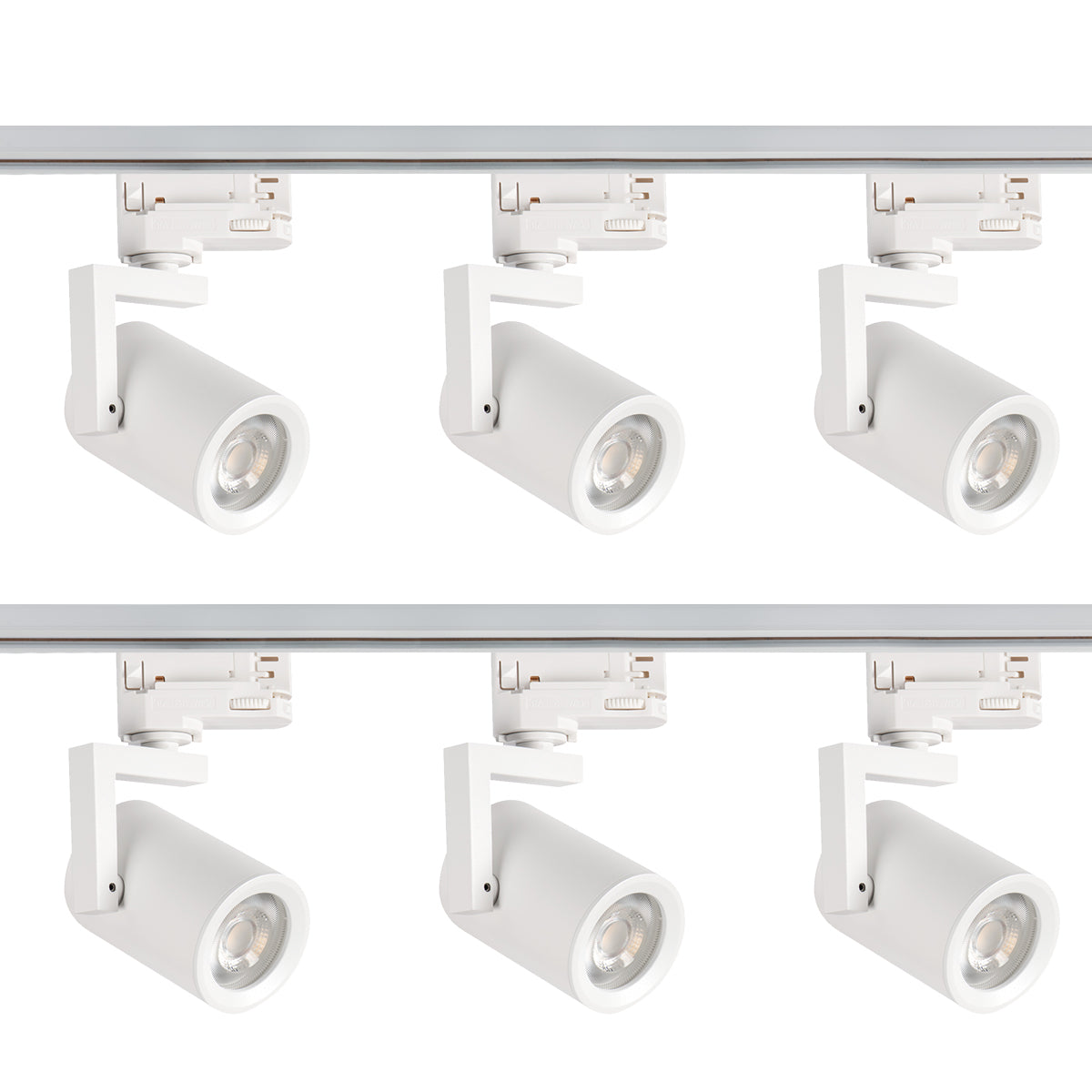

| 3 m | 6 heads | Islands, gallery walls |

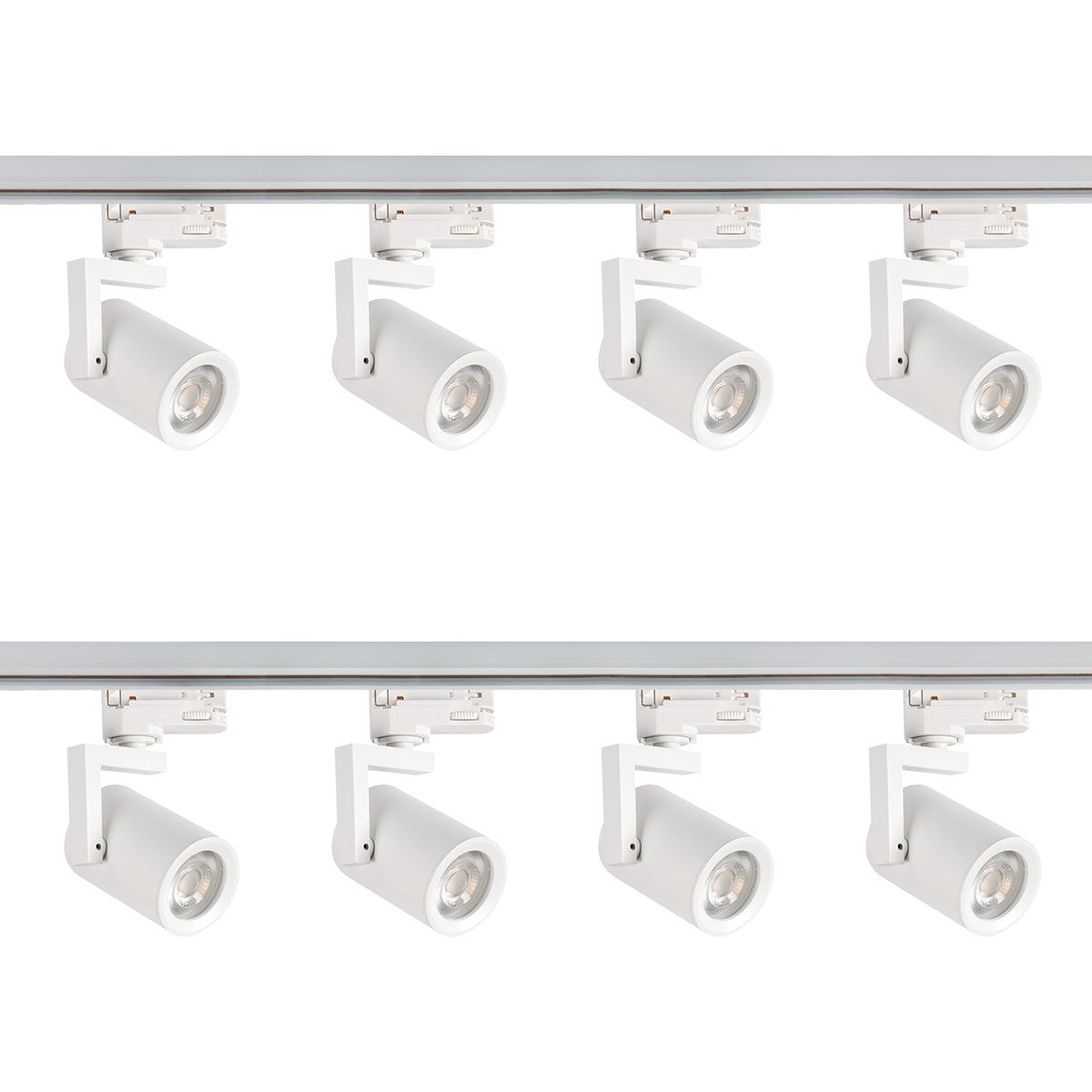

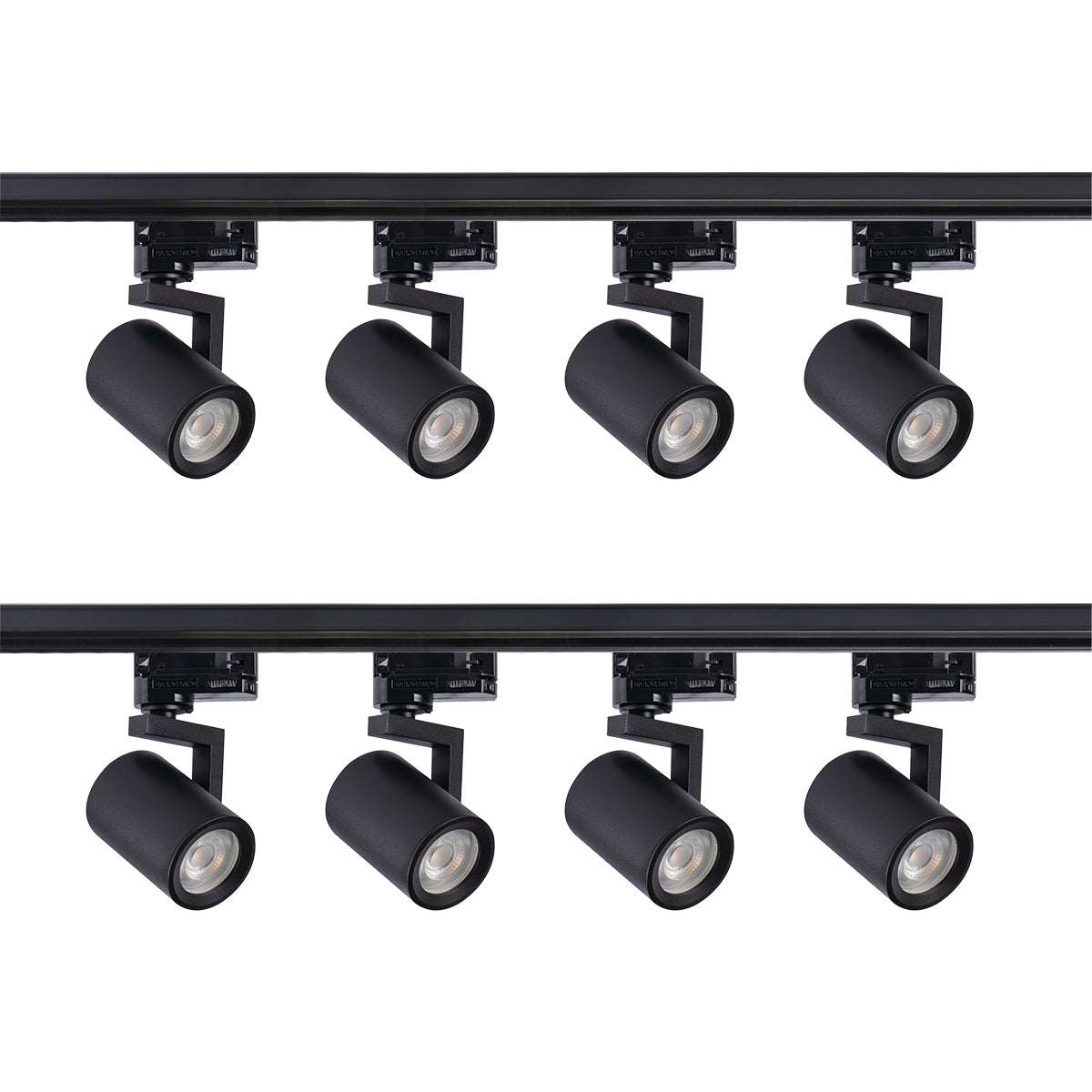

| 4 m | 8 heads | Showrooms, long runs |

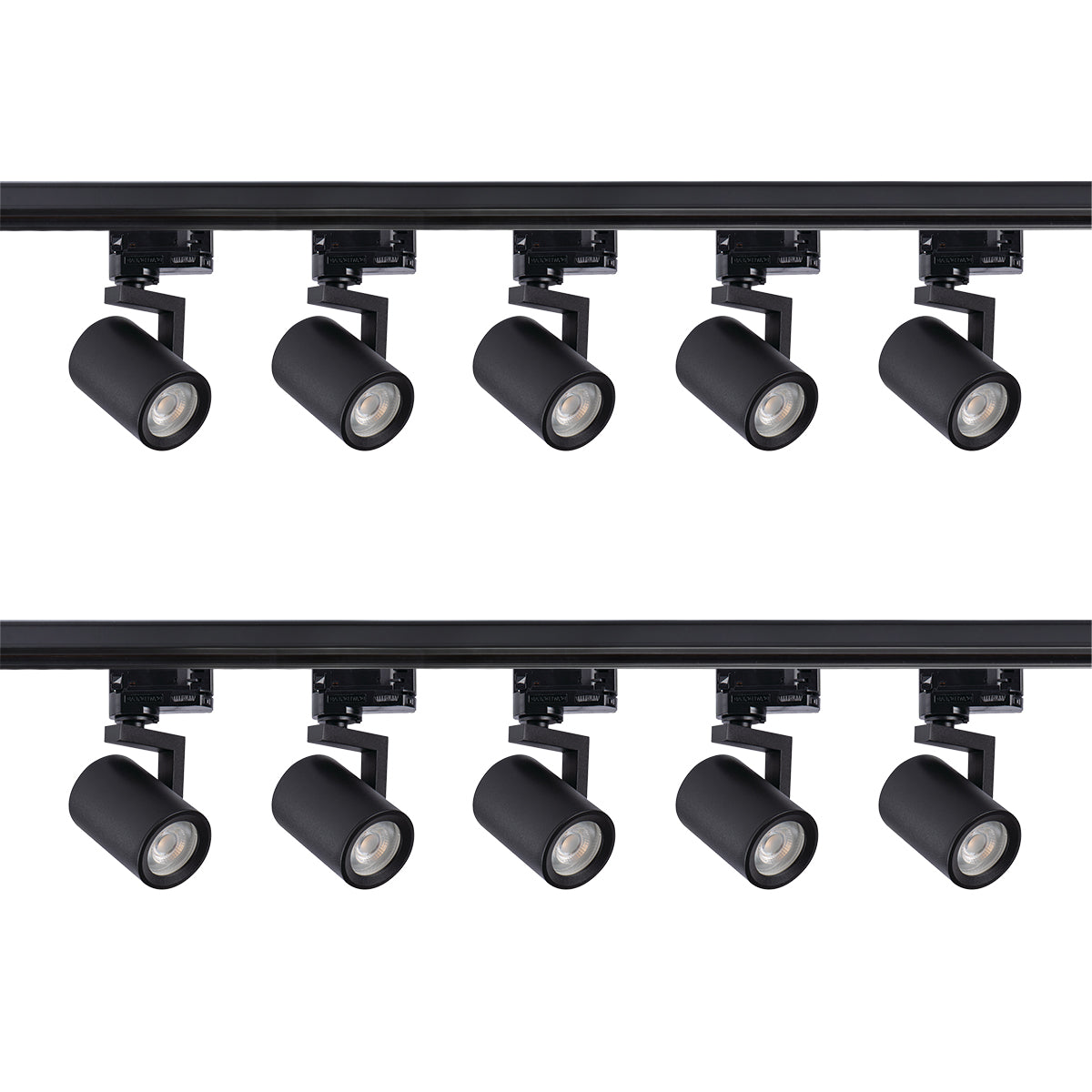

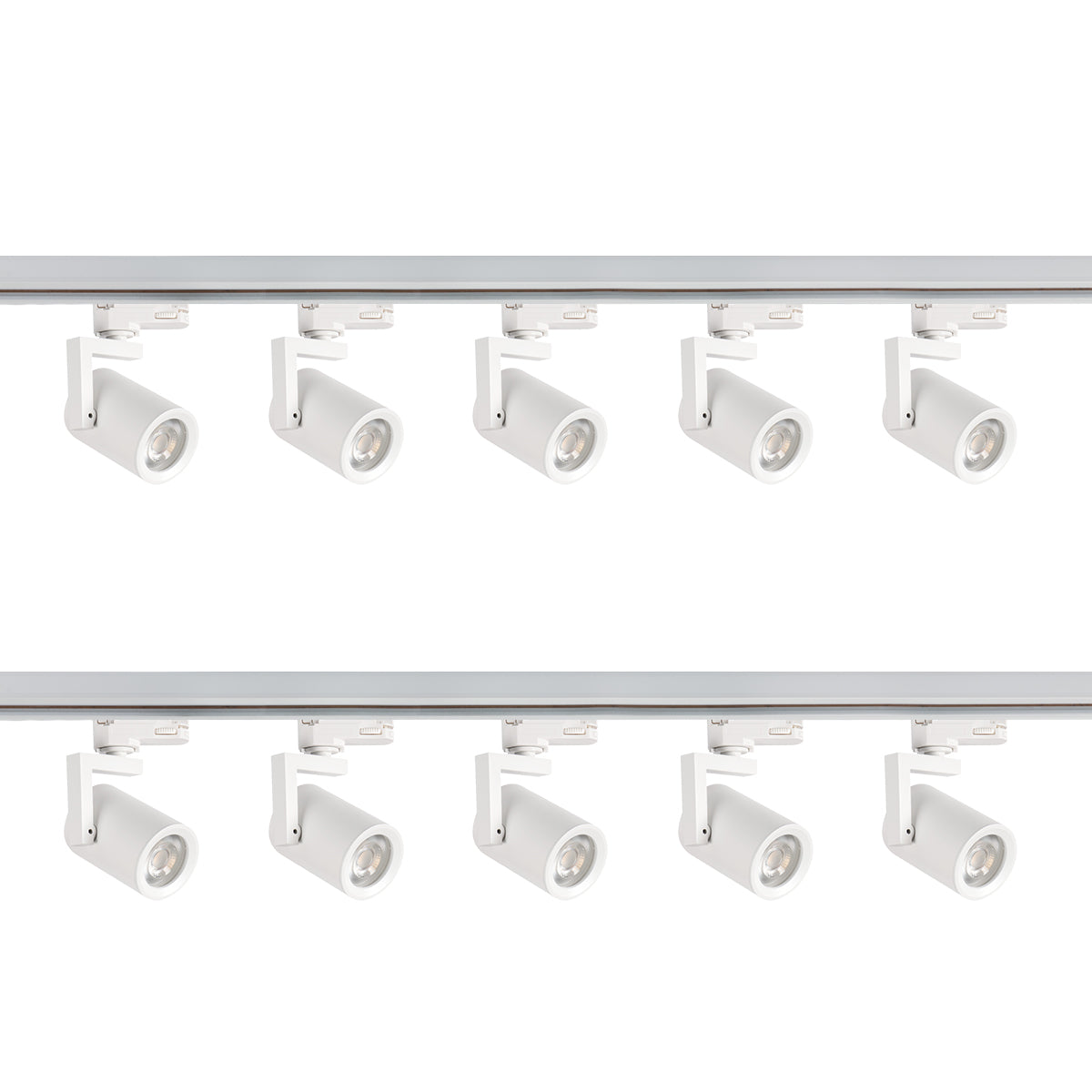

| 5 m | 10 heads | Wider retail aisles, displays |
What's Included
- 3‑circuit surface track in the length you select (straight run).
- ATL4 GU10 spotlight heads in the quantity you select.
- Live end feed and end cap for the run.
- I‑connector(s) for joining track pieces on 2–5 m kits.
- Surface‑mount fixings (use appropriate screws/plugs for your ceiling; not always included).
Note: Corners/tees (L/T/X), suspension kits and additional feeds are sold separately.
Bulbs & Dimming
- Choose No bulbs or add warm or cool GU10 LEDs at checkout.
- Dimming is supported with dimmable GU10 lamps and a compatible dimmer.
- Max lamp power: up to ~10 W LED per head.
Specs
| Track type | 3‑circuit (3‑phase) surface |
| Lamp base | GU10 (replaceable) |
| Aiming | ~330° rotation / ~90° tilt (per head) |
| Electrical | 220–240 V AC, Class I (earth required) |
| Ingress rating | IP20 (indoor) |
| Finishes | Black or White |
Compatibility & Accessories
- Compatible with standard 3‑circuit (3‑phase) track systems, including Kanlux TEAR.
- Add L/T/X connectors, additional feeds or suspension kits to build corners, tees or suspended runs.
- Extra ATL4 heads can be added later (check your electrical load & spacing).
Installation & Safety
- Install by a qualified electrician.
- Ensure earth connection (Class I) and observe load limits for track and circuit.
- Maintain suitable clearances from illuminated surfaces and combustible materials.
Warranty & Support
- Kanlux ATL4 heads: 5‑year manufacturer warranty.
- Track & accessories: covered by the standard manufacturer warranty.
- Need help planning a layout? Contact us and we’ll size the kit and accessories for your space.
FAQs
Is this a 1‑circuit or 3‑circuit kit?
It’s a 3‑circuit (3‑phase) kit. You can control up to three groups of heads independently on the same rail.
Can I cut the track to size?
Yes. Tracks can be cut to length; deburr the cut and refit the end cap. For corners or tees, use 3‑circuit L/T/X connectors.
Are bulbs included?
Bulbs are optional. Choose No bulbs or add warm or cool GU10 LEDs when you select your kit.
Is it dimmable?
Yes—with dimmable GU10 lamps and a compatible LED dimmer. Dimming performance depends on the lamp and dimmer pairing.
Can I add more heads later?
Yes, ATL4 heads can be added to the track later. Always check the total load, spacing and circuit allocation on your 3‑circuit system.
Can I suspend the track from the ceiling?
Yes. Use the matching 3‑circuit suspension kit (sold separately) for suspended runs.
