Description

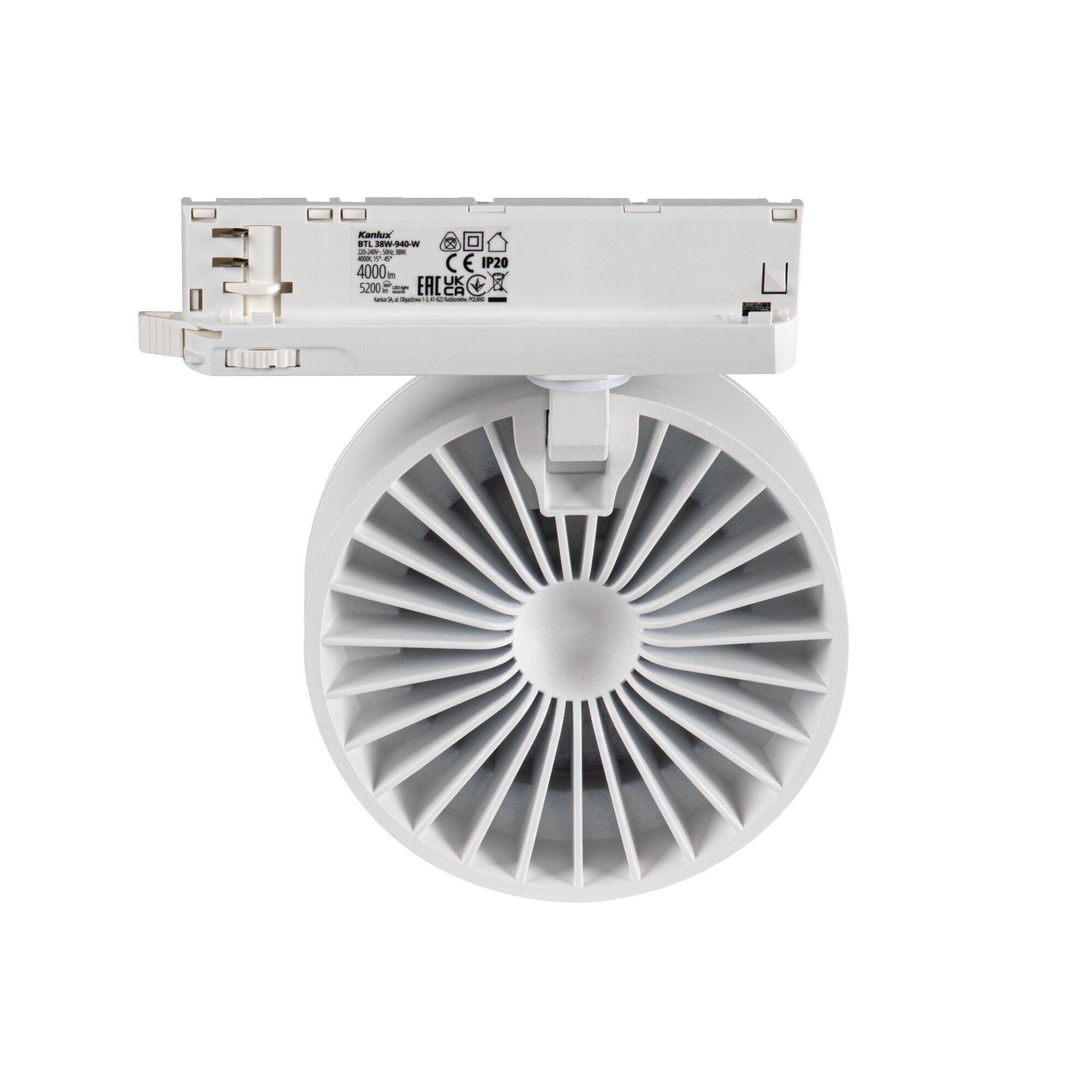

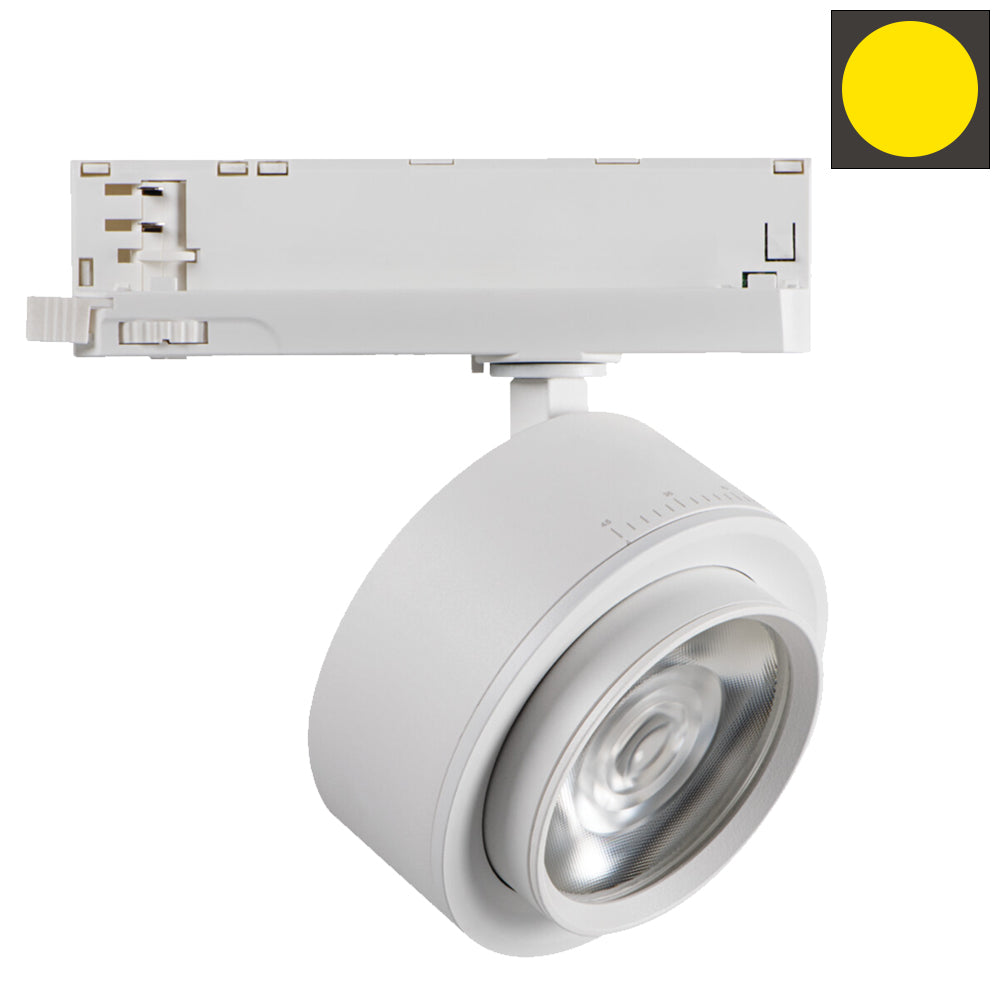

Kanlux BTL LED is a new design of luminaires adapted to the Kanlux TEAR system and to the majority of 3-circuit rail systems. Luminaires are equipped with a power supply integrated with the adapter.
Kanlux BTL are luminaires in the directional version with a lens and lighting angle adjustment in the range from 15⁰ to 45⁰. Optionally, a diffuser with a honeycomb structure that reduces glare can be used.

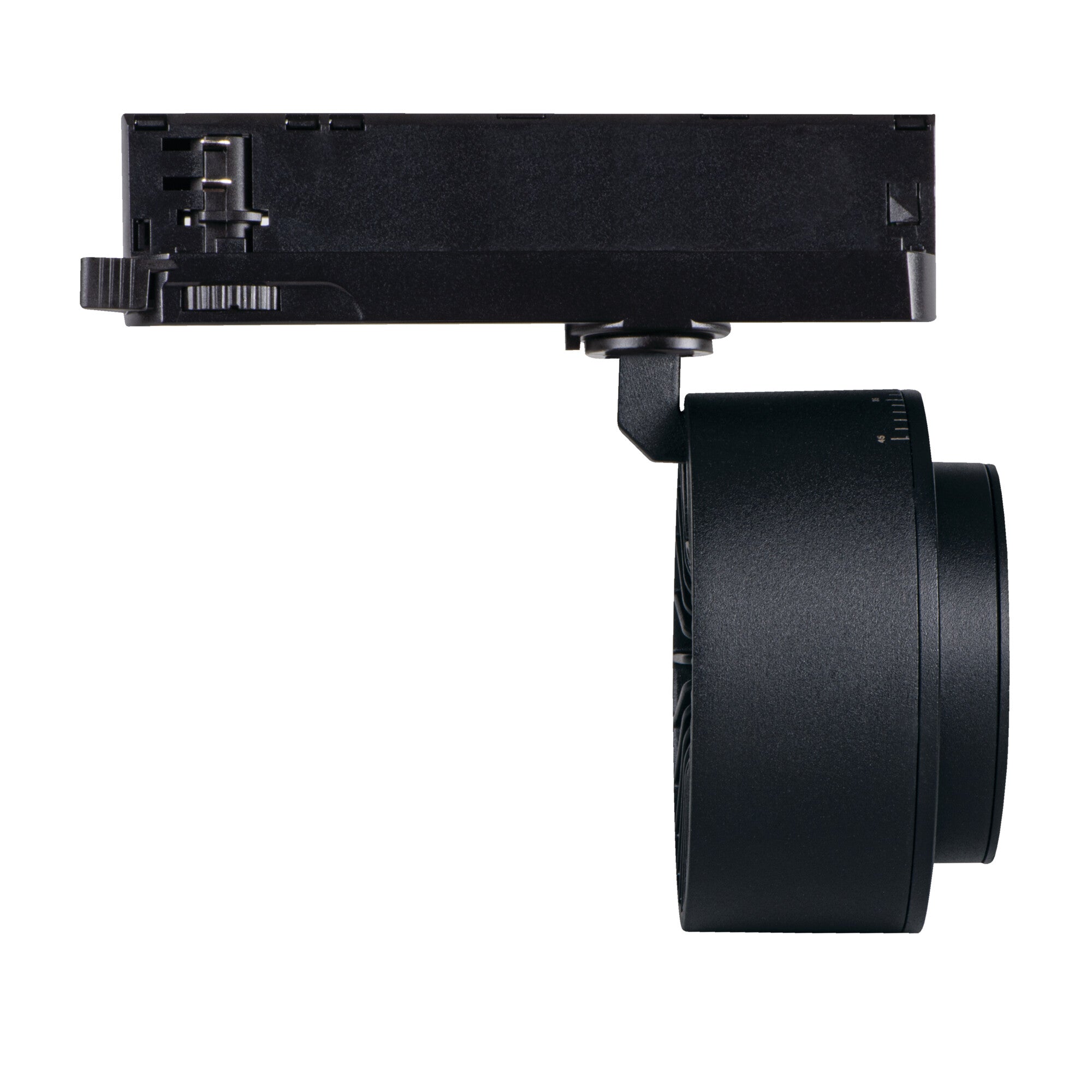

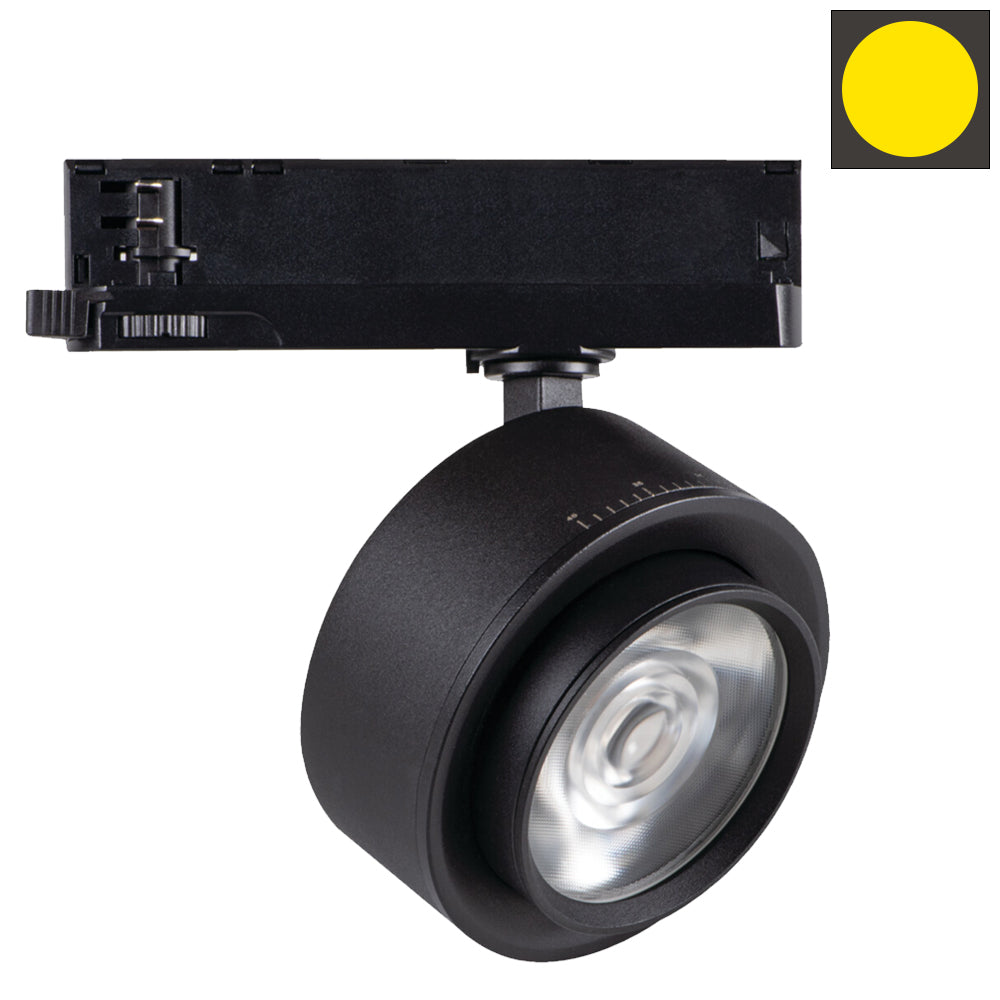

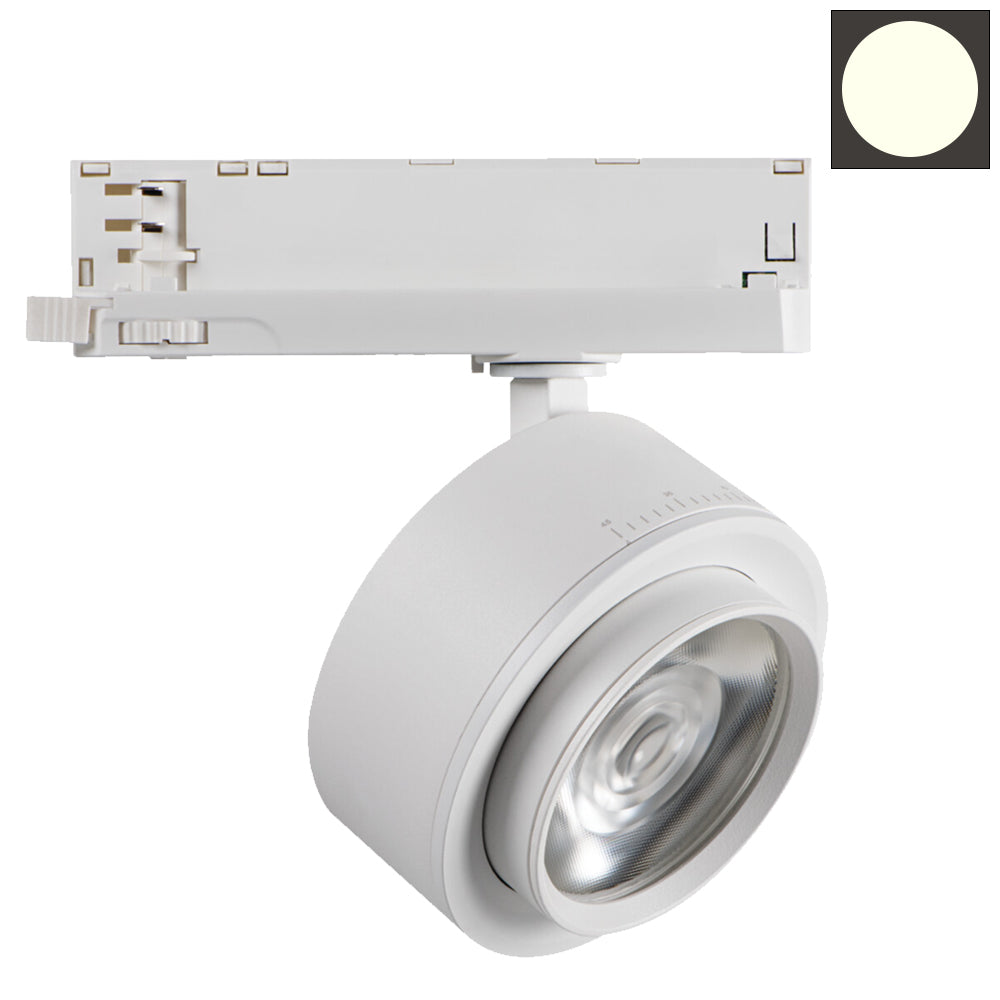

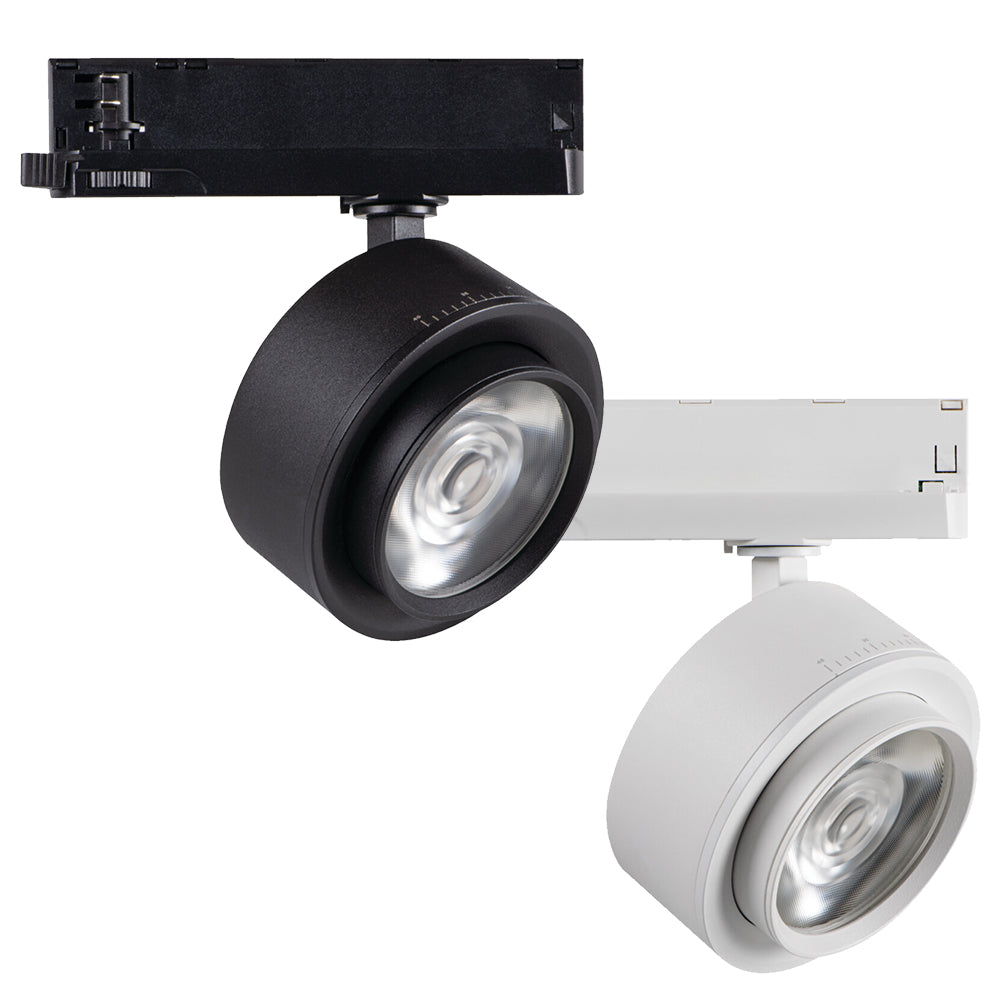

In Kanlux BTL we can choose the power (18W 28W 38W), the color of the housing (white or black) and the color of light (warm or neutral).
The Kanlux BTL series of luminaires has a high color rendering index Ra 90+, and their high quality is confirmed by a 5-years manufacturer warranty.
This item is dispatched from EU. Please allow upto 10 days for delivery.
Download
Datasheet for 18W
Datasheet for 28W
Datasheet for 38W
User Manual
Specifications
| Brand | Kanlux |
|---|---|
| SKU | 35650, 35651, 35652, 35653 35654, 35655, 35656, 35657 35658, 35659, 35660, 35661 |

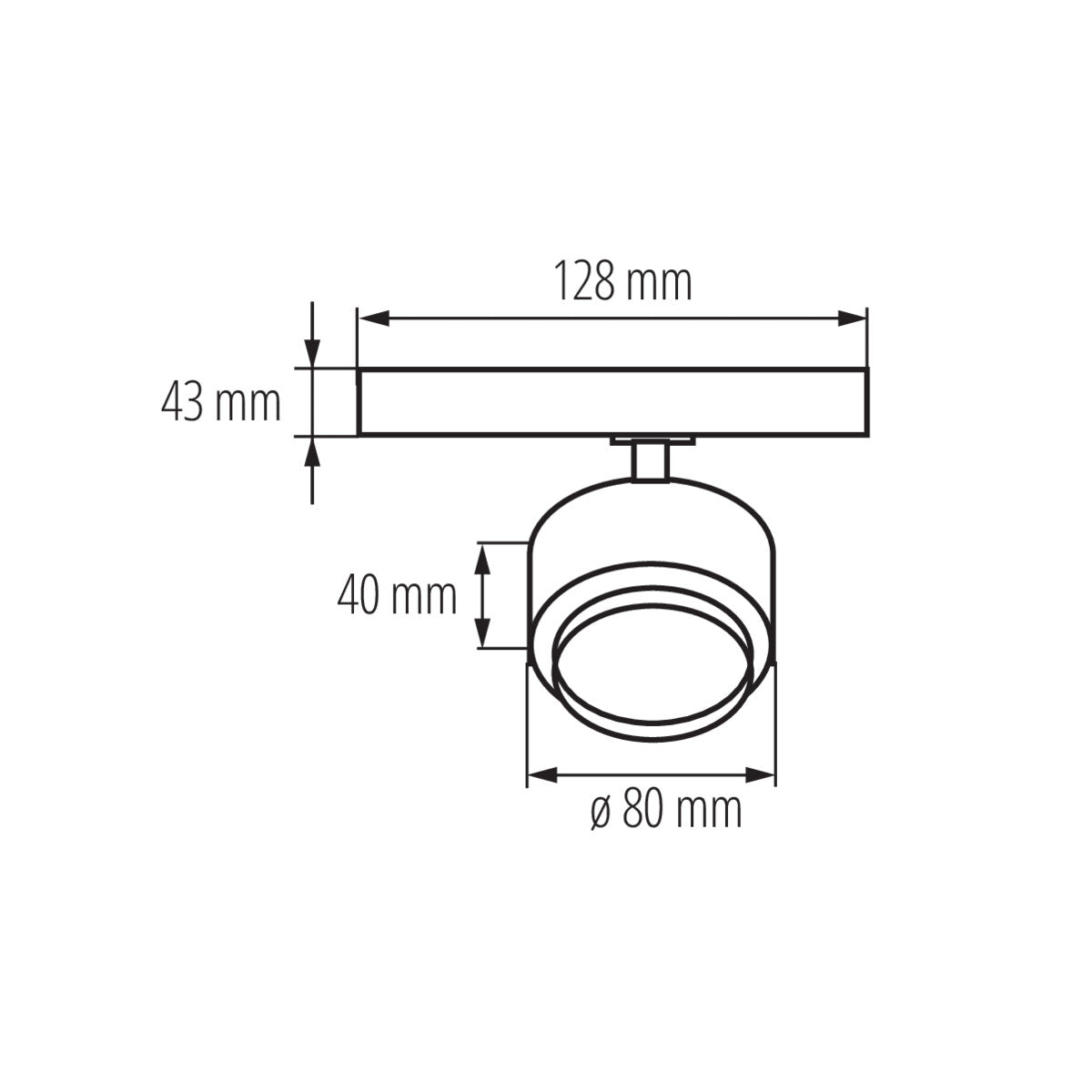

| Height (mm) | 18W = 40, 28W = 46, 38W = 49 |
| Diameter (mm) | 18W = 80, 28W = 110, 38W = 135 |
| Length (mm) | 18W = 128, 28W = 158, 38W = 158 |
| Width (mm) | 45 |
| Finish | Black/White |
| Material | Aluminium Alloy |
| IP Rating | IP20 |
| Voltage (V) | 220-240 |
| Lamp Technology | LED |
| Colour Temperature (K) | 3000, 4000 |
| Light Colour | Warm, Neutral White |
| Dimmable | No |
| Wattage (W) | 18, 28, 38 |
