Description
The Kanlux DAXA LED under-cabinet lighting series is designed for efficient and versatile illumination in various settings such as kitchens, offices, and dressing rooms. Available in both touchless and non-touchless models, these linear fixtures offer adjustable color temperatures from warm to cold, allowing customization to suit different lighting needs. The durable plastic shade ensures even light dispersion, and the white housing integrates seamlessly into any interior style.
This series includes:

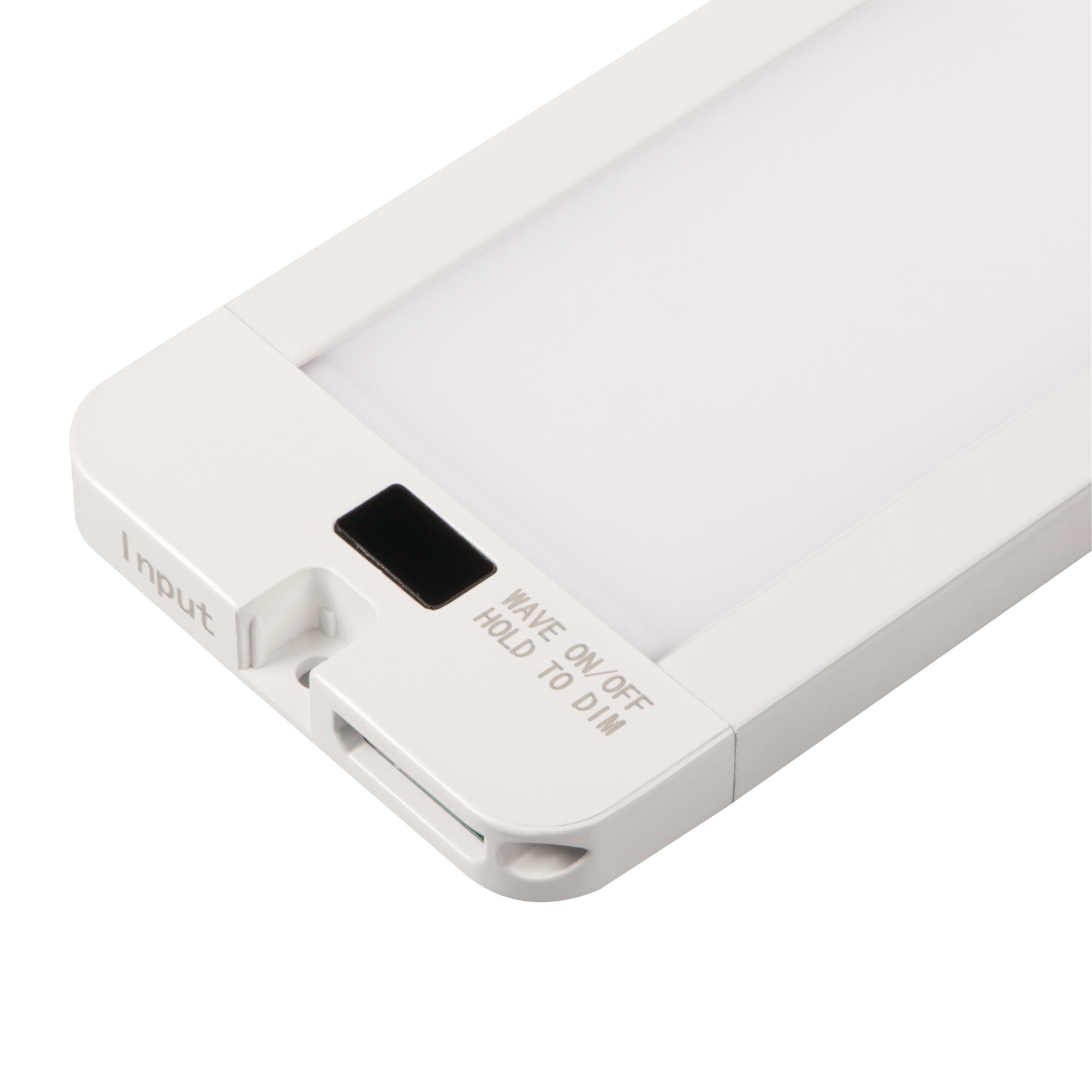

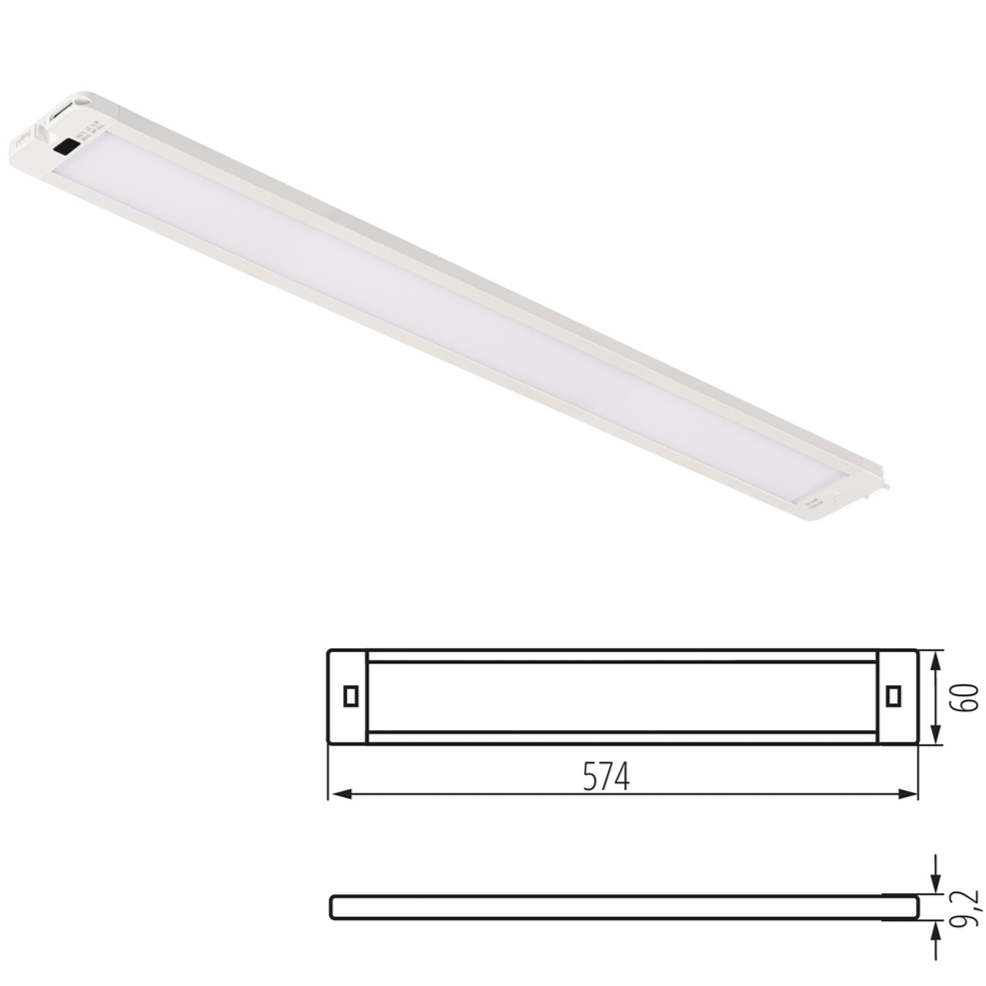

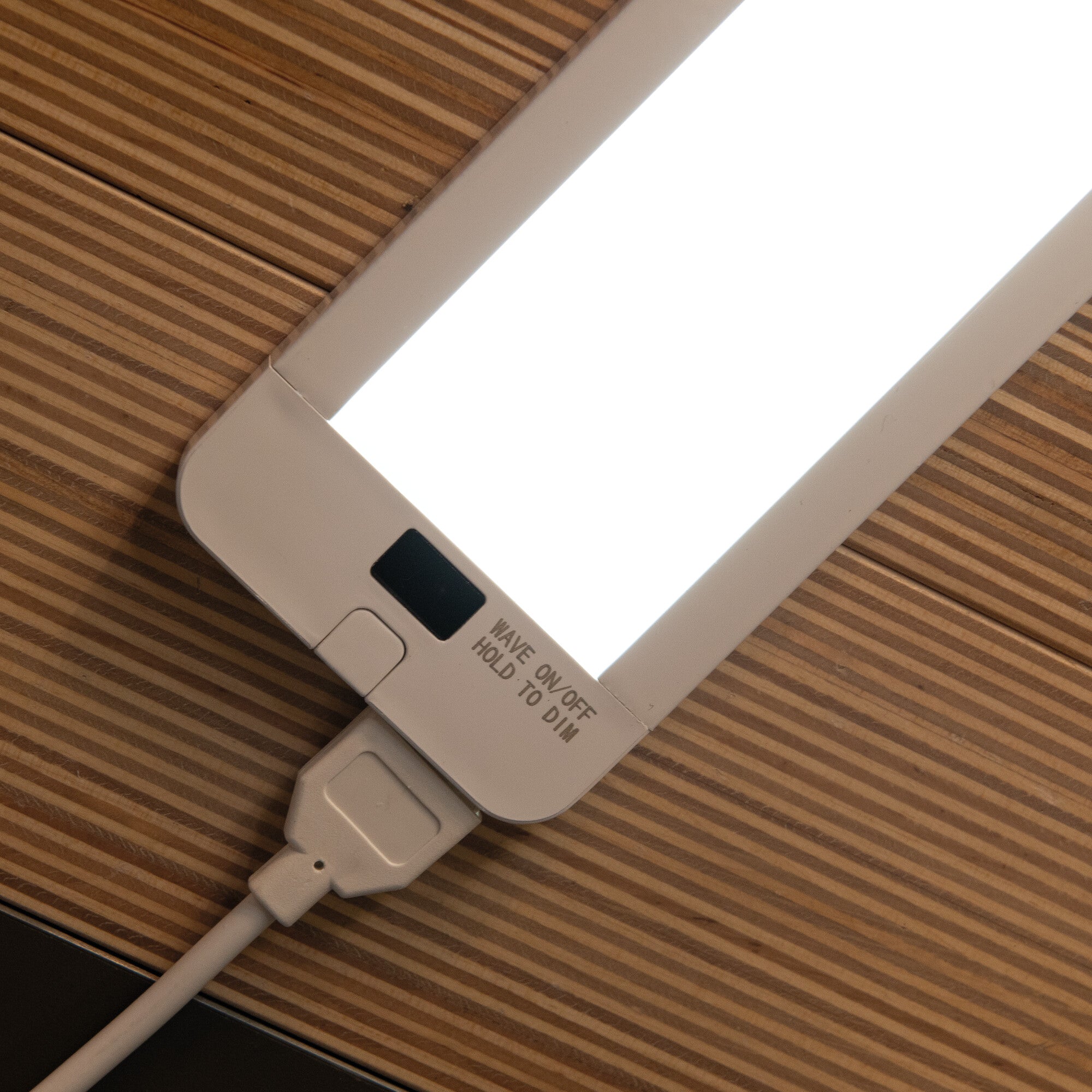

- DAXA-M-IR 9W CCTDIM W: A touchless model with a built-in motion sensor, ideal for hands-free operation.

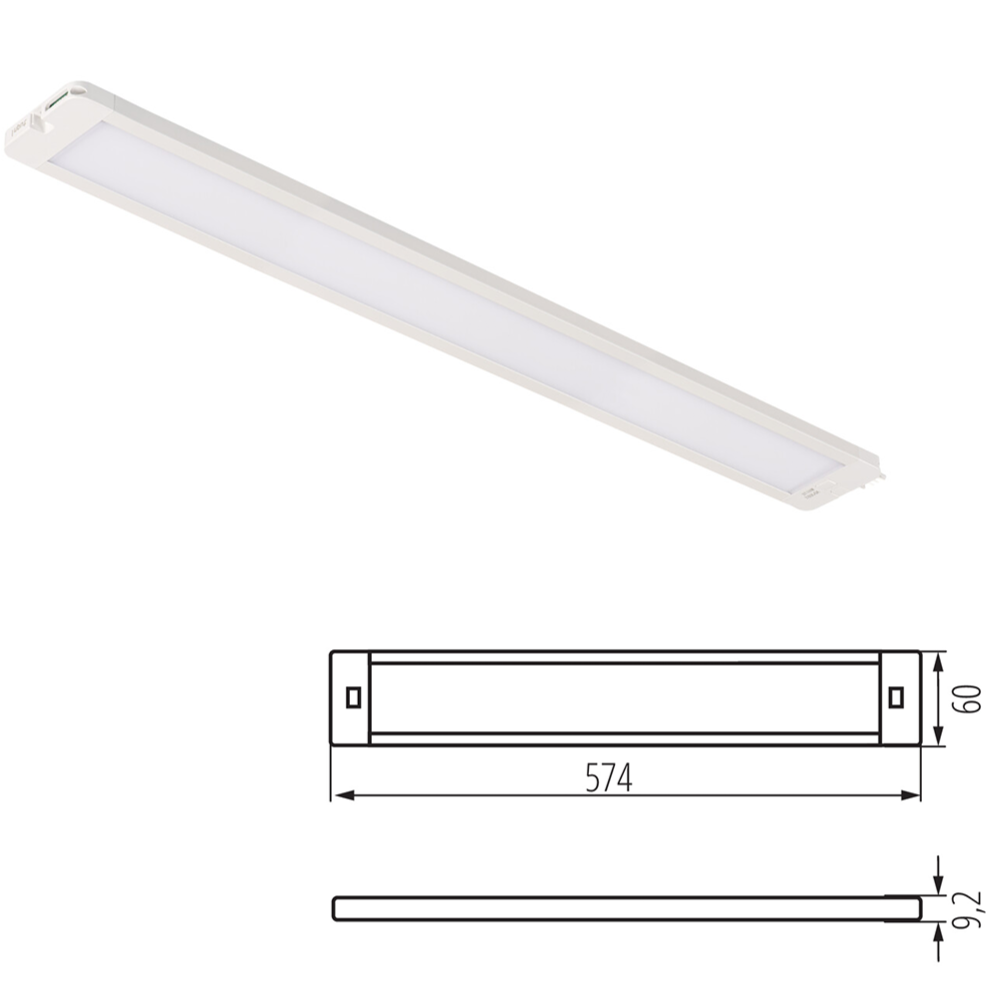

- DAXA-S 9W CCTDIM W: A non-touchless model that must be paired with a DAXA-M luminaire for operation.

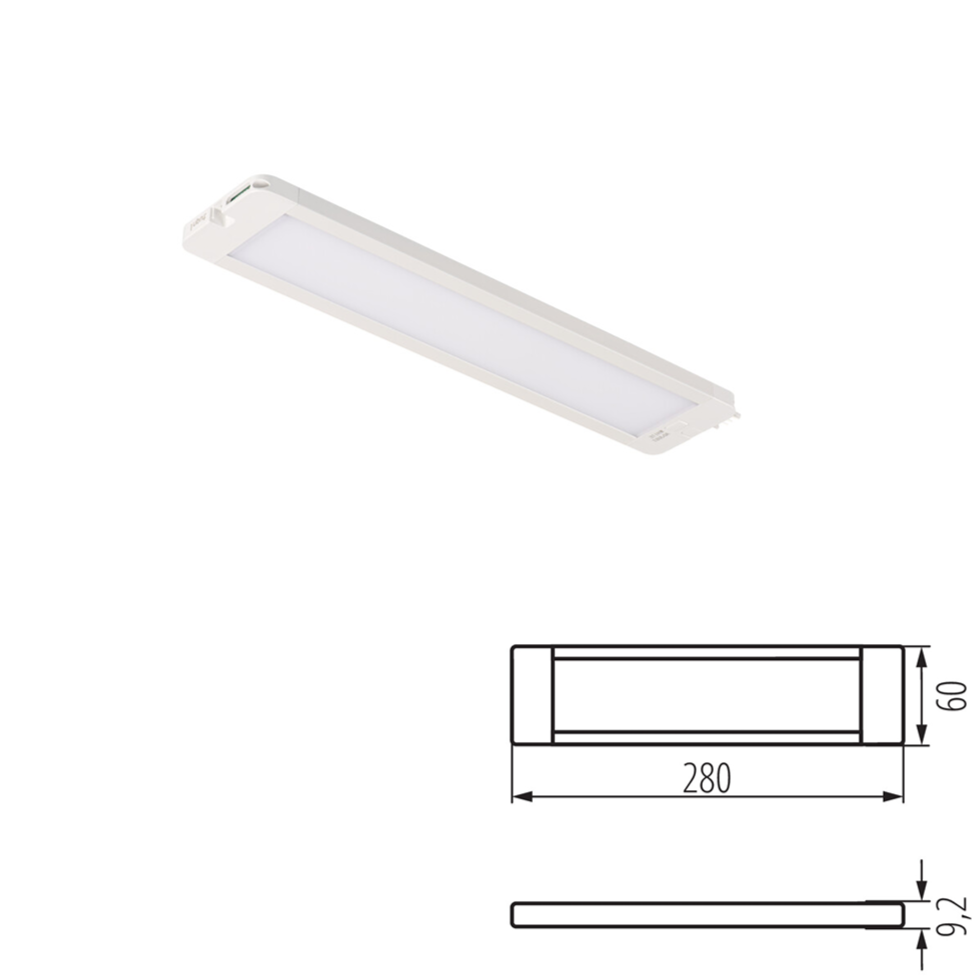

- DAXA-M-IR 5W CCTDIM W: A compact touchless model suitable for smaller spaces or as a complement to other fixtures.
- DAXA-S 5W CCTDIM W: A smaller non-touchless model that requires pairing with a DAXA-M luminaire.

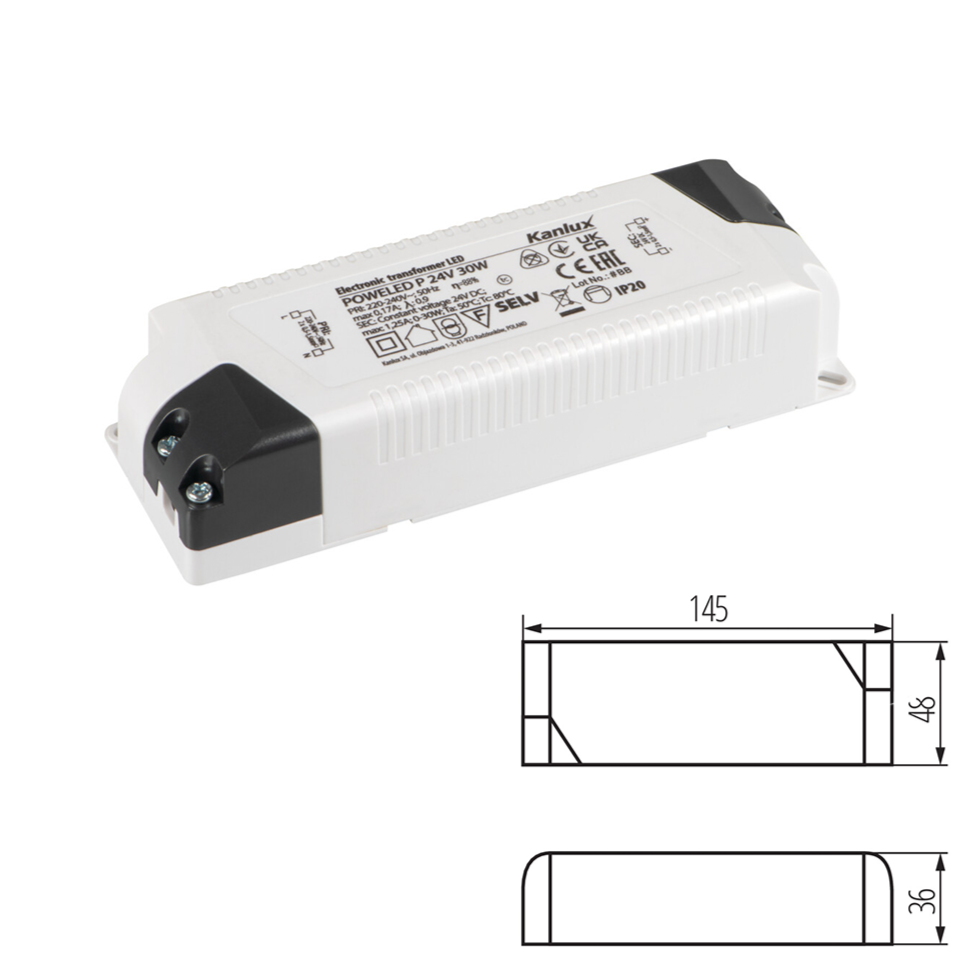

- Kanlux POWELED P 24V 30W Drives is also Available

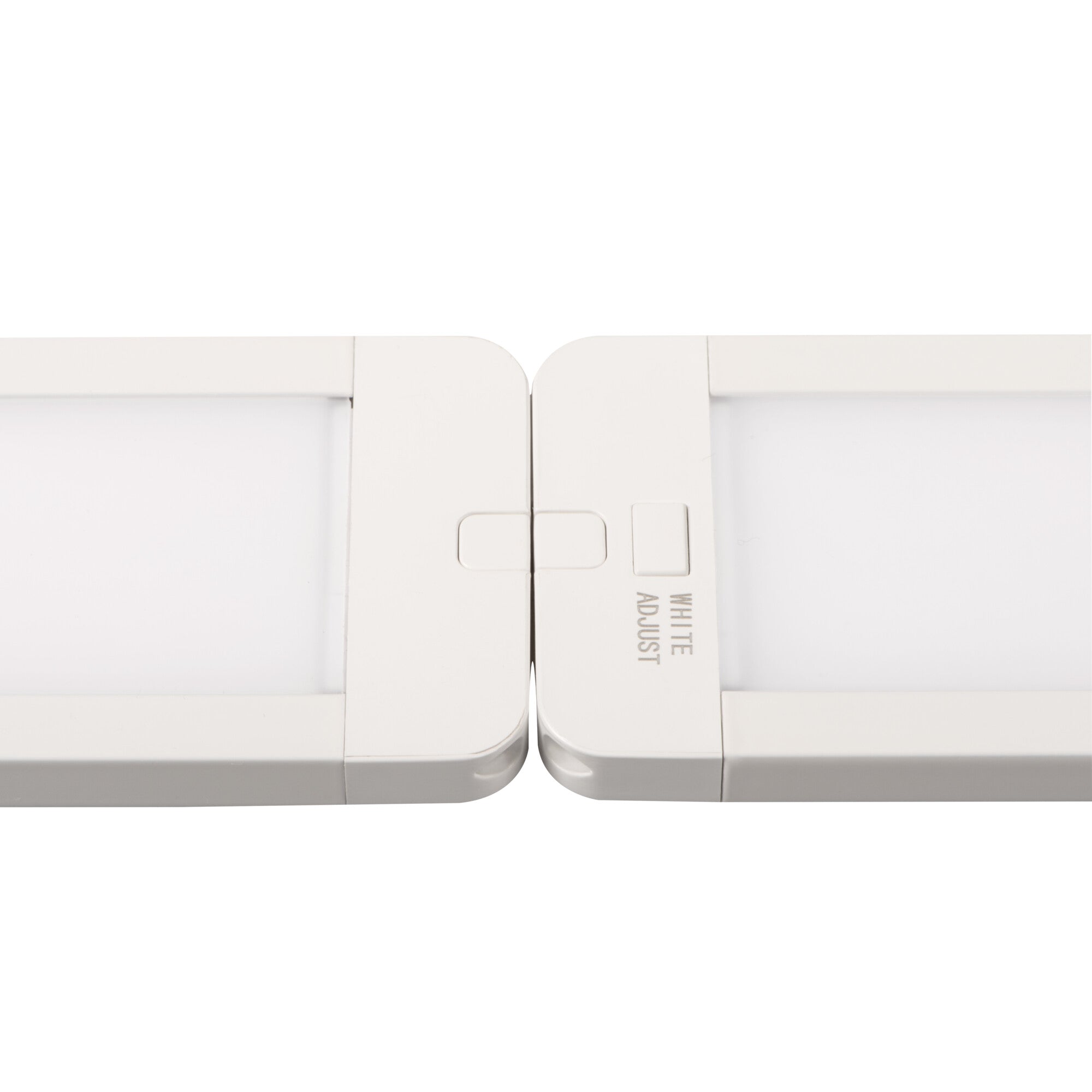

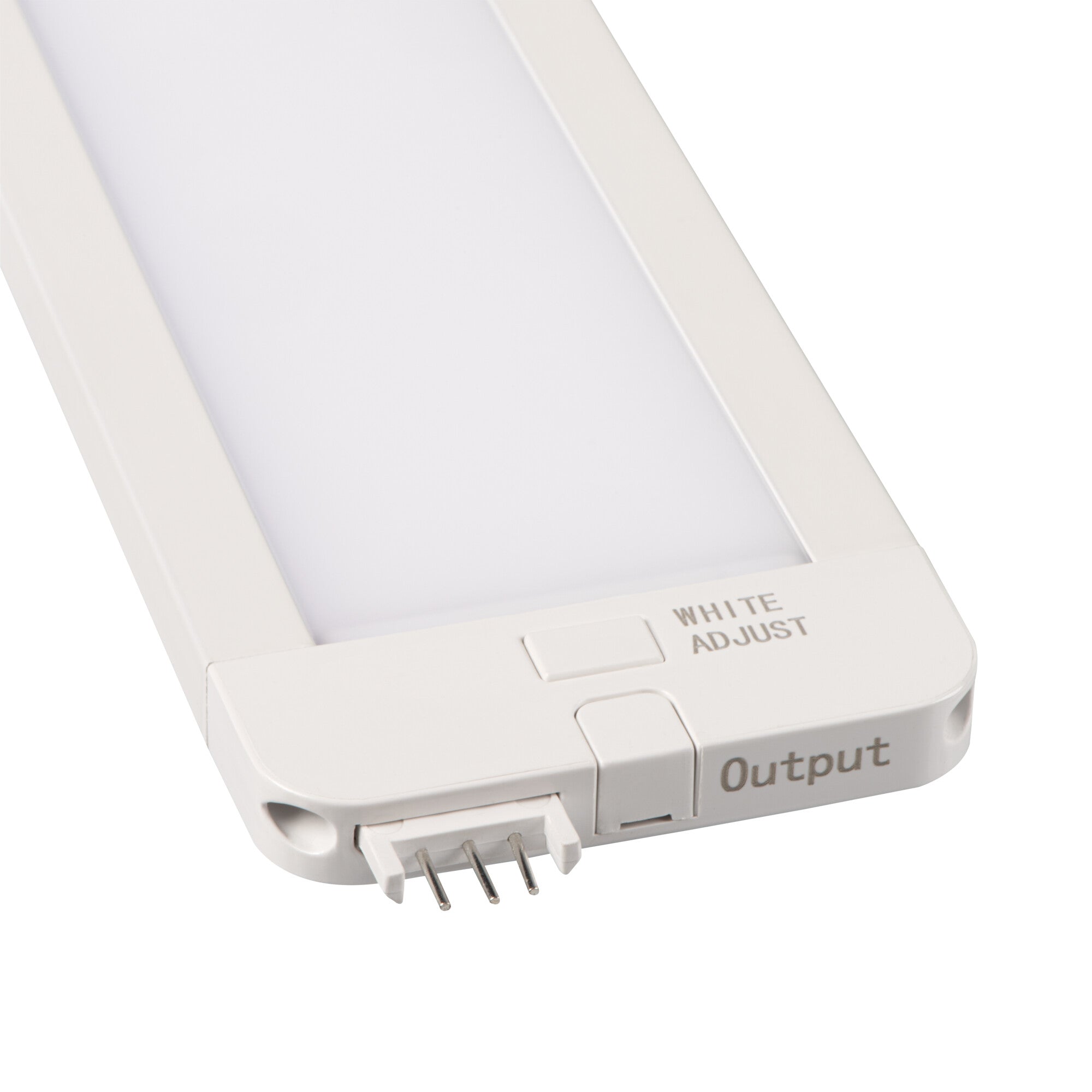

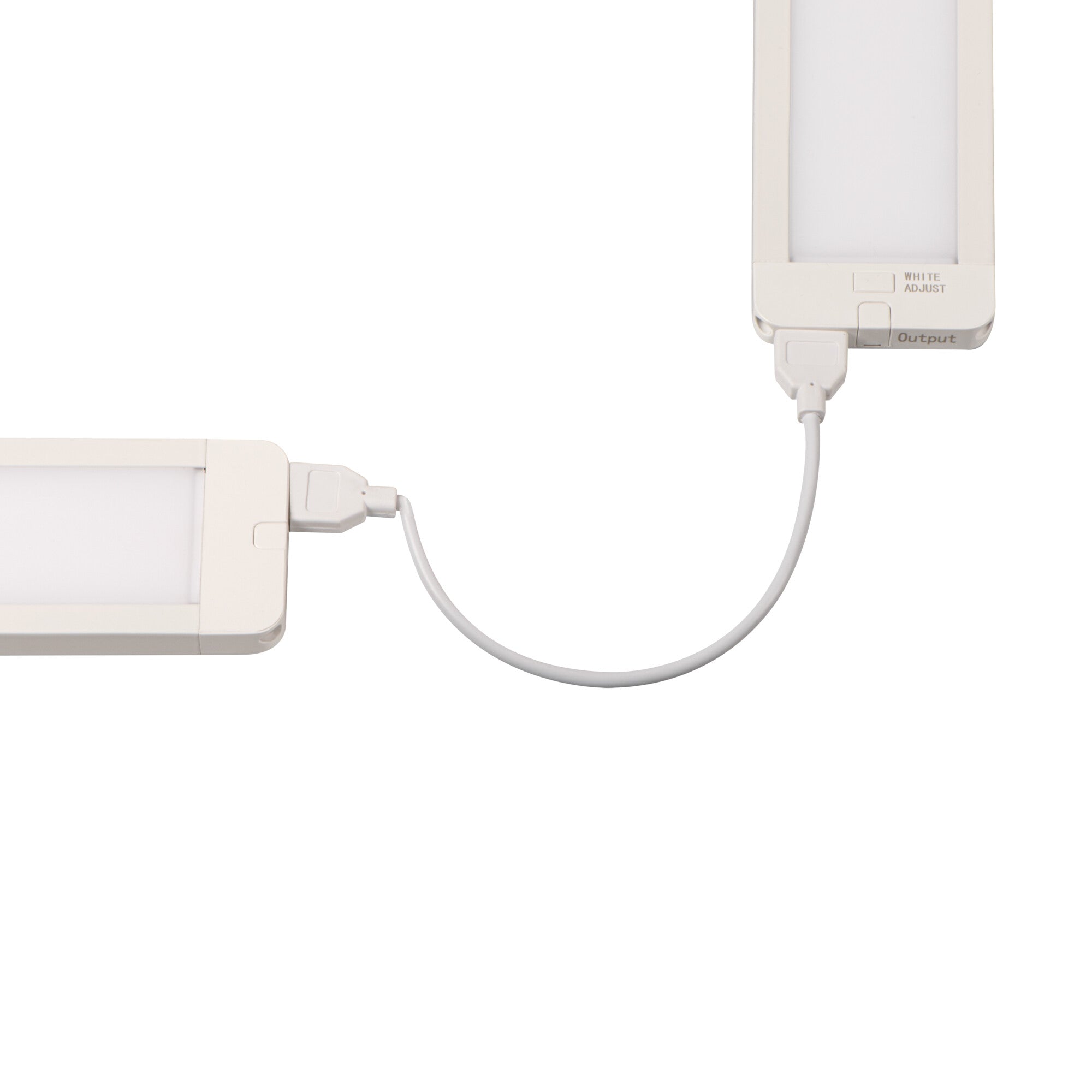

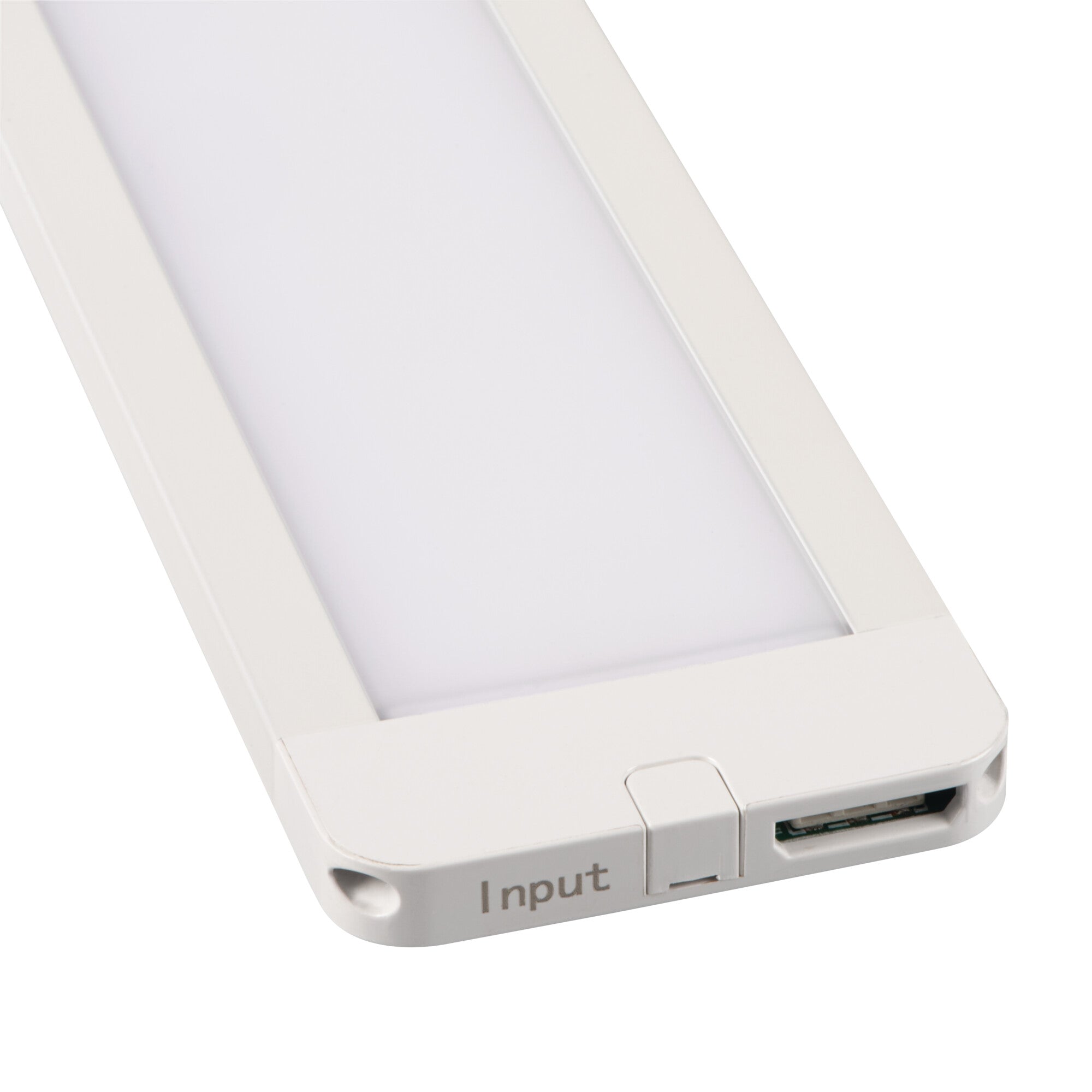

These luminaires can be interconnected using built-in or additional external connectors (20 cm length), allowing for the creation of an aesthetic and functional light line. Note that the fixtures operate on a 24V system and require a separate power supply, which is available from Kanlux.
Key Features:
- Wattage Options: 5W and 9W
- Color Temperature: Adjustable from warm to cold
- Fixture Types: Touchless with motion sensor (DAXA-M models) and non-touchless (DAXA-S models)
- Housing Color: White
- Power Supply: Not included (24V; compatible power supply available separately)
- Interconnection: Built-in or external connectors (20 cm length) for a seamless light line
- Material: Durable plastic shade for even light distribution

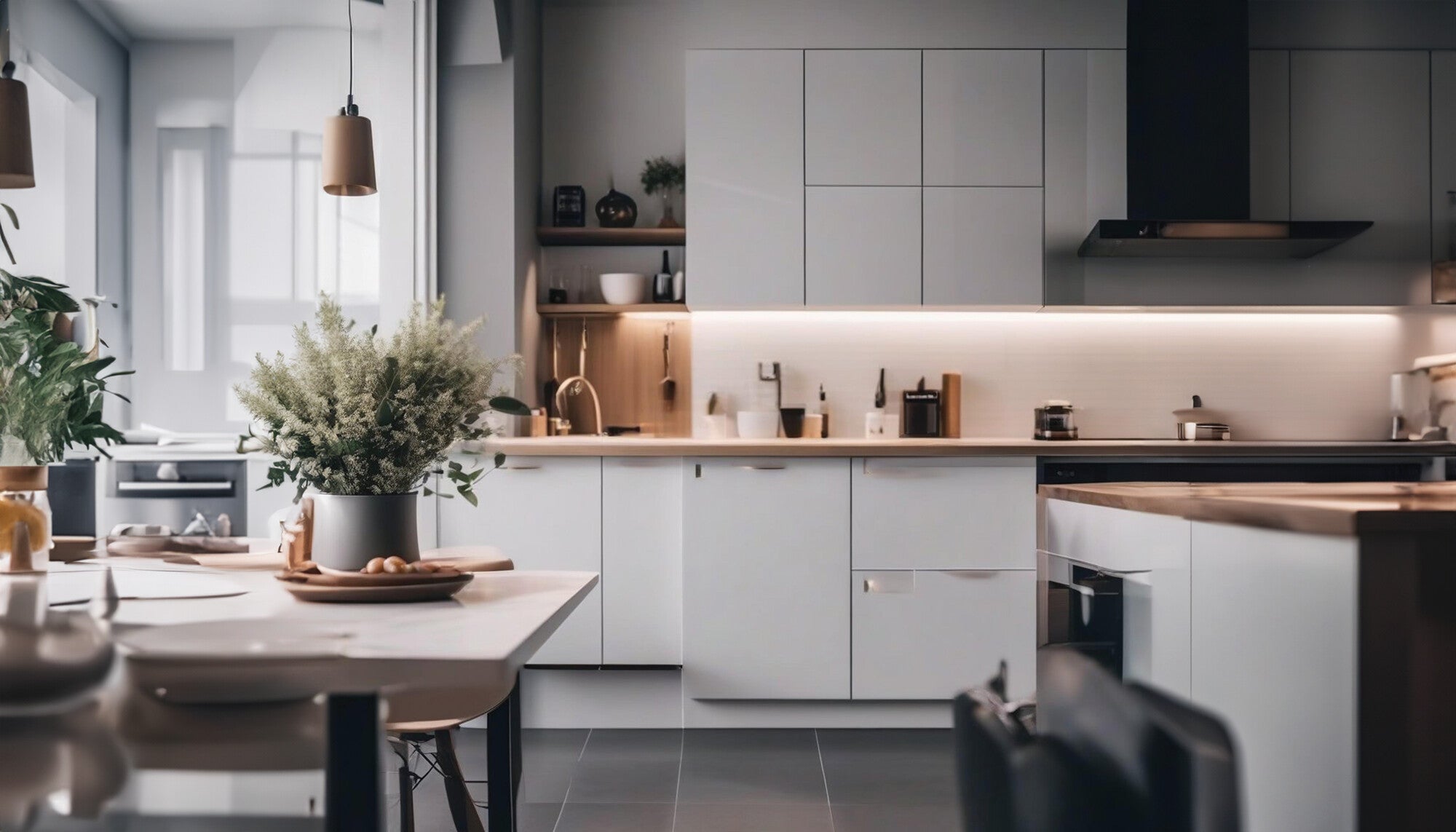

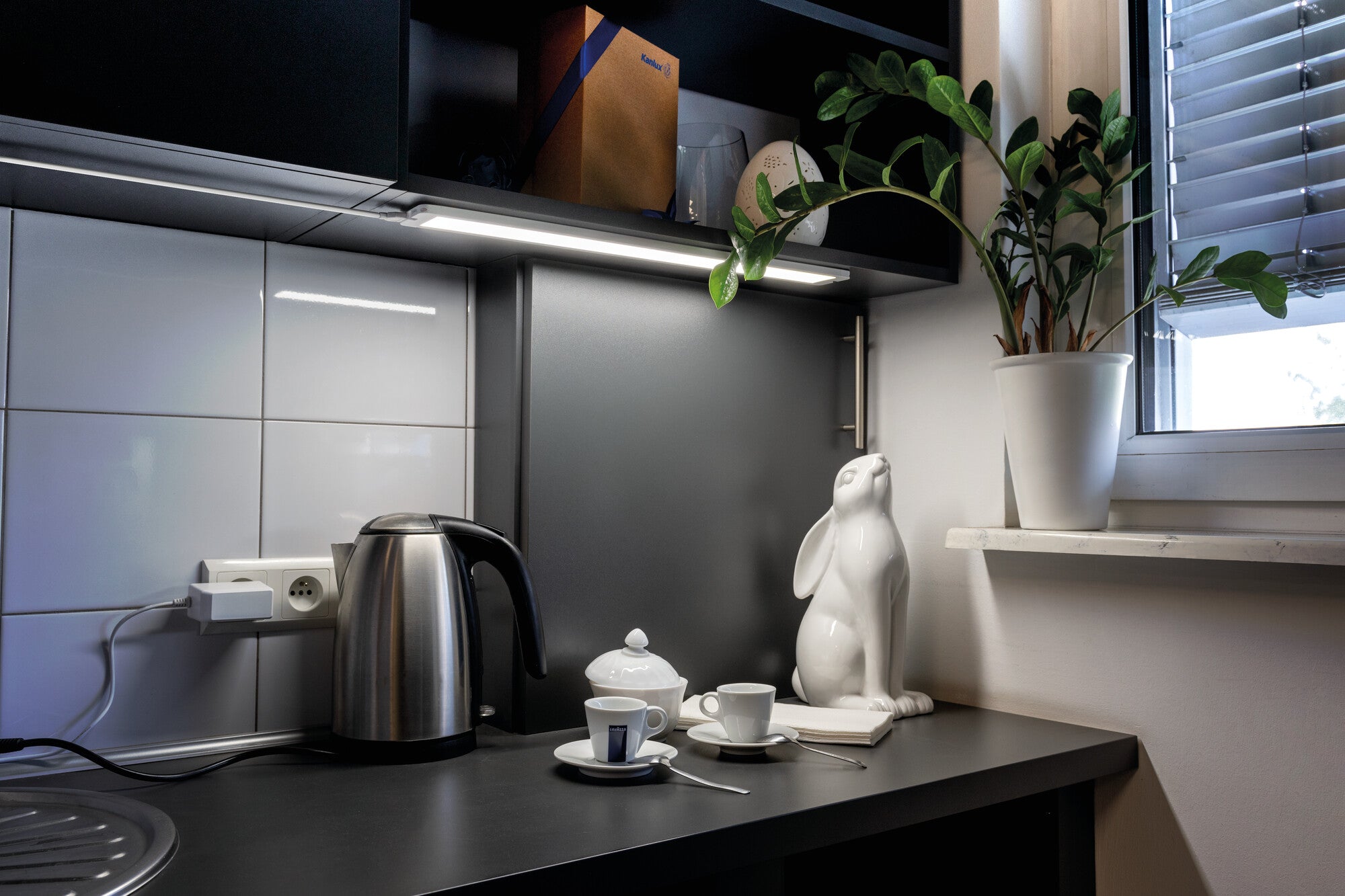

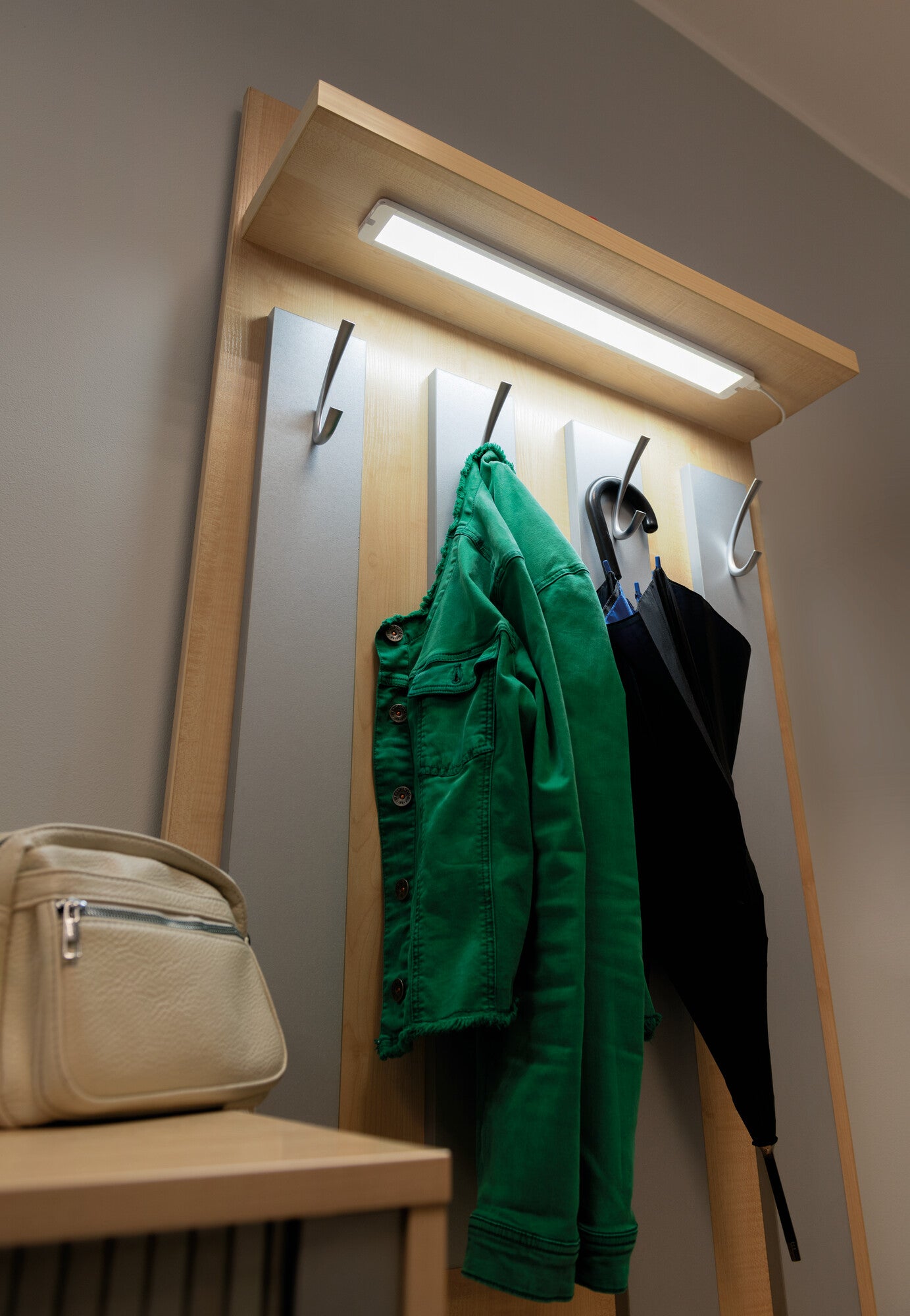

- Applications: Ideal for under-cabinet worktops, inside wardrobes, and other recesses
Download
Touchless Datasheet
Non-Touchless Datasheet
Driver 24V 30W Datasheet
Specifications
| Brand | Kanlux |
|---|---|
| SKU | 38120,38121,38122,38122,26815 |
| Length (mm) | 5W = 277, 9W = 538, |
| Width (mm) | 22.8 |
| Projection (mm) | 36 |
| Material | Polycarbonate |
| Finish | White |
| Class | II |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Diffuser | Opal |
| Lamp Technology | LED |
| Lamp Included | Yes |
| Dimmable | No |
| Rated Life (Hours) | 54000 |
| Beam Angle (°) | 140 |
| Colour Temperature (K) | 3000/4000/6500 |
| Light Colour | CCT |
| Lumens (lm) | 4W = 370, 9W = 675, 13W = 1025, 18W = 1780 |
| Wattage (W) | 4, 9, 13, 18 |
| Efficacy | 106.2 |
| CRI | 80 |
| Warranty (Years) | 2 |
| Commodity Code | 9405423990 |
