Description

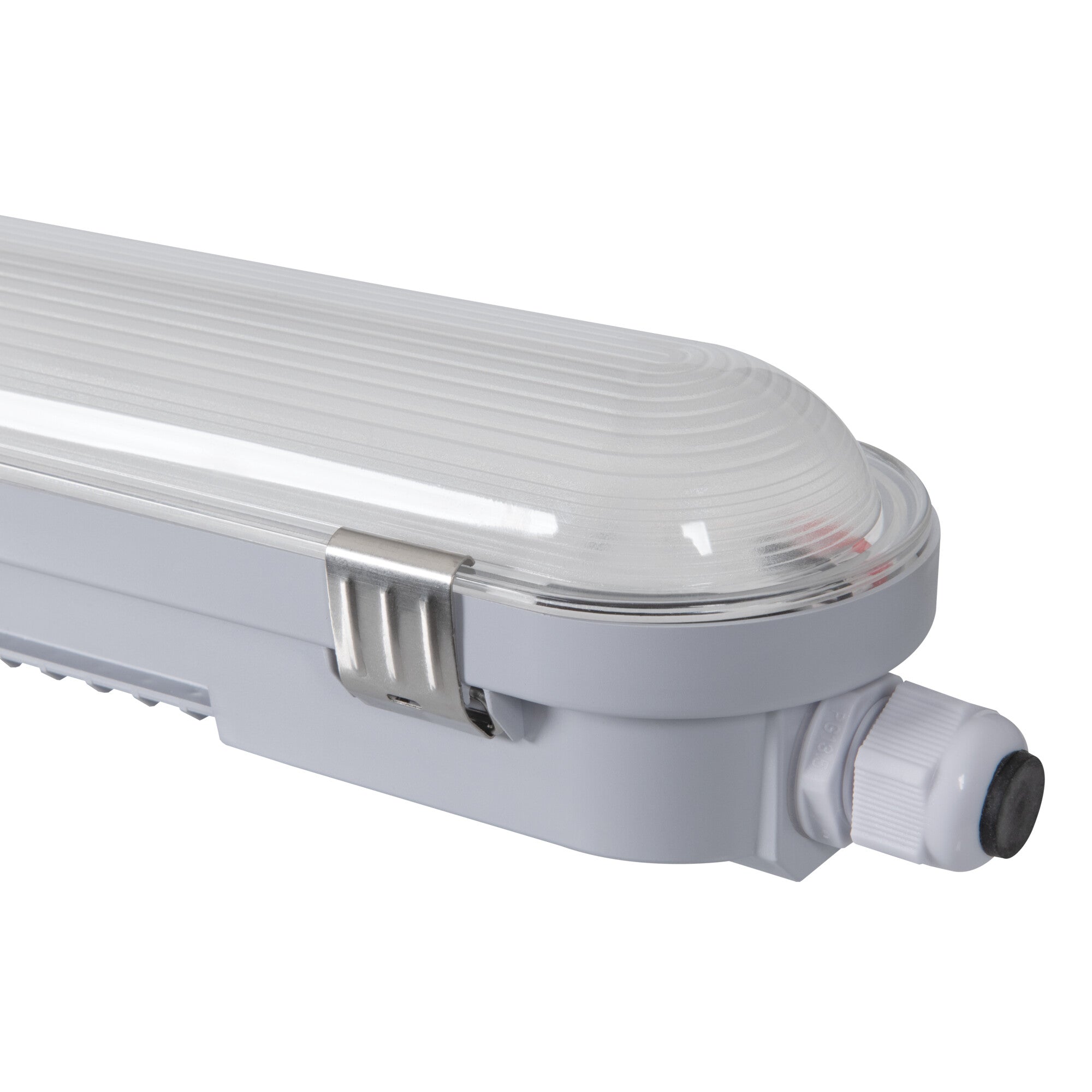

The Kanlux MAH PRO LED dustproof lighting fittings deliver exceptional performance in demanding environments. Designed for reliability and versatility, these fixtures offer high luminous efficiency up to 170lm/W and robust protection with an IP65 rating for dust and water resistance, and IK08 for mechanical impact. Available in 38W and 52W options, they feature adjustable power and light flux to meet various lighting needs. Easy installation is ensured with quick connectors and through wiring. The MAH PRO series also includes an optional motion sensor for enhanced functionality and energy savings.
Features
- Luminous Efficiency: Up to 170lm/W
- Color Temperature: Neutral White (NW)
- Wattage Options: 38W and 52W
- IP Rating: IP65 (dustproof and water-resistant)
- Impact Protection: IK08 (resistant to mechanical damage)
- Warranty: Up to 5 years (MAH PRO) or 7 years (MAH PRO Y)

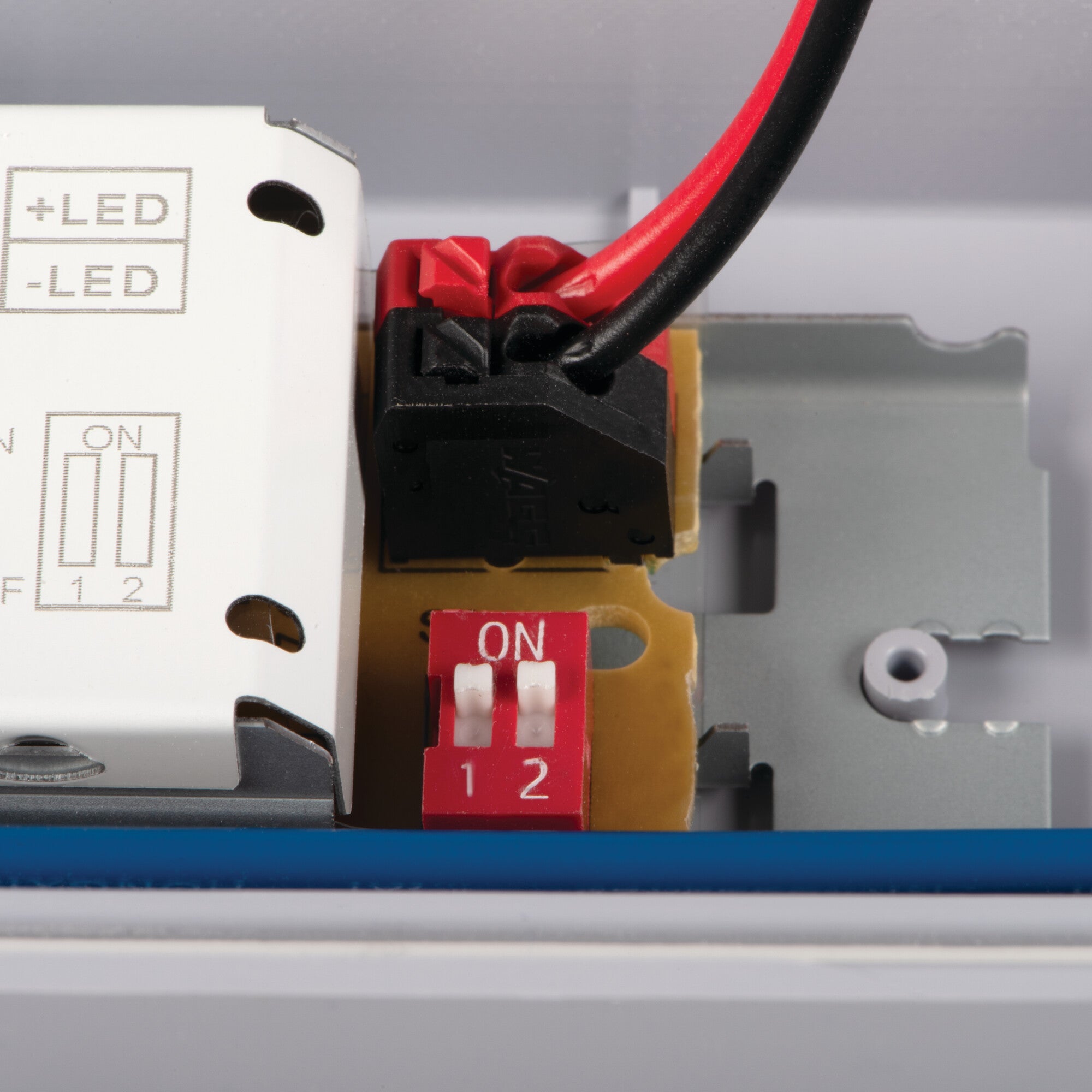

- Adjustable Power & Light Flux: Customizable light output

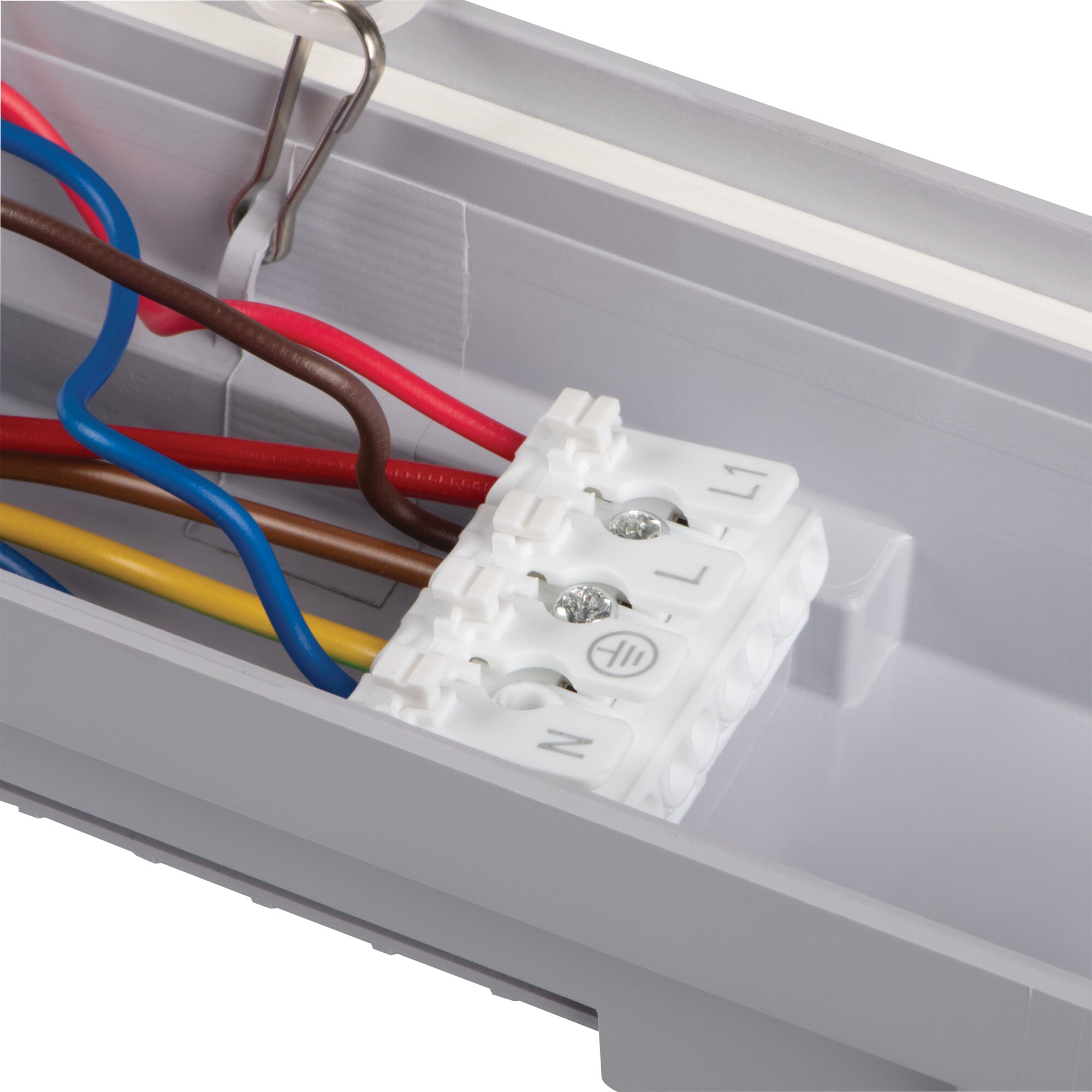

- Installation: Quick connectors and through wiring for easy setup

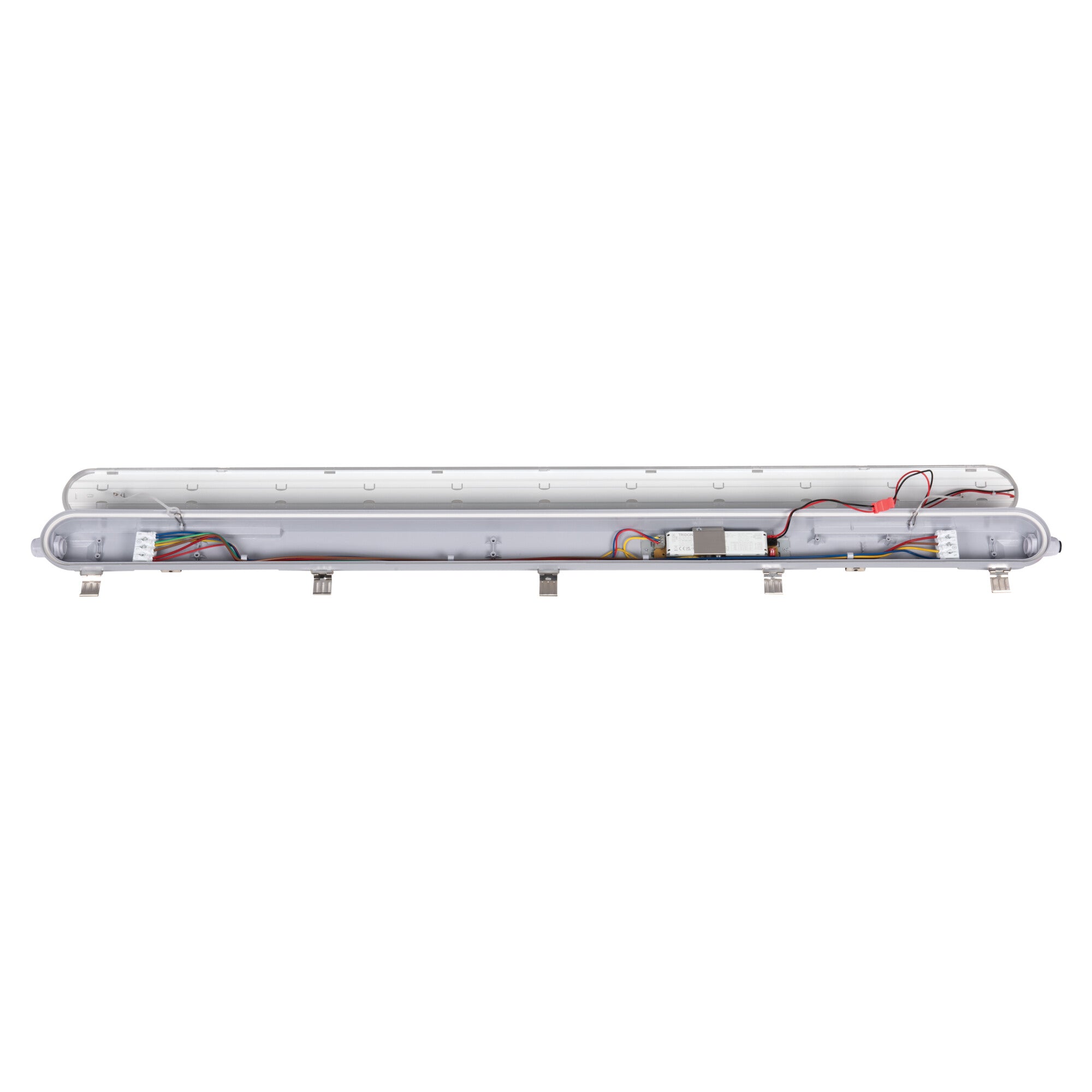

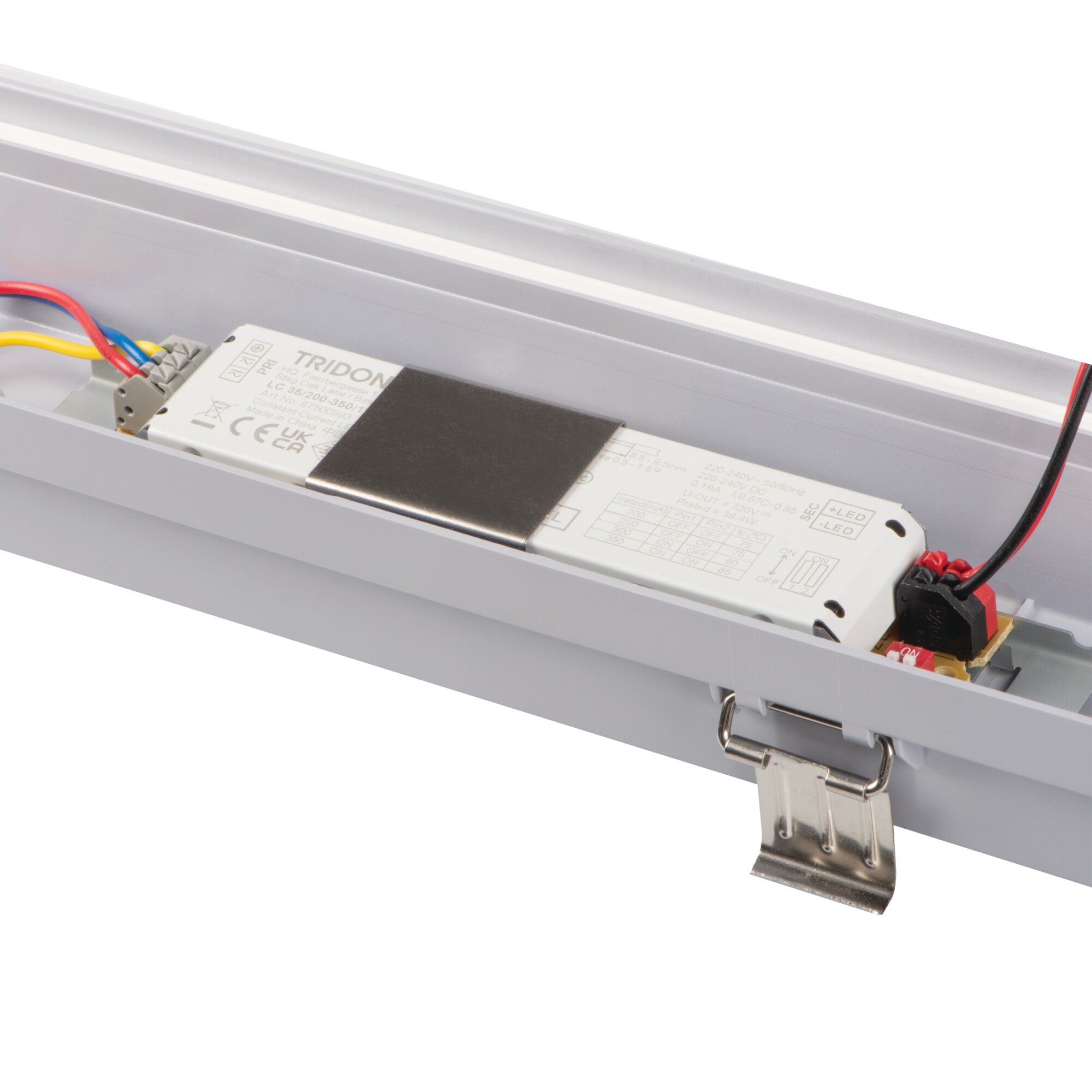

- Replaceable Power Supply: Facilitates maintenance

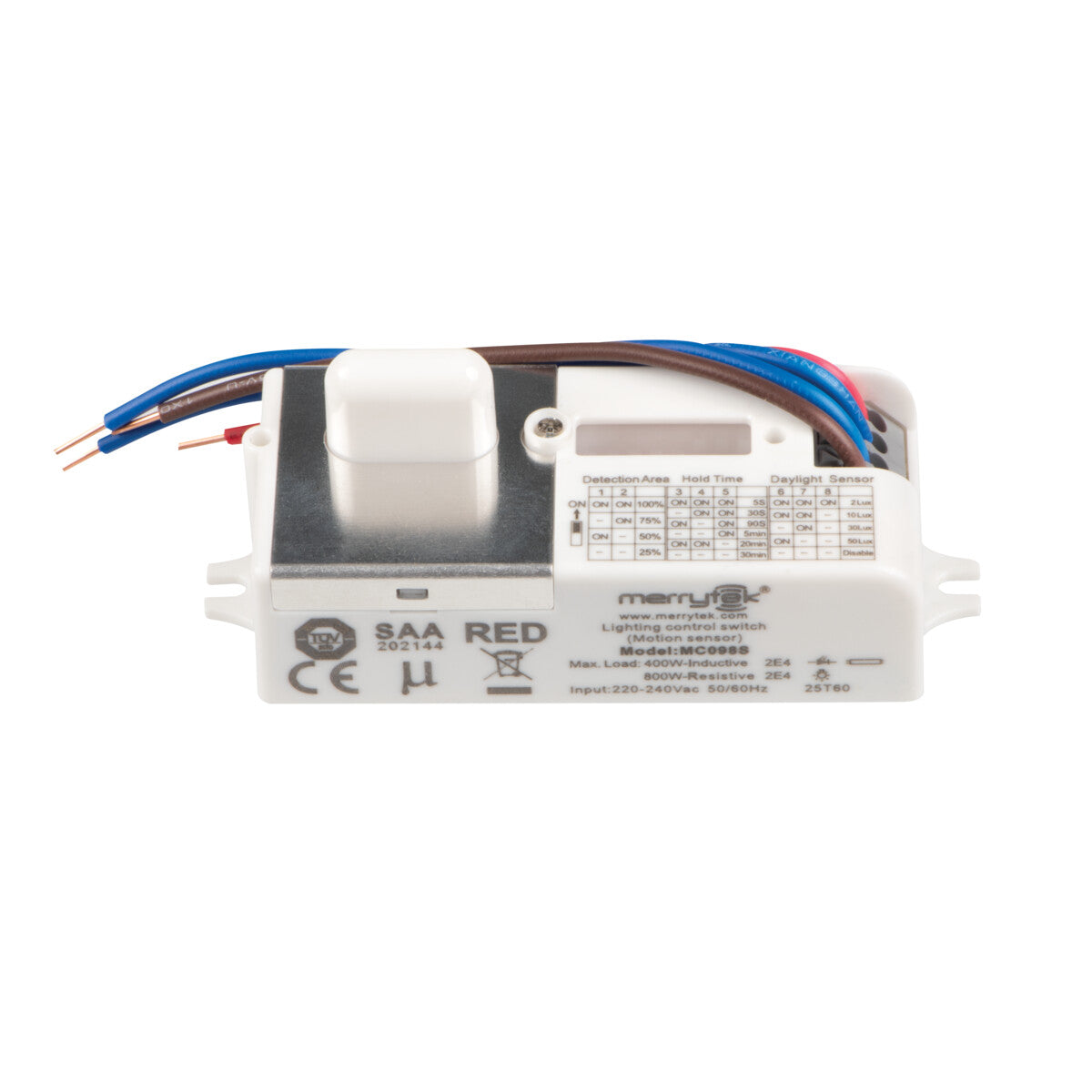

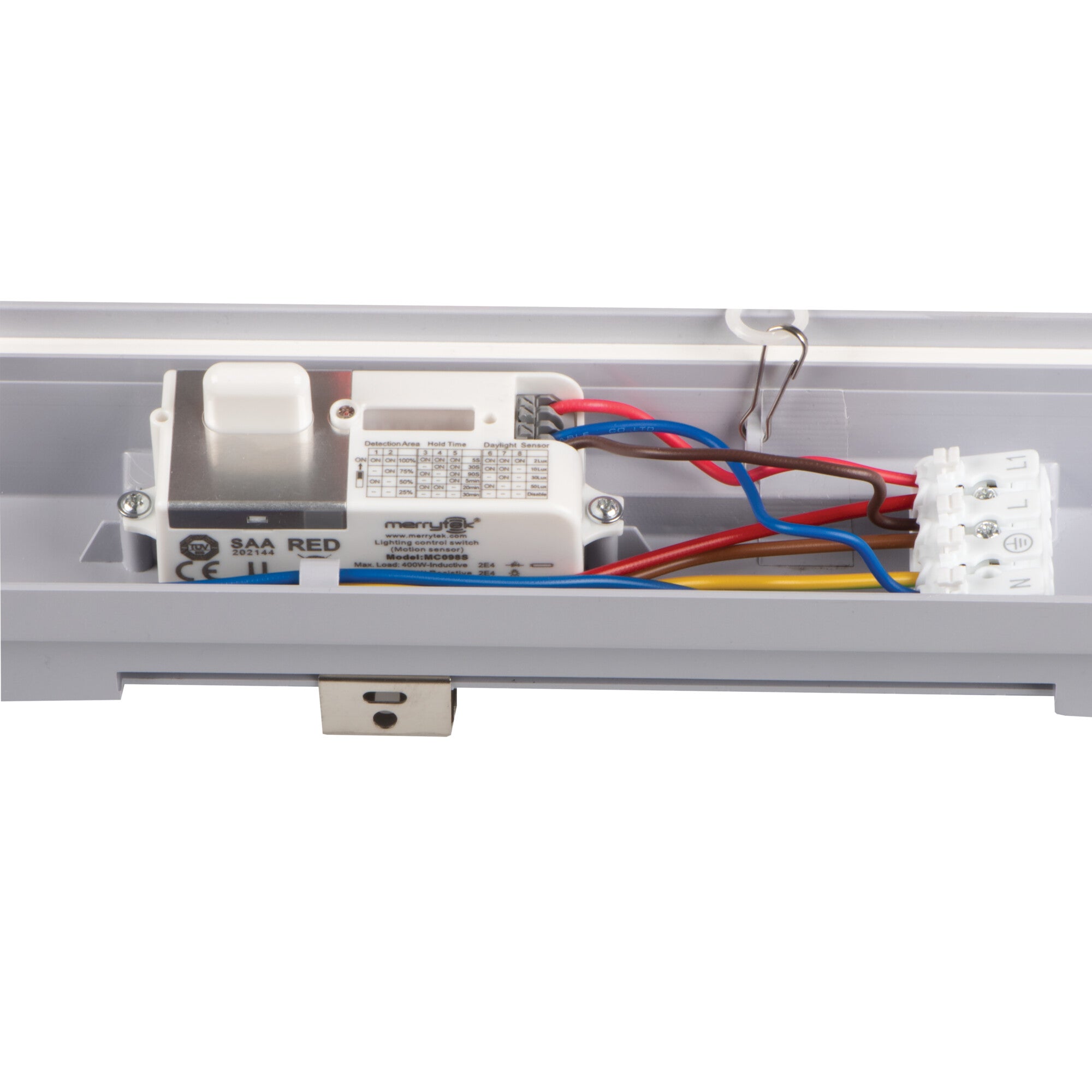

- Optional Motion Sensor: Enhances functionality and energy efficiency
-

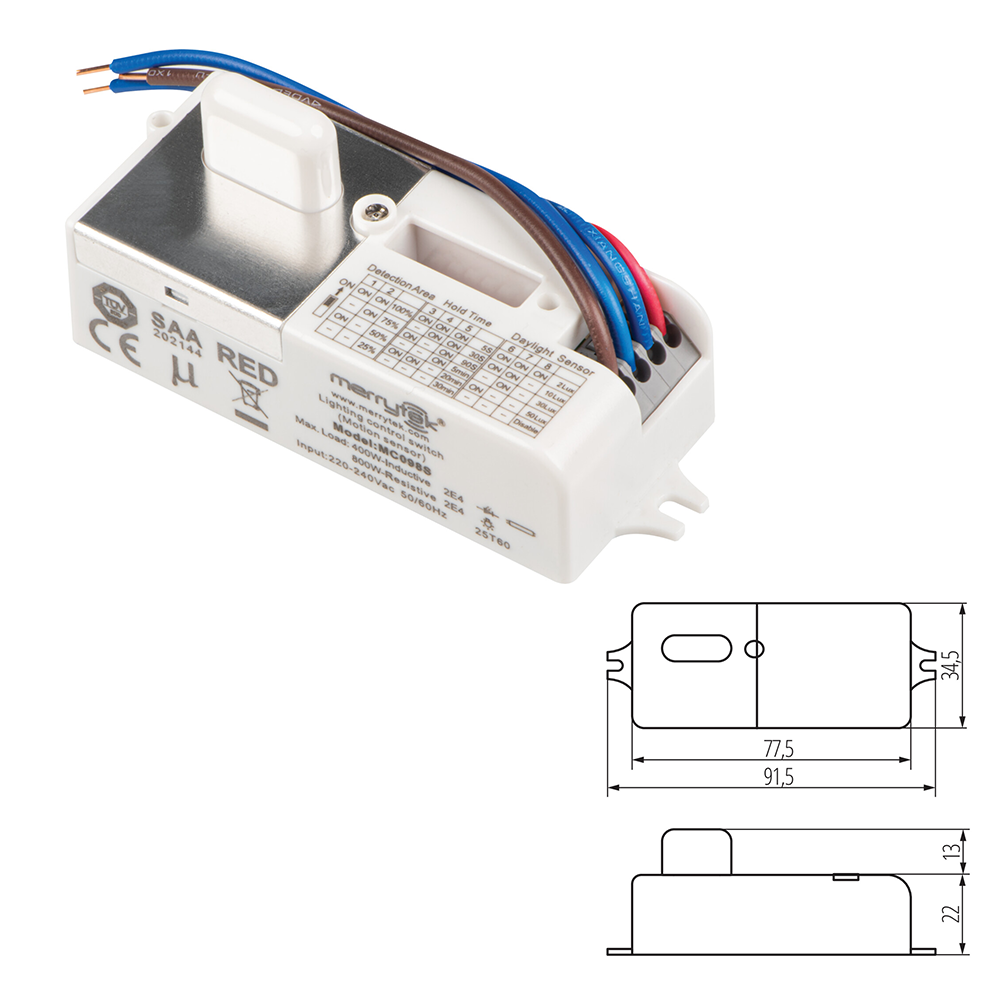

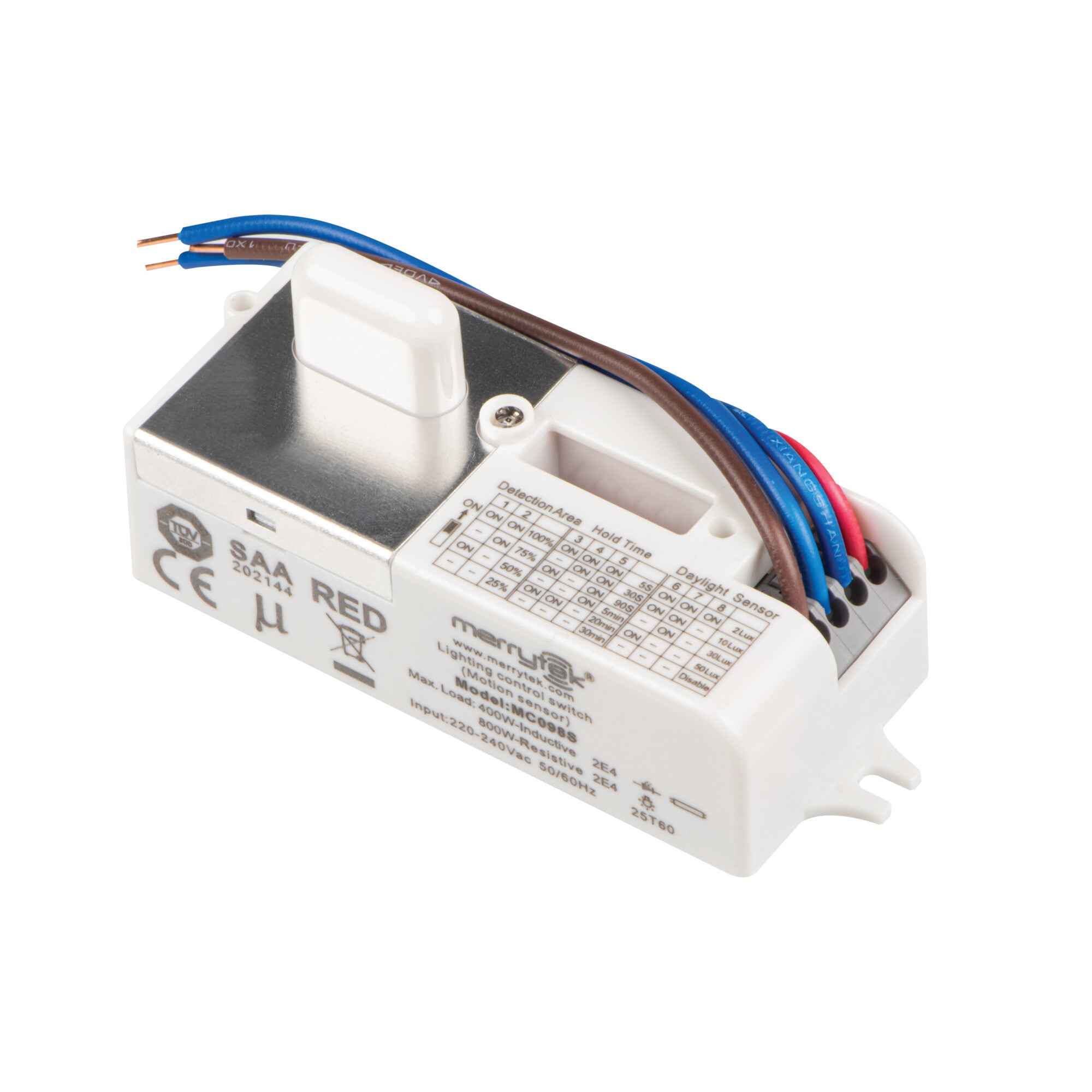

MAH PRO SENSOR Also Available
Download
MAH PRO Series With 5yr Warranty Datasheet
MAH PRO Y Series With 7yr Warranty Datasheet
MAH PRO SENSOR Datasheet
Specifications
| Brand | Kanlux |
|---|---|
| SKU | 38140, 38141, 38142,38143, 38144 |

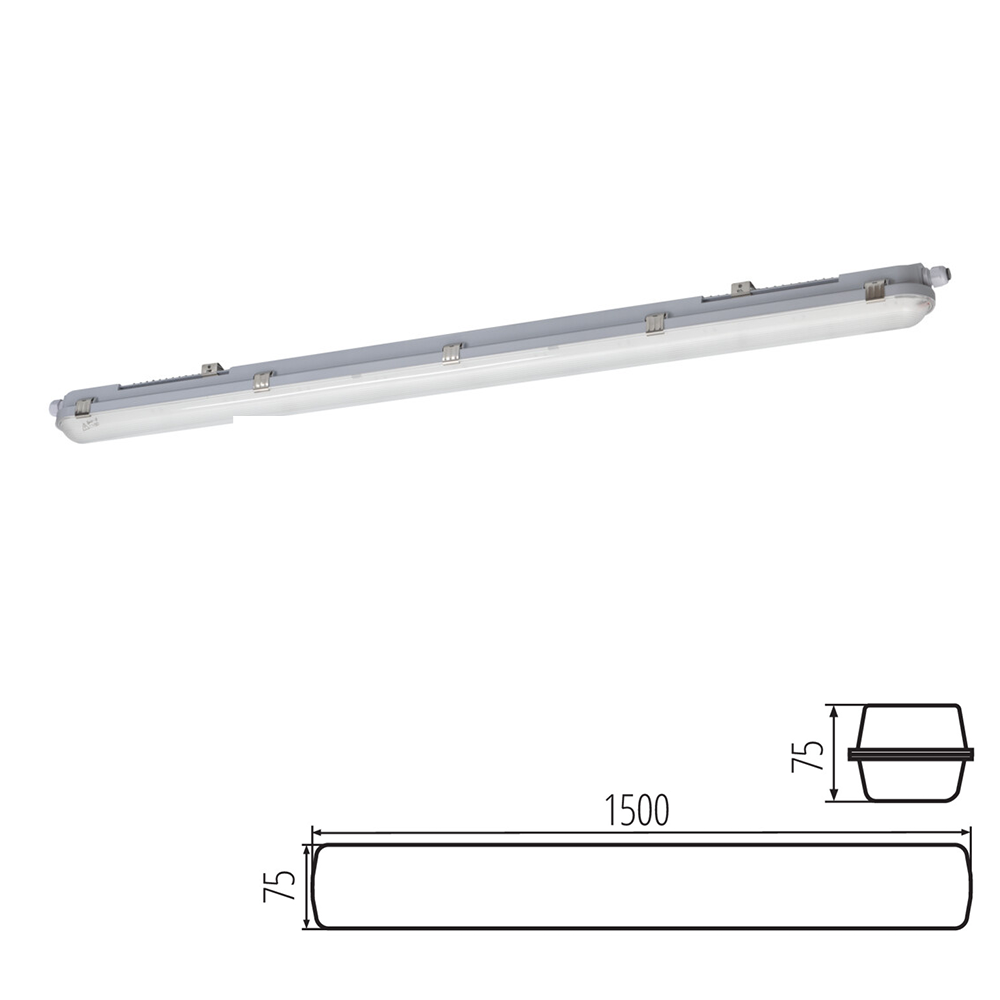

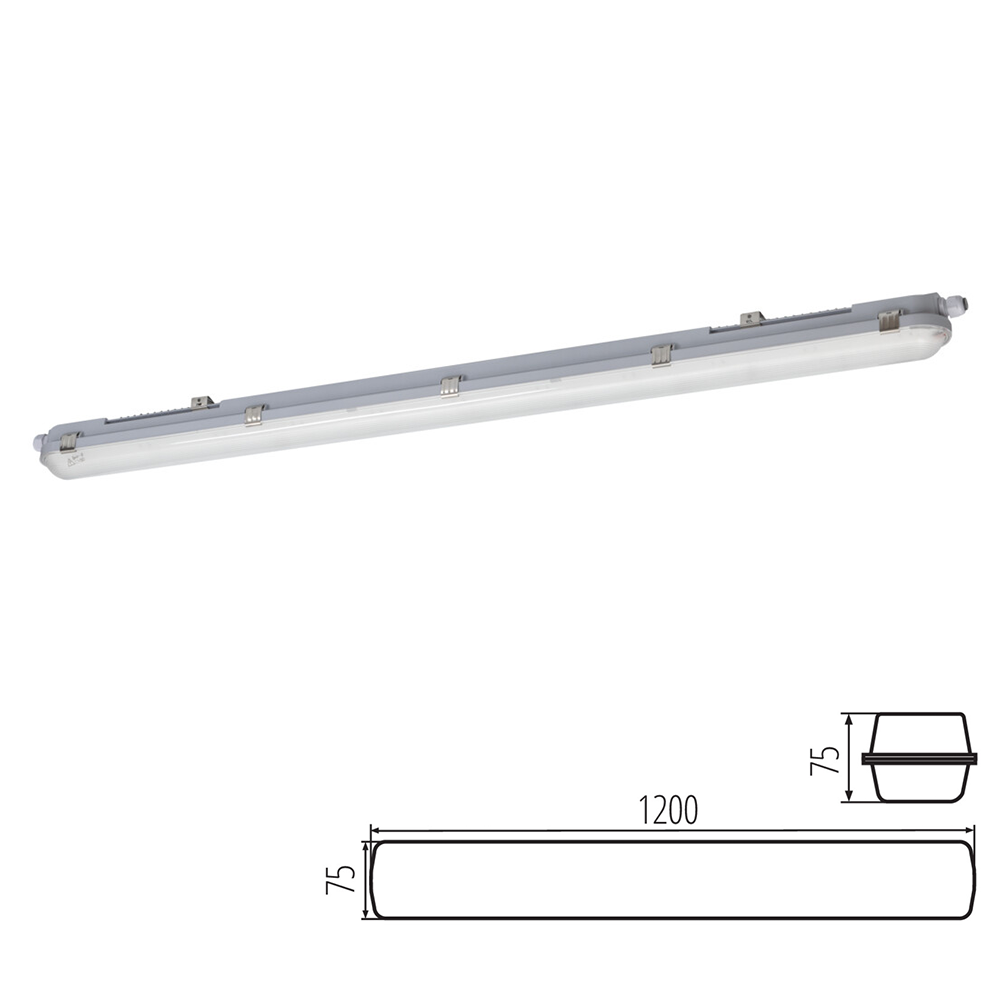

| Height (mm) | 75 |
| Length (mm) | 38W=1200, 52W=1500 |
| Width (mm) | 75 |
| Projection (mm) | 68 |
| Material | PC |
| Lampshade material | PC |
| Finish | Grey |
| Class | I |
| IP Rating | IP65 |
| Voltage (V) | 230V 50Hz |
| Number of chokes | 2 |
| Colour temperature [K] | 4000 |
| IK class | 8 |
| Lighting angle [°] | 110 |
| Rated Life (Hours) | 50000 |
| Light Colour | Neutral white |
| Lumens (lm) | 32W=6720, 52W=9200 |
| Wattage (W) |
1200mm= 22W, 27,5W, 34,5W, 38W 1500mm=29,5W, 37W, 44,5W, 52W |
| Integrated LED light source |
yes |
| CRI | 80 |
| Warranty (Years) | 5,7 |
