Description

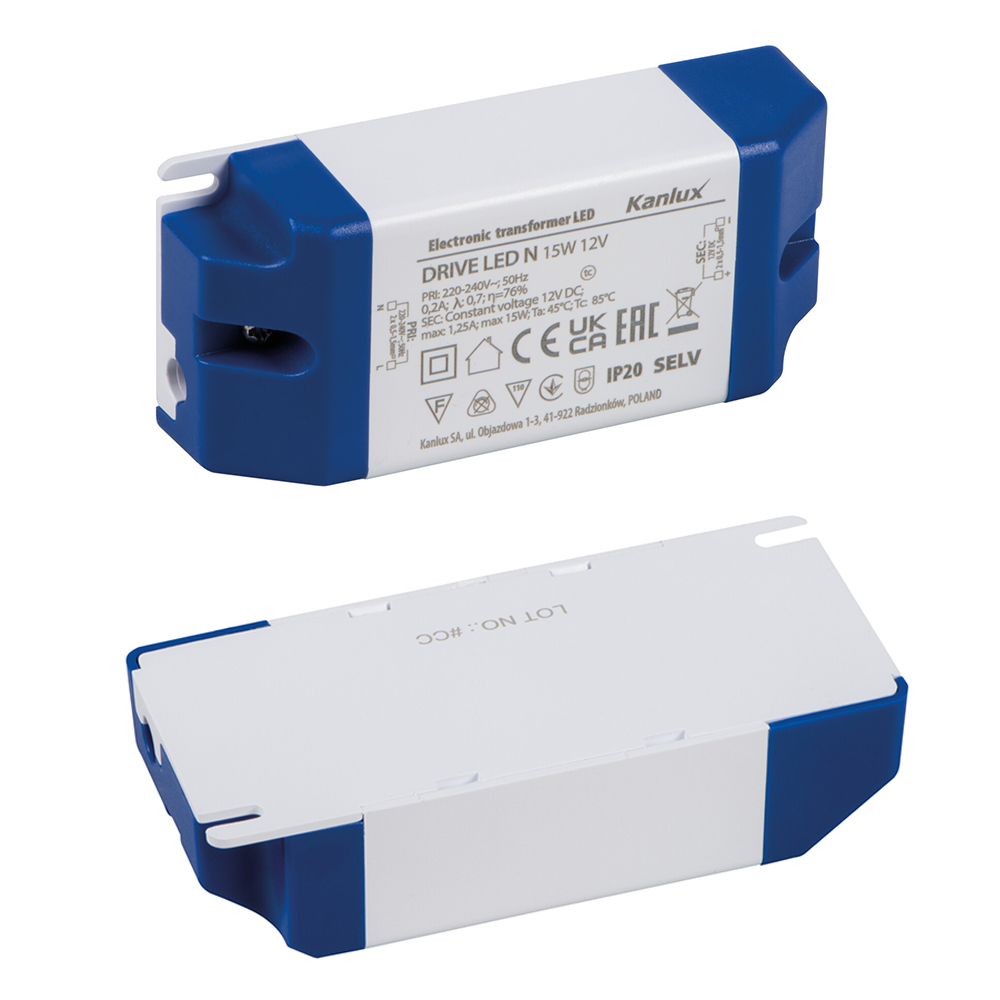

The Kanlux Miniatura DRIVE LED N 15W 12V is a reliable and compact LED power supply unit designed for indoor use. This power supply features a stable output voltage and current to ensure the optimal performance of your 12V LED lighting systems. Its compact size allows for versatile installation, and it includes essential protections against overcurrent and short circuits to enhance safety and longevity. Ideal for use in various lighting applications where a dependable 12V DC power source is required.
Features:
- Type: Constant Voltage Power Supply
- Output Voltage: 12V DC
- Maximum Power: 15W
- Output Current: Max 1250 mA
- Input Voltage: 220-240V AC
- Dimensions: 90 mm (L) x 40 mm (W) x 24 mm (H)
- Protection: Overcurrent, Short-Circuit, and Thermal Protection
- Material: Plastic
- IP Rating: IP20
- Usage: Suitable for LED strips and indoor applications
Downloads
Specifications
| Brand | Kanlux |
|---|---|
| SKU | 23861 |
| Weight (kg) | 56g |
| EAN | 5905339238610 |
| Length (mm) | 90 |
| Height (mm) | 24 |
| Width (mm) | 40 |
| Material | Plastic |
| Colour | White |
| Supply-cord type | constant-voltage |
| IP Rating | IP20 |
| Voltage (V) | 220 |
| Max. Wattage (W) | 0-15 |
| Dimmable | Not compatible with dimmers |
| Place of application | Indoor |
| Class | II |
| Working Temperature (°C) | 45 |
| Connection type | Terminal block |
| Case Temperature (°C) | 85 |
