Description

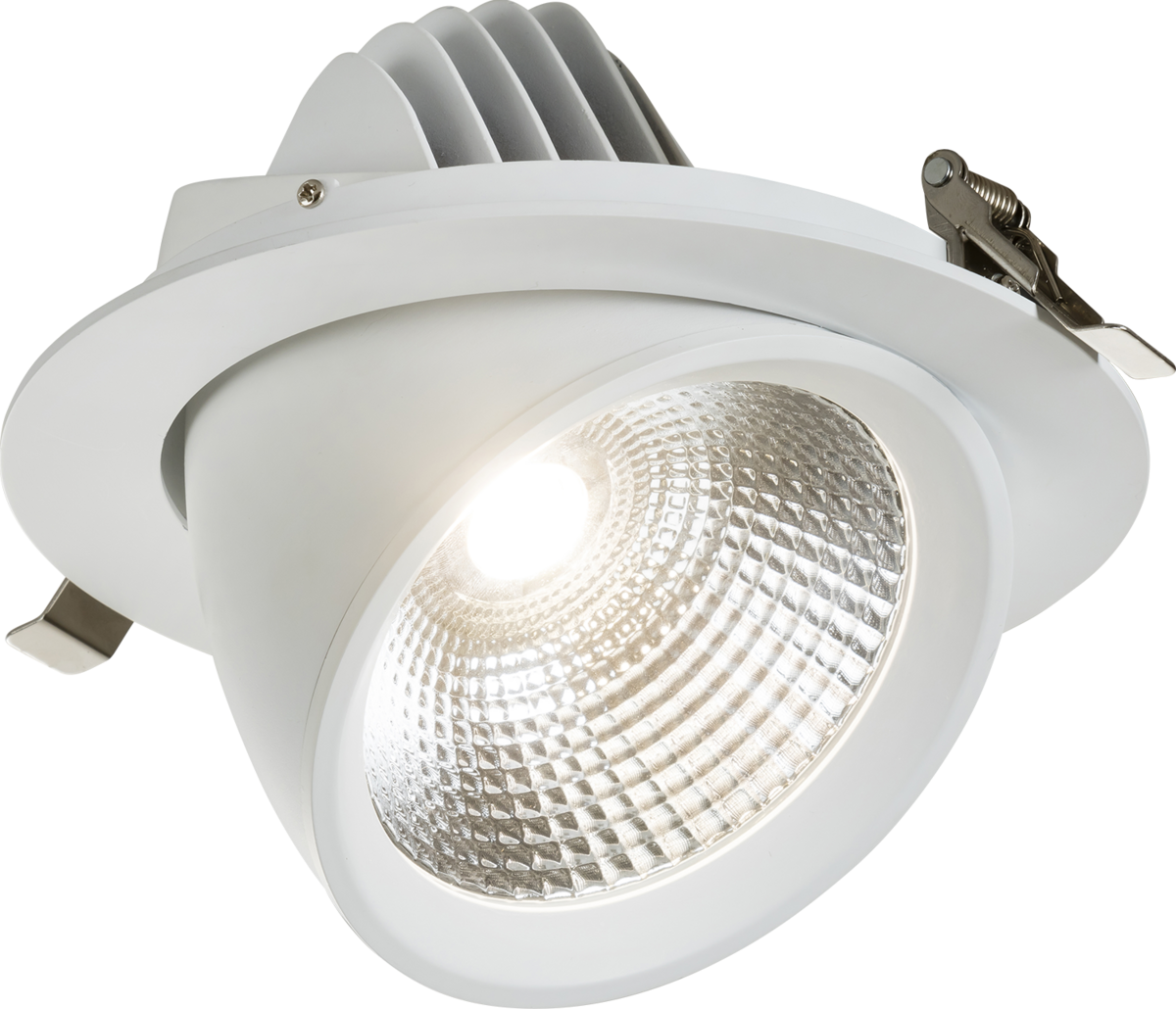

The SARA 230V IP20 LED Recessed Scoop Downlight provides a versatile lighting solution for a wide range of commercial applications. Designed with adaptability in mind, this downlight features selectable wattages and color temperatures to meet various lighting needs. It combines durability with high performance, featuring a die-cast aluminum housing with a sleek white powder-coated finish. The advanced COB LED technology ensures high efficiency and reliable illumination, while the 0-10V dimming capability allows for customizable lighting environments.
Key Features:
- Selectable Power Outputs: Choose from 30W, 35W, or 40W to suit different lighting requirements.
- Color Temperature Options: Three adjustable CCTs - 3000K (warm white), 4000K (neutral white), and 5000K (cool white) for versatile lighting effects.
- Dimming Capability: Equipped with 0-10V dimming for precise control over light intensity.
- COB LED Technology: Ensures high efficiency and superior light quality.
- Adjustable Design: Features 350-degree rotation and a 40-degree tilt angle for optimal light positioning.
- Durable Construction: Made from die-cast aluminum with a white powder-coated finish for long-lasting performance.
- Easy Installation: Includes plug-and-play connectors for straightforward setup.
- Emergency Kit Compatibility: Can be paired with the EMKIT2 for emergency lighting solutions.
- Warranty: Comes with a standard 5-year manufacturer warranty for added peace of mind.
- IP Rating: IP20, suitable for indoor use.
- Driver Options: Compatible with various driver configurations to meet different control needs.
15/ 20/ 25W Datasheet Standard
15/ 20/ 25W Datasheet Dimmable
15/ 20/ 25W Datasheet DALI2 Control Gear
30/ 35/ 40W Datasheet Standard
30/ 35/ 40W Datasheet Dimmable
30/ 35/ 40W Datasheet DALI2 Control Gear
Specifications
| Brand | Knightsbridge |
|---|---|
| SKU |
SA1525C, SA1525CAD, SA1525CDALI, SA3040C, SA3040CAD, SA3040CDALI |

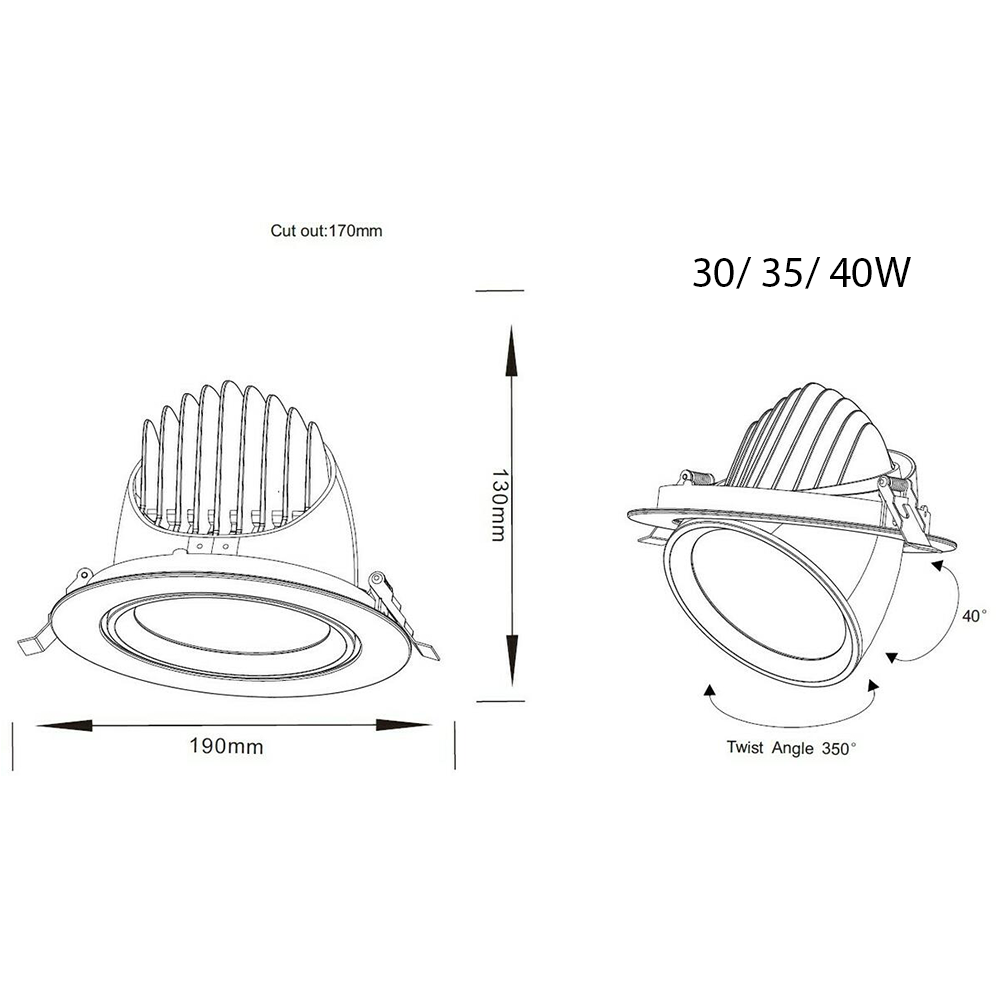

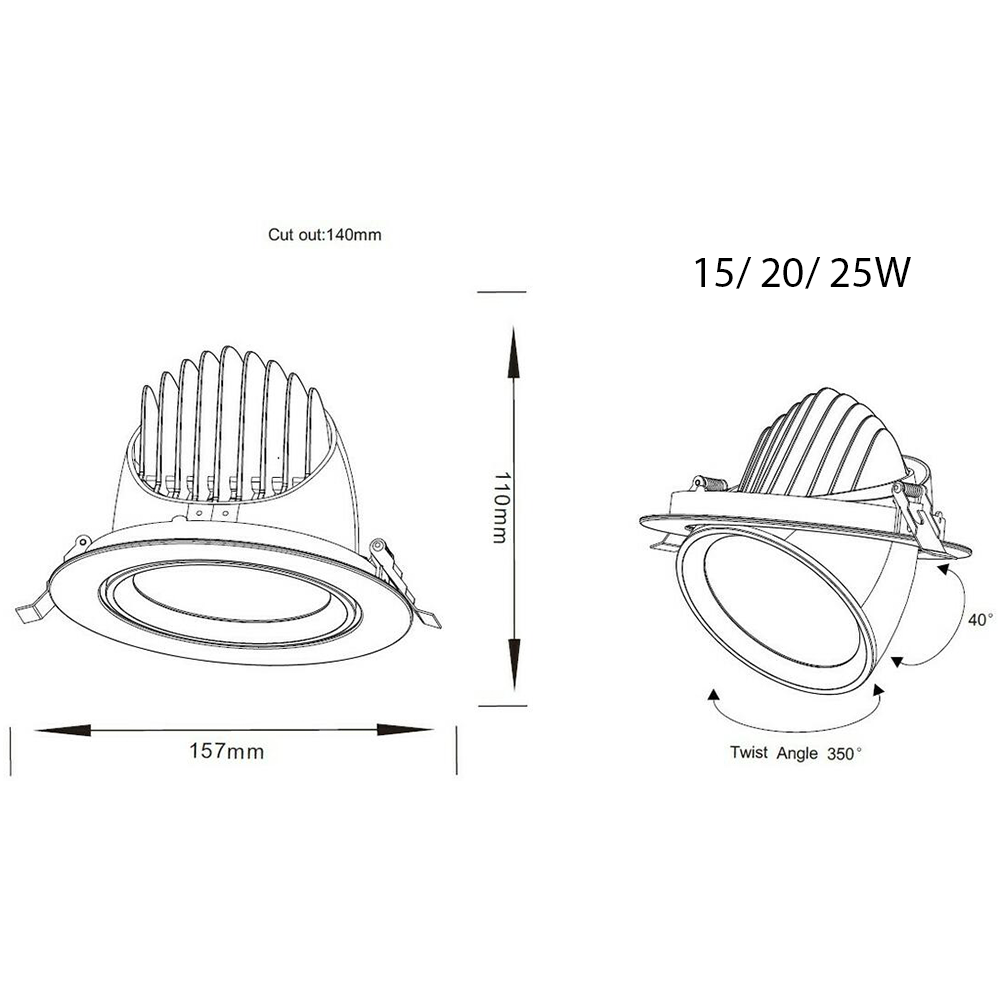

| Diameter (mm) | 15/ 20/ 25W=157, 30/ 35/ 40W=190 |
| Recessed Depth (mm) | 15/ 20/ 25W=110, 30/ 35/ 40W=130 |
| Minimum Void (mm) | 15/ 20/ 25W=160, 30/ 35/ 40W=180 |
| Cut-out Diameter (mm) | 15/ 20/ 25W=140, 30/ 35/ 40W=170 |
| Tilt (°) | 45 |
| Rotation (°) | 350 |
| Material | Aluminium & Glass |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Diffuser | Clear |
| Lamp Technology | CoB LED |
| Lamp Included | Yes |
| Beam Angle (°) | 15/ 20/ 25W=45, 30/ 35/ 40W=38 |
| Colour Temperature (K) | 3000/4000/5000K |
| Light Colour | CCT |
| Lumens (Light Source only) | 15/ 20/ 25W=3325, 30/ 35/ 40W= 4975 |
| Wattage (W) | 15/ 20/ 25W, 30/ 35/ 40W |
| CRI | 80 |
| Commodity Code | 9405423990 |
| Warranty (Years) | 5 |
