Description

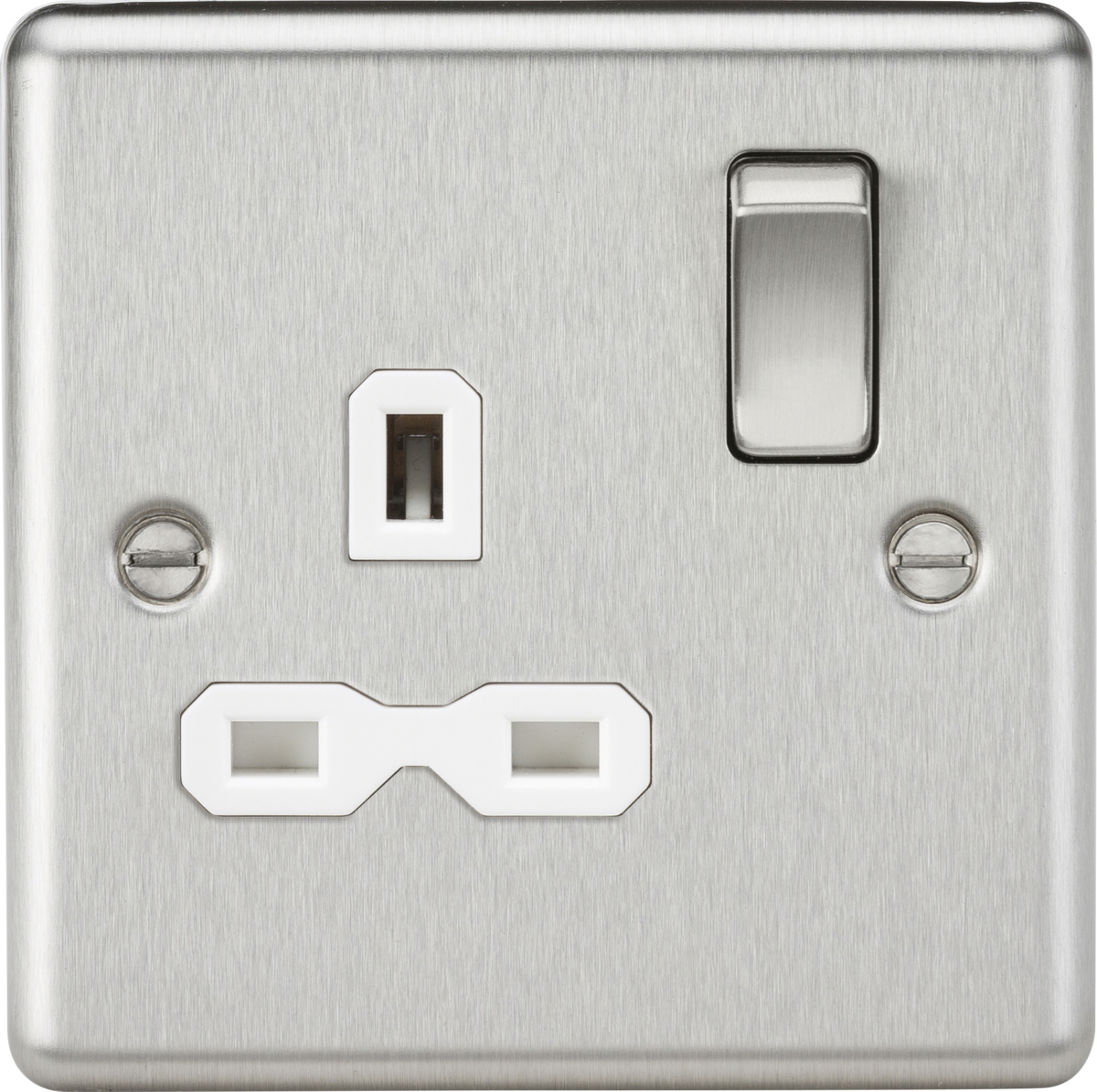

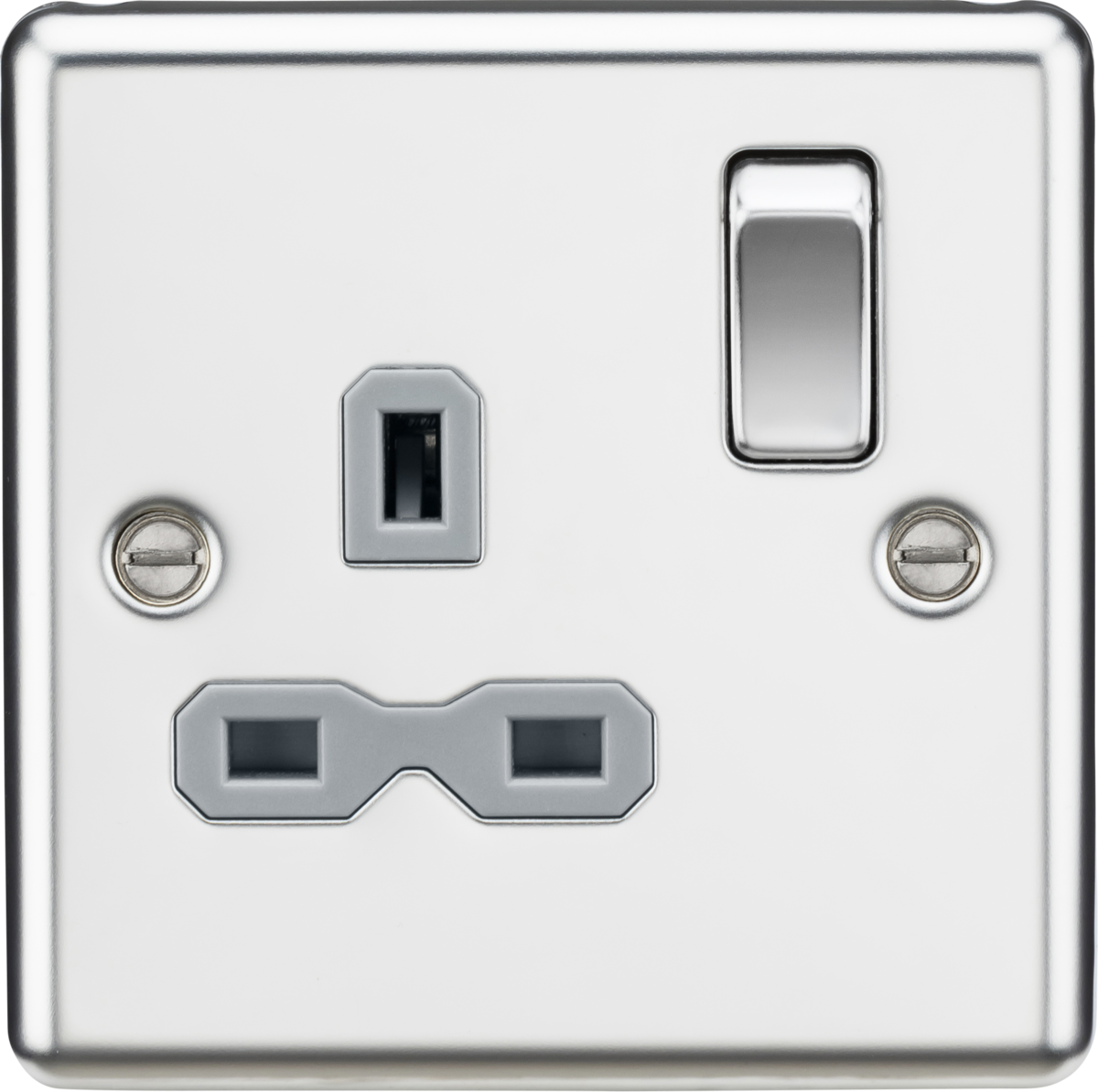

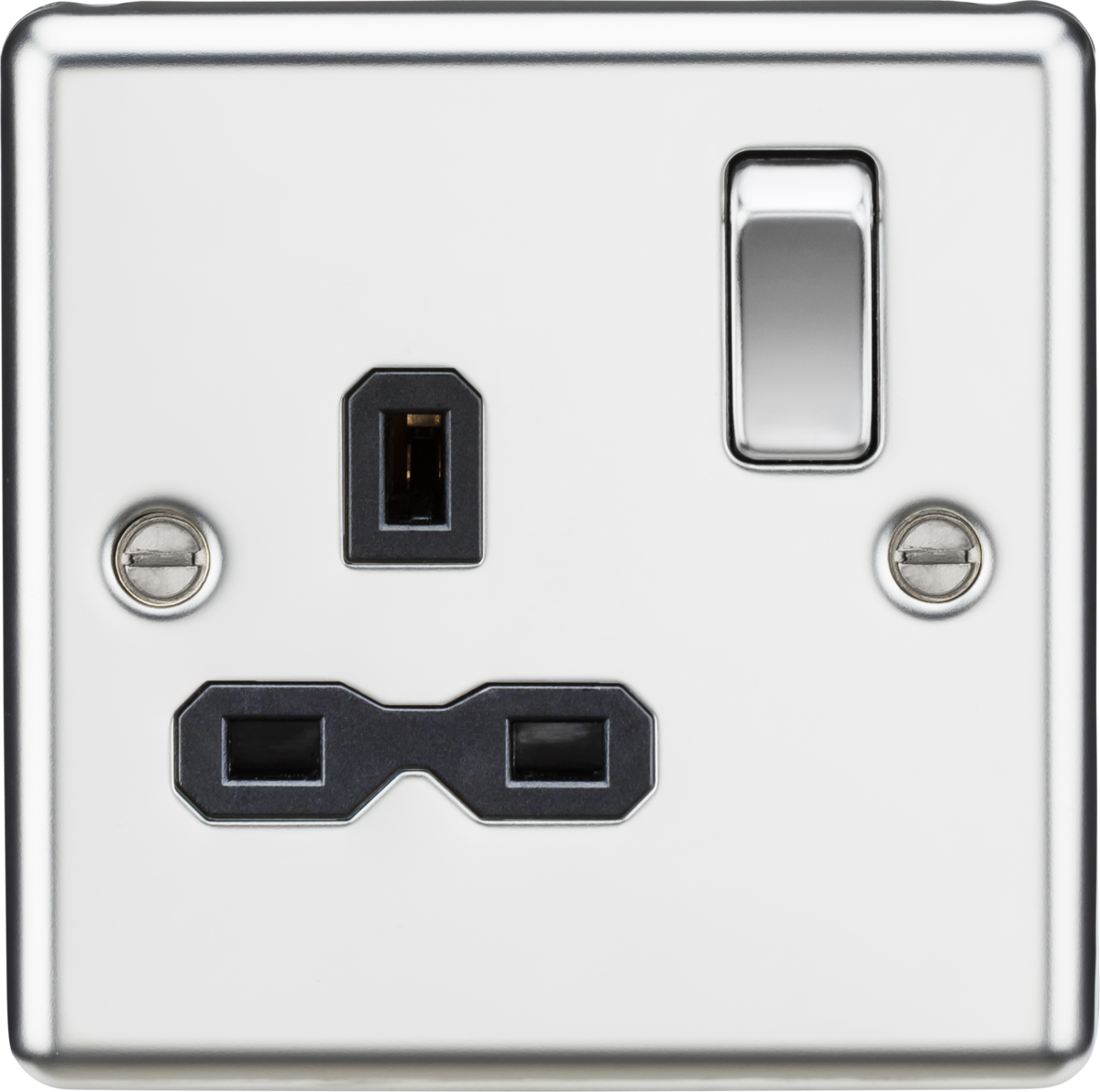

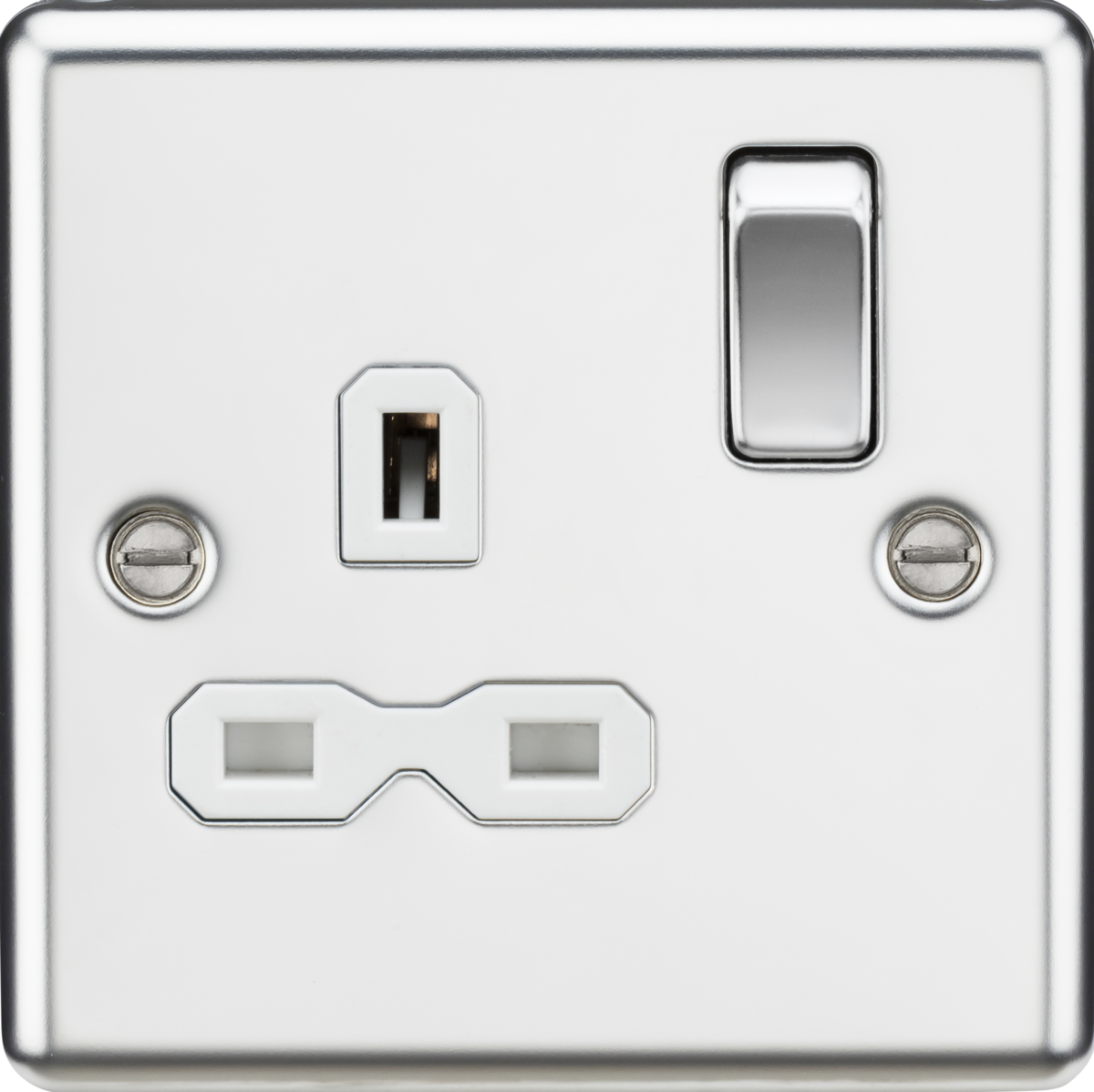

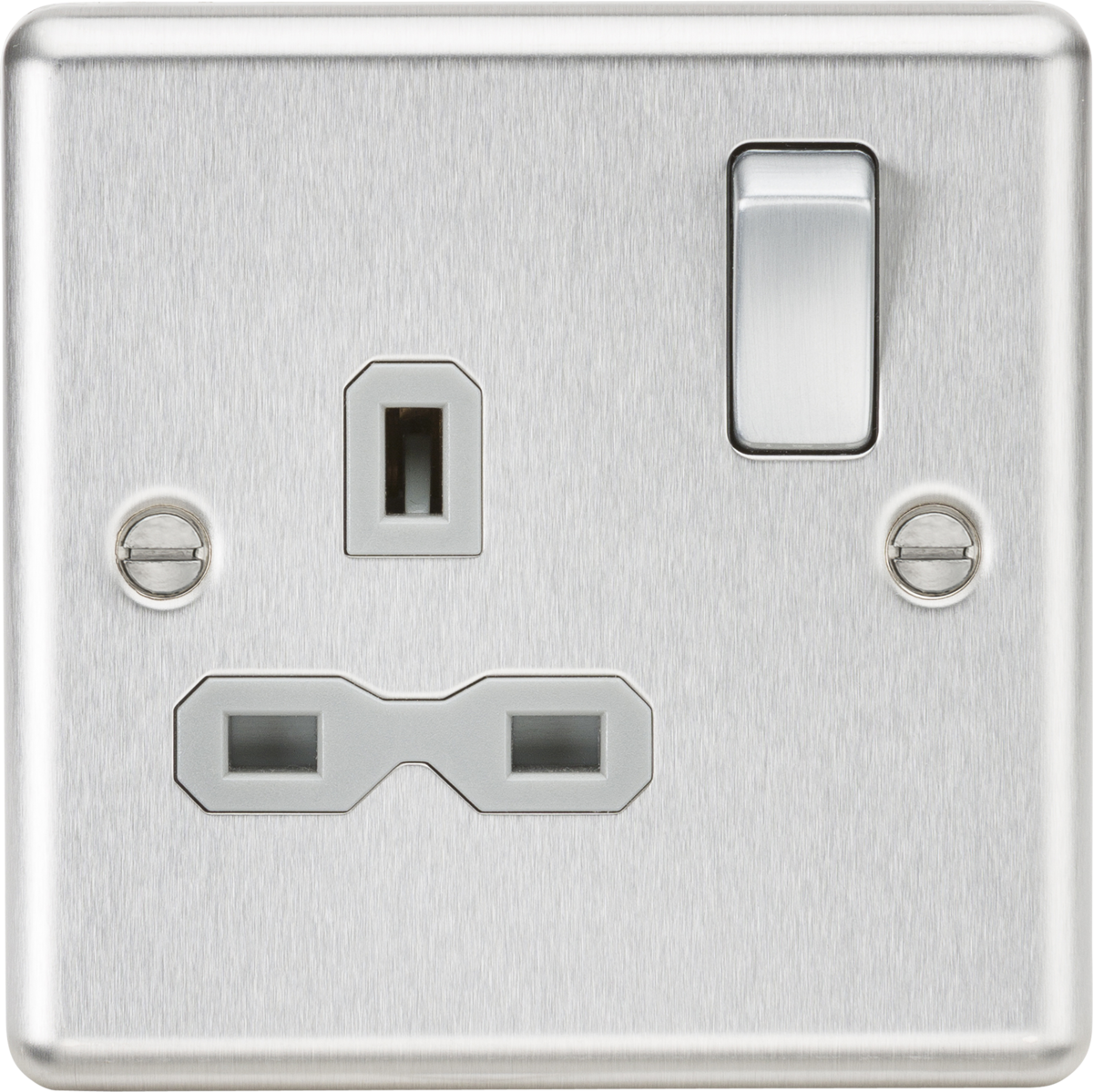

Provides a desirable decorative touch to any home, contemporary rounded edge metal design with matching metal rockers, unique socket insert design that is completely hidden once a plug is inserted.
- 13A Switched Socket
- Double Pole Switch
- Rounded Edge design with built in gasket
- Certified to BS 1363:2
- Minimum mounting box depth 25mm
- 13A Switched Socket
- Double Pole Switch
- Rounded Edge design with built in gasket
- Certified to BS 1363:2
- Minimum mounting box depth 25mm
Download
DatasheetSpecifications
| Brand | Knightbridge |
|---|---|
| SKU | CL7BC, CL7PC |

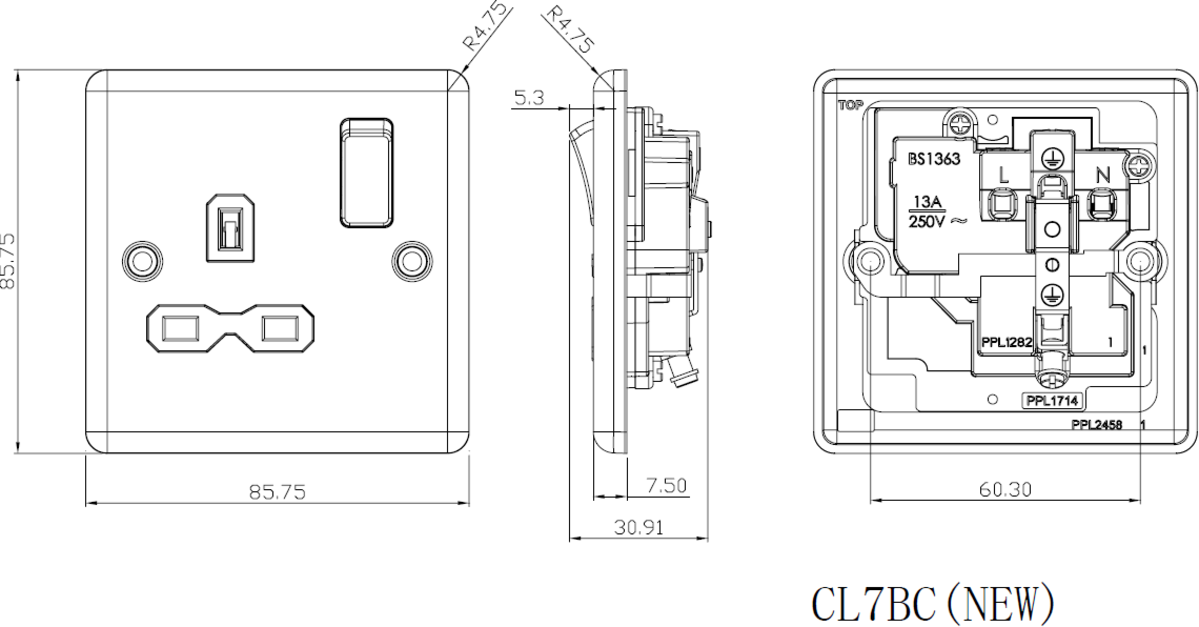

| Height (mm) | 85.75 |
| Width (mm) | 85.75 |
| Projection (mm) | 7.5 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Premium grade steel |
| Finish | Brushed Chrome, Polished Chrome |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Warranty (Years) | 15 |
| Commodity Code | 8536 6990 85 |
