Description

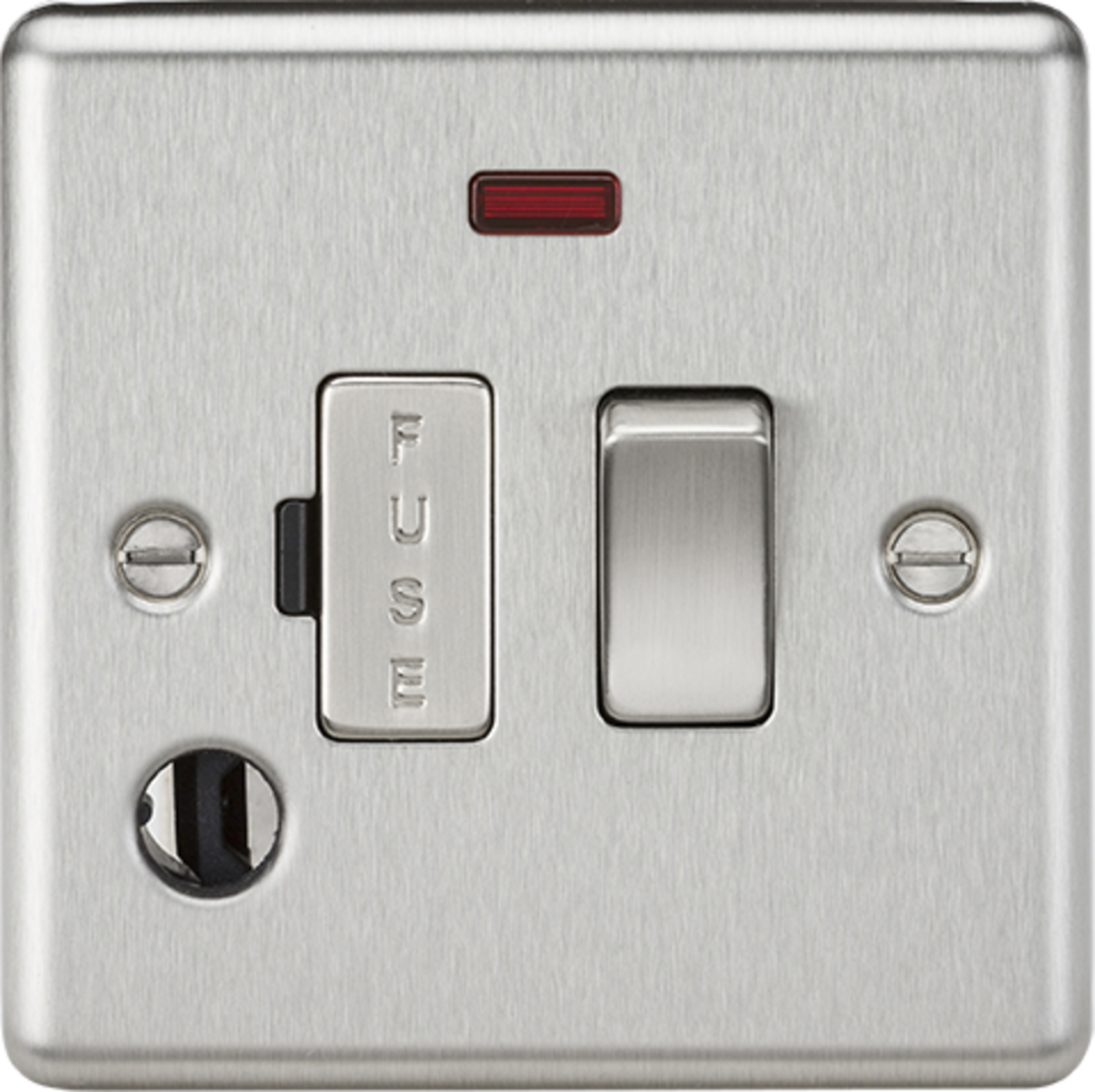

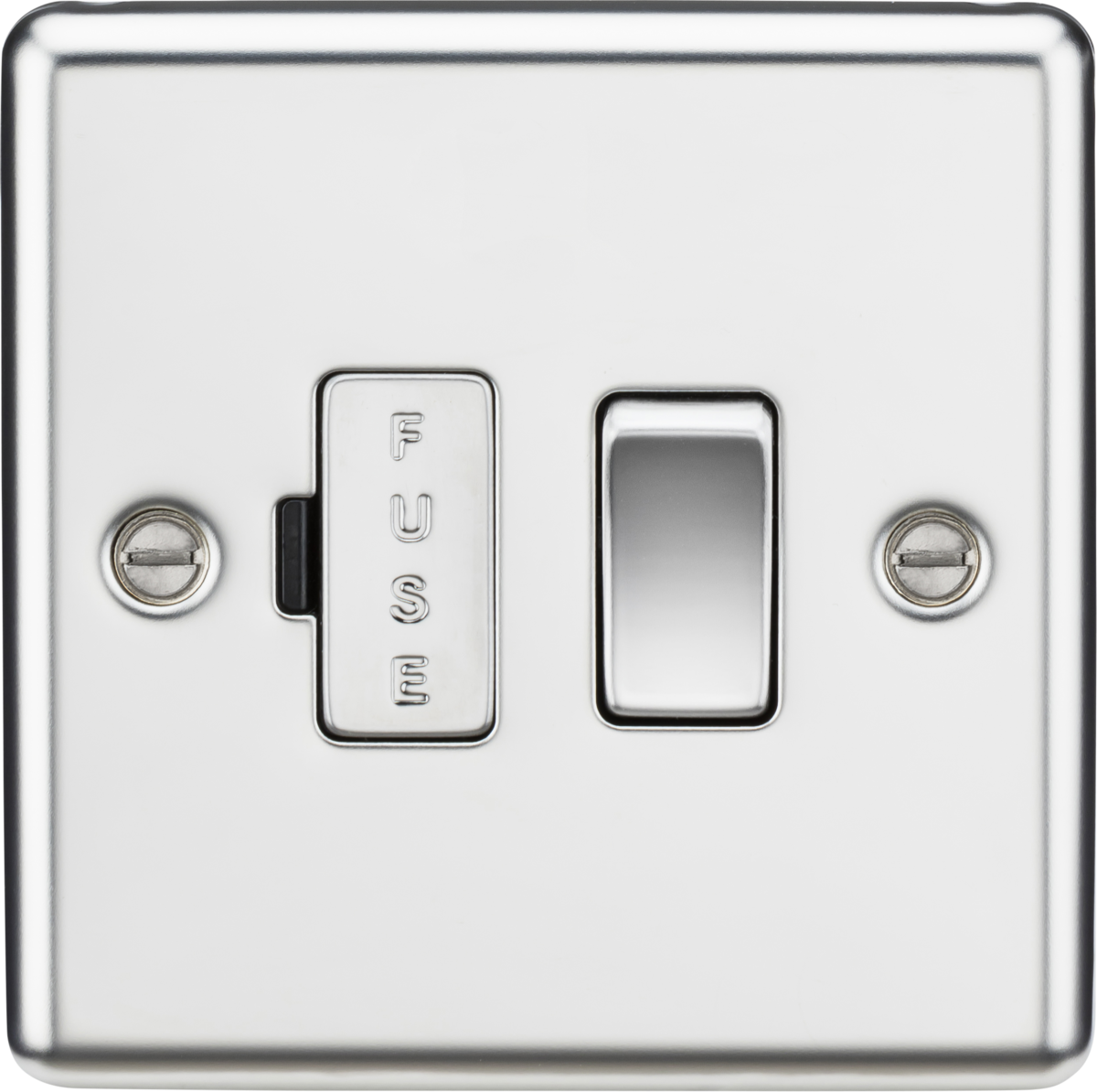

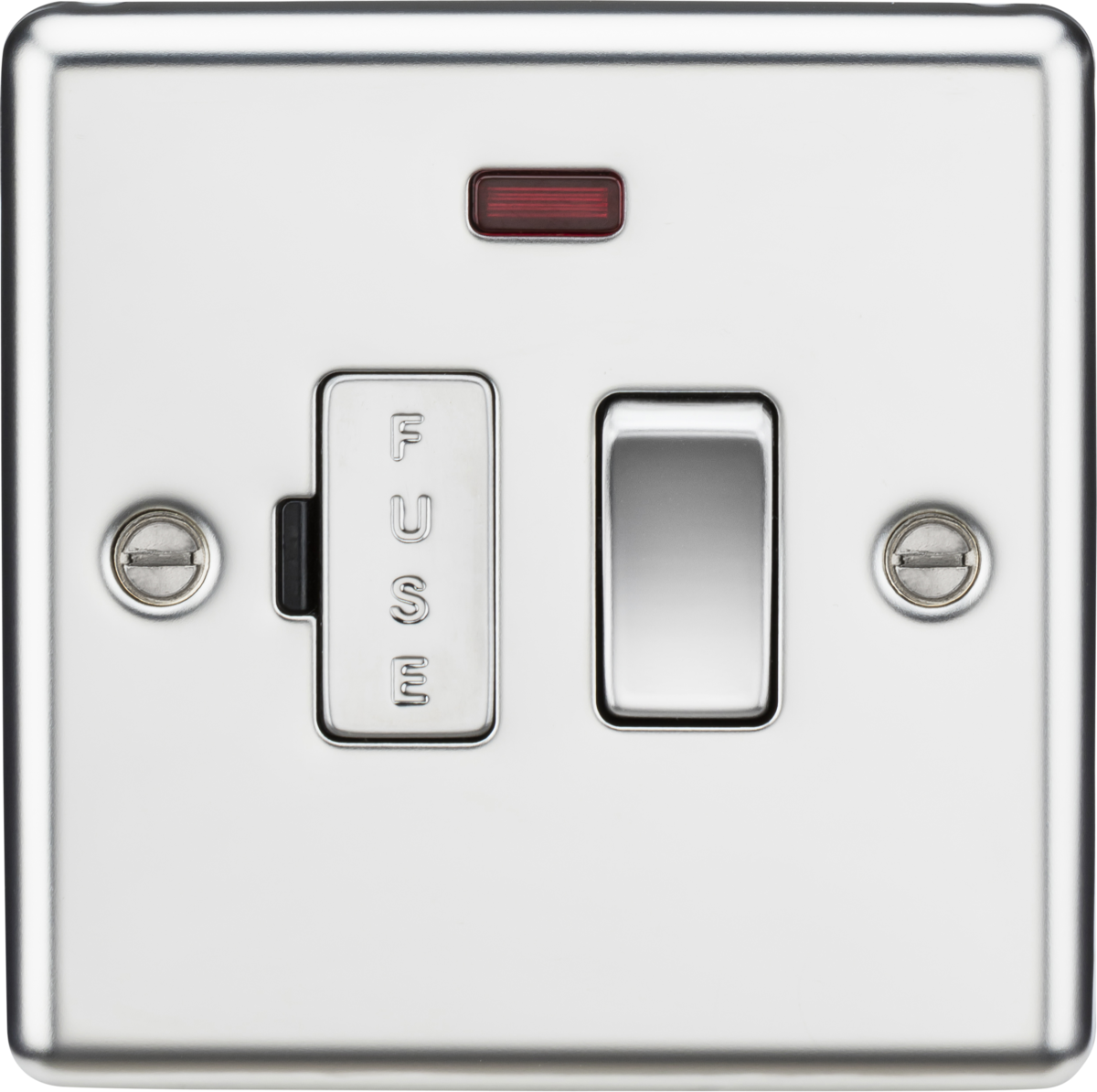

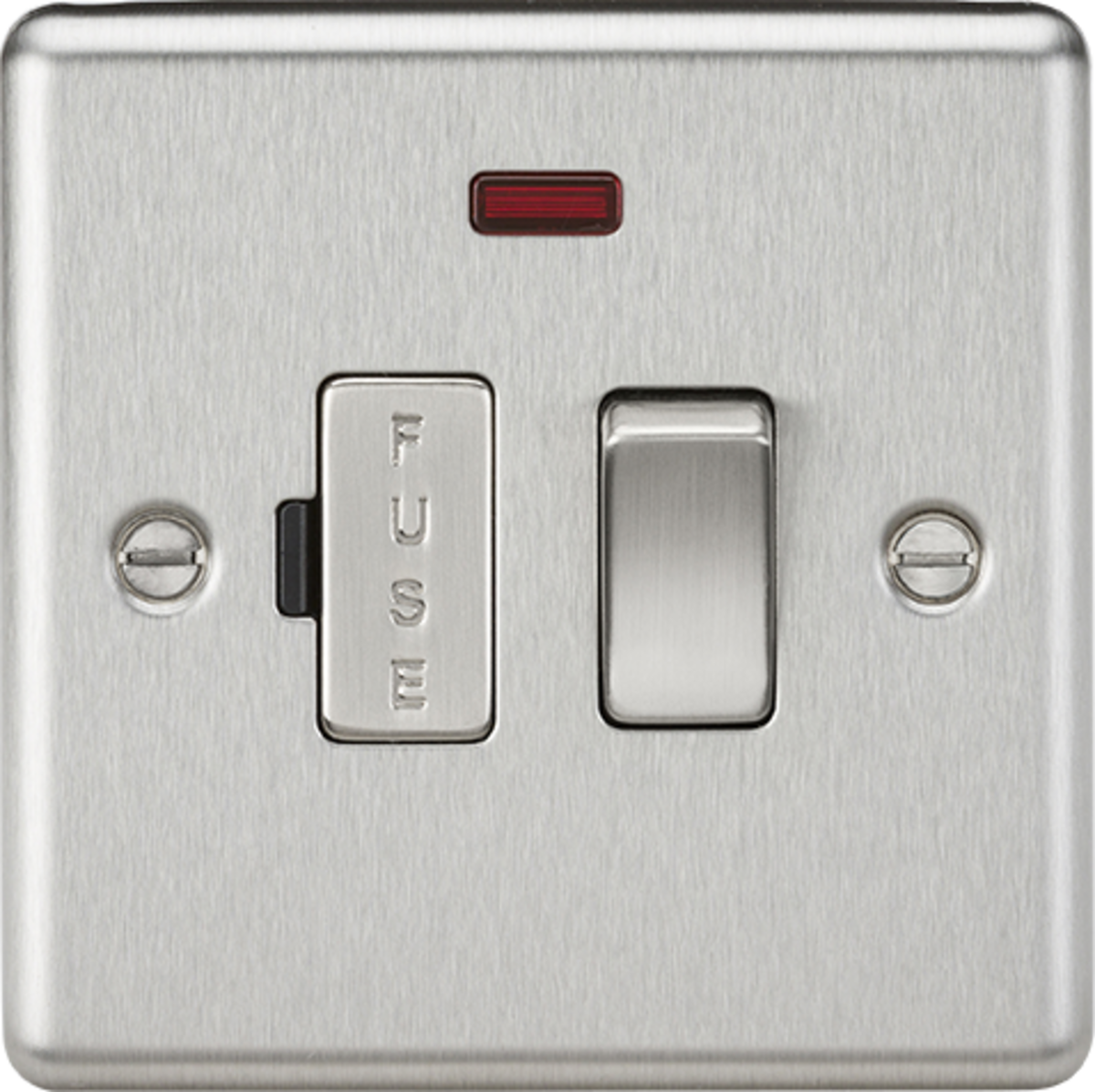

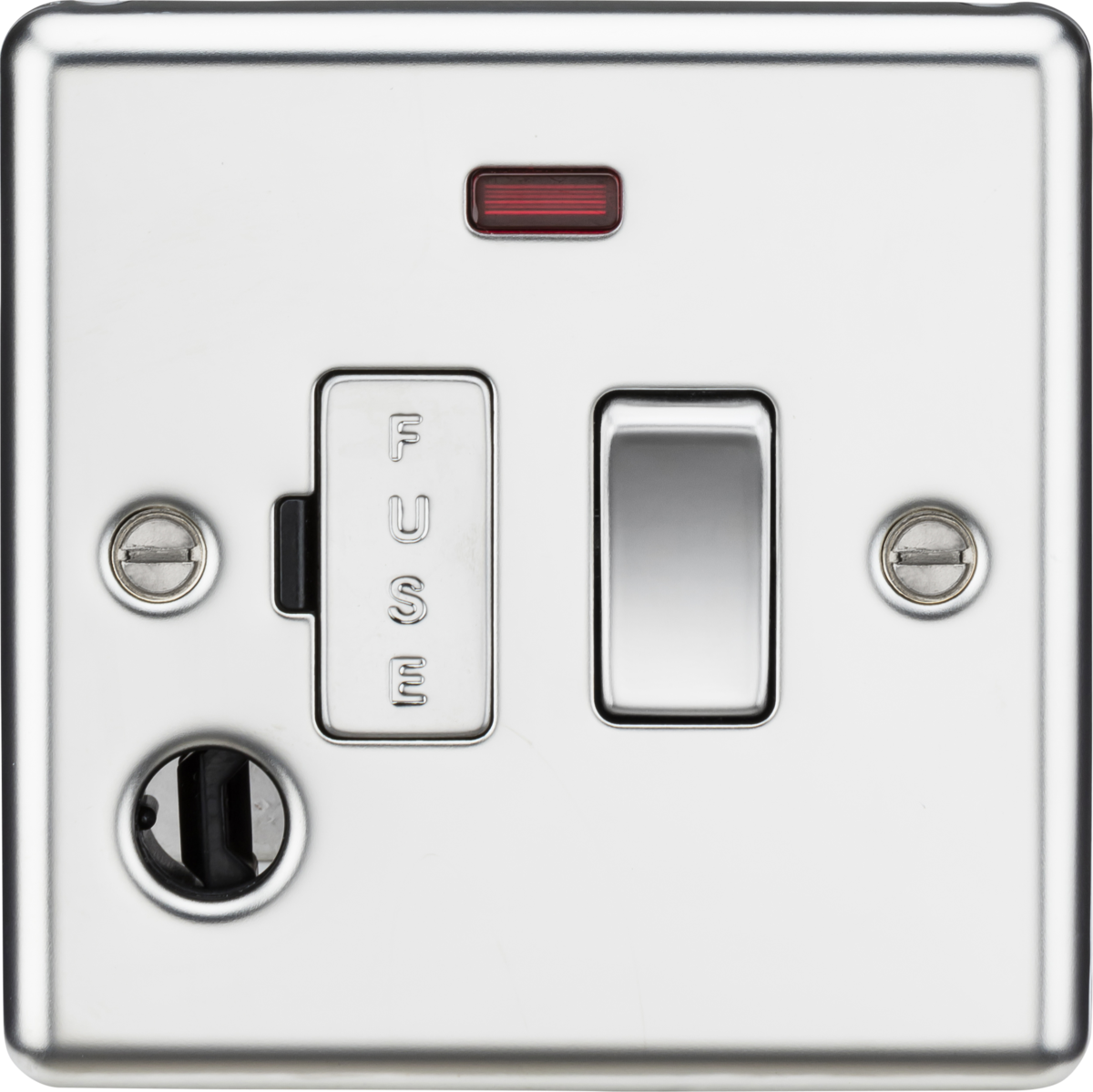

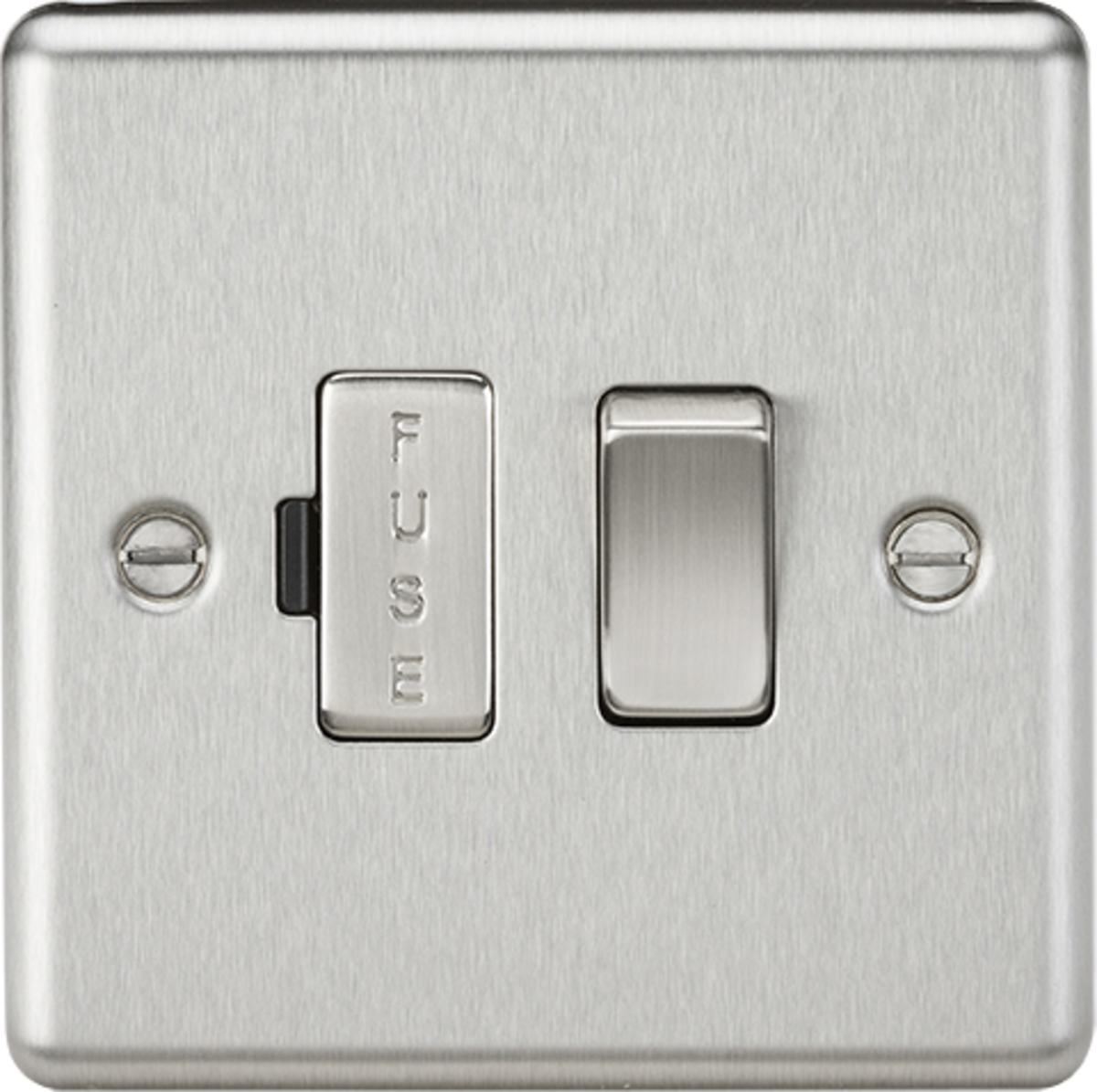

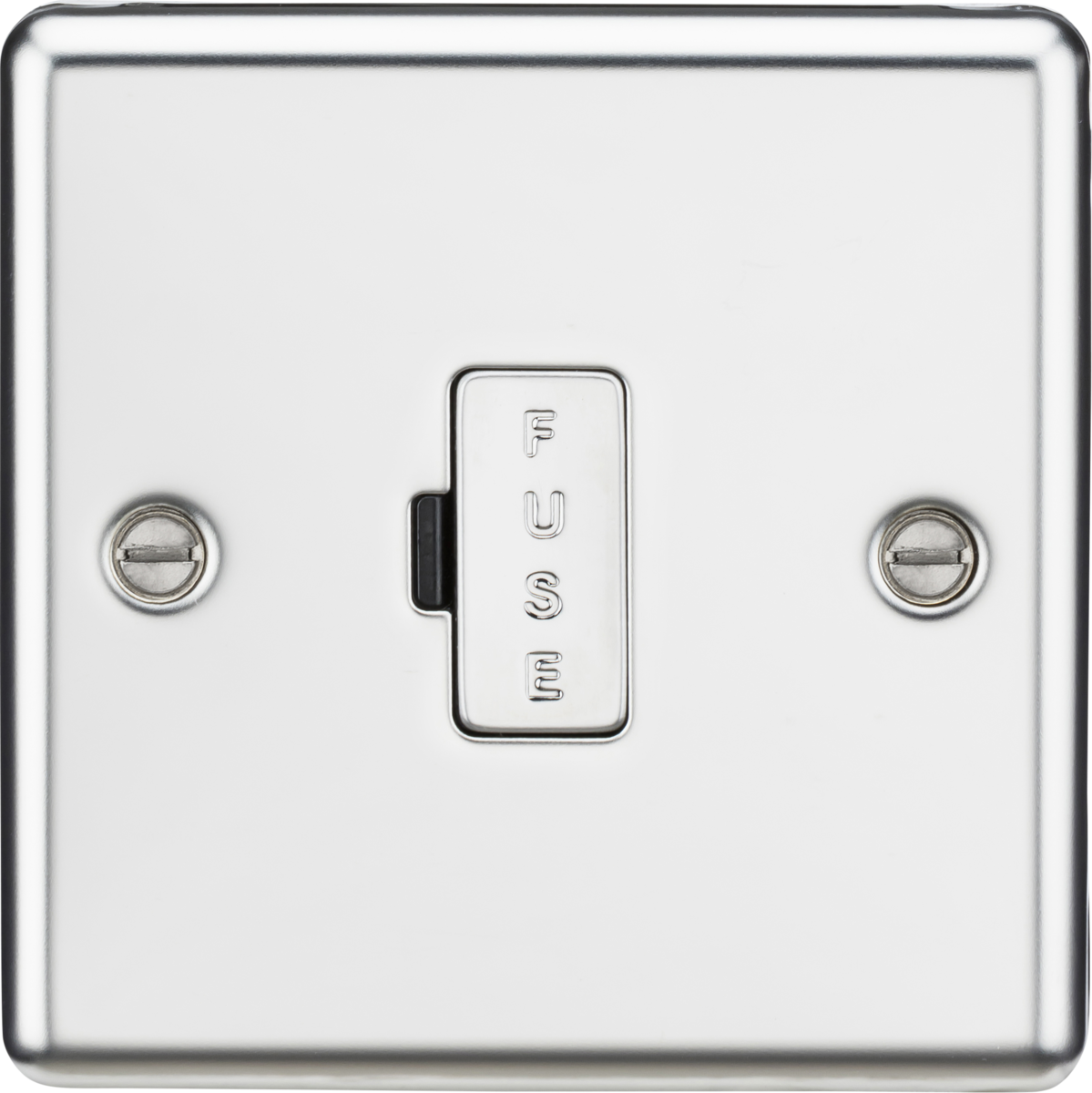

Fused Spur solution in rounded edge metal design with matching fuse holder.
- 13A rated
- Rounded edge design with built in gasket
- Certified to BS 1363-4
- Minimum mounting box depth 25mm
- 13A rated
- Rounded edge design with built in gasket
- Certified to BS 1363-4
- Minimum mounting box depth 25mm
Download
DatasheetSpecifications
| Brand | Knightbridge |
|---|---|
| SKU | CL6, CL63, CL63N, CL63F |

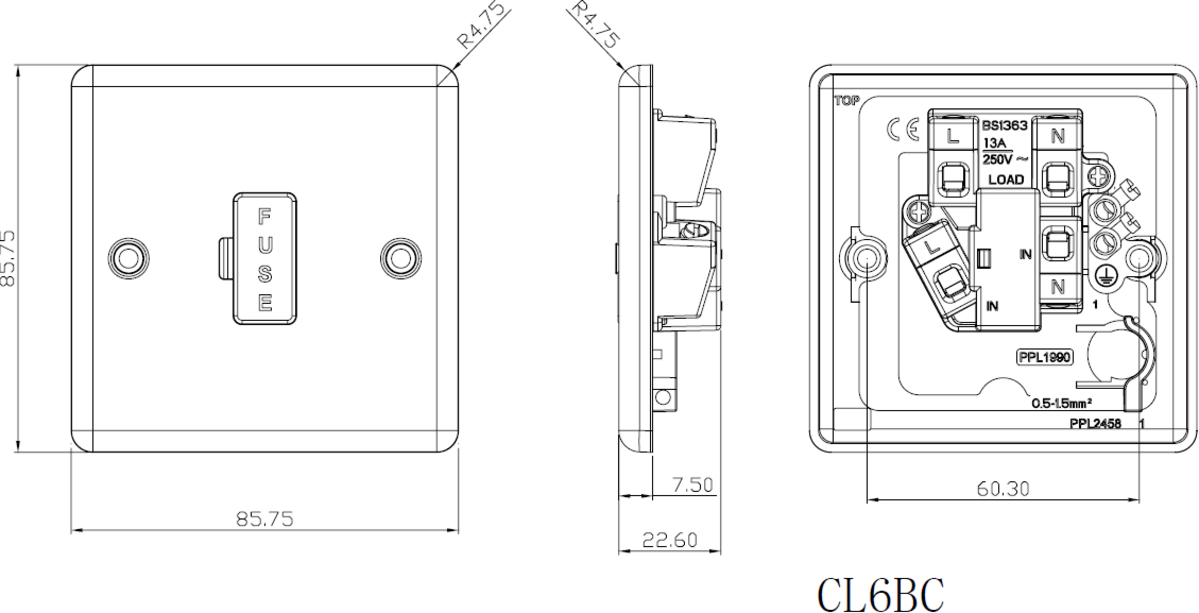

| Height (mm) | 85.75 |
| Width (mm) | 85.75 |
| Projection (mm) | 7.5 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Premium grade steel |
| Finish | Brushed Chrome, Polished Chrome |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Neon Indicator | Neon Model Only |
| Warranty (Years) | 15 |
| Commodity Code | 8536 3010 90 |
