Description
Gently contoured 7mm plate with rounded edges and anti-microbial properties
- 13A rated
- Fused Spur unit
- Includes screw cap covers
- Certified to BS 1363-2
- Available in few different models, please select from drop down menu
Download
Specifications
| Brand | Knightsbridge |
|---|---|
| SKU | CU6000, CU6000-3A, CU6000N, CU6000NF,CU6300, CU6300F, CU6300N, CU6300NF,CU6RCD |

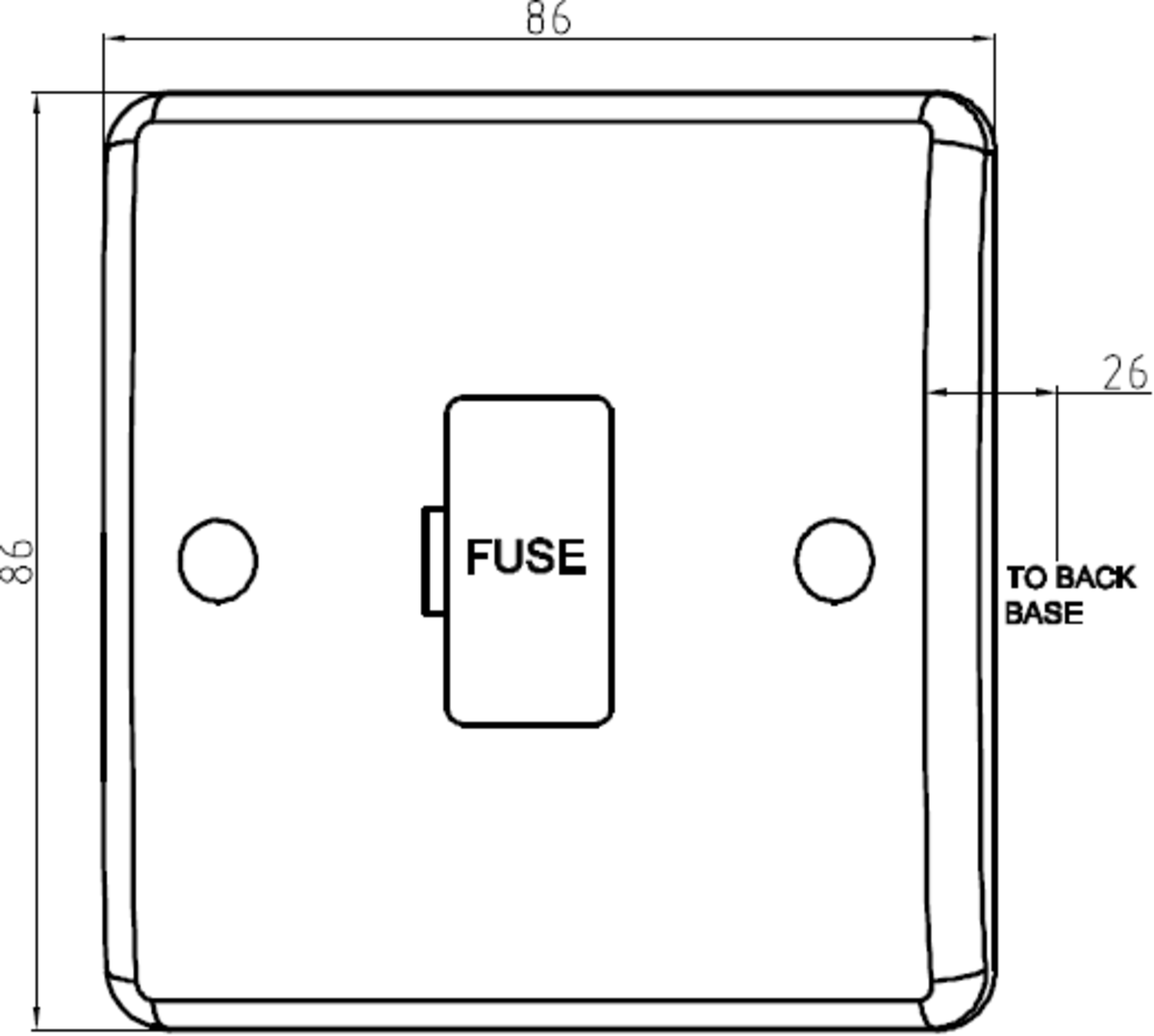

| Height (mm) | 86 |
| Width (mm) | 86 |
| Projection (mm) | 7 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Thermoset resin |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Neon Indicator | Yes (Neon Model Only) |
| Terminal | Captive |

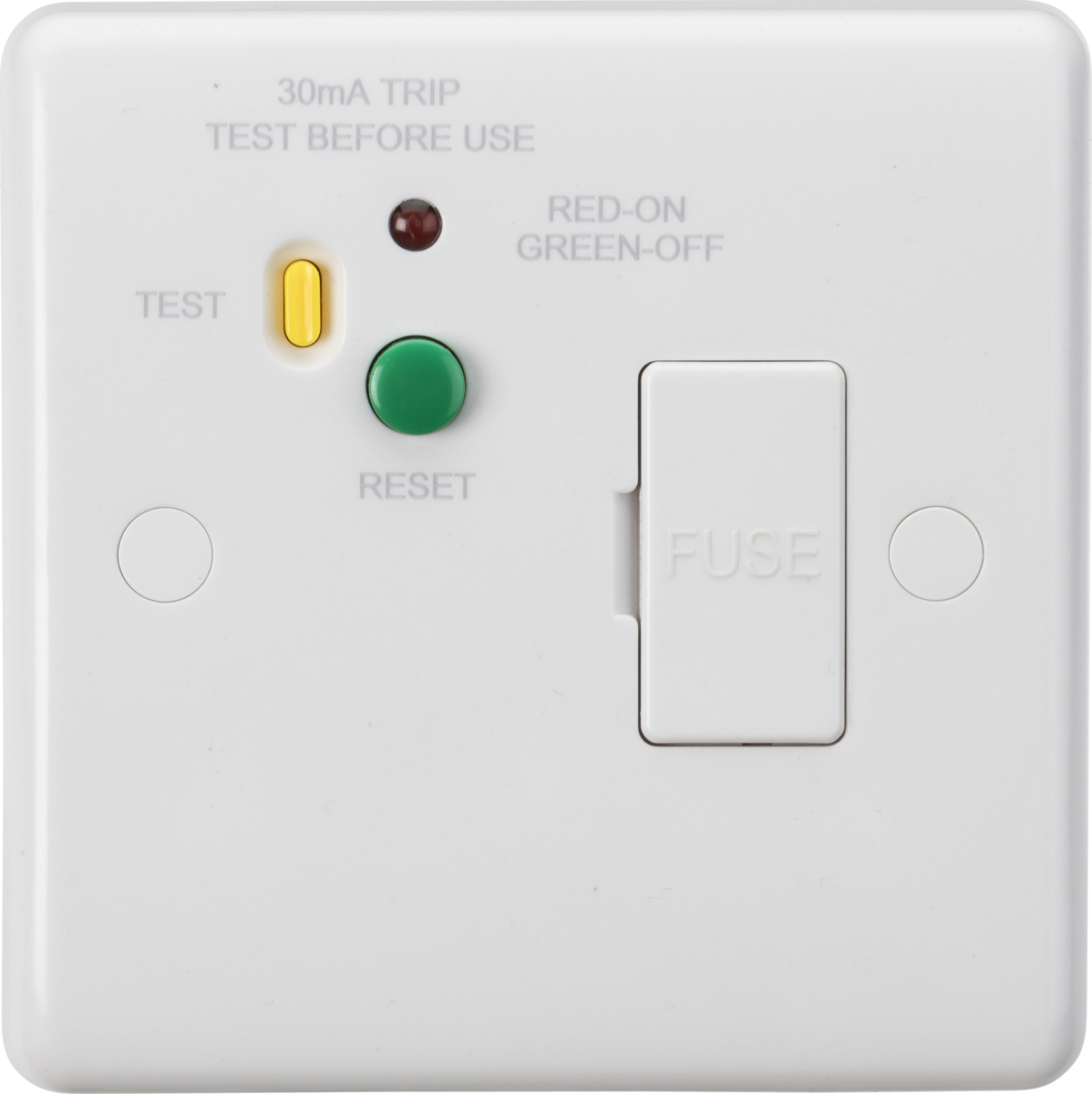

| RCD functionality | 30mA Type-A latching |
| Warranty (Years) | 15 |
| Commodity Code | 8536 3010 90 |
