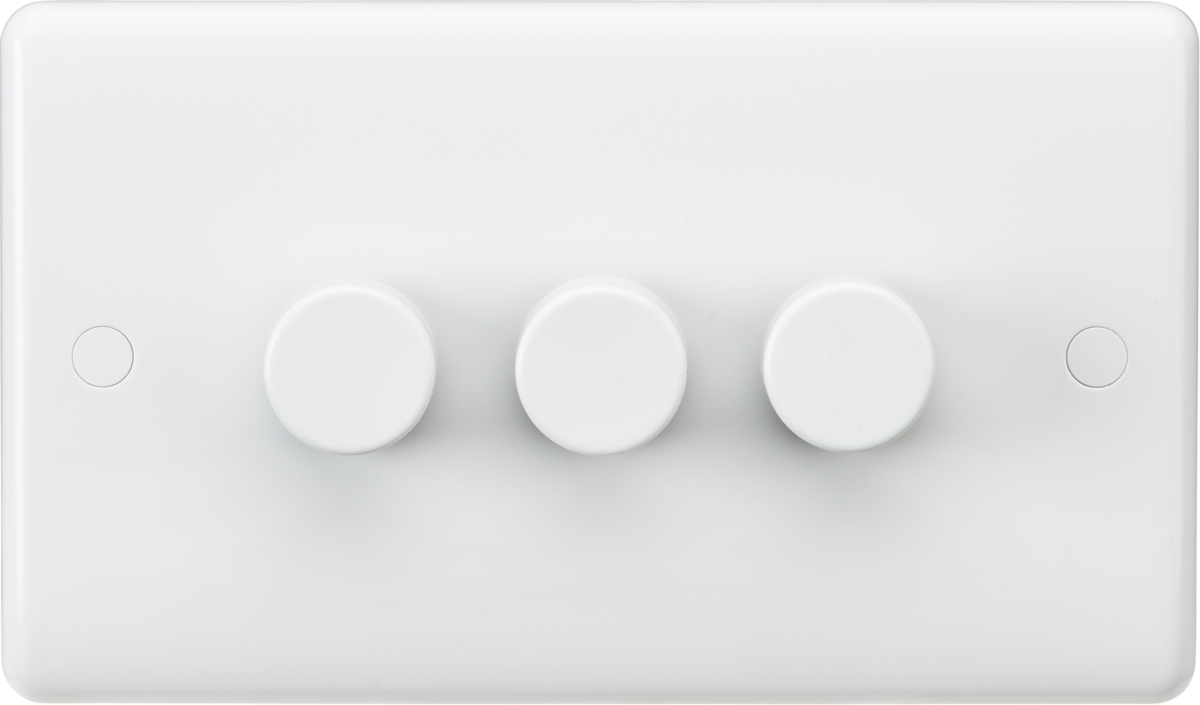

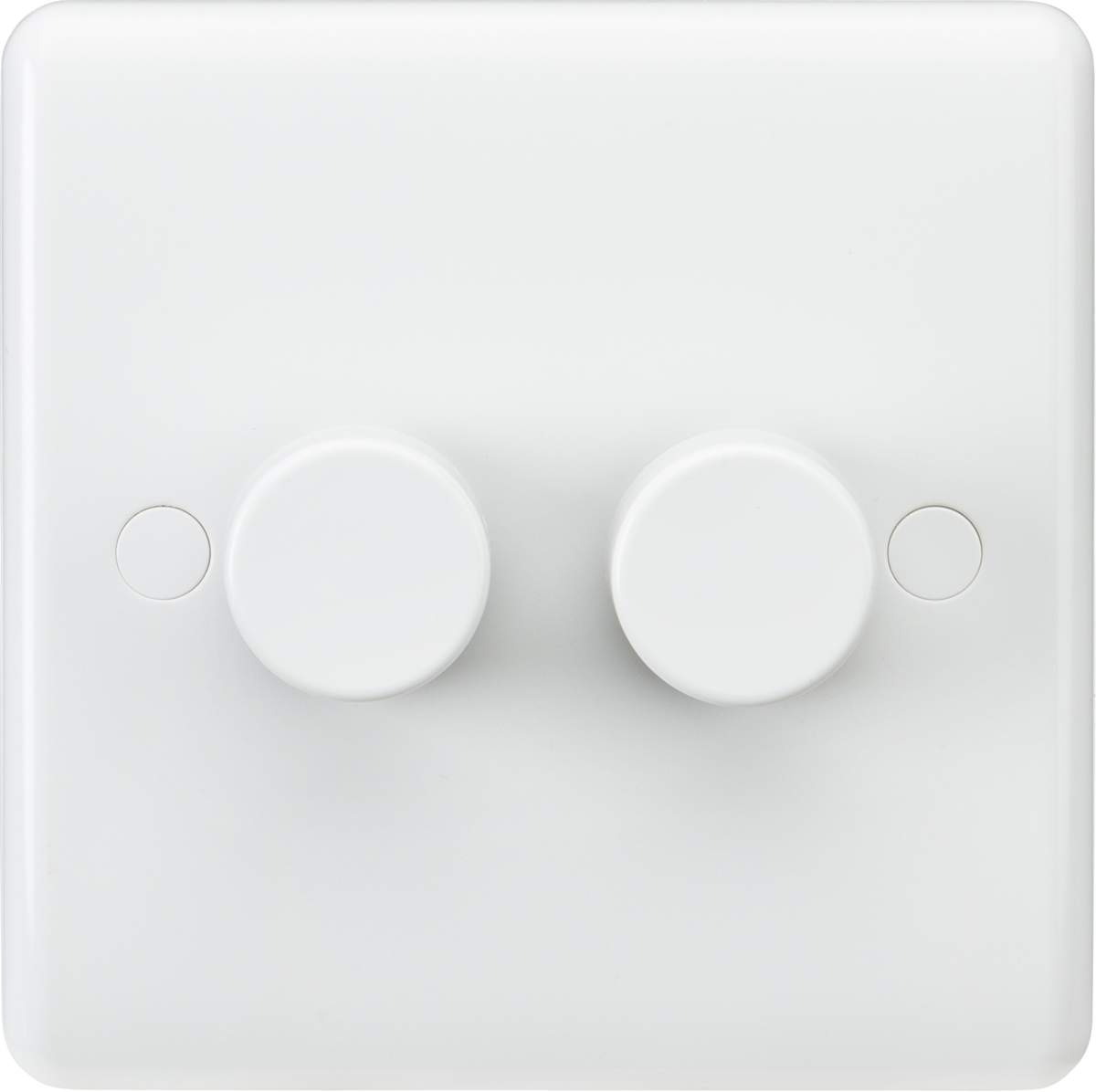

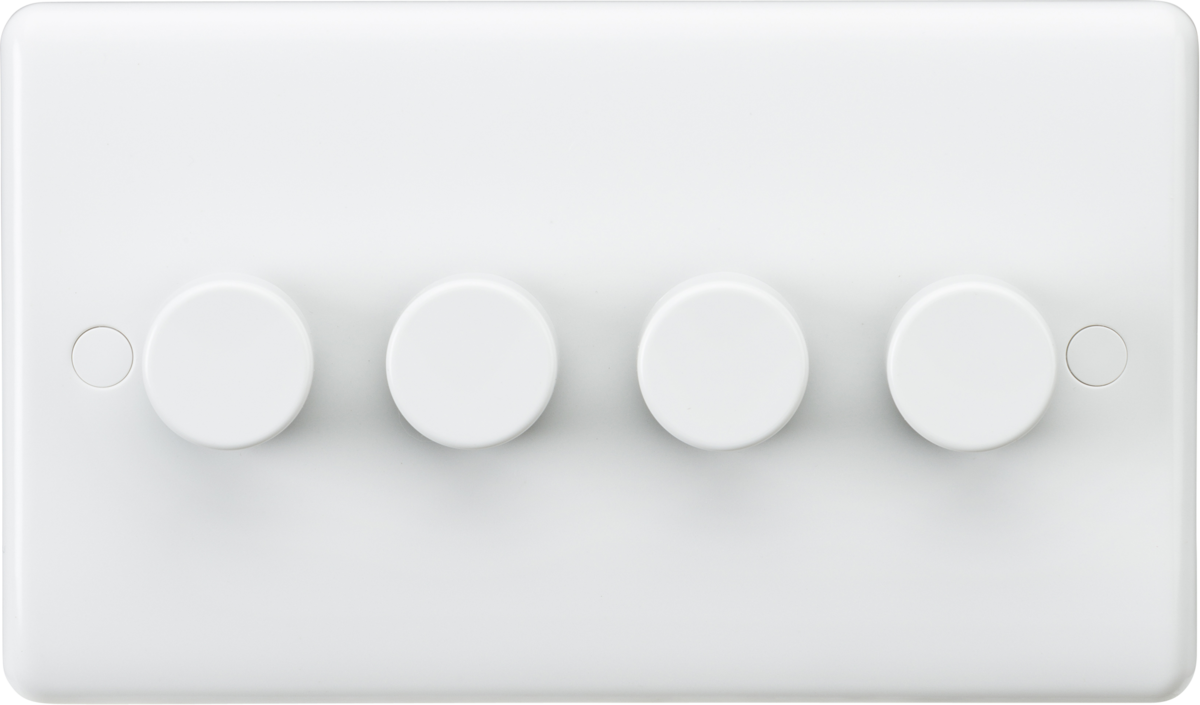

Knightsbridge Curved Edge 3-100W LED Dimmer Switch Push On Off

Gently contoured 7mm plate with rounded edges and anti-microbial properties
- 40-400W for incandescent lamps
- 3-100W for LED
- Push on/off operation
- Leading edge dimmer
- Includes screw cap covers
- Certified to EN 60669-2-1
- Supplied in Knightsbridge rip top polybag with euro slot
Note: PLEASE CHECK WITH LAMP MANUFACTURER FOR COMPATIBILITY

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	CU2161, CU2162, CU2163, CU2164

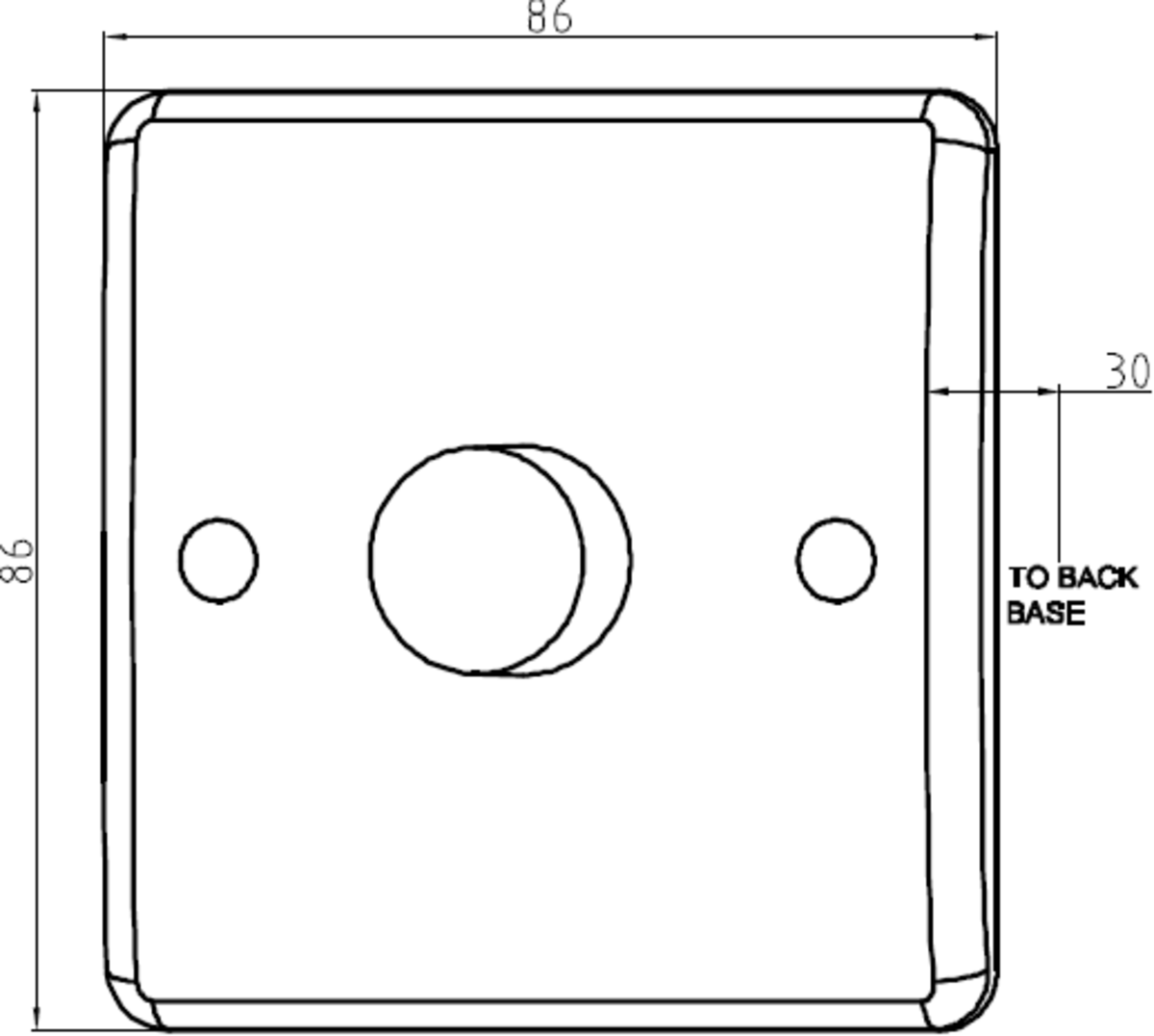

Height (mm)	86
Width (mm)	Square = 86, Rectangular = 146
Projection (mm)	7
Min. Mounting Box Depth (mm)	35
Material	Thermoset resin
Finish	White
IP Rating	IP20
Voltage (V)	230V 50Hz
Warranty (Years)	2
Commodity Code	8536 5080 90
