Description

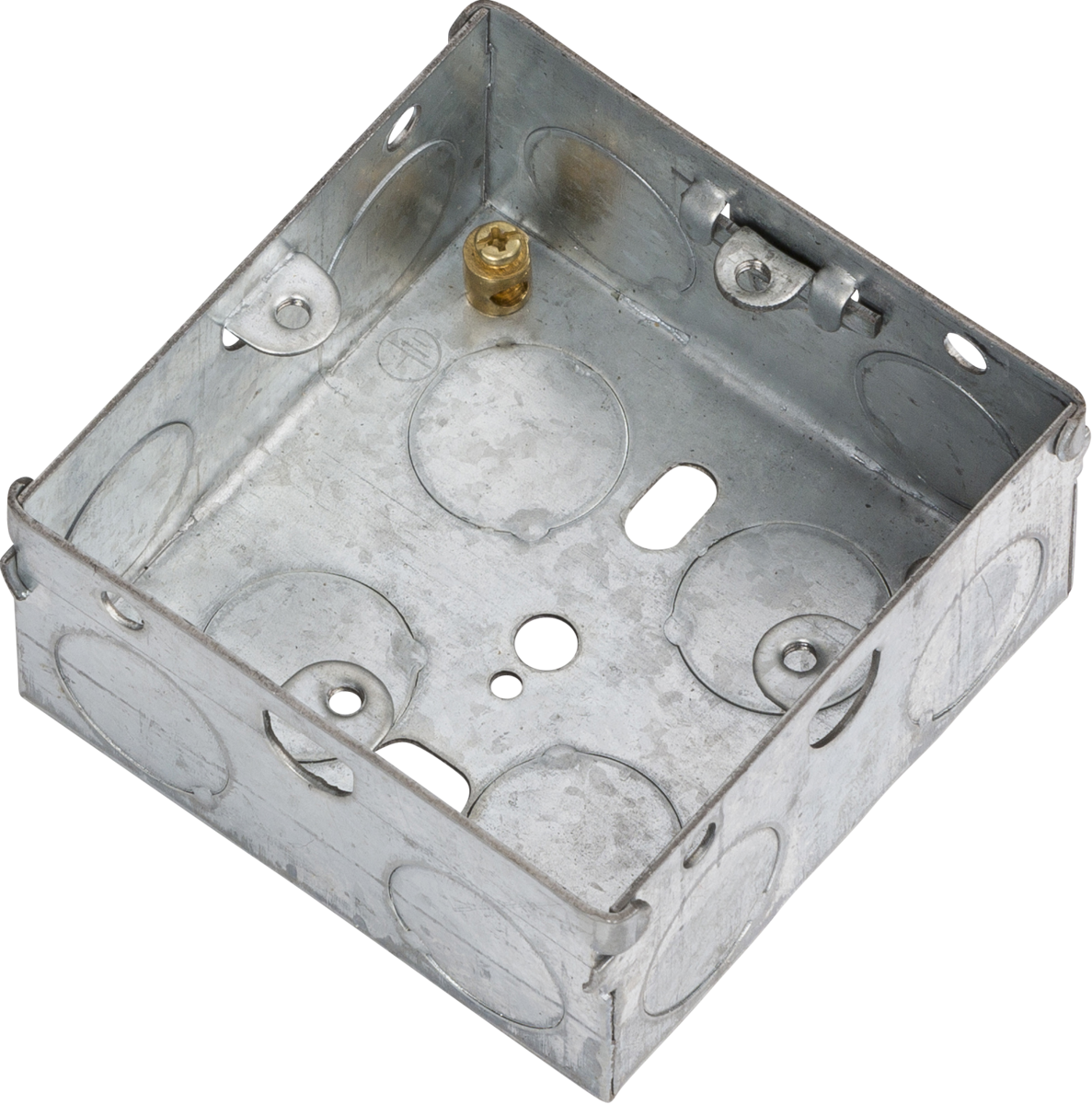

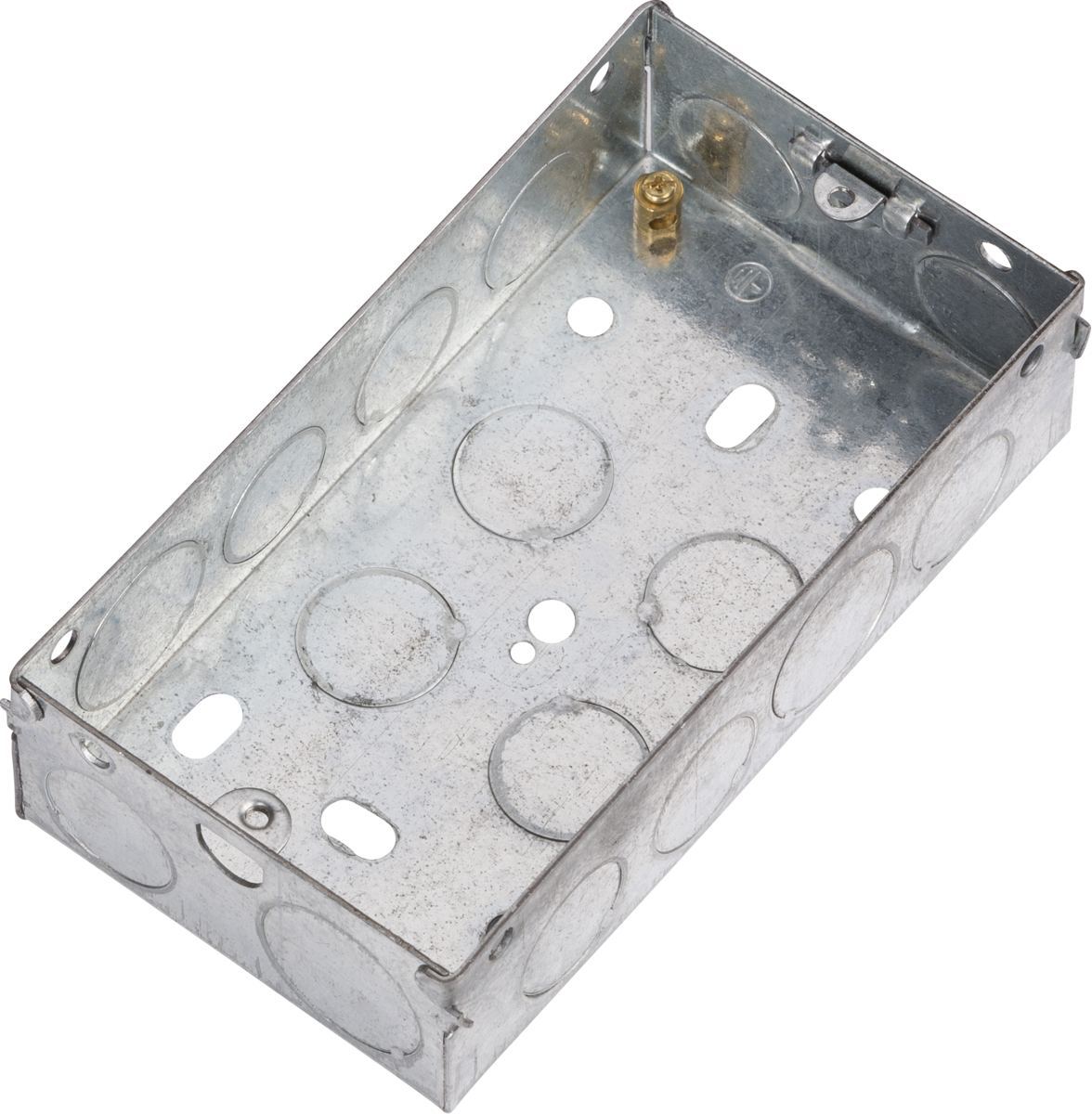

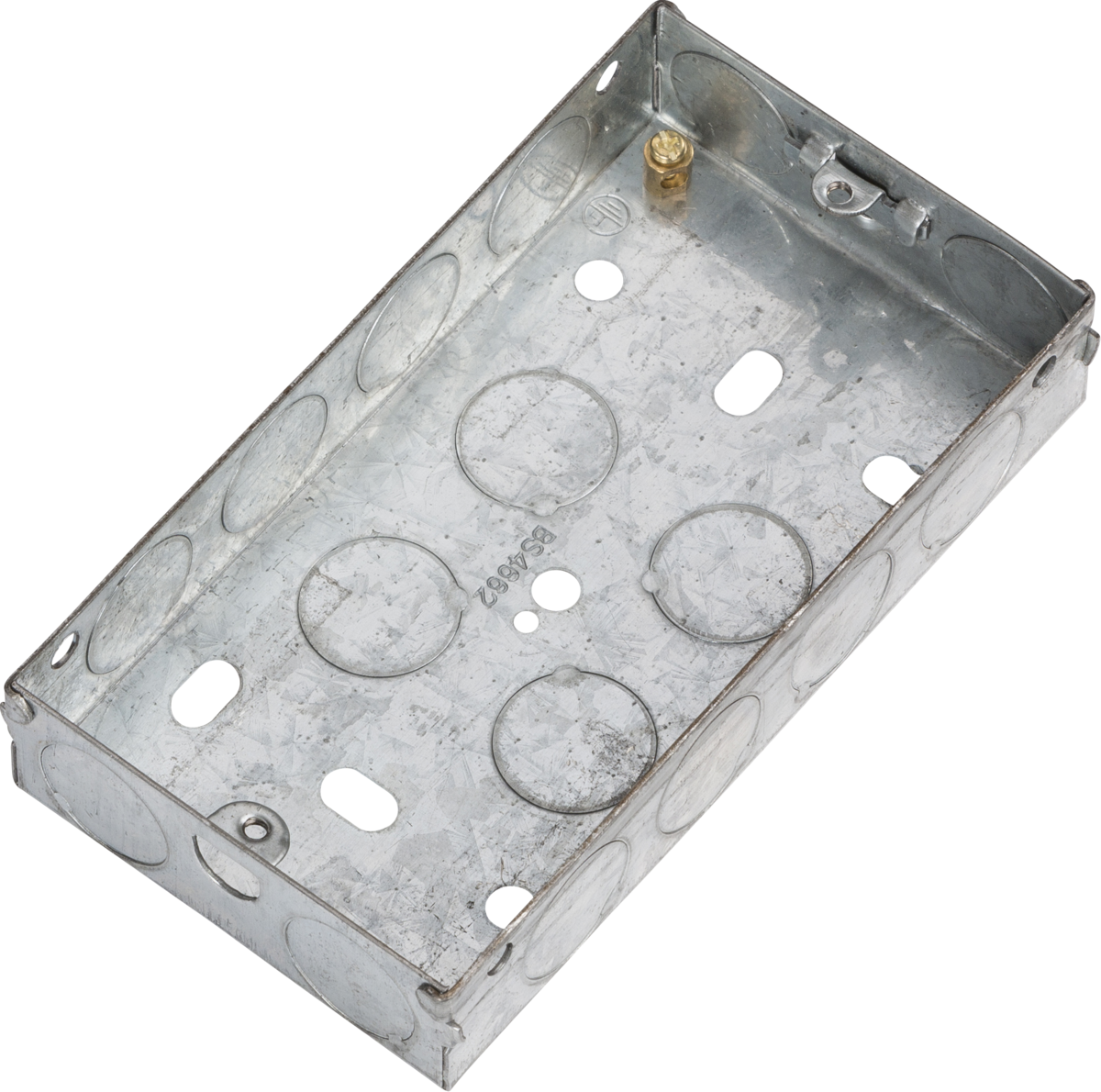

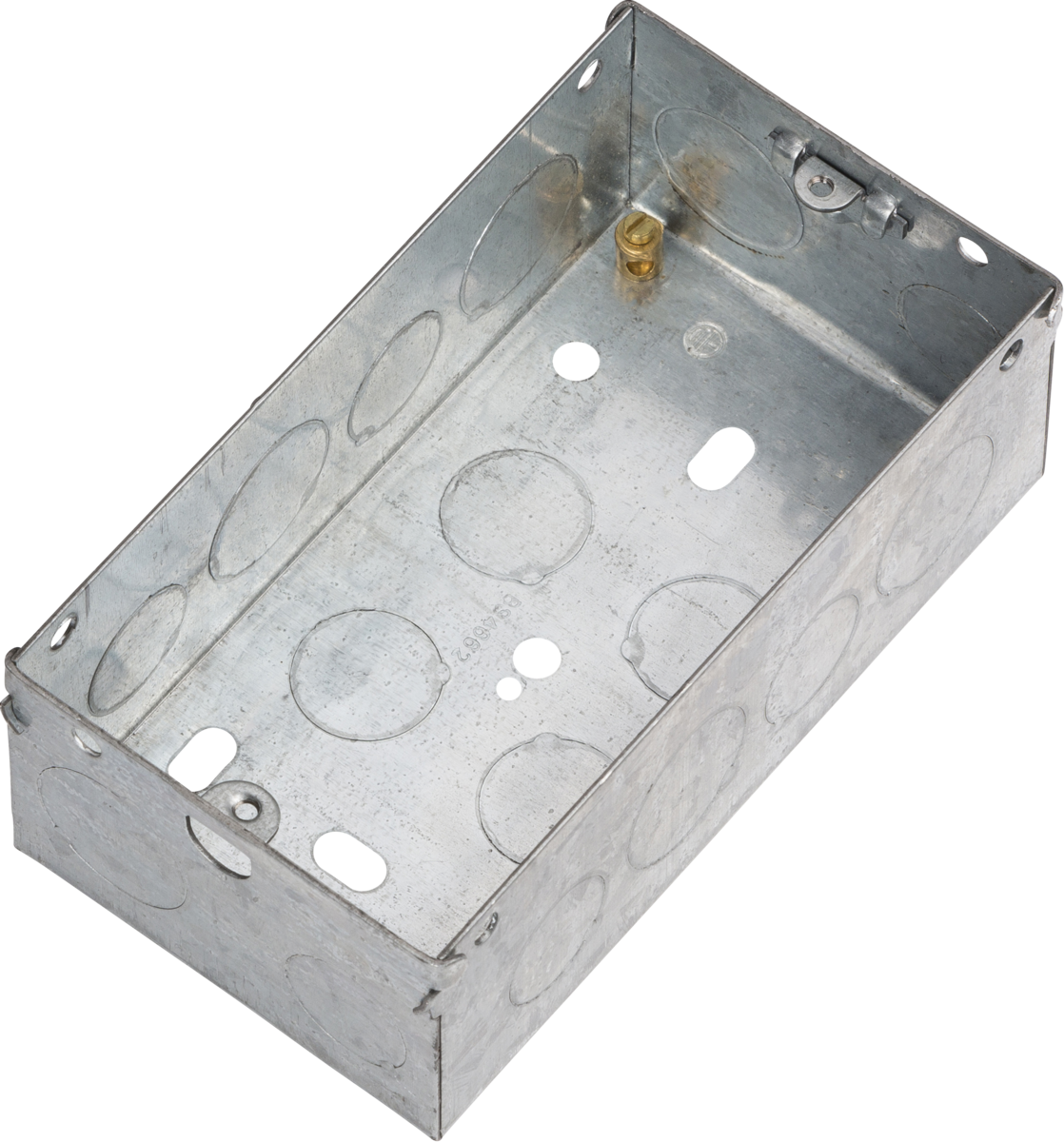

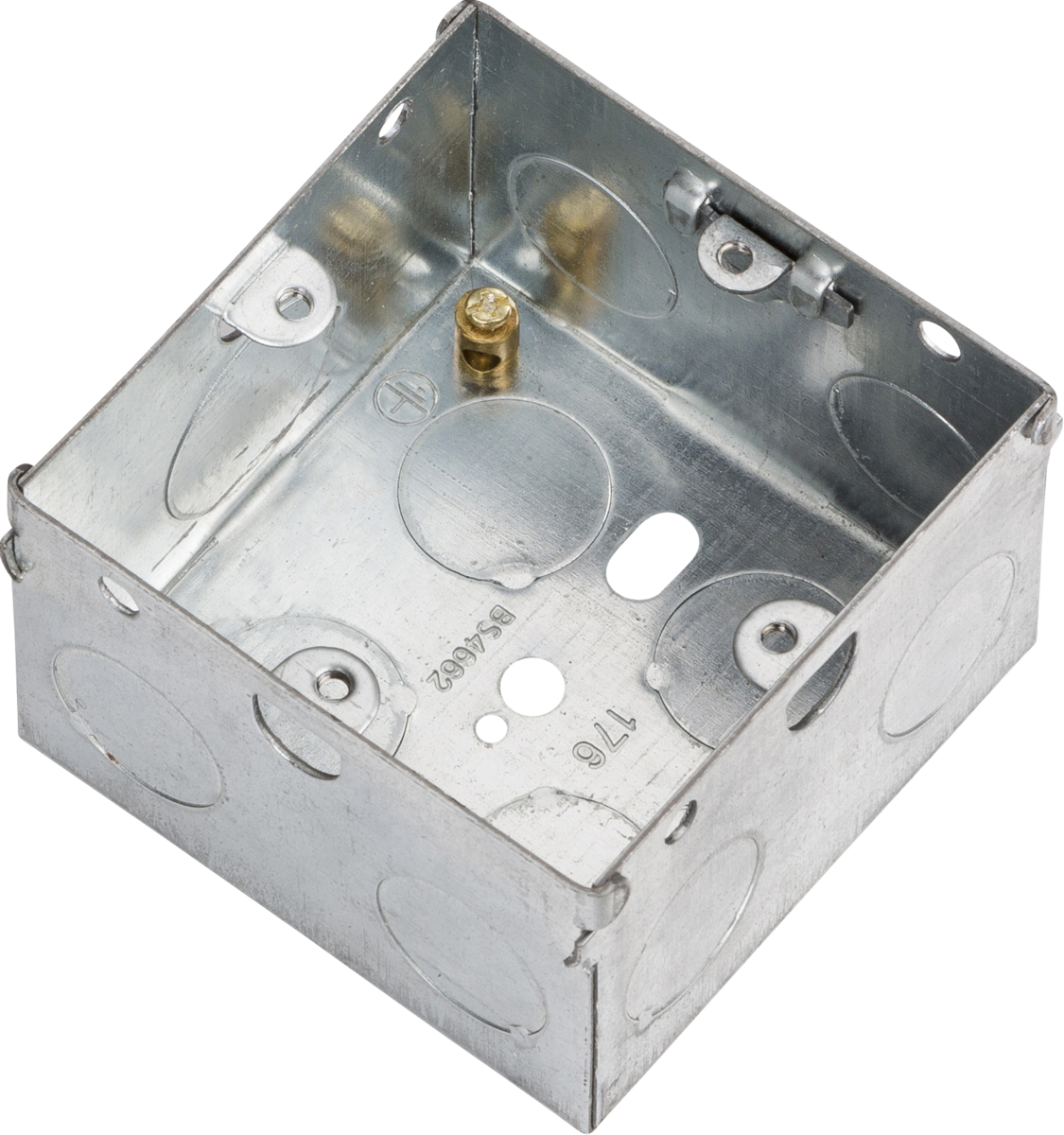

Galvanized Steel Dry-Lining Box
Constructed from galvanized steel with a 1mm thickness (+/- 1%), this dry-lining box is designed for robust performance in various installation settings. Key features include:
- Pack Size: Available in Pack of 5 & 10
- Depth Options: Available in 25mm, 35mm, and 47mm depths.
- Mounting Lugs: Equipped with one fixed mounting lug and one adjustable mounting lug.
- Earth Terminal: Includes an earth terminal for added safety.
- Knockouts: Features 20mm knockouts on sides and rear, with some models offering a combination of 20mm and 25mm knockouts.
- Standards Compliance: Manufactured to EN 60670, ensuring adherence to quality and safety standards.
This versatile box meets various installation needs and provides reliable performance across different depths and configurations.
GSK25 Datasheet
GSK35 Datasheet
GSK47 Datasheet
GSK225 Datasheet
GSK235 Datasheet
GSK247 Datasheet
Specifications
| Brand | Knightsbridge |
|---|---|
| SKU | GSK25,GSK35,GSK47,GSK225,GSK235,GSK247 |

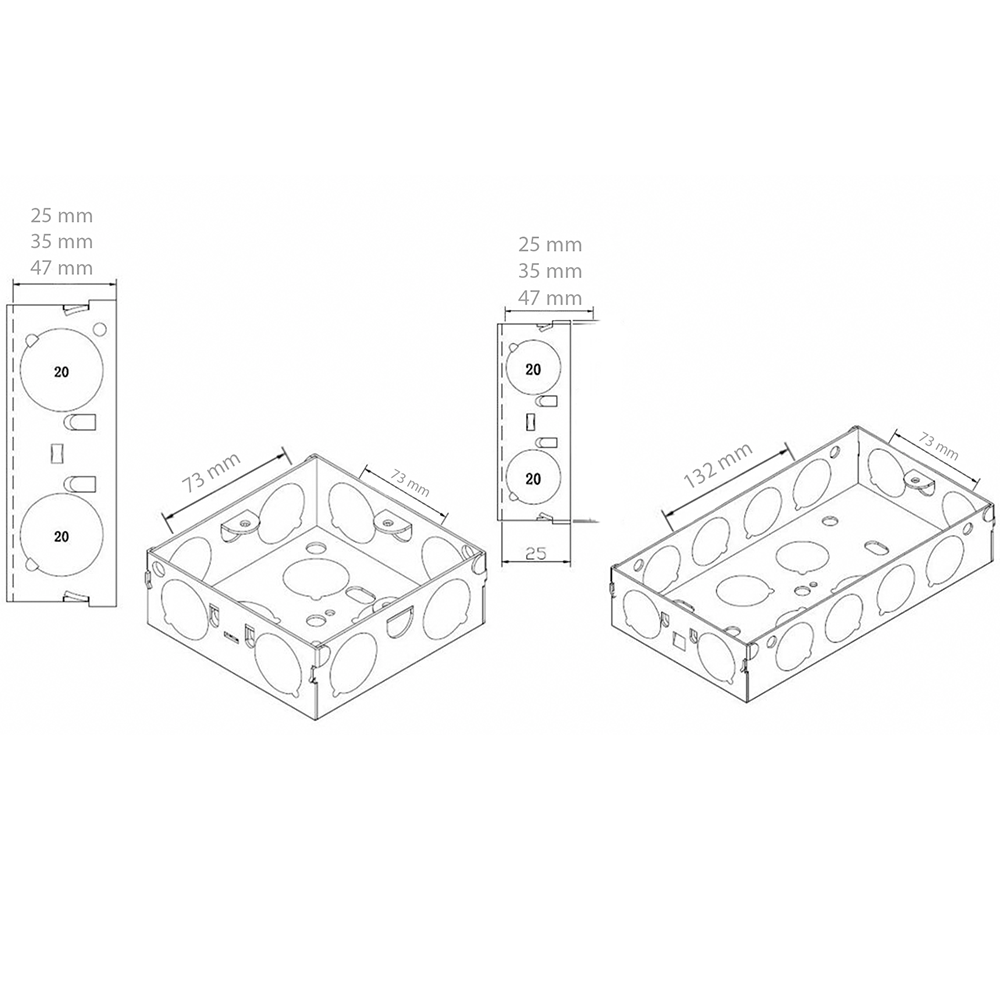

| Height (mm) | 73 |
| Width (mm) | 1G = 73, 2G = 132 |
| Recessed Depth (mm) | 25,35,47 |
| Material | Steel |
| Earth Terminal | Yes |
| Warranty (Years) | 15 |
| Commodity Code | 8536 309 090 |
