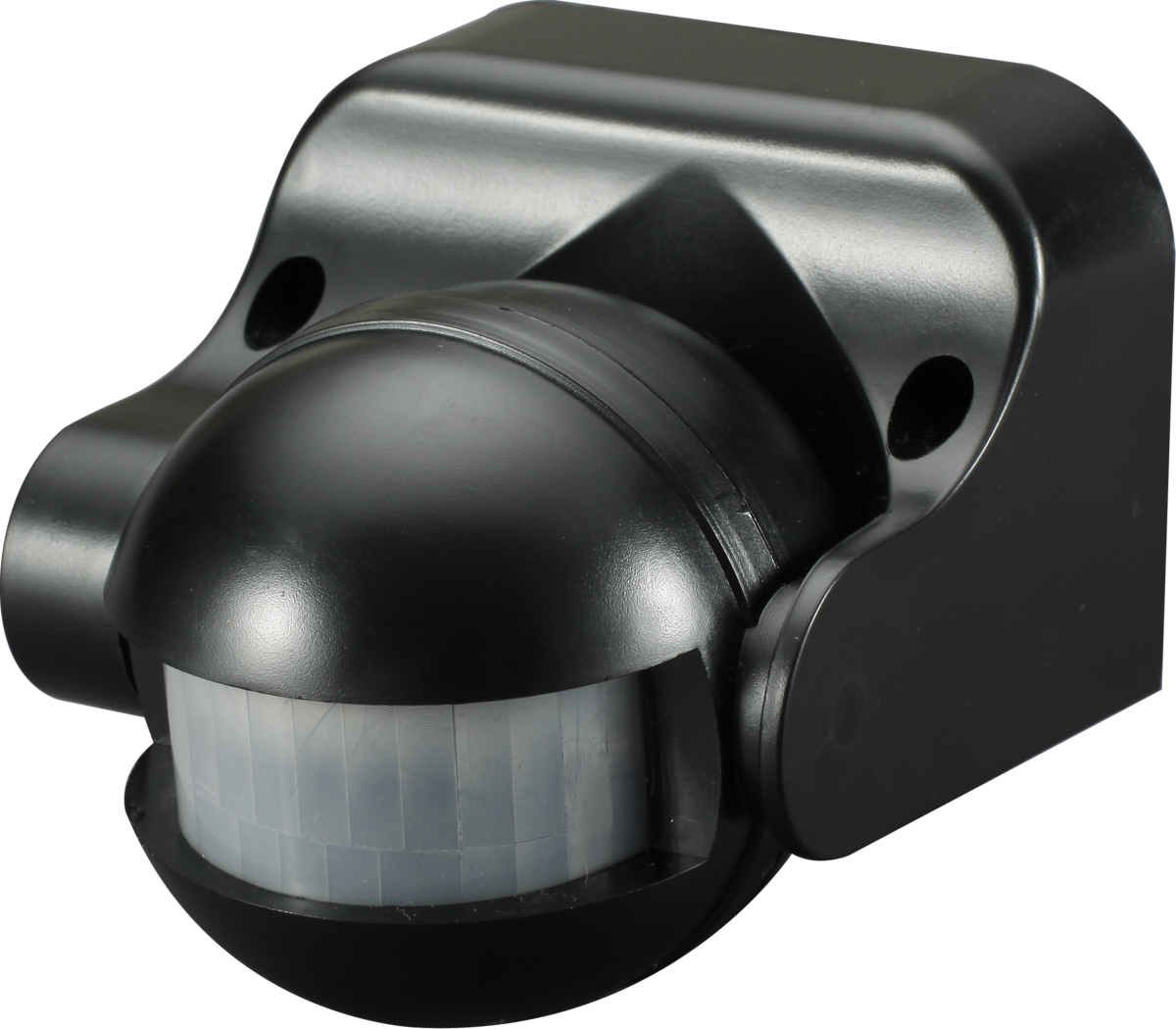

Knightsbridge IP44 180° PIR Motion Movement Detector Sensor Light Switch

Stand-alone PIR unit to suit a variety of installations
- IP44 rated
- 180° field of detection
- 12m range @ 2.4m installation height
- Adjustable head unit for optimum positioning
- Wall or ceiling mountable
- Automatic operation
- Can be wired in parallel
- Adjustable Lux
- Adjustable time : 10 seconds to 8 minutes
- Switching capacity: Max. 1200W Incandescent / Max. 300W LED
- Certified to EN 60669-2-1, EN 60669-1, EN 55015. EN 61547, EN 61000

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	OS004, OS004B

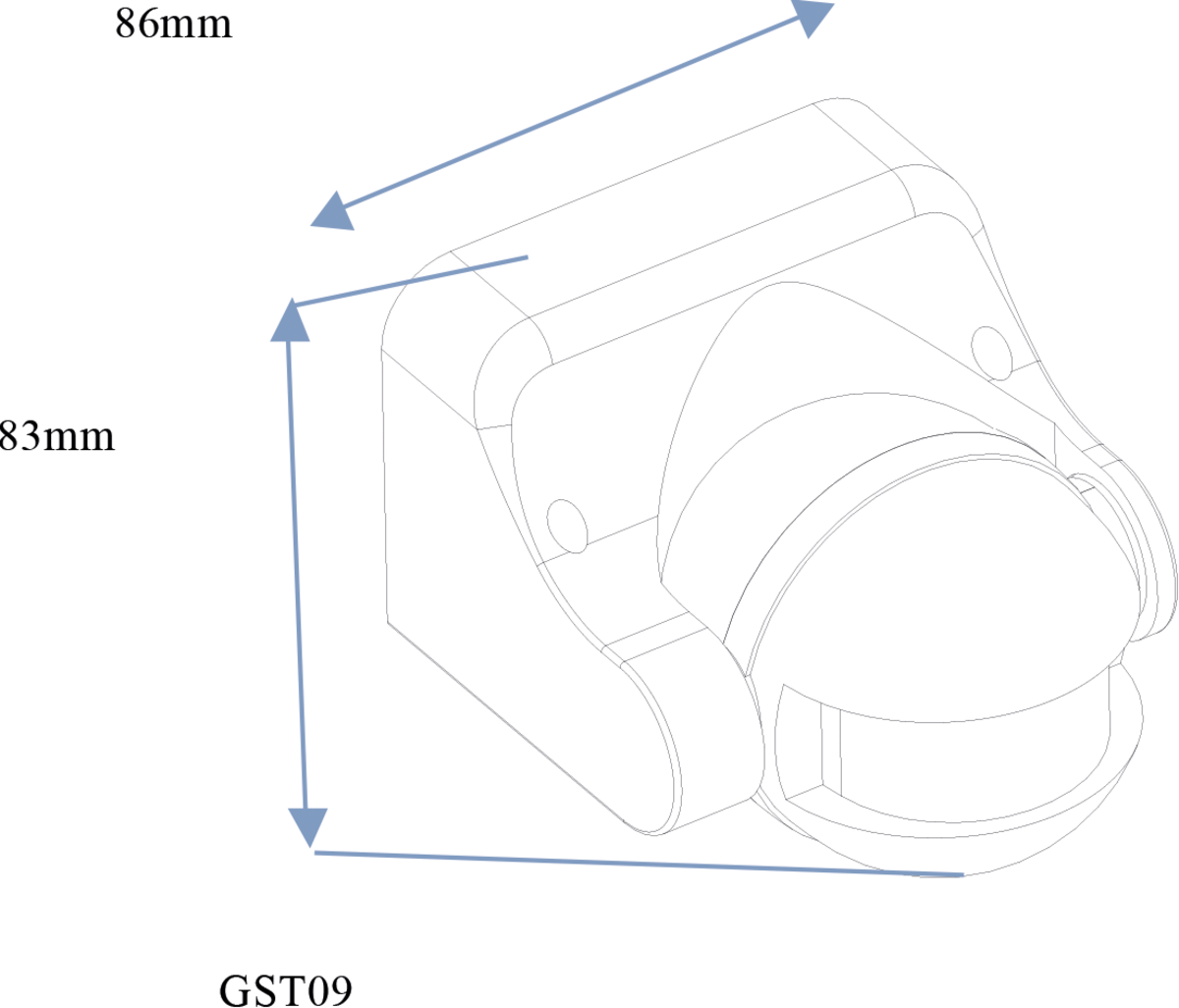

Height (mm)	82
Width (mm)	86
Projection (mm)	100
Material	Polycarbonate
Finish	White, Black
Class	II
IP Rating	IP44
Voltage (V)	230V 50Hz
Detection Angle	180
Detection Range	12M @ Height of 2.4M
Lux	Adjustable
Time	Adjustable 10s - 8m
Warranty (Years)	1
Commodity Code	8536500500
