Description

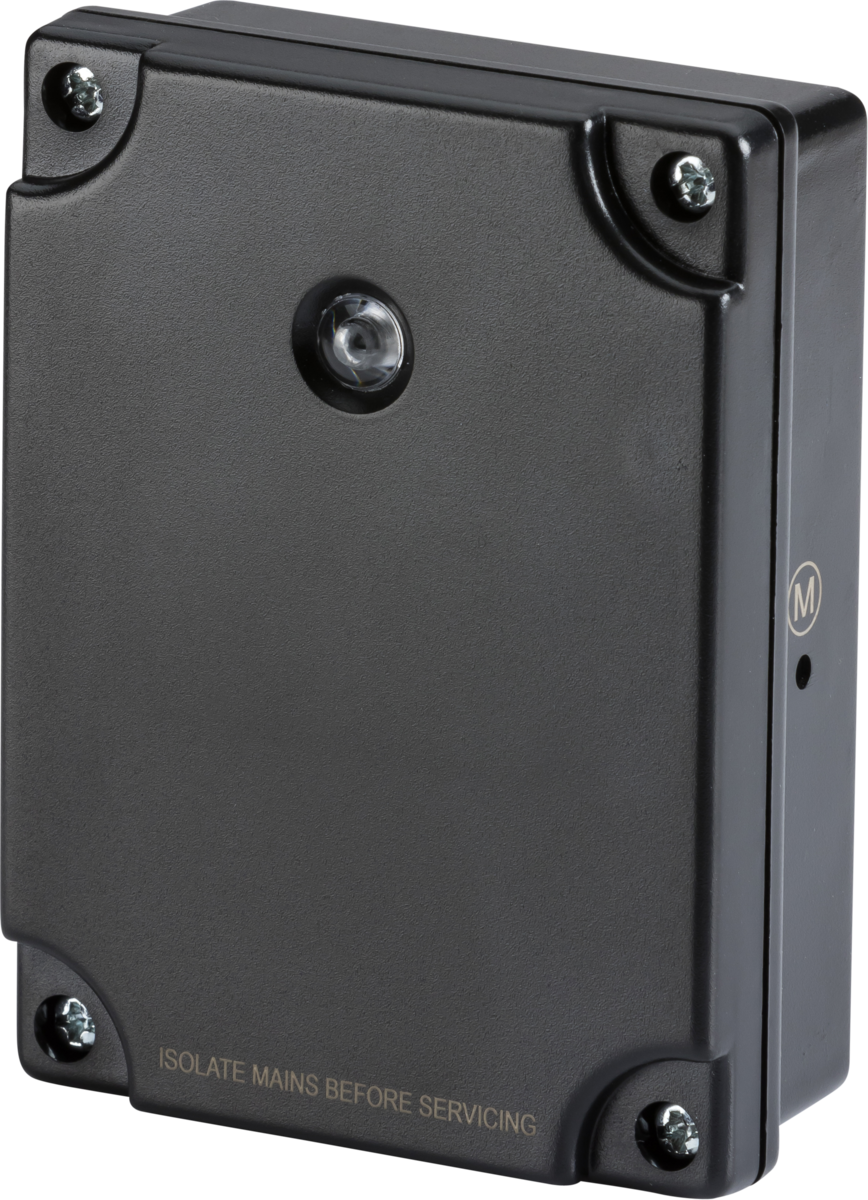

Dusk till dawn photocell timer. Ideal fro controlling outdoor lighting during the evenings for security and convenience. Also great for choice for shop window display lighting or advertising systems.
- IP55 rated
- Easy to install
- Ambient light memory function
- Settings for 2/4/6/8 hour duration
- Switching capacity: Max. 1000W Incandescent, Max. 500W Fluorescent/Inductive, Max. 200W LED
- Certified to EN 60669-2-1, EN 60669-1, EN 55015, EN 61547, EN 61000
- IP55 rated
- Easy to install
- Ambient light memory function
- Settings for 2/4/6/8 hour duration
- Switching capacity: Max. 1000W Incandescent, Max. 500W Fluorescent/Inductive, Max. 200W LED
- Certified to EN 60669-2-1, EN 60669-1, EN 55015, EN 61547, EN 61000
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | OS006, OS006B |

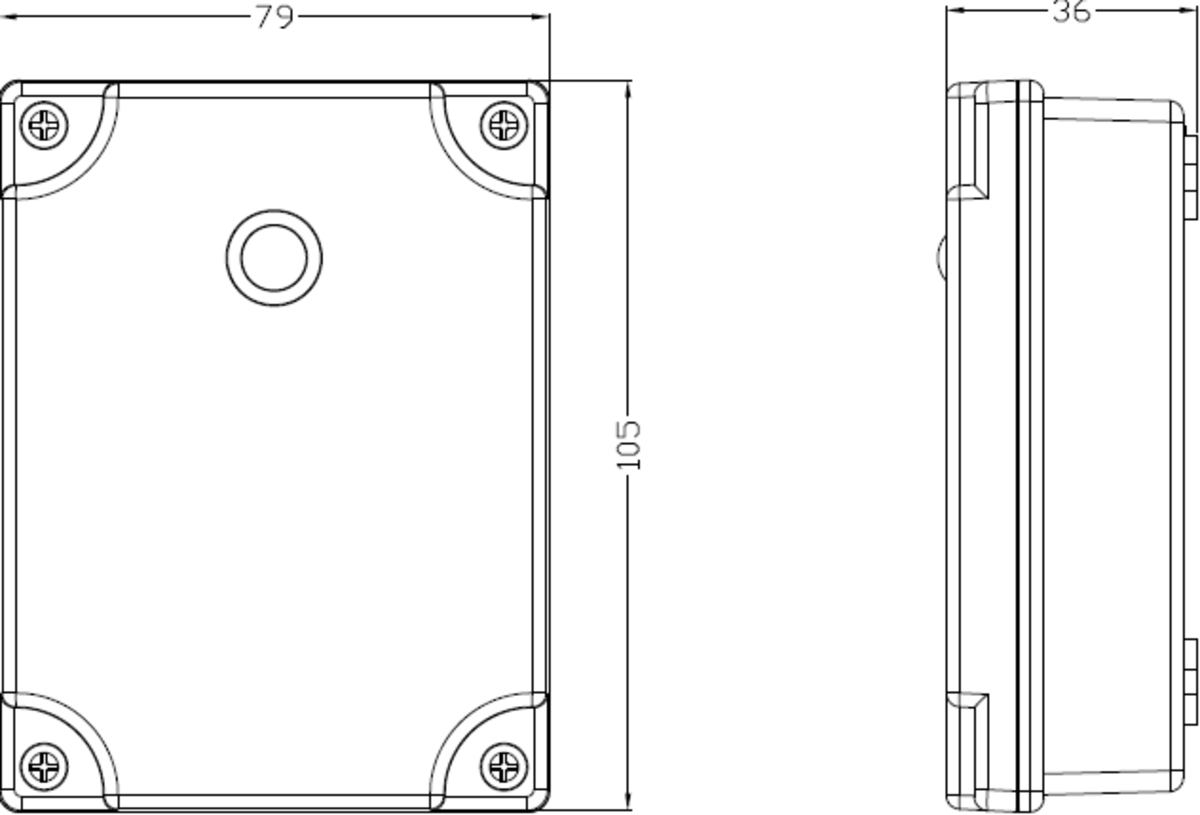

| Height (mm) | 105 |
| Width (mm) | 79 |
| Projection (mm) | 36 |
| Material | Polycarbonate |
| Finish | White, Black |
| Class | II |
| IP Rating | IP55 |
| Voltage (V) | 230V 50Hz |
| Warranty (Years) | 1 |
| Commodity Code | 8536500500 |
