Description

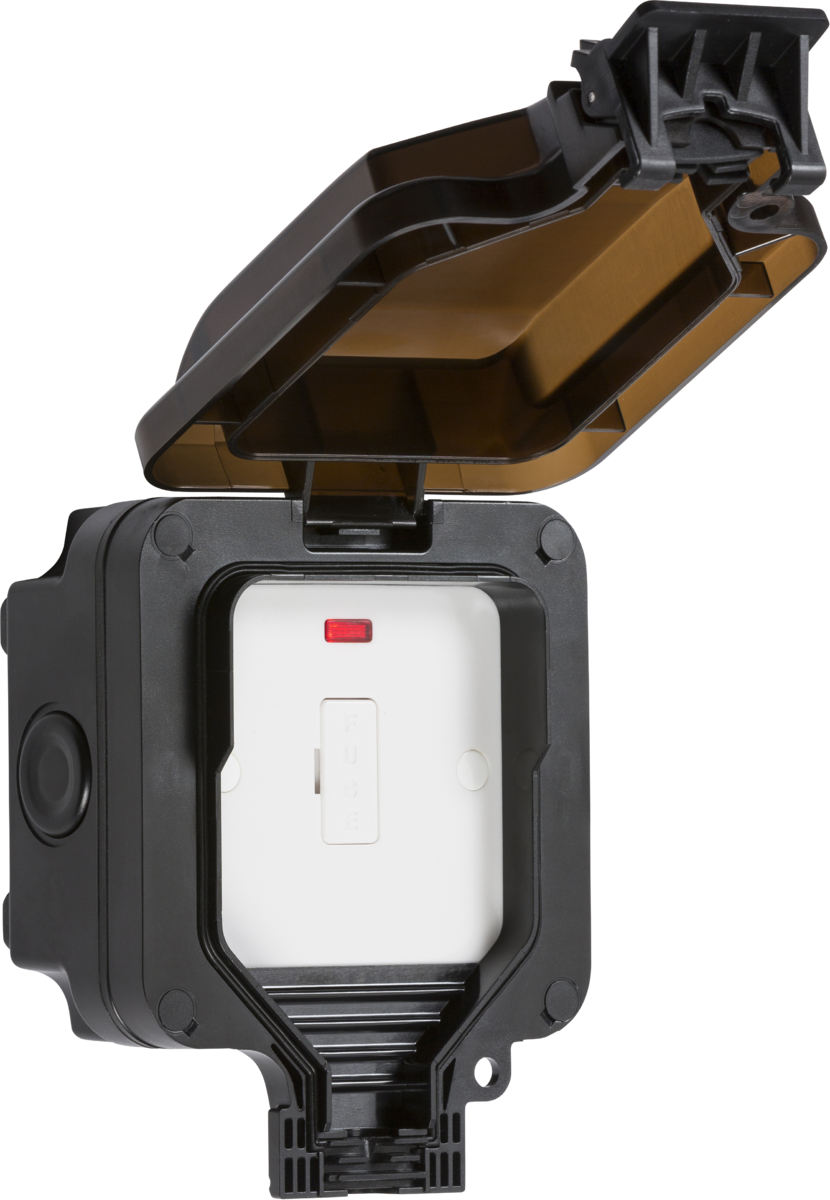

Outdoor fused spur solution with power on/off indication that can be seen through the transparent lid.
- Manufactured from robust, high impact grade polycarbonate for a long life
- Black finish with a smoked black front casing for indicator visibility
- IP66 / IK06 rated
- Transparent user-friendly lid with large catch feature makes it simple and easy to open and close, Lid can hold open when required for ease of use
- Wider cable channels and casing will accommodate most plugs with thick over-moulded strain reliefs typically associated with outdoor products
- Multiple 20mm cable entries/exits allow for optimum positioning
- Certified to BS 1363-4
- Manufactured from robust, high impact grade polycarbonate for a long life
- Black finish with a smoked black front casing for indicator visibility
- IP66 / IK06 rated
- Transparent user-friendly lid with large catch feature makes it simple and easy to open and close, Lid can hold open when required for ease of use
- Wider cable channels and casing will accommodate most plugs with thick over-moulded strain reliefs typically associated with outdoor products
- Multiple 20mm cable entries/exits allow for optimum positioning
- Certified to BS 1363-4
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | OP63N, OP6N |

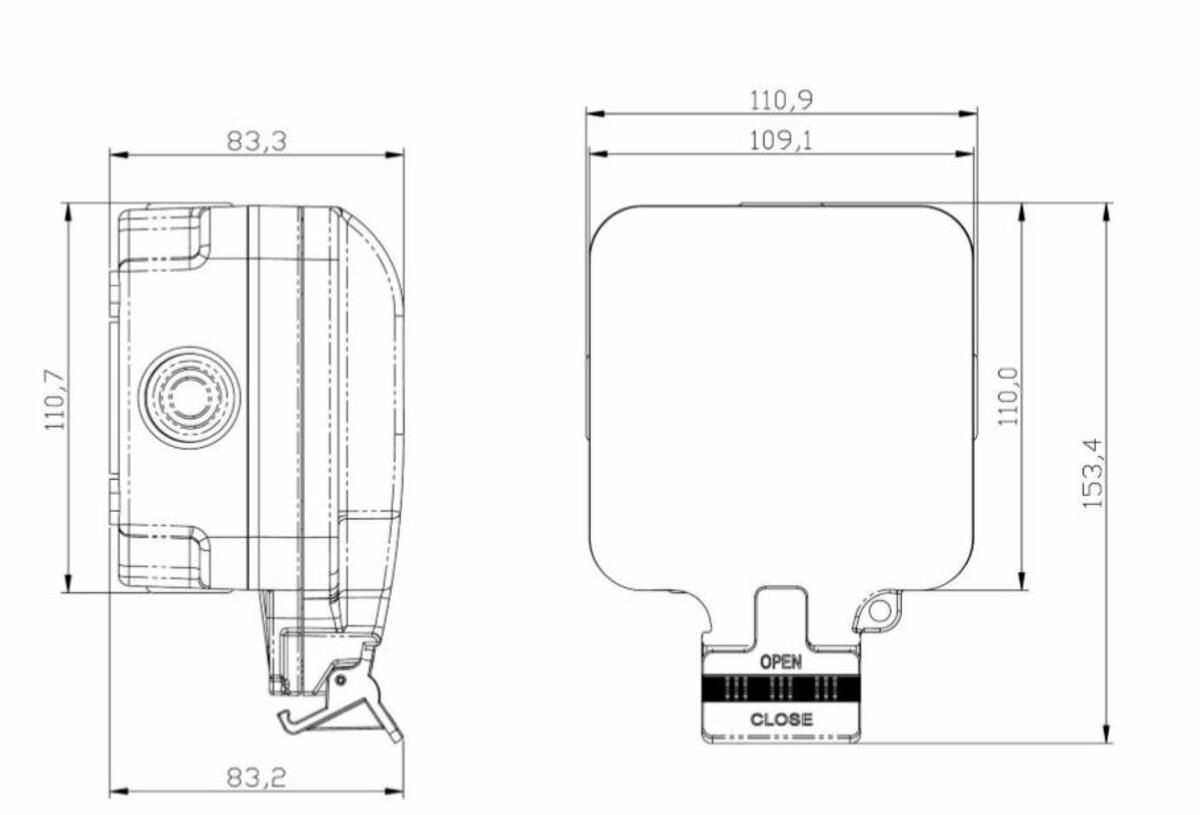

| Height (mm) | 153 |
| Width (mm) | 110 |
| Projection (mm) | 84 |
| Material | Polycarbonate |
| Finish | Black |
| Class | I |
| IP Rating | IP66 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Neon Indicator | Yes |
| Warranty (Years) | 1 |
| Commodity Code | 8536 3010 90 |
