Description
The KARA 230V IP20 LED Recessed Panel combines sleek design with high functionality, making it an excellent choice for a range of applications, especially in office or corridor settings. Featuring a slim profile and edge-lit technology, this panel delivers smooth, uniform illumination across its surface, eliminating dark spots and glare. With a powerful 24W output and a color temperature of 4000K (Cool White), it provides bright, clear light ideal for enhancing productivity and visibility. The dimmable feature allows for customizable lighting levels, making it adaptable to various needs and preferences. The slim design is perfect for shallow ceiling installations, ensuring easy integration into spaces where ceiling depth is limited.
Key Features:
- Power Output: KARA LED panels are available in 6W, 12W, 18W and 24W.
- Color Temperature: 4000K Cool White for a crisp and clear illumination.
- Brightness: 2360 lumens for powerful and uniform light distribution.
- Dimmable: Allows for flexible light control; please check compatibility before installation.
- Edge-Lit Technology: Ensures even light distribution without dark spots or glare.
- Slim Profile: Ideal for installation in shallow ceilings where depth is restricted.
- Easy Installation: Designed for straightforward setup with minimal hassle.
- Emergency Kit Compatibility: Can be paired with the EMKIT2L for emergency lighting solutions.
- High-Performance LEDs: Provides a well-lit, visually comfortable environment.
- IP Rating: IP20, suitable for indoor use.
Specifications
| Brand | Knightsbridge |
|---|---|
| SKU |
KA6CW, KA6CWTD, KA12CW, KA12CWTD, KA18CW ,KA18CWTD, KA24CW, KA24CWTD |

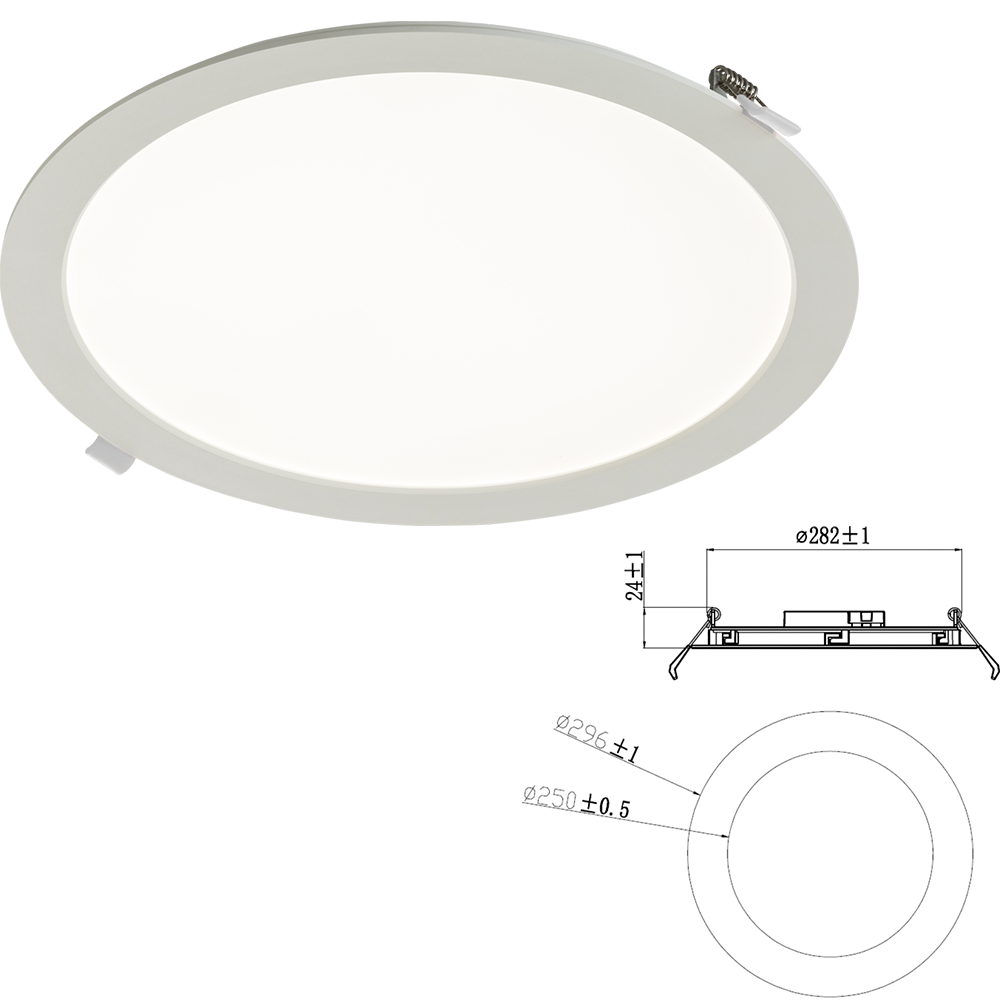

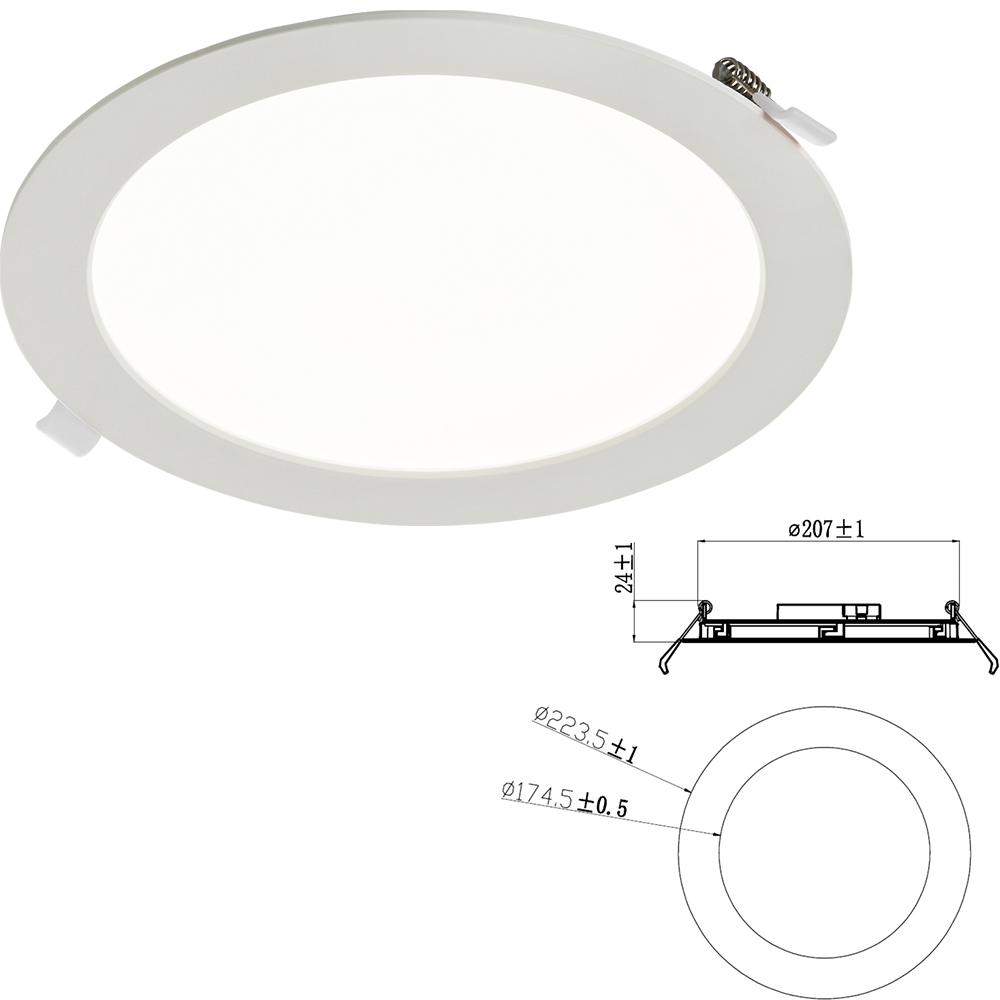

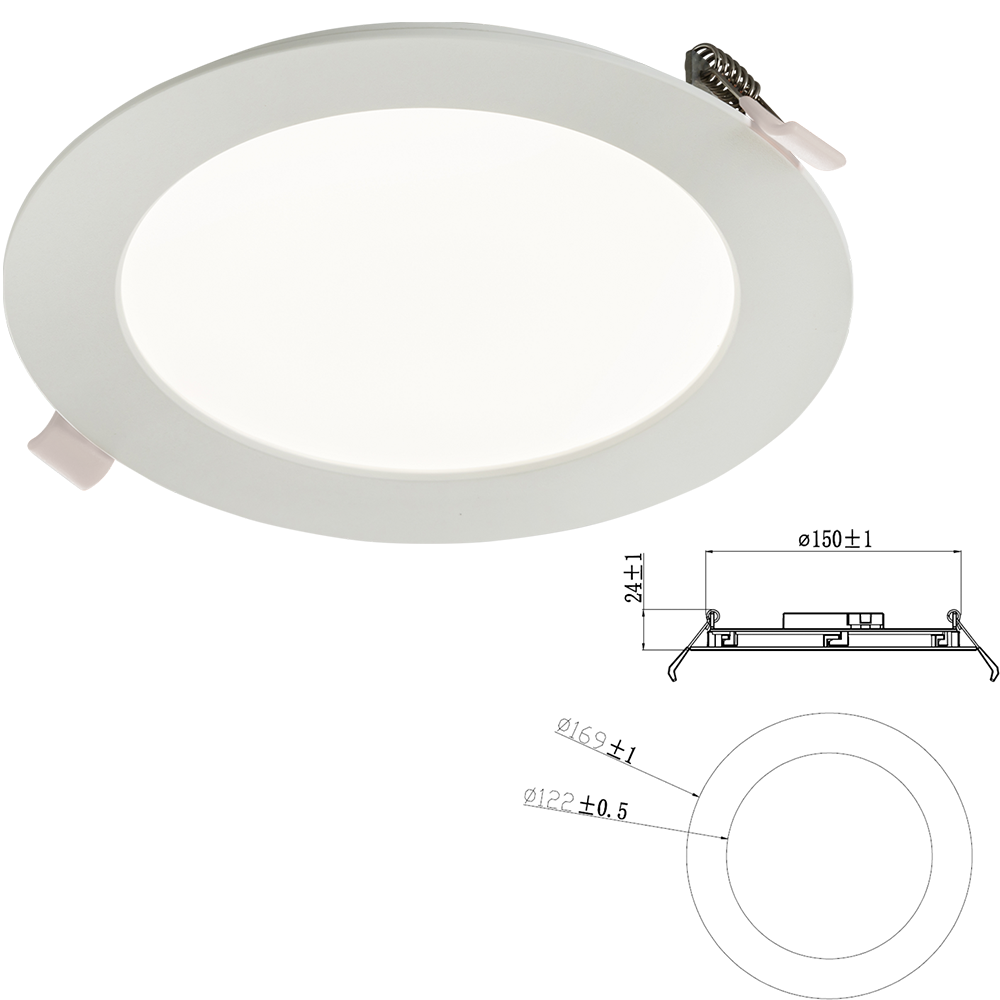

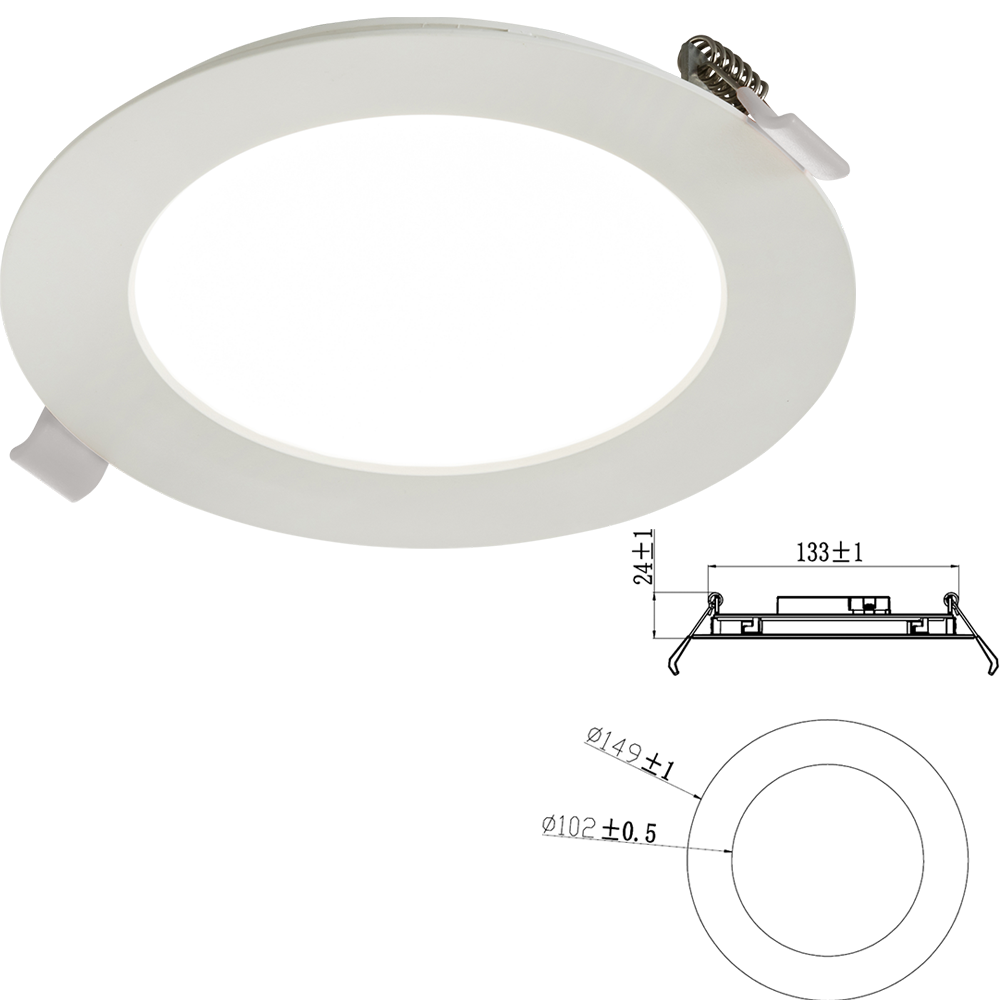

| Diameter (mm) | 6W = 149, 12W = 169, 18W = 224, 24W=296 |
| Base Diameter (mm) | 6W = 133, 12W = 150, 18W = 207, 24W=282 |
| Recessed Depth(mm) | 24 |
| Minimum Void(mm) | 75 |
| Cut-Out (mm) | 6W = 135, 12W = 155, 18W = 205, 24W=285 |
| Material | Polycarbonate |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Diffuser | Opal |
| Class | II |
| WATTAGE (W) | 6W ,12W , 18W , 24W |
| Lamp Technology | SMD LED |
| Lamp Included | Yes |
| Lumens Light Source Only(lm) | 6W = 765, 12W = 1570, 18W = 2335, 24W=2955 |
| Life Span (HRS) | 30,000 |
| Beam Angle (°) | 110 |
| Colour Temperature (K) | 4000K |
| Light Colour | Cool White |
| CRI | 80 |
| Driver Type | Constant Current |
| Warranty(yrs) | 3 |
