Description

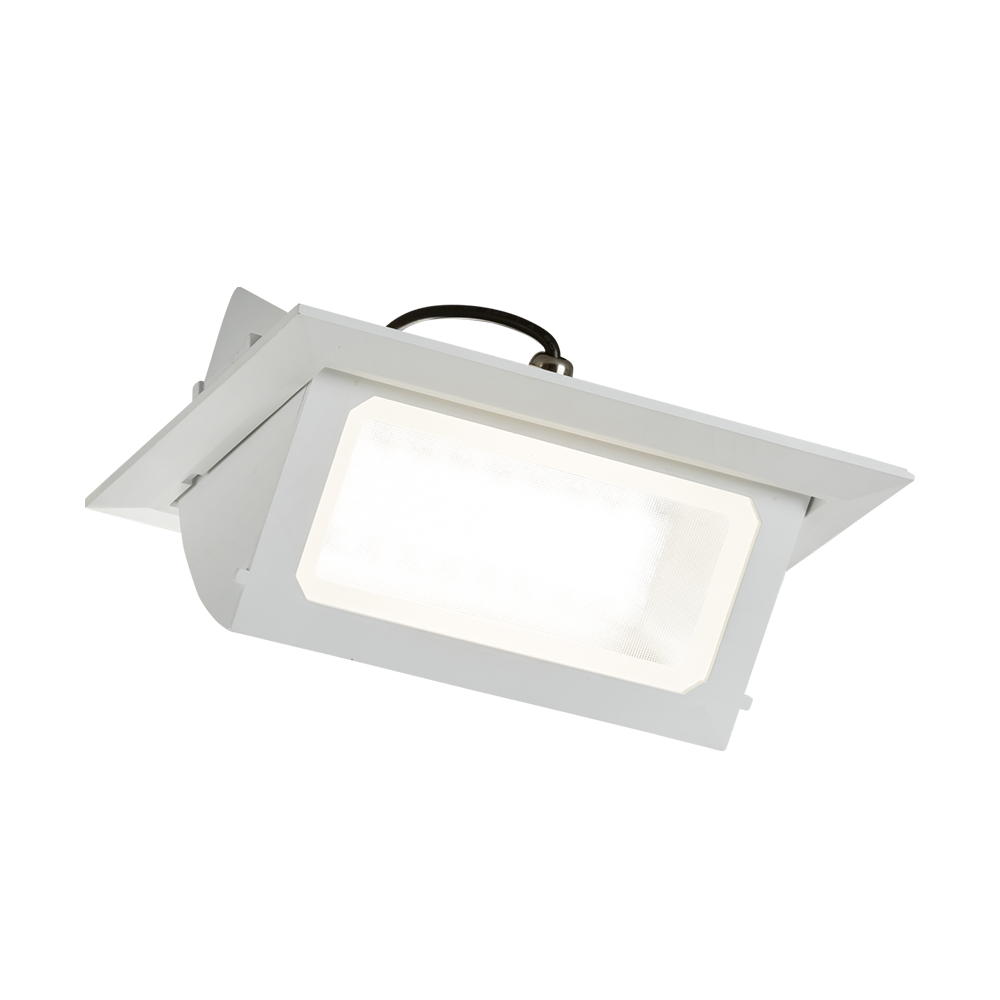

The SARA LED Recessed Wallwasher Downlights are designed with flexibility and durability at the forefront, making them an ideal choice for a variety of commercial applications. Engineered for optimal performance, these downlights feature a robust die-cast aluminum housing with a sleek white powder-coated finish.
Key Features:
- Adjustable Power Output: Choose between three selectable wattages (30W, 35W, 40W) to suit your specific lighting needs.
- Customizable Color Temperature: Three color temperatures (3000K, 4000K, 5000K) provide versatile lighting options to create the perfect ambiance.
- Dimmable Options: Available with 0-10V dimming or DALI control gear for seamless integration into room or networked building control systems.
- Efficient Performance: High-efficiency output ensures optimal lighting with a standard 5-year warranty for peace of mind.
- Flexible Installation: Features a 60-degree tilt angle and comes with plug-and-play connectors for easy installation.
- Emergency Kit Compatibility: Optionally compatible with Emergency Kit (EMKIT2) for added safety and reliability.
- Mounting: Recessed installation
- Driver Options: 0-10V dimmable, DALI control gear
- Tilt Angle: 60 degrees
Downloads
30W / 35W / 40W - Non Dimmable Datasheet
30W / 35W / 40W - Dimmable Datasheet
30W / 35W / 40W - DALI Datasheet
Specifications
| Brand | Knightsbridge |
|---|---|
| SKU |
SA3040RW, SA3040RWAD, SA3040RWDALI |

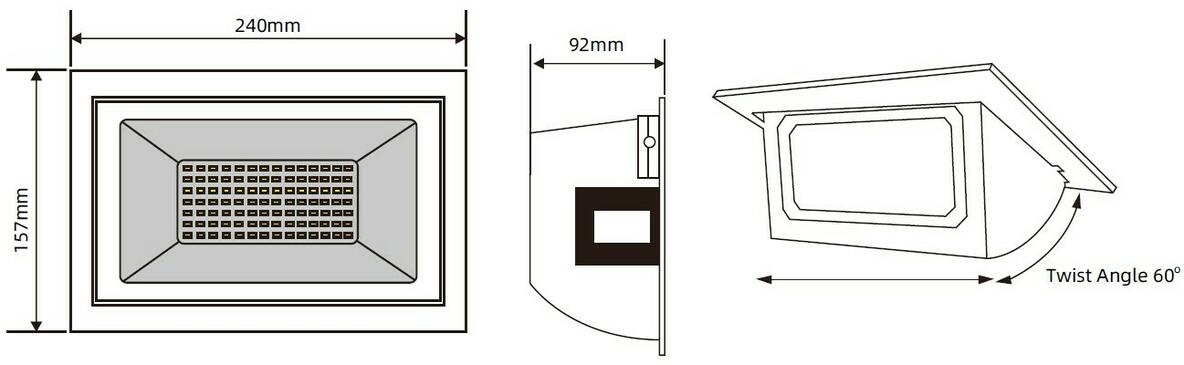

| Minimum Void (mm) | 145 |
| Length (mm) | 157 |
| Width (mm) | 240 |
| Depth (mm) | 92 |
| TILT (DEGREES) | 60 |
| Material | Aluminium & Glass |
| CLASS | II |
| IP RATING | IP20 |
| Diffuser | Frosted/Clear |
| Wattage (W) | 30 / 35 / 40 |
| Lamp Included | Yes |
| LAMP TECHNOLOGY | SMD LED |
| CCT | 3000/4000/5000K |
| Light Colour | CCT |
| Lumens (lm) | 3795/4050/4175, 4240/4565/4680, 4760/5100/5235 |
| Place of assembly | Recessed Into The Ceiling |
| Place of application | Indoor |
| CRI |
80 |
| Lumen(Light Source only) | 5425 |
| Commodity Code | 9405423990 |
| Warranty (yrs) | 5 |
