Description

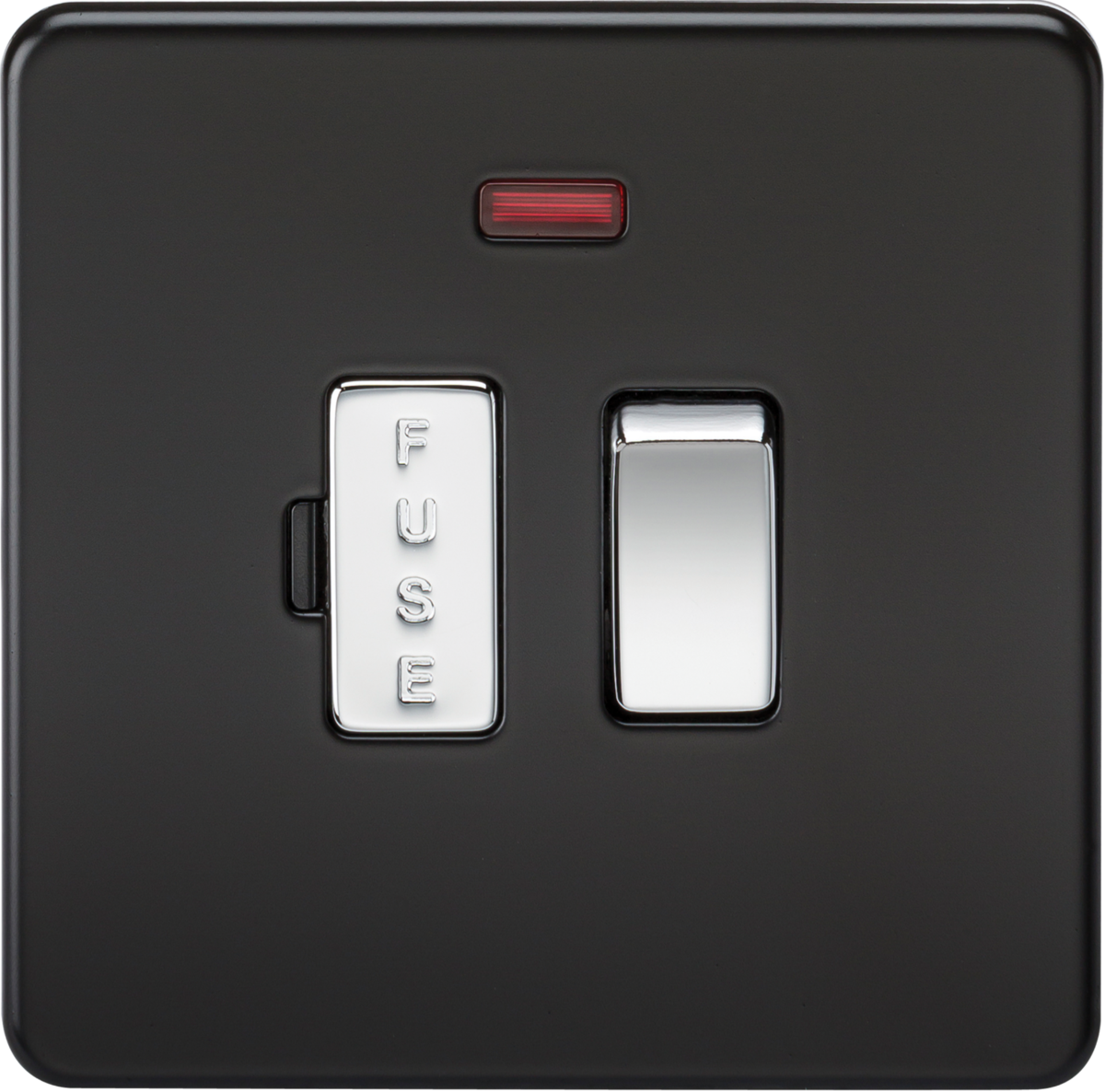

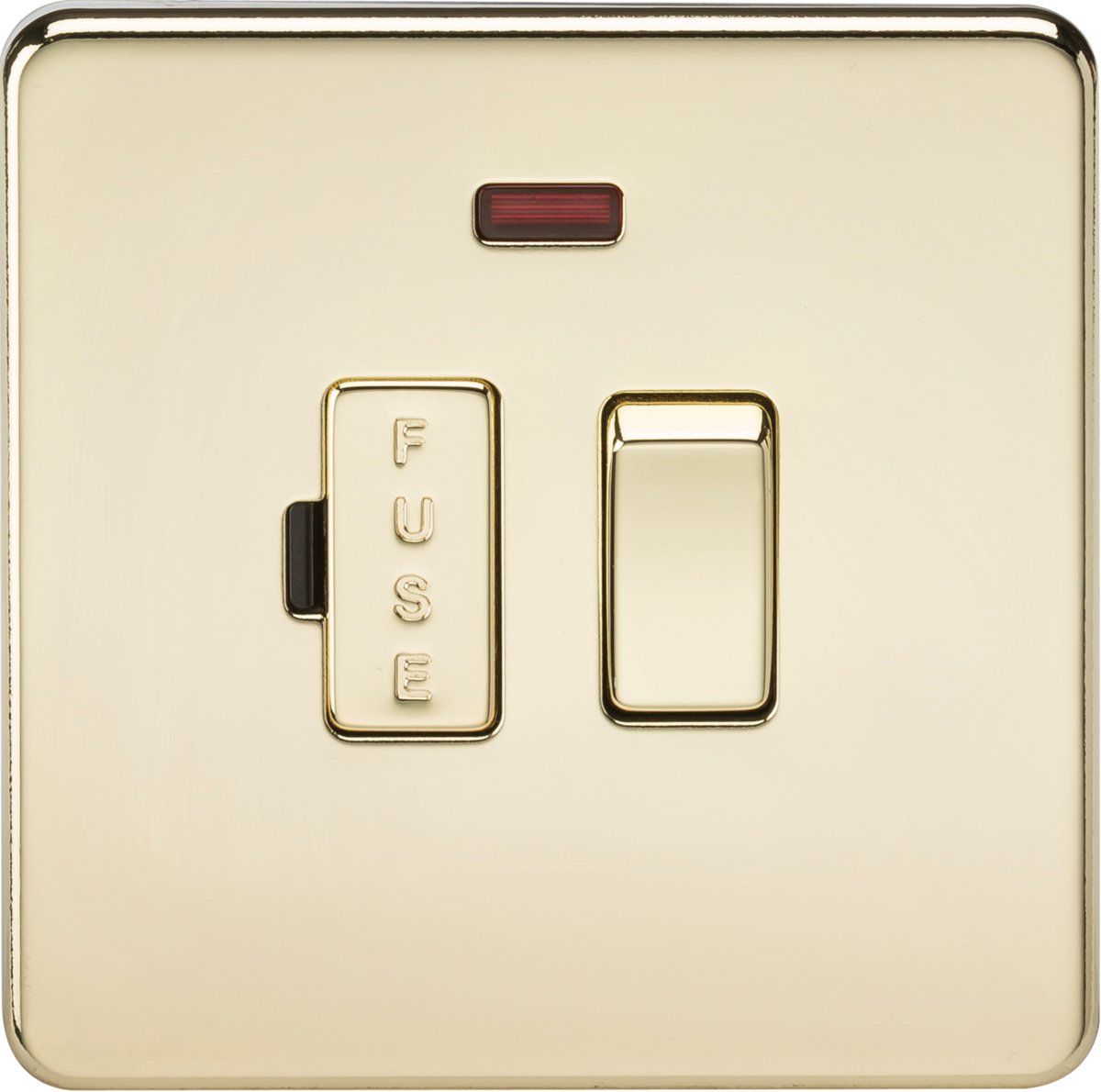

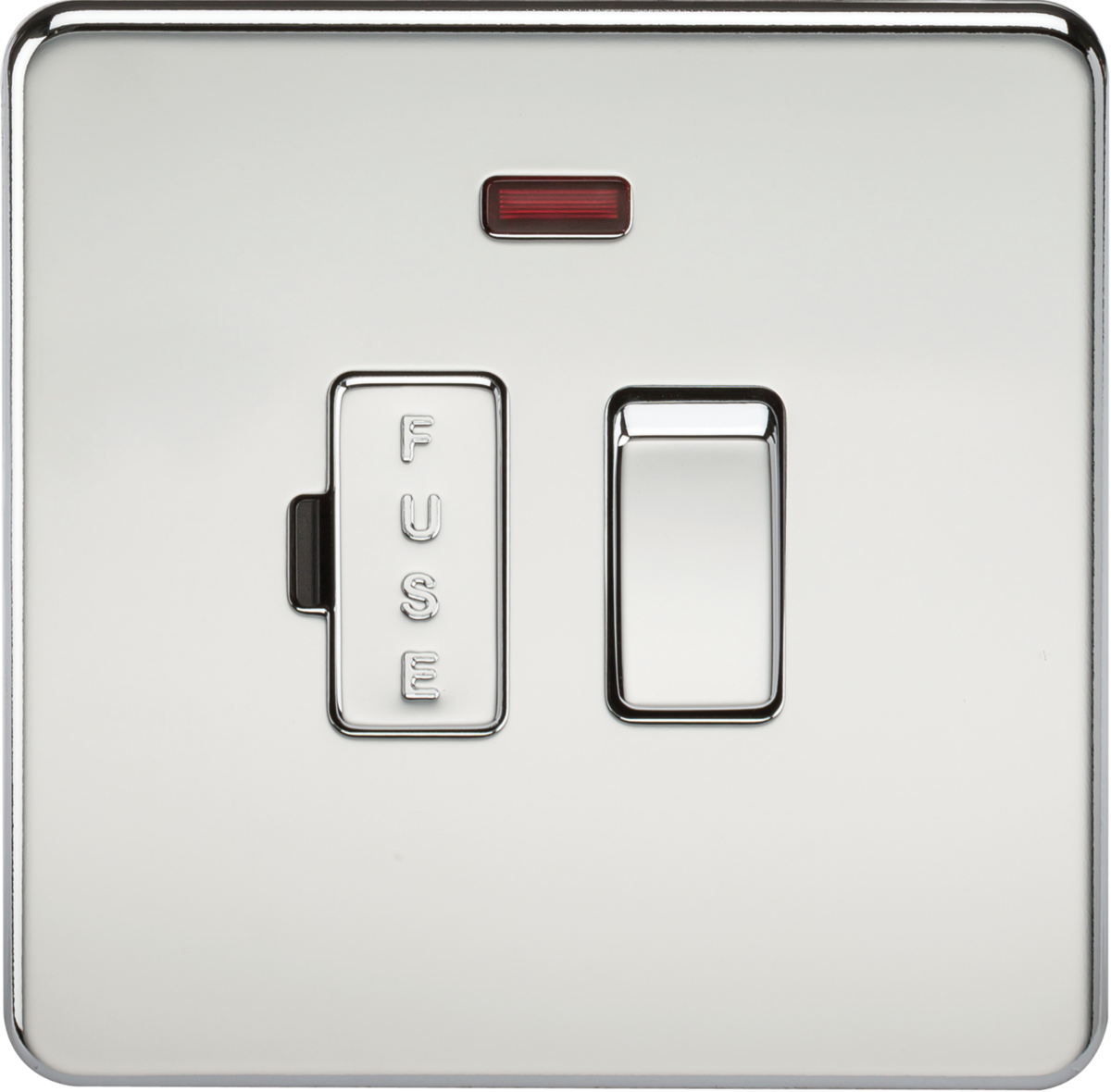

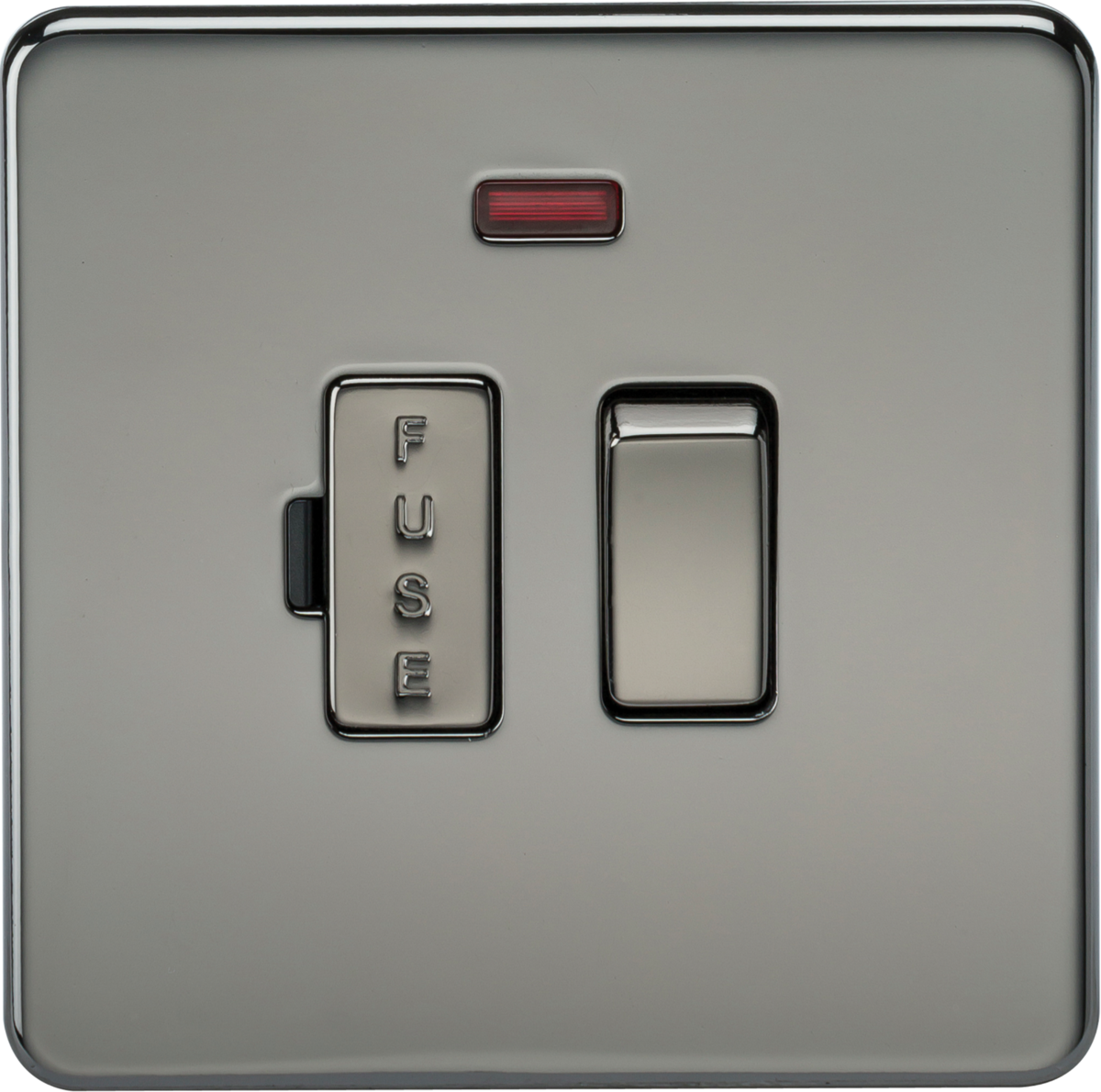

Fused spur solution in flawless Screwless low profile metal design with matching fuse holder and rocker
- 13A rated
- Switched
- Screwless low profile design with built in gasket
- Certified to BS 1363-4
- Minimum mounting box depth 25mm
- 13A rated
- Switched
- Screwless low profile design with built in gasket
- Certified to BS 1363-4
- Minimum mounting box depth 25mm
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | SF6300N |

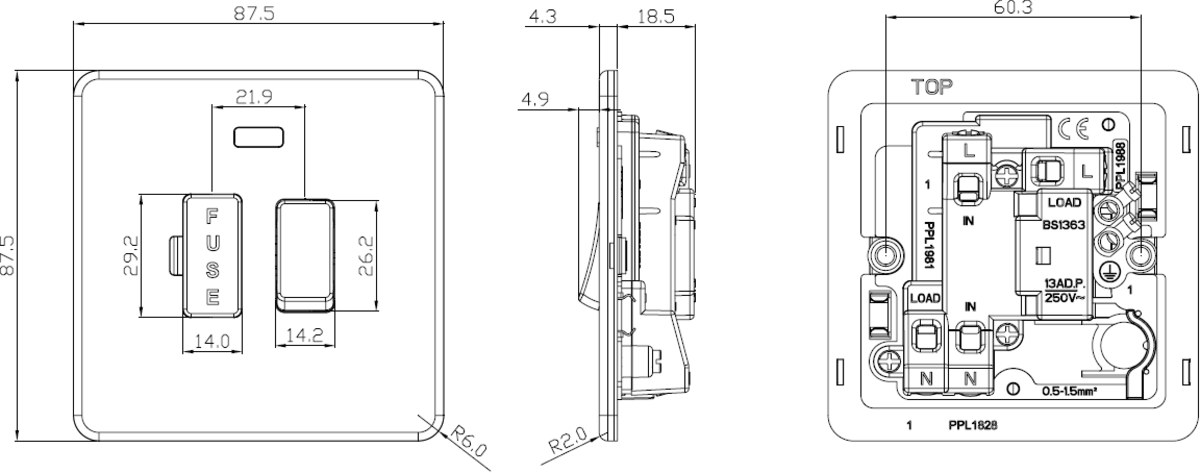

| Height (mm) | 87.5 |
| Width (mm) | 87.5 |
| Projection (mm) | 4.3 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Premium grade steel |

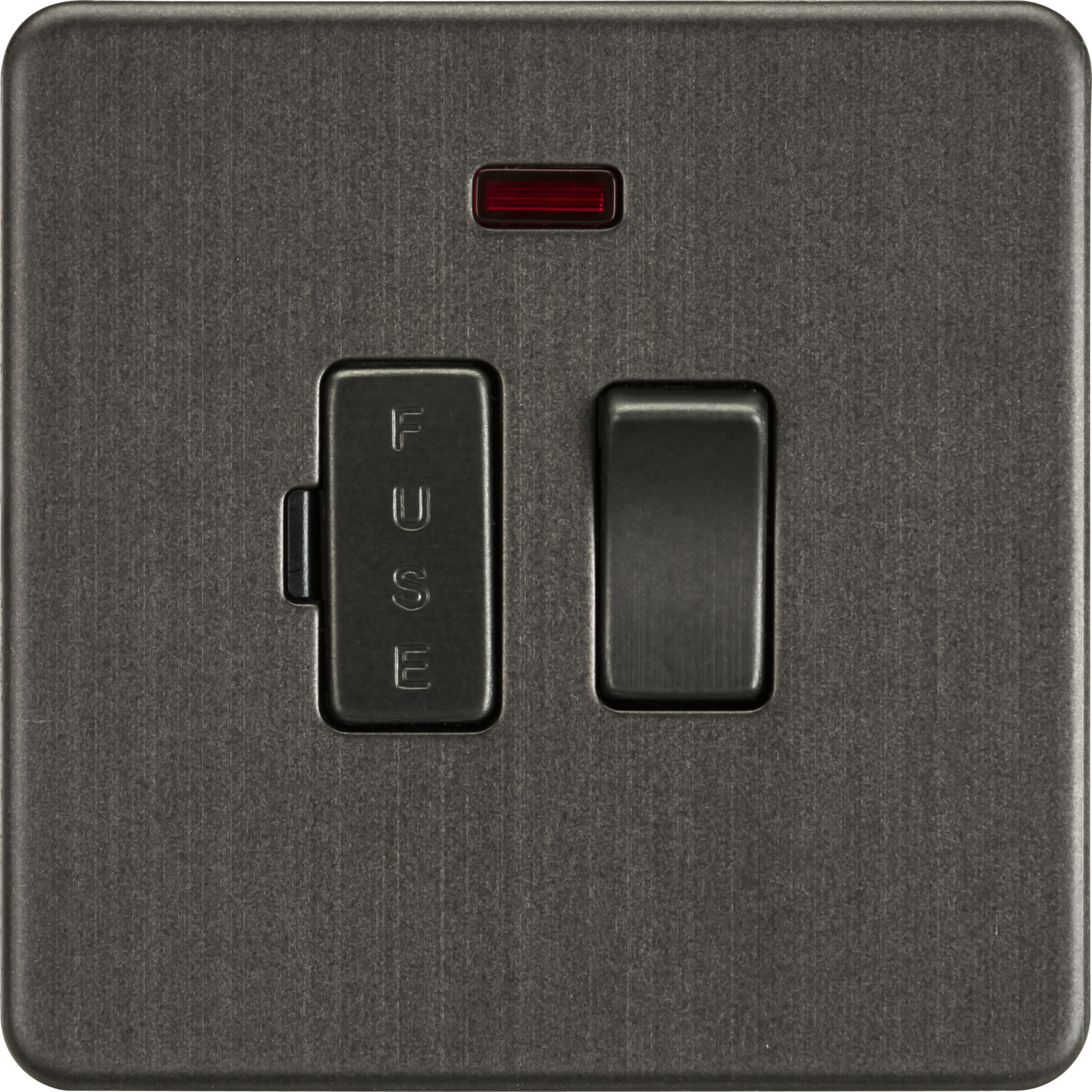

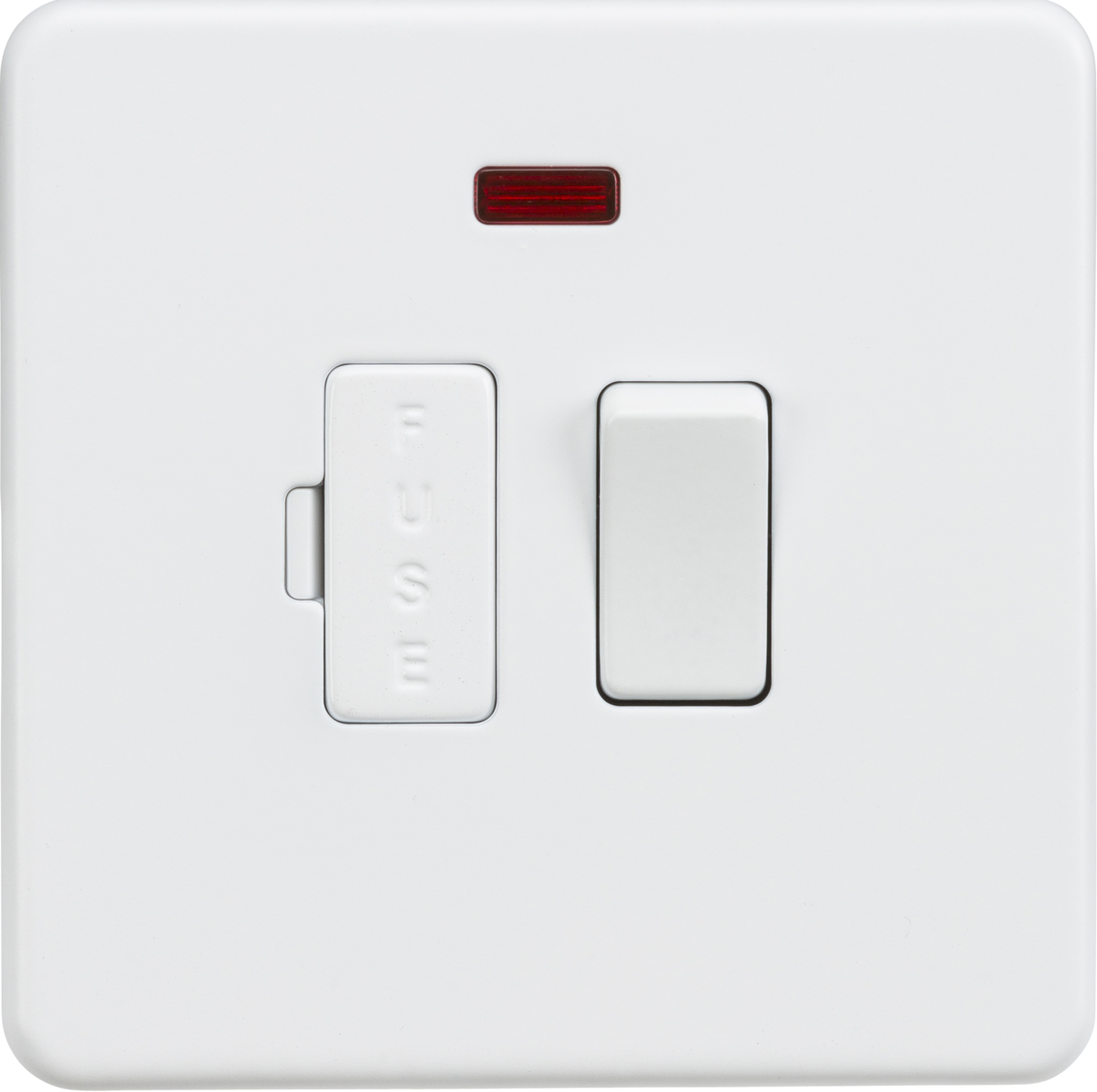

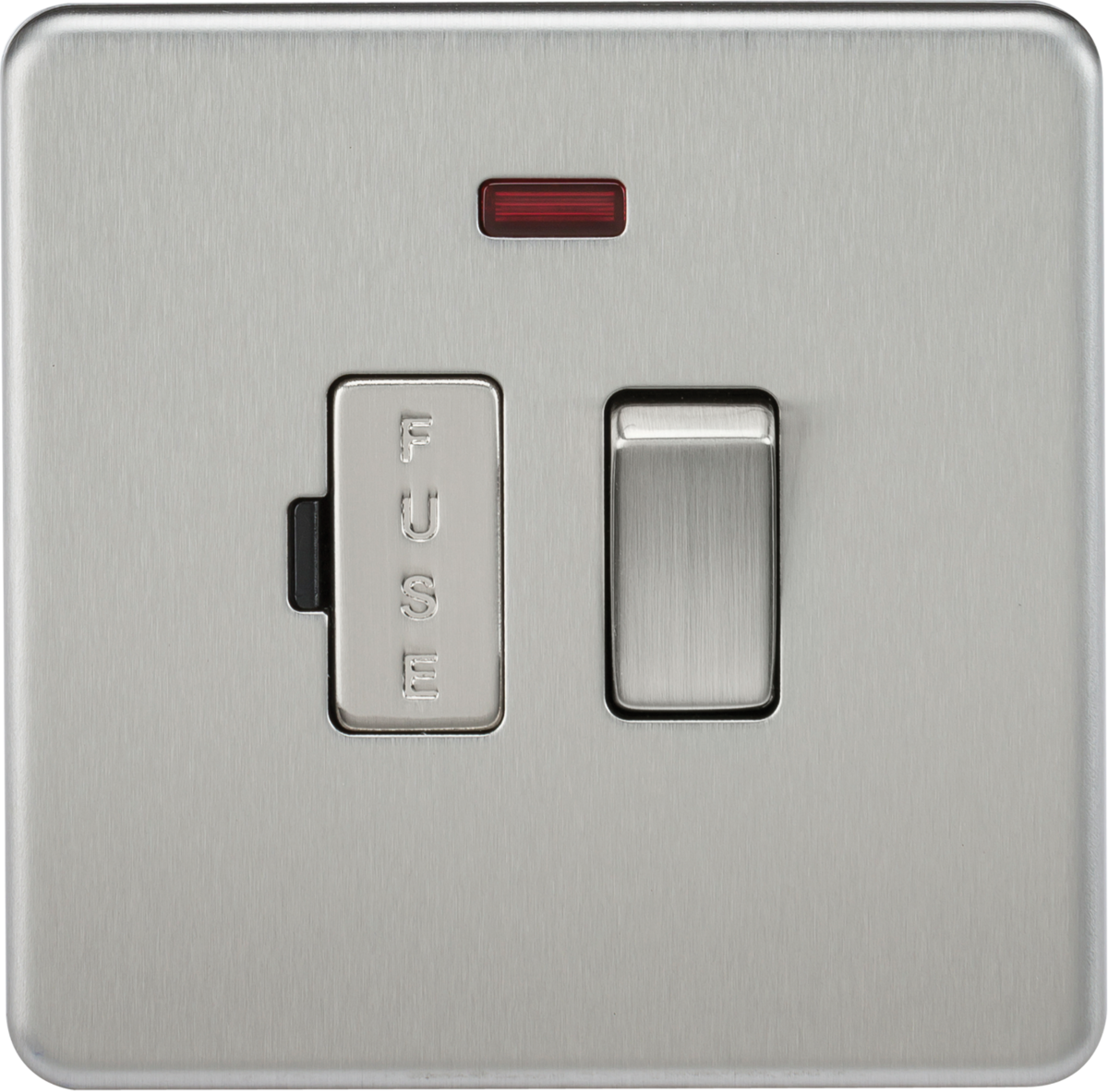

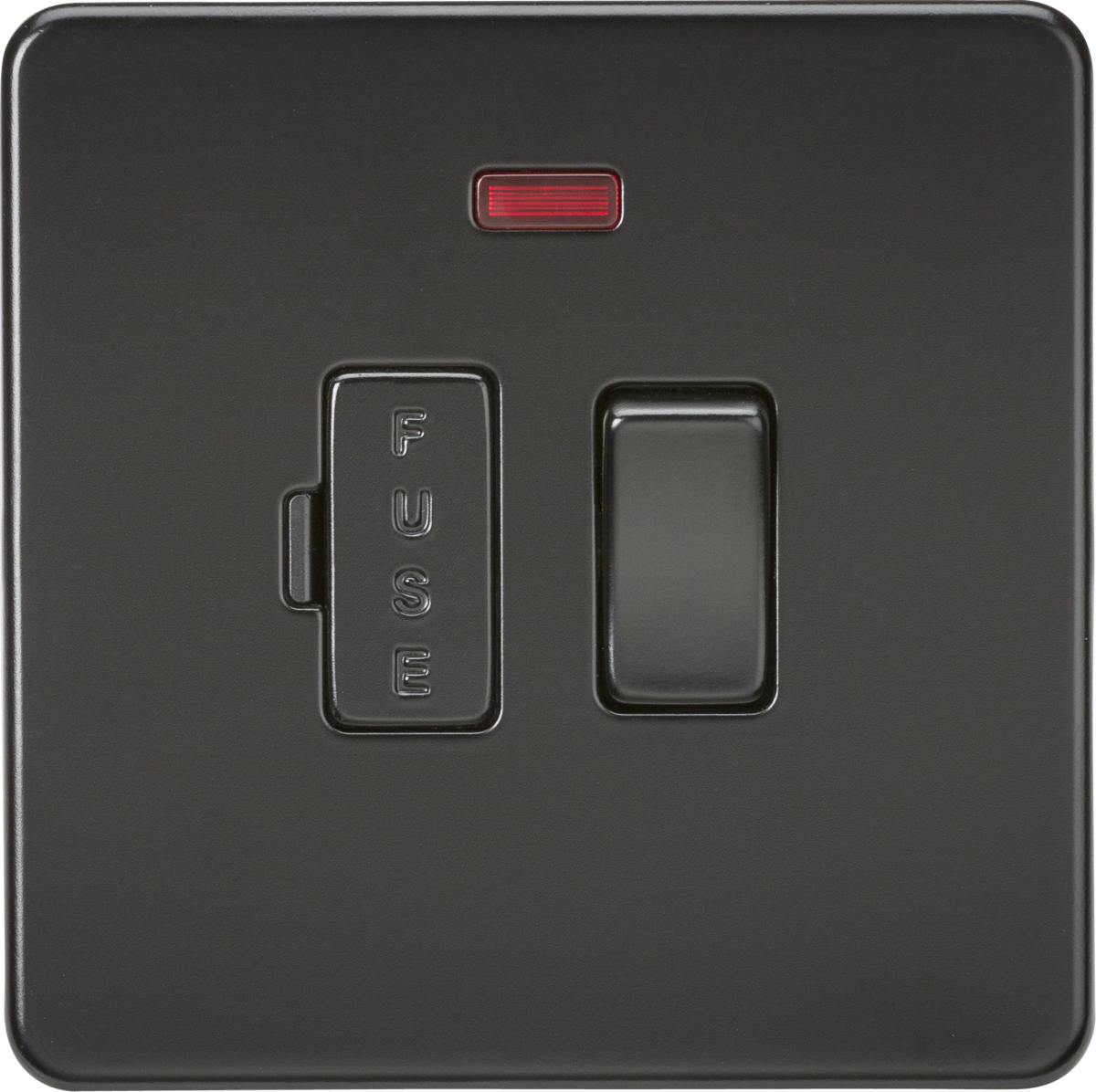

| Finish | Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Earth Terminal | Yes |
| Neon Indicator | Yes |
| Warranty (Years) | 15 |
| Commodity Code | 8536 3010 90 |
