Knightsbridge Screwless 1G Single Gang SAT TV Outlet Non Isolated

Ideal for standard SAT TV/F-type connections (non-isolated). Non-isolated outlets are the standard type for domestic installations. This version must be used for satellite installations as a two way signal is required. The satellite box does not only receive signals it also sends a signal back to the satellite dish. Flawless Screwless design
- 1 x F-Type SAT TV Outlet
- Non-isolated
- Screwless low profile design with built in gasket
- Certified to BS 5733
- Minimum mounting box depth: 25mm

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	SF0150

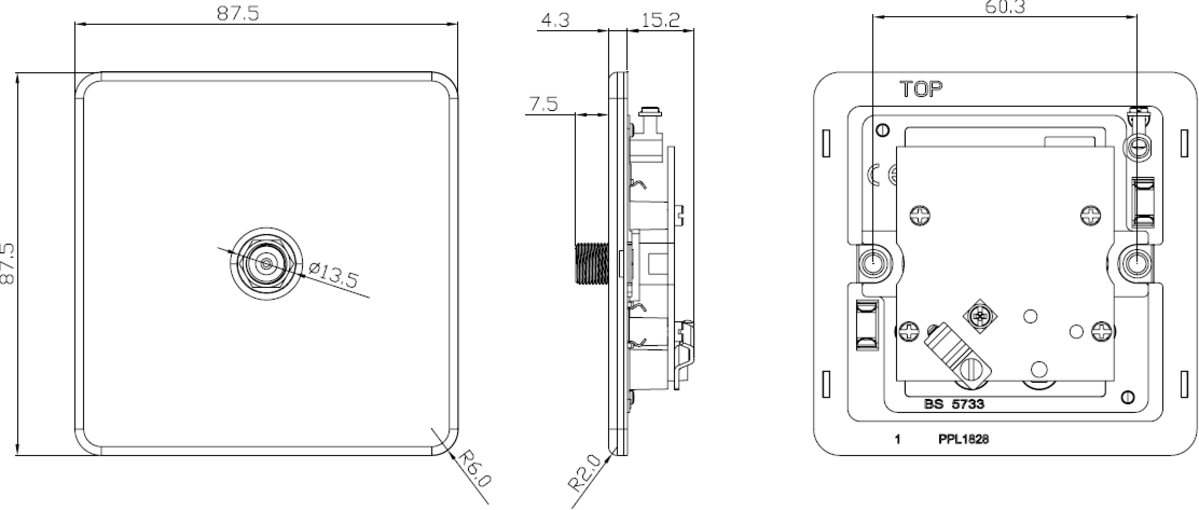

Height (mm)	87.5
Width (mm)	87.5
Projection (mm)	4.3
Min. Mounting Box Depth (mm)	25
Material	Premium grade steel
Finish	Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze
IP Rating	IP20
Earth Terminal	Yes
SAT Connection Type	F-Type
Terminal	Clamp & Screw Terminal
Warranty (Years)	15
Commodity Code	8536 6910 00
