Description
Ideal for TV/Coax and SAT TV/F-type connections (Isolated). Isolated outlets are for use with communal dishes and aerial installations. The isolated socket blocks interference from neighboring installs i.e. an apartment block. Flawless Screwless design
- 1 x Coaxial TV outlet
- 1 x F-Type SAT TV Outlet
- Isolated
- Screwless low profile design with built in gasket
- Certified to BS5733
- Minimum mounting box depth: 25mm
- 1 x Coaxial TV outlet
- 1 x F-Type SAT TV Outlet
- Isolated
- Screwless low profile design with built in gasket
- Certified to BS5733
- Minimum mounting box depth: 25mm
Download
DatasheetSpecifications

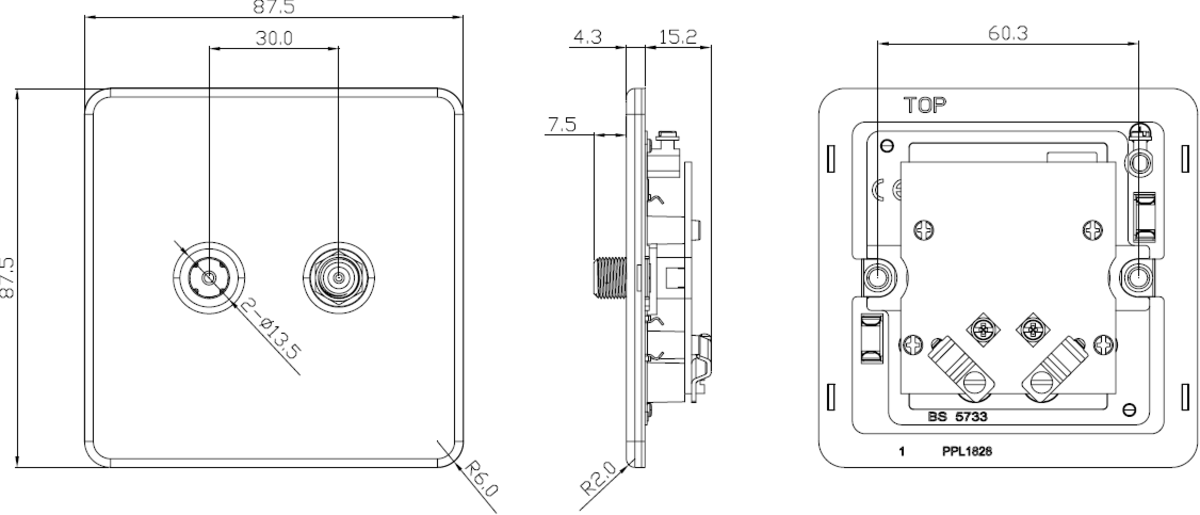

| Brand | Knightsbridge |
|---|---|
| SKU | SF0140 |
| Height (mm) | 87.5 |
| Width (mm) | 87.5 |
| Projection (mm) | 4.3 |
| Min. Mounting Box Depth (mm) | 25 |
| Material | Premium grade steel |
| Finish | Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze |
| IP Rating | IP20 |
| Earth Terminal | Yes |
| TV Connection Type | Female |
| SAT Connection Type | F-Type |
| Terminal | Clamp & Screw Terminal |
| Warranty (Years) | 15 |
| Commodity Code | 8536 6930 00 |
