Description

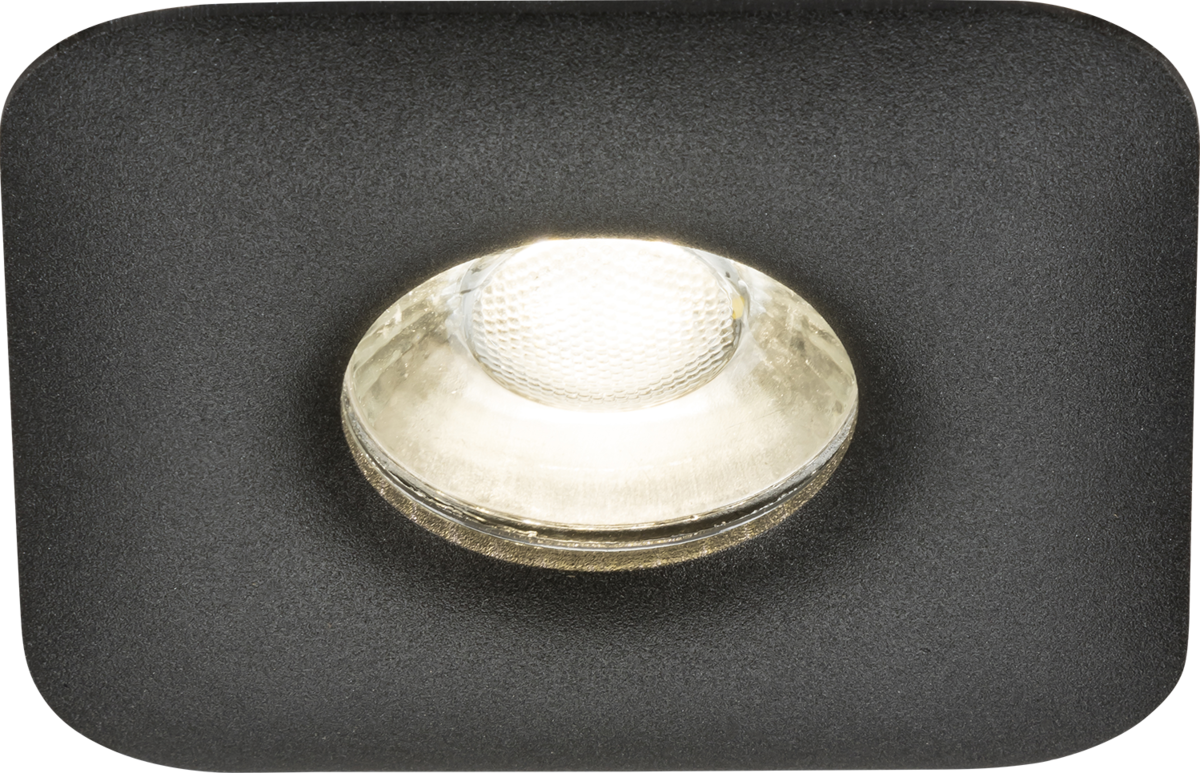

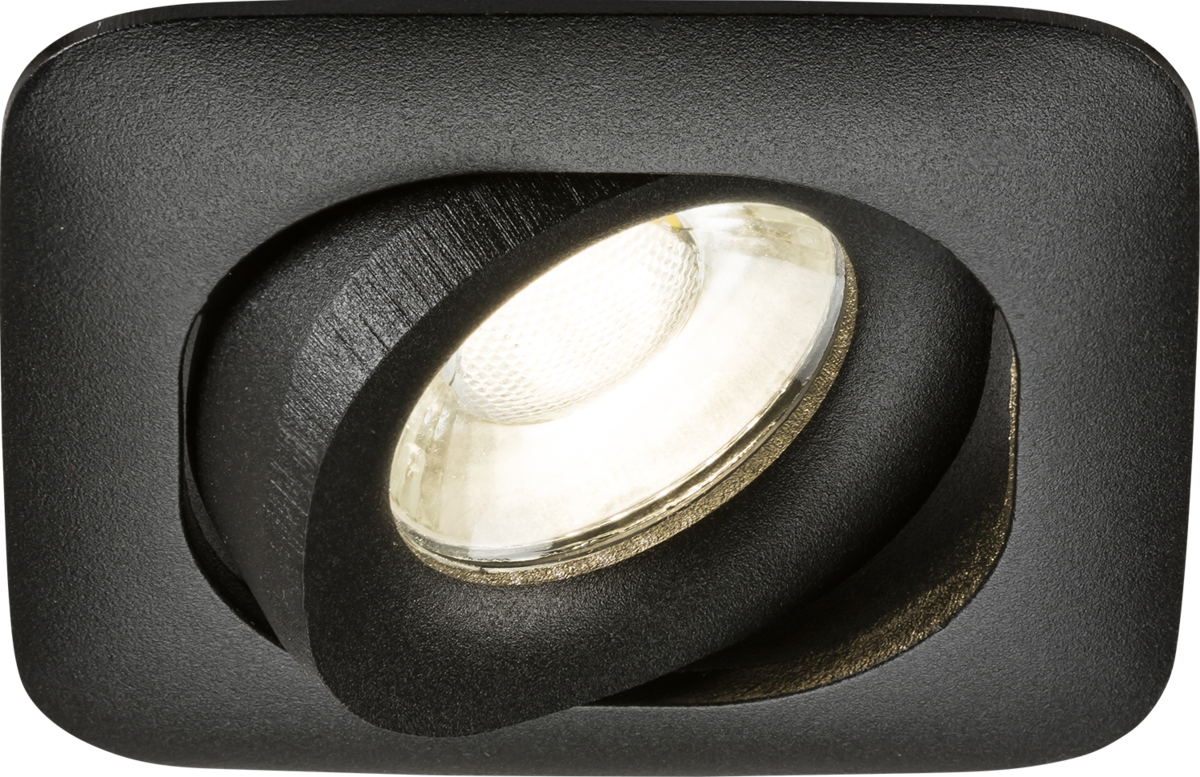

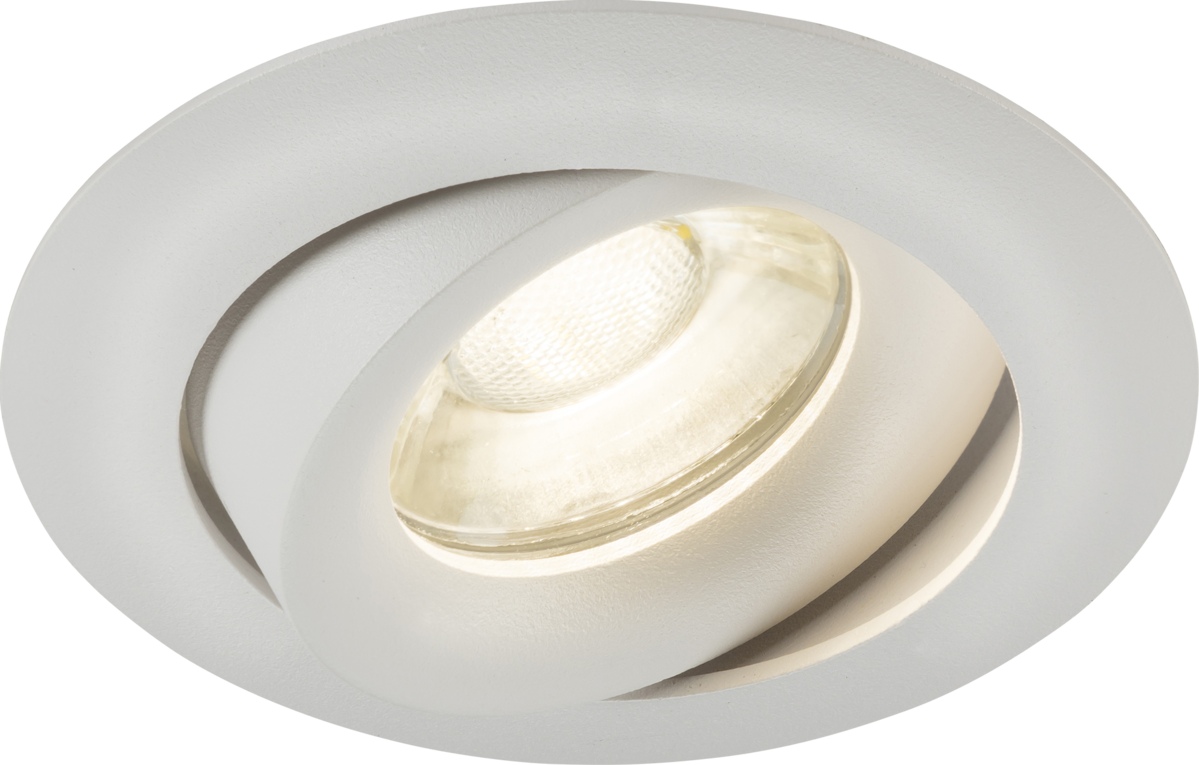

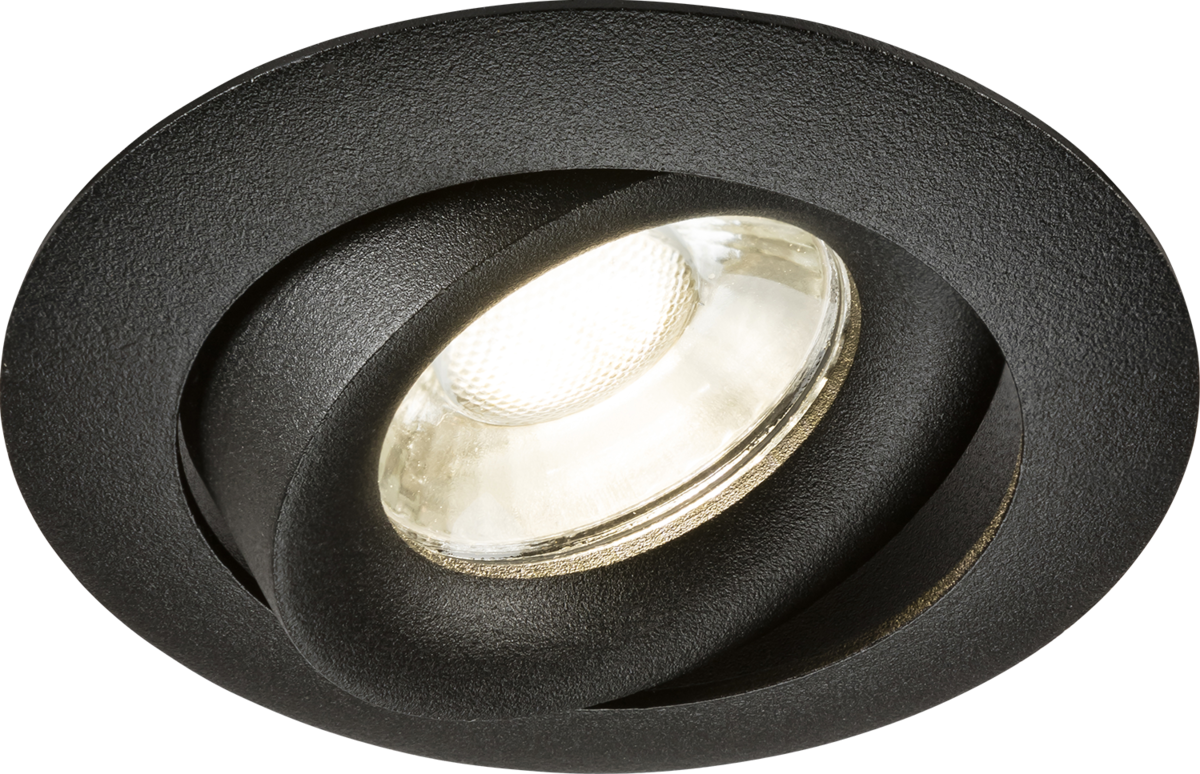

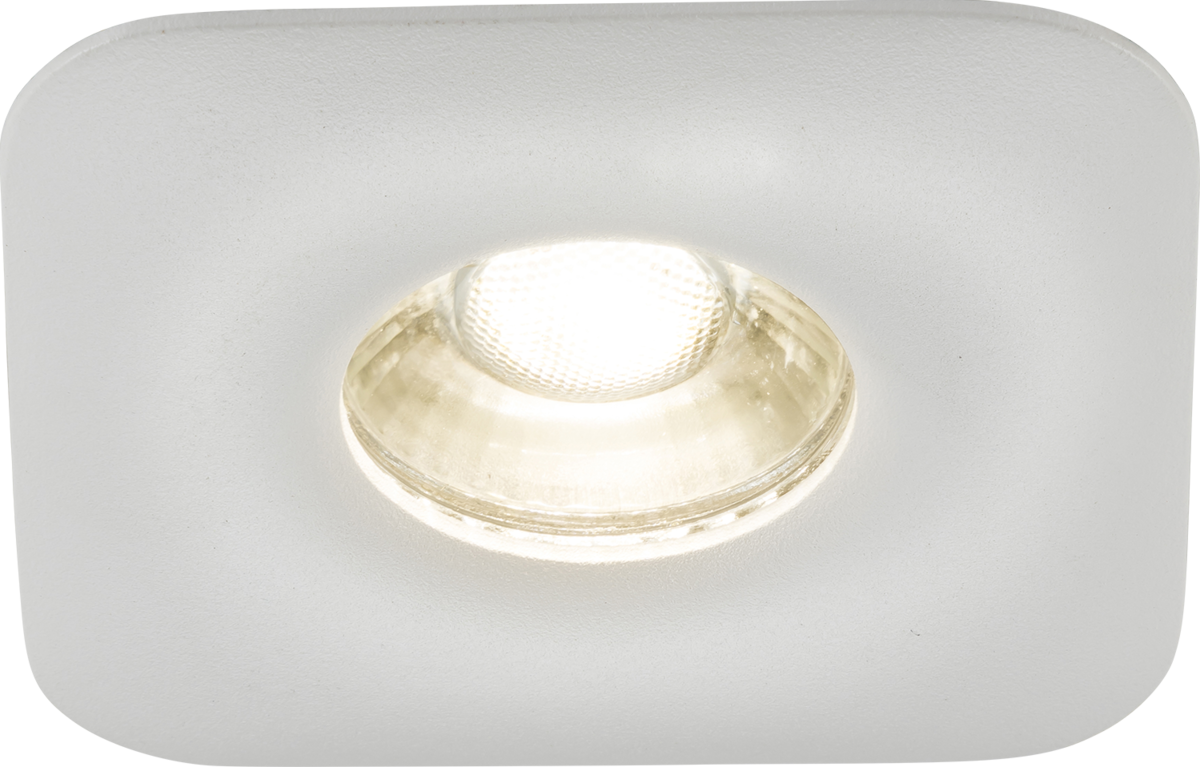

Odina is a simple yet elegant die-cast aluminium downlight solution with a choice of either a circular or squared edge, with a white or black finish. This decorative range is designed for residential, hospitality, and light commercial applications. The complete range is compatible with Knightsbridge GU10 light sources, with dimmable, non-dimmable, and SmartKnight options, boasting a wide array of colour temperatures and controllable parameters. Knightsbridge is committed to brighter future, and as such, Odina products are packaged in FSC approved packaging.
- GU10 LED lamp compatible
- Fixed and tilt options
- Choice of white or black finish
- Sleek, curved edge design
- Compatible with Knightsbridge range of fire hoods* *Check size and specific fire rating compliance with the relevant fire hood technical and installation data.
6W Cool and Warm white LED Non Dimmable bulbs are available separately-Please select from drop down menu
- GU10 LED lamp compatible
- Fixed and tilt options
- Choice of white or black finish
- Sleek, curved edge design
- Compatible with Knightsbridge range of fire hoods* *Check size and specific fire rating compliance with the relevant fire hood technical and installation data.
6W Cool and Warm white LED Non Dimmable bulbs are available separately-Please select from drop down menu
Download
DatasheetSpecifications
| Brand | Knightsbridge |
|---|---|
| SKU | ODA1FR, ODA1FS, ODA1TR, ODA1TS |
| Diameter (mm) | 82 |
| Length (mm) | 82 |
| Width (mm) | 82 |
| Projection (mm) | 6 |
| Recessed Depth (mm) | 18 |
| Minimum Void (mm) | 70 |
| Cut-out Diameter (mm) | 72 |
| Material | Die-cast aluminium |
| Finish | Black, White |
| Class | I |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| Lamp Base | GU10 |
| Lamp Included | No |
| Dimmable | Lamp dependent |
| Max. Wattage | 10 |
| Warranty (Years) | 5 |
| Commodity Code | 9405500090 |
