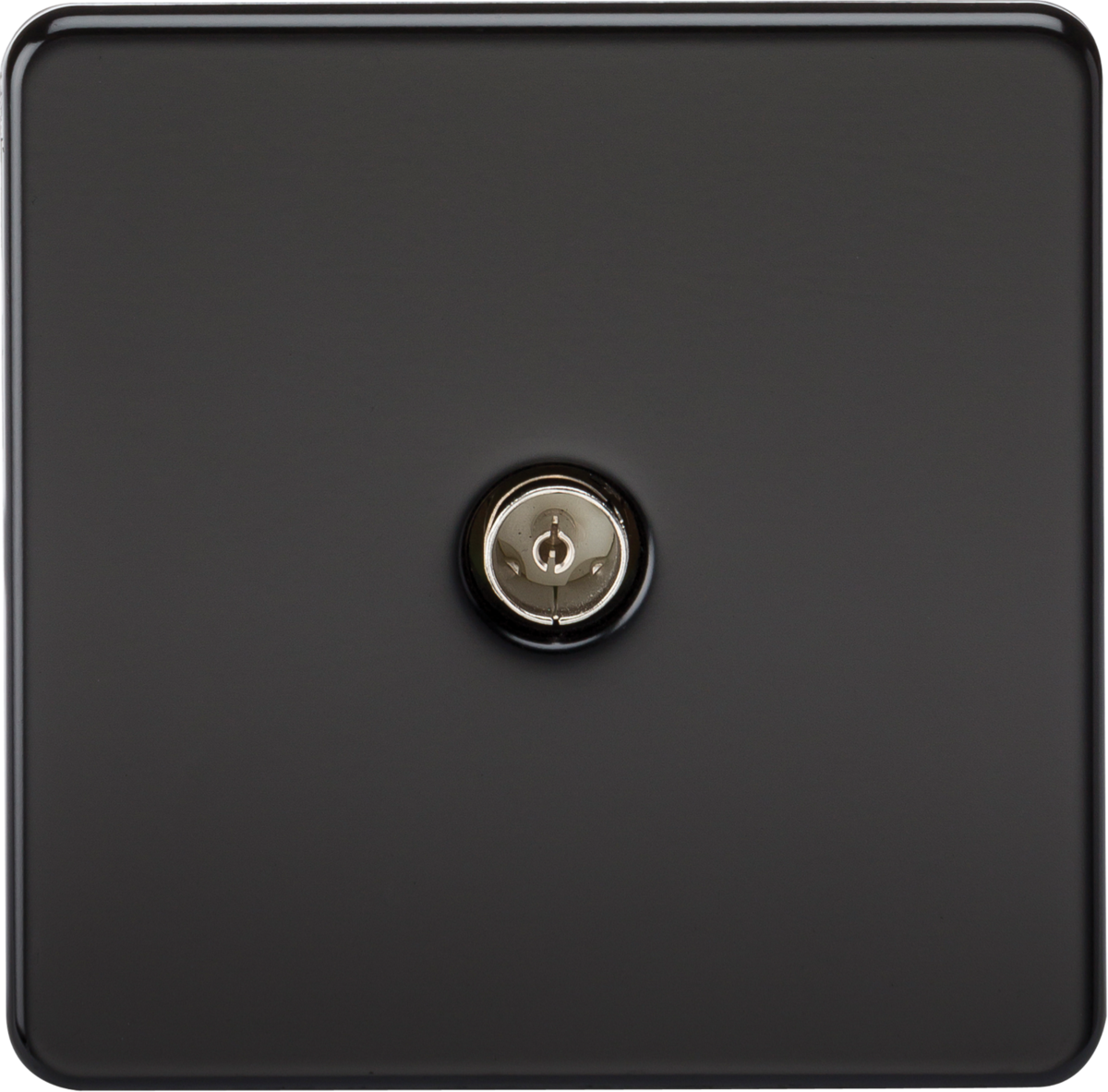

Knightsbridge Screwless 1G Single Gang Television TV Outlet Non Isolated

Ideal for standard TV/Coax connections (non-isolated). Flawless Screwless design
- Coaxial TV outlet
- Non-isolated
- Screwless low profile design with built in gasket
- Certified to BS5733
- Minimum mounting box depth: 25mm

Download

Datasheet

Specifications

Brand	Knightsbridge
SKU	SF0100

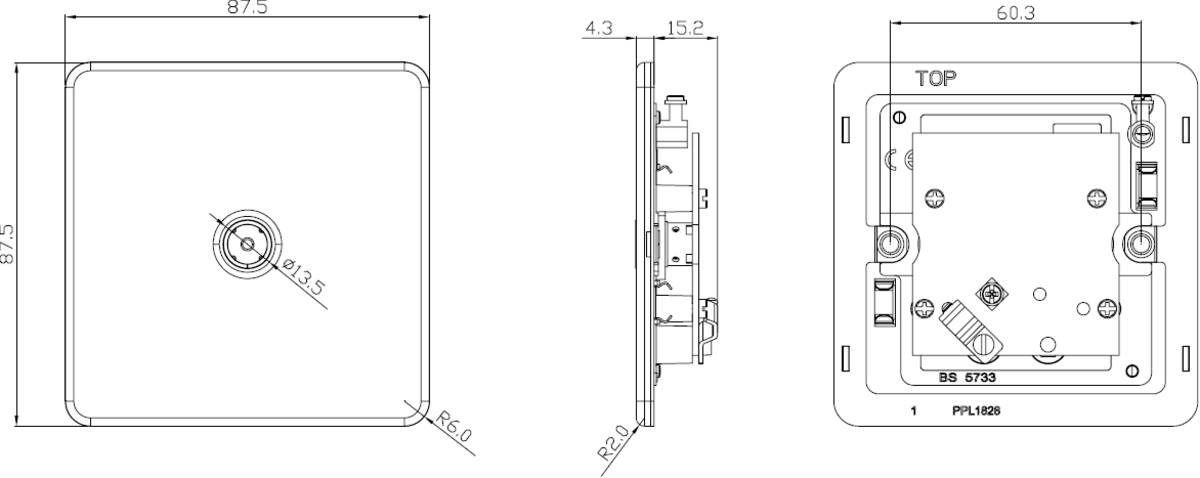

Height (mm)	87.5
Width (mm)	87.5
Projection (mm)	4.3
Min. Mounting Box Depth (mm)	25
Material	Premium grade steel

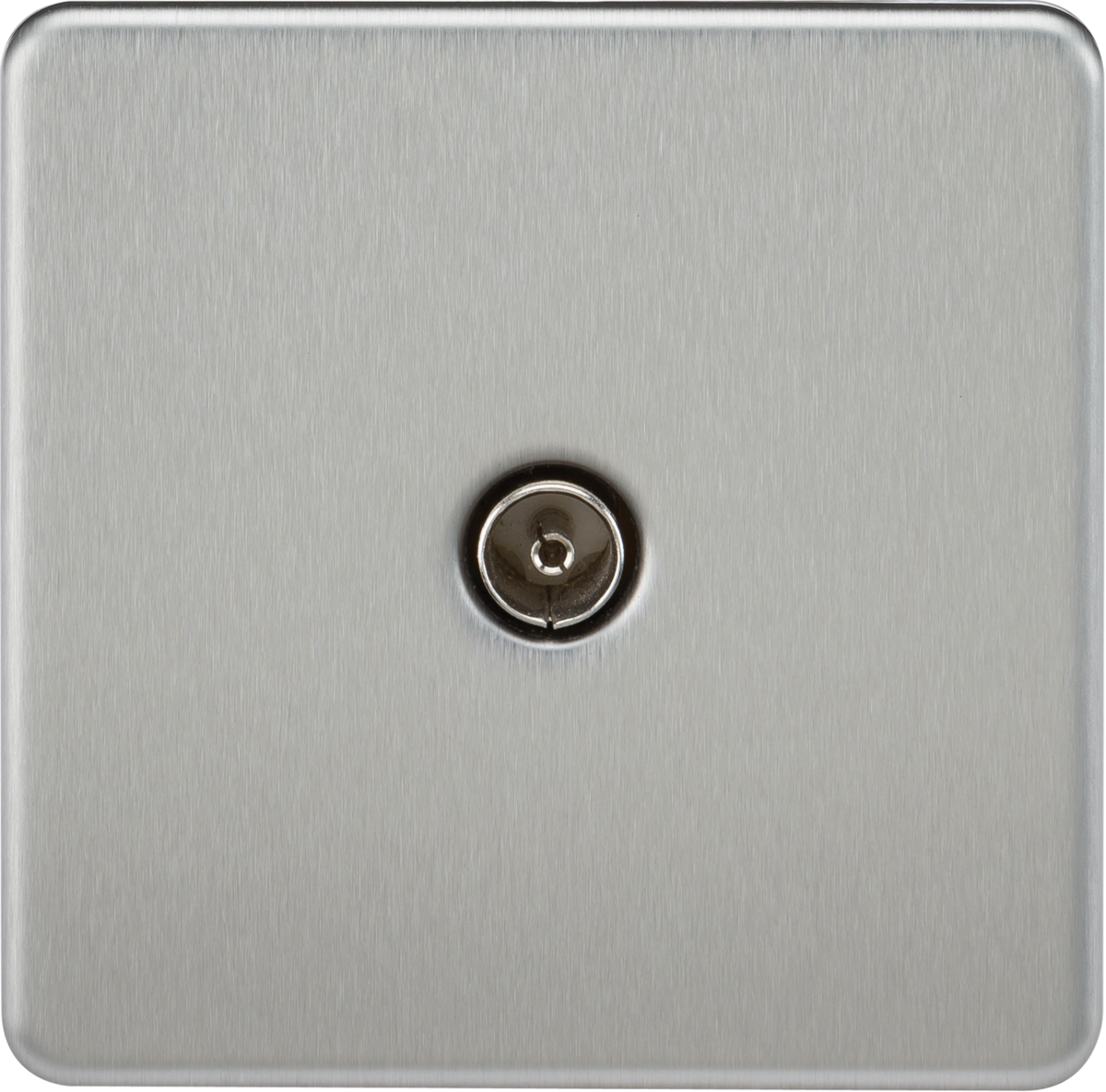

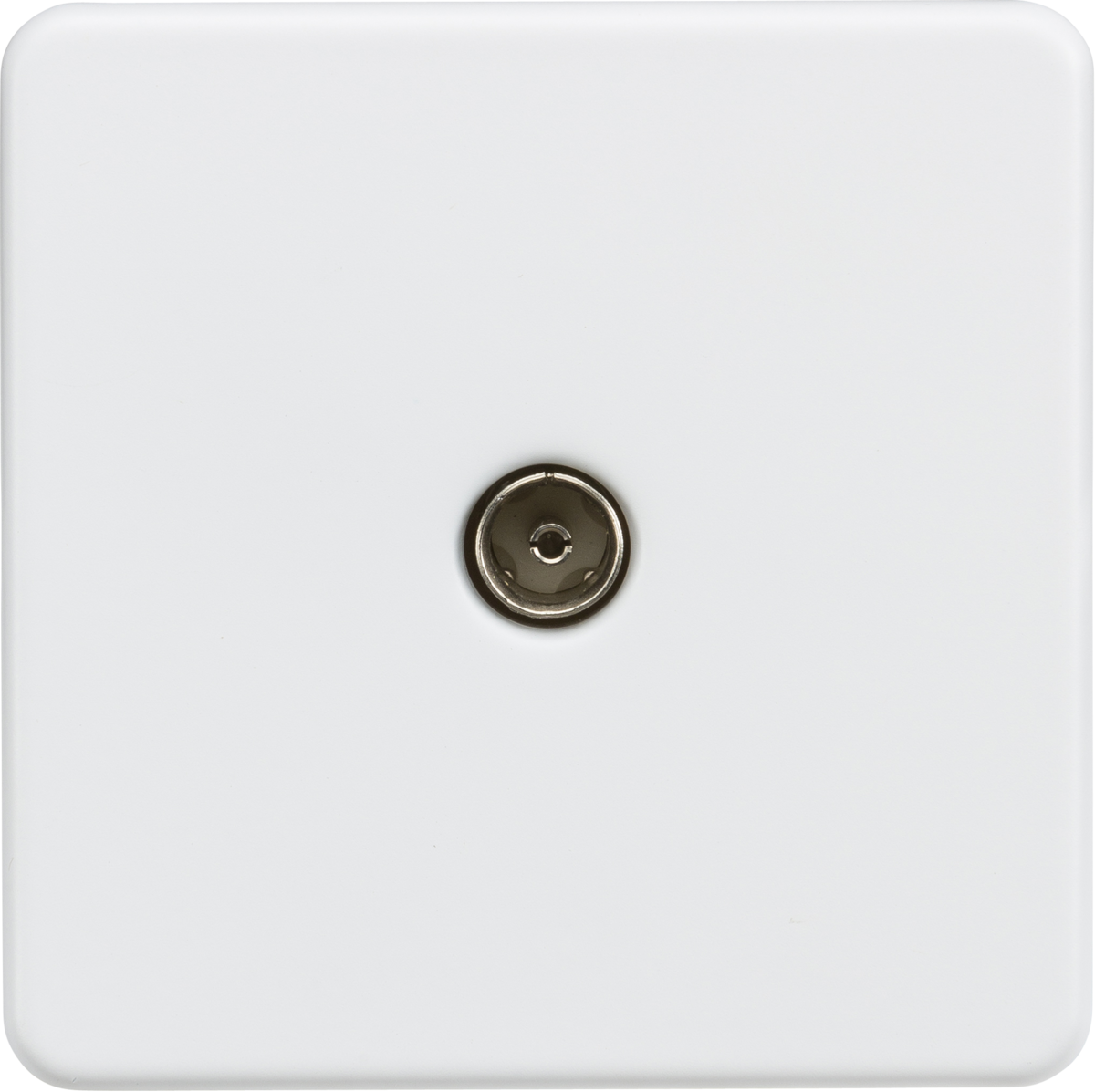

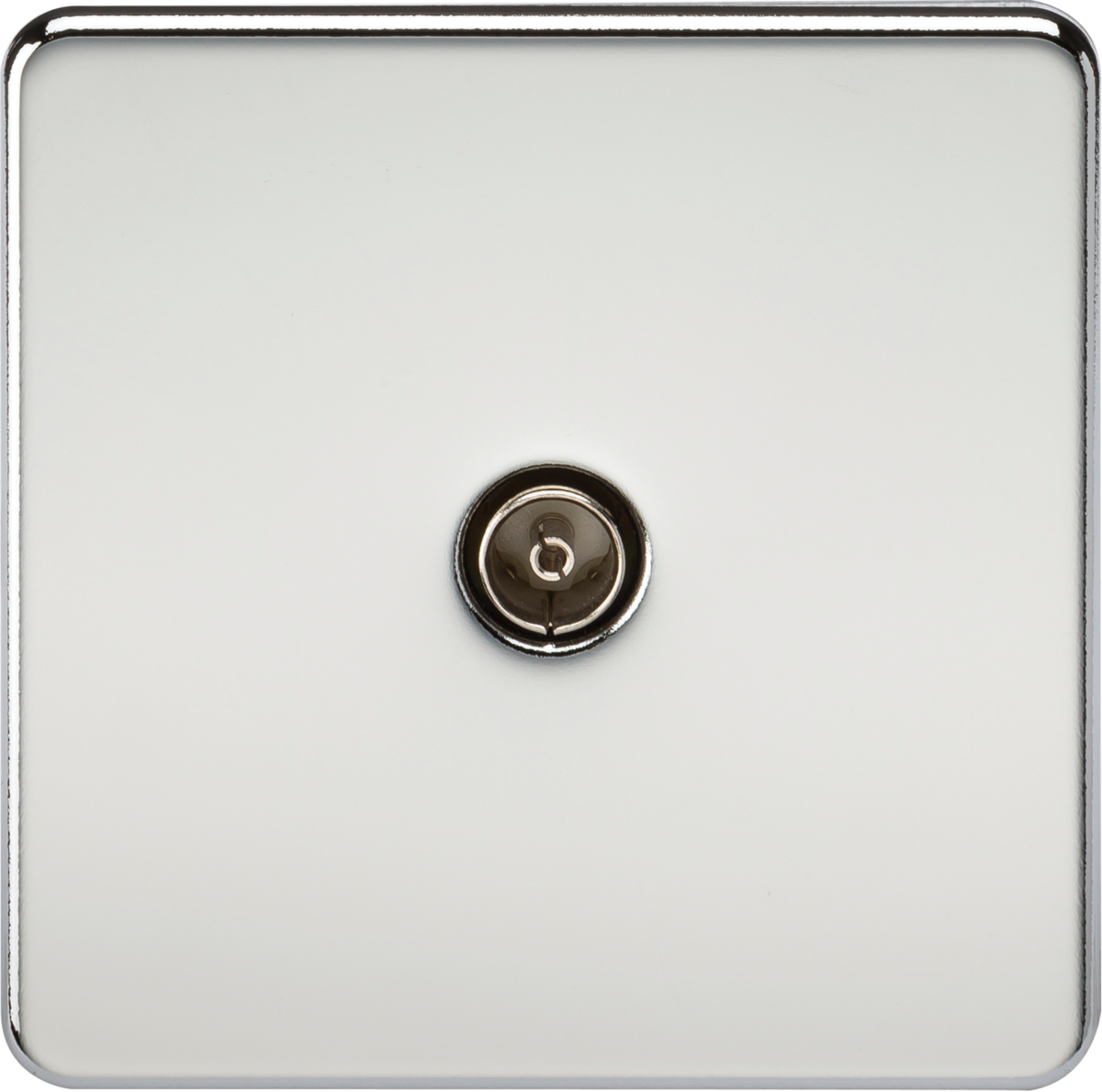

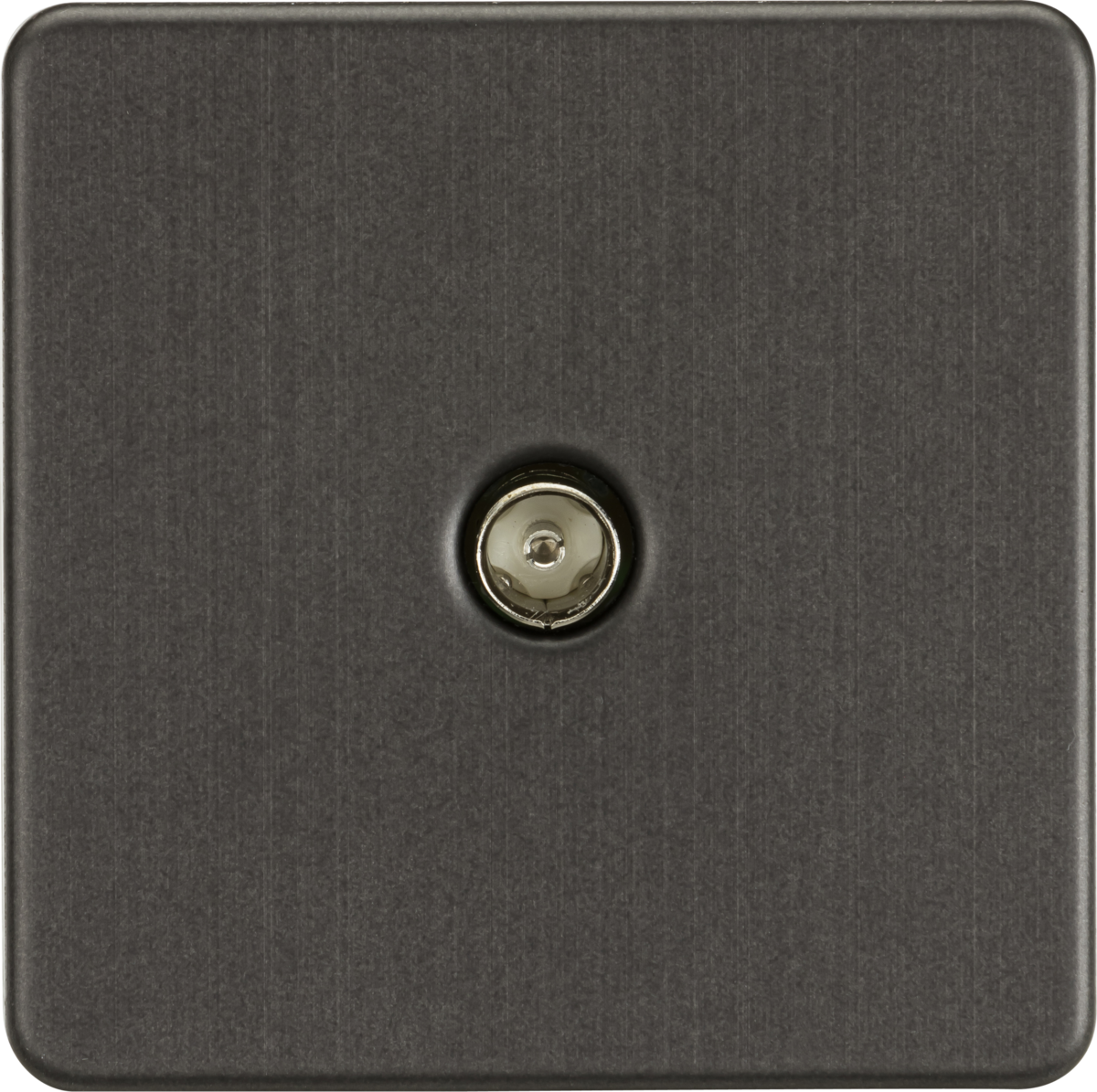

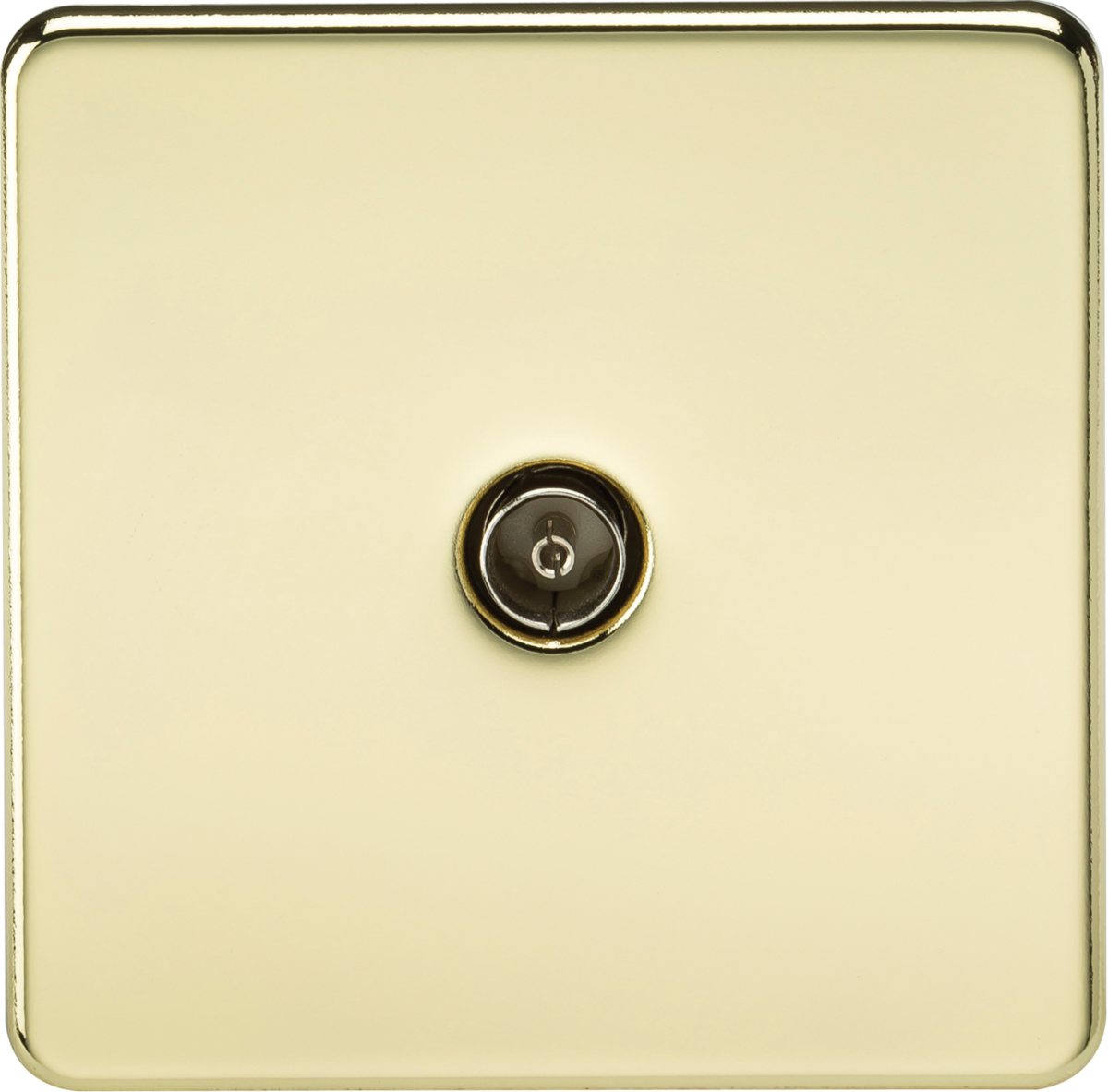

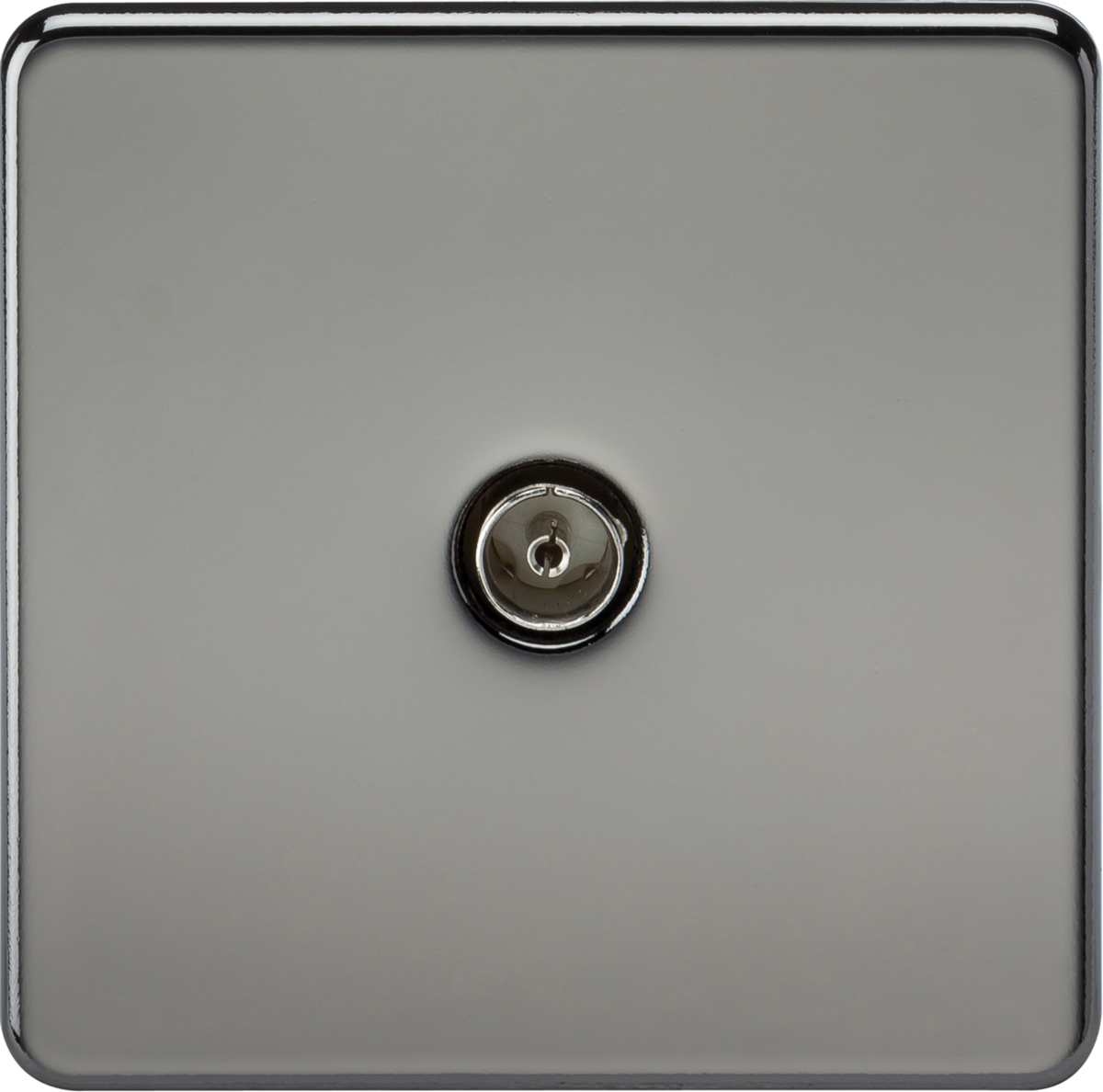

Finish	Anthracite, Brushed Chrome, Matt Black, Matt White, Smoked Bronze
IP Rating	IP20
Earth Terminal	Yes
TV Connection Type	Female
Terminal	Clamp & Screw Terminal
Warranty (Years)	15
Commodity Code	8536 6910 00
