Description

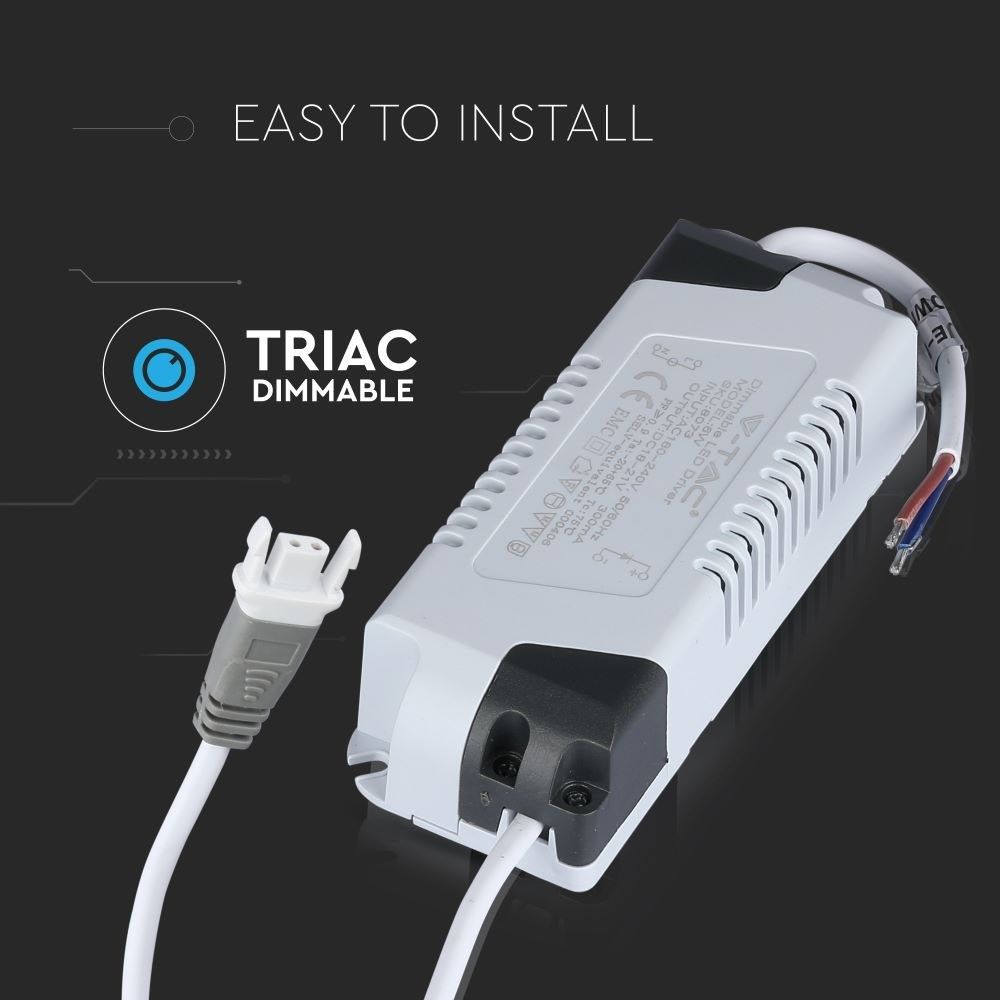

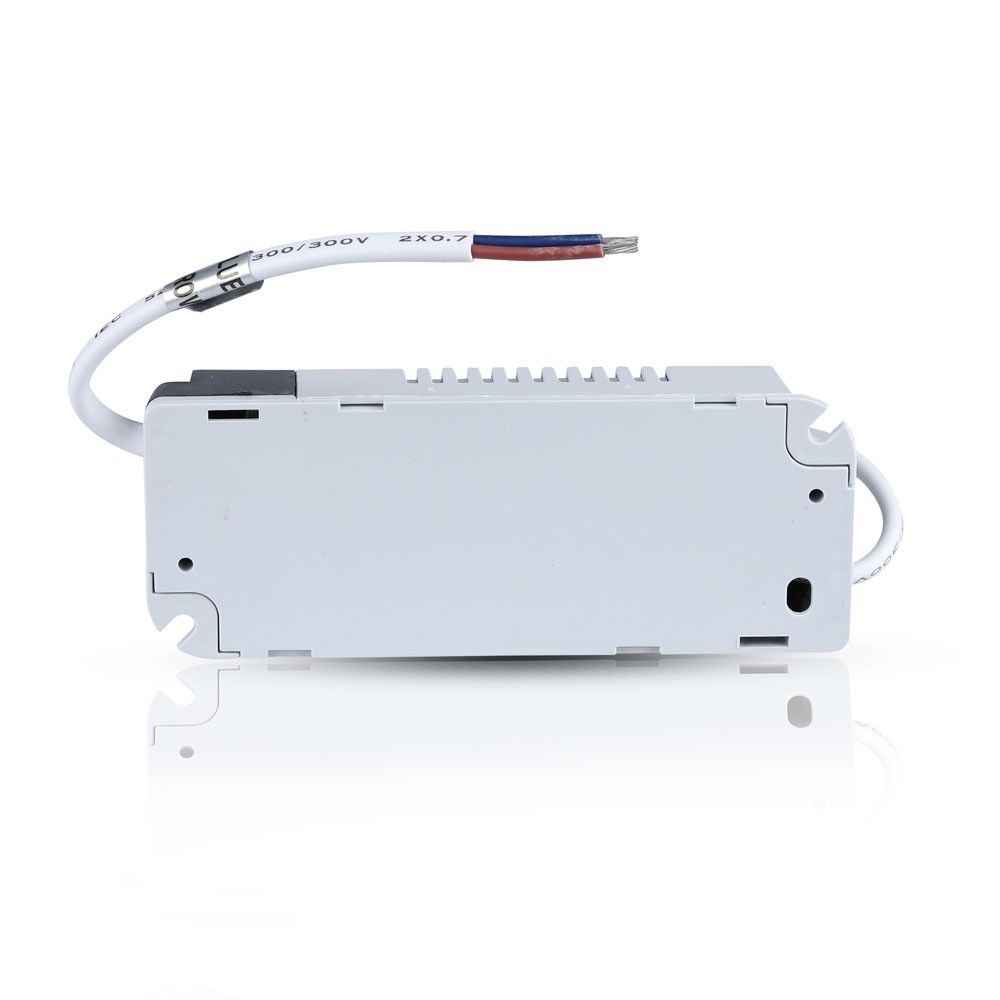

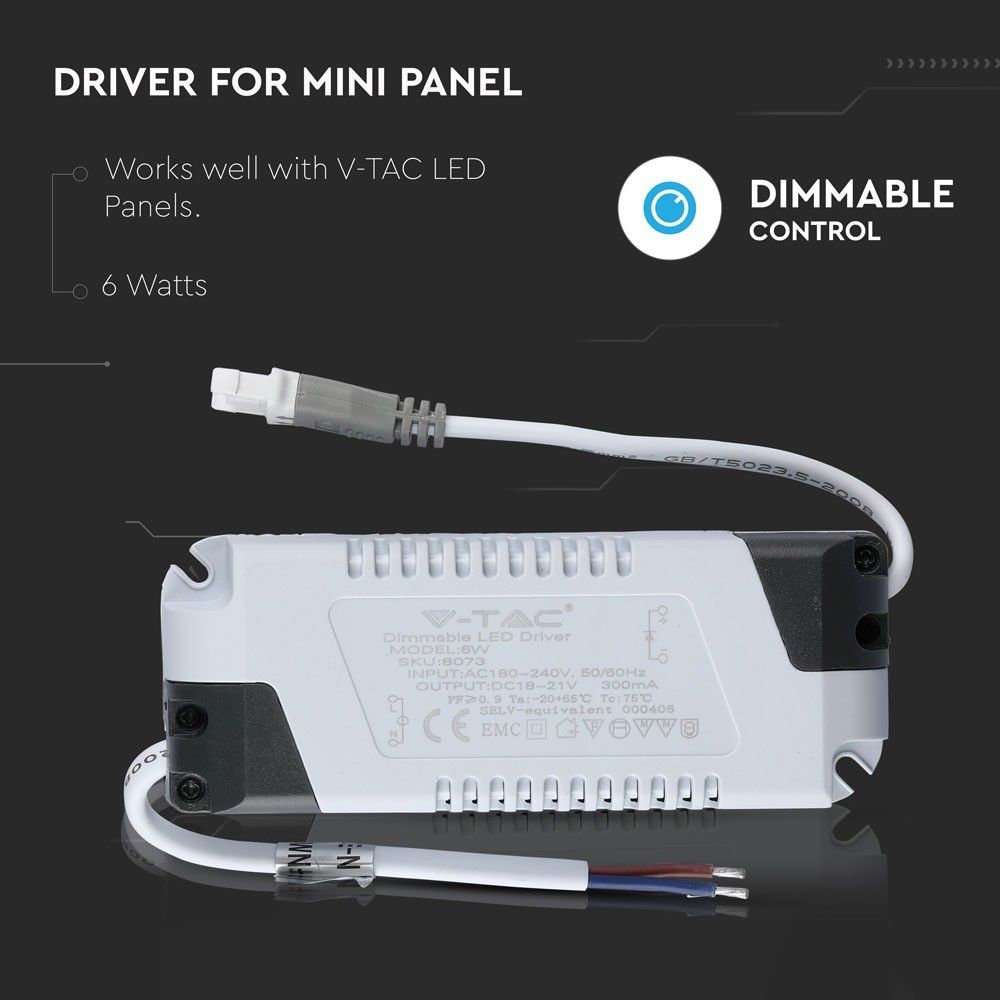

Upgrade your lighting with the V-TAC Dimmable LED Drivers designed for our Mini Panel Lights. Available in 6W, 12W, 18W, and 24W options, these drivers feature TRIAC dimming technology for smooth, flicker-free adjustments. With an IP20 rating, they are suitable for indoor use, ensuring safety and reliability in any environment.
Key Features:
- Dimmable: Easily adjust brightness with TRIAC dimming technology.
- Versatile Wattage Options: Available in 6W, 12W, 18W, and 24W to suit various lighting needs.
- Compact Design: Sleek dimensions for easy installation in tight spaces.
- Durable and Reliable: Built to last with robust materials and IP20 rating for indoor use.
- Certificates: EMC, LVD, and ROHS compliant for peace of mind.
Downloads
6W Datasheet
9-12W Datasheet
18W Datasheet
22-24W Datasheet
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 8073,8074,8075,8076 |
| Length (mm) | 6W = 111.5, 12W =111.5, 18W =111.5, 24W = 132 |
| Width (mm) | 6W = 42, 12W =42, 18W =42, 24W = 45 |
| Height (mm) | 6W = 26, 12W =26, 18W =26, 24W = 26 |
| Finish | Black |
| Material | Plastic |
| IP Rating | IP20 |
| Voltage (V) | 220 |
| Wattage (W) | 6W, 9-12W, 18W, 22-24W |
| Place of application | Indoor |
| Driver Type | TRIAC |
| Commodity Code | 85044090 |
