Description

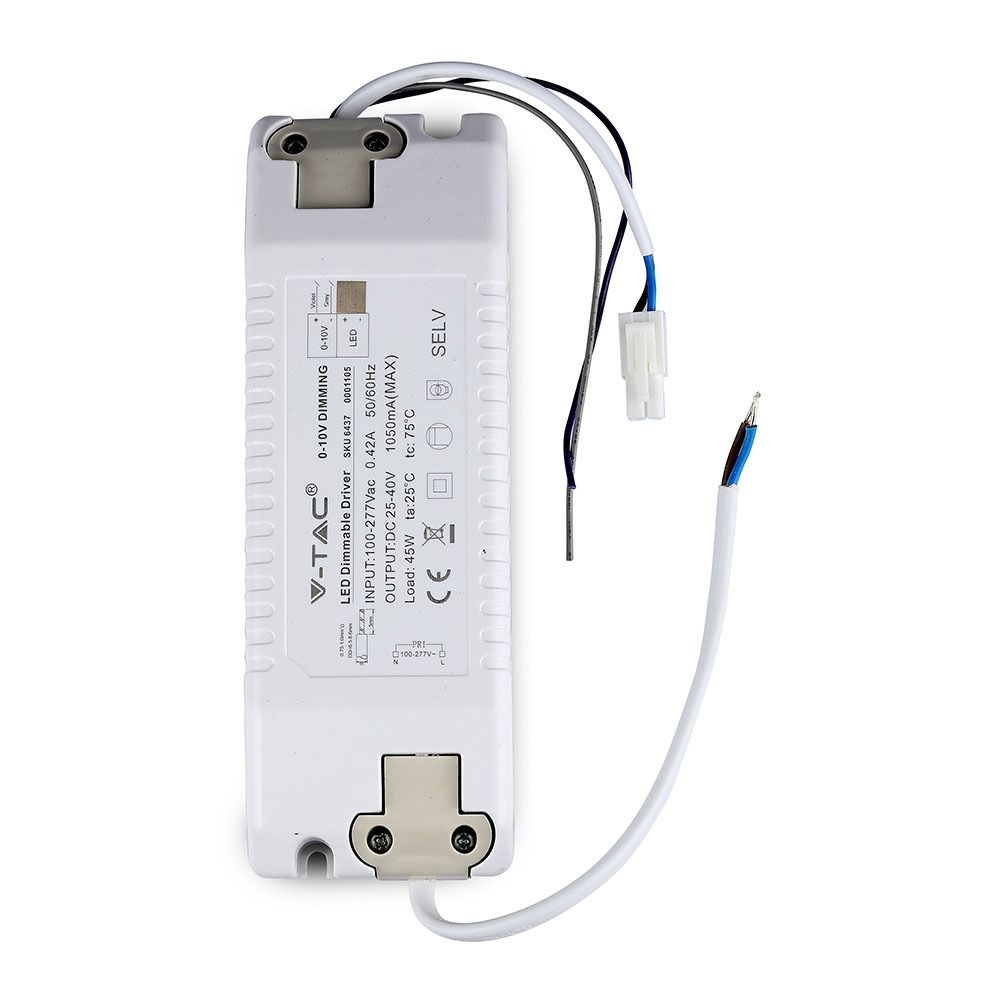

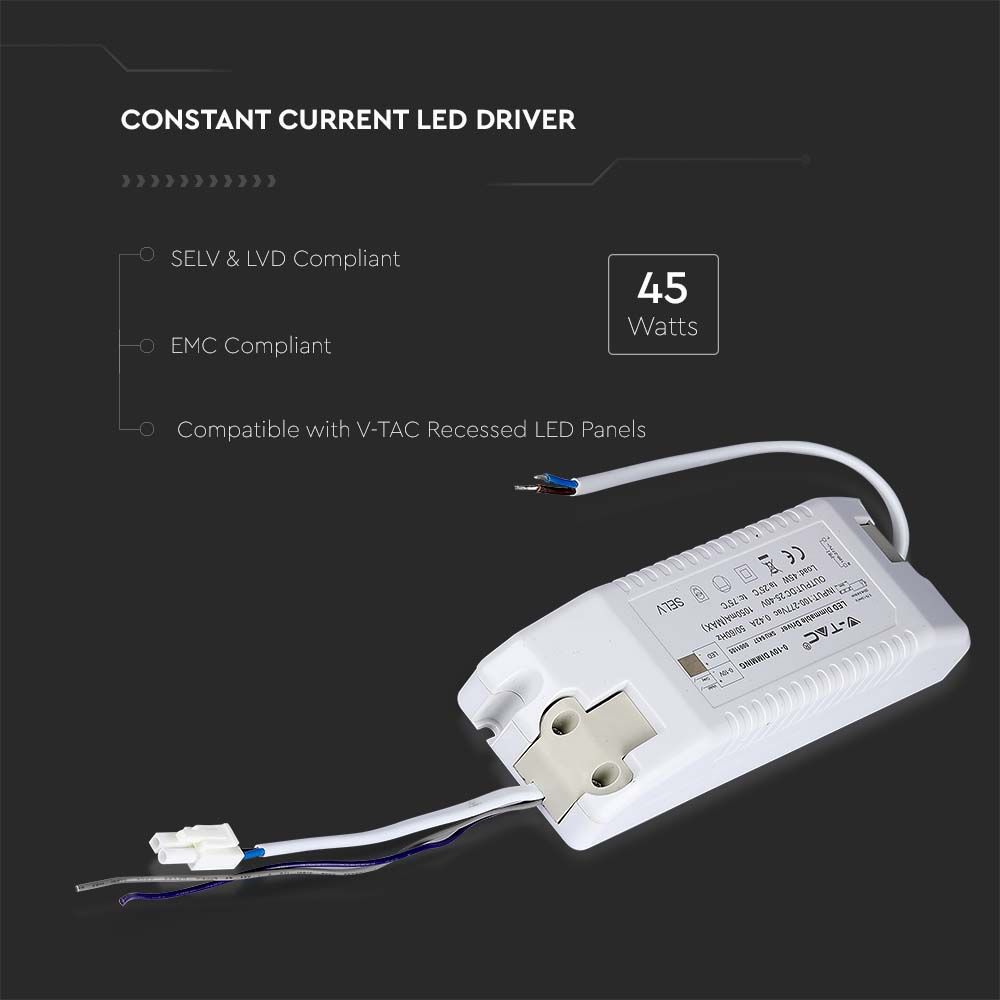

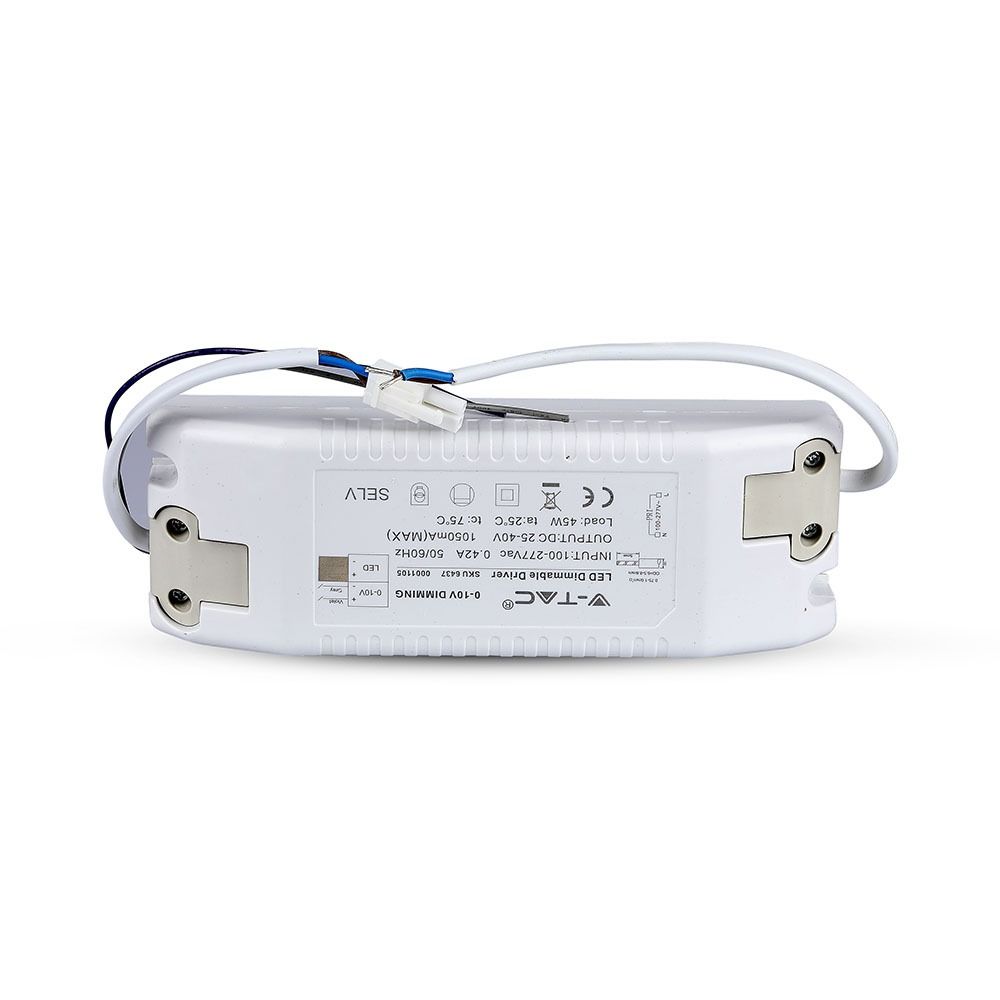

Power your LED panels with the versatile VTAC Dimmable Drivers, designed to provide efficient and reliable performance for a range of applications. This listing includes two options: the 40W TRIAC Dimmable Driver and the 45W 0-10V Dimmable Driver, both crafted to ensure smooth dimming capabilities and optimal energy efficiency. Ideal for residential and commercial settings, these drivers are perfect for enhancing your lighting control while ensuring safety and durability.
Features:
- Input Power: AC 220-240V (40W) / AC 100-277V (45W), 50/60Hz
- Output Voltage: DC 9-38V (40W) / DC 25-40V (45W)
- Rated Load: 40W (maximum for 40W) / 45W
- Output Current: 1050mA (for 45W)
- Power Factor: >0.9 for improved energy efficiency (40W)
- Dimming Technology: TRIAC (40W) / 0-10V (45W) for smooth control
- Compact design for easy installation
- Operating Temperature: -25°C to +50°C (for 45W)
- IP20 rating, suitable for indoor use
Downloads
45W Datasheet
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 6437 |
| Length (mm) | 176 |
| Width (mm) | 59 |
| Height (mm) | 38 |
| Class | II |
| Material | Plastic |
| IP Rating | IP20 |
| Voltage (V) | 220 |
| Wattage (W) | 45 |
| Place of application | Indoor |
| Driver Type | Dimmable Driver |
| Commodity Code | 85044095 |
| Lighting Technology | 45W=0-10V |
