Description

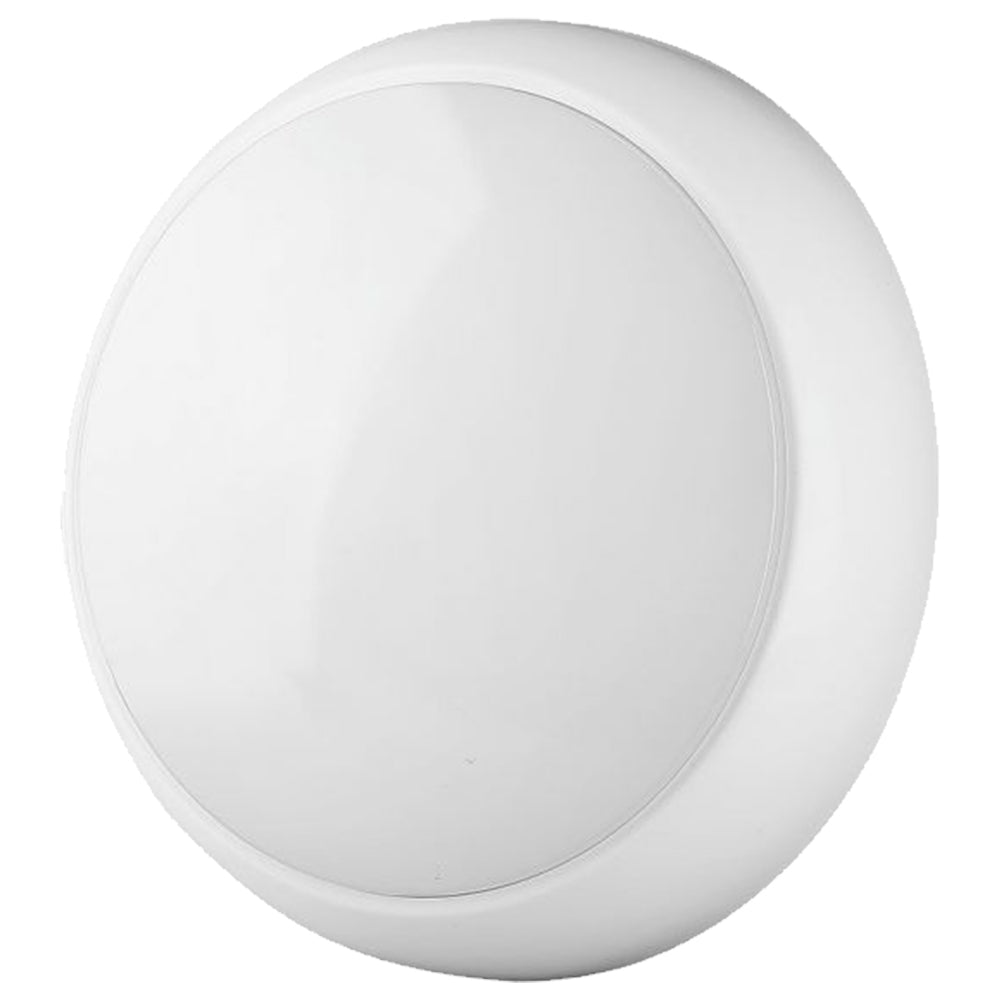

CCT Bulkhead with High Quality In Build Power Driver and Samsung LED Chip
Easily switch to preferred wattage 8W, 16W, 20W

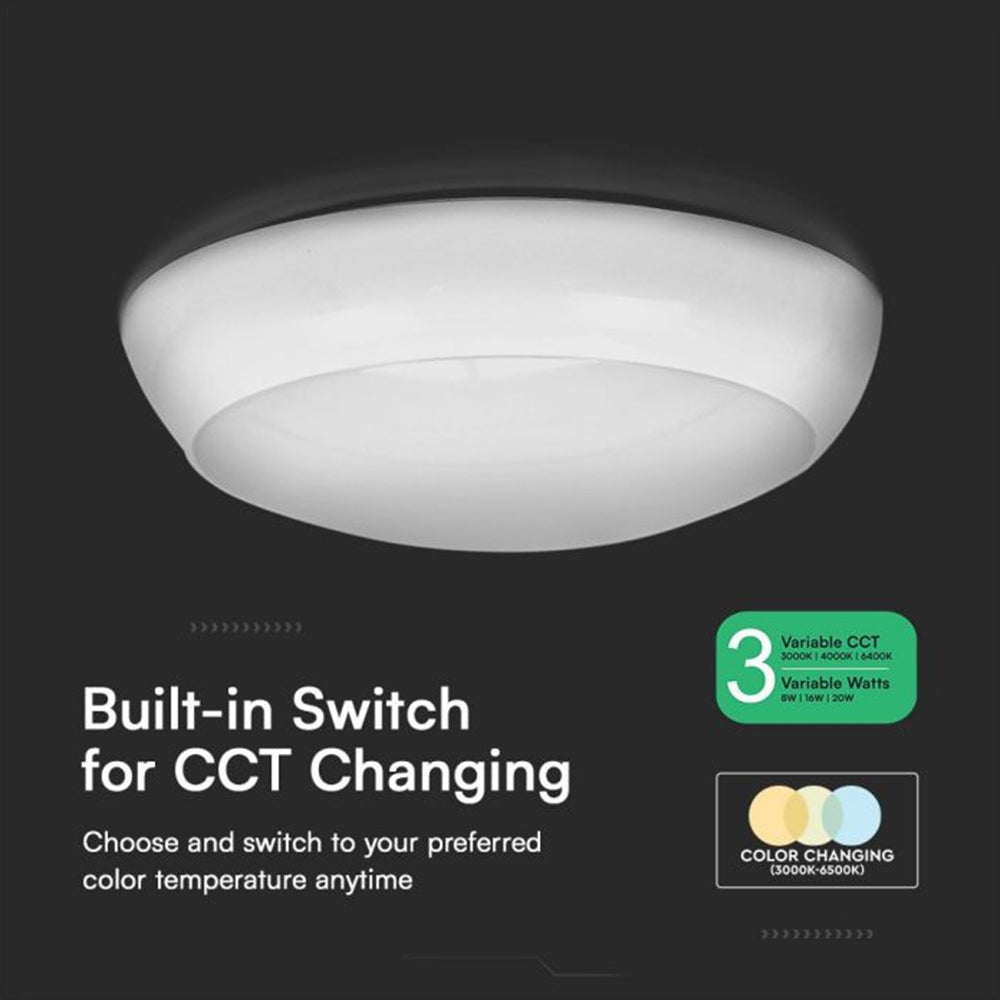

Built in switch for CCT changing

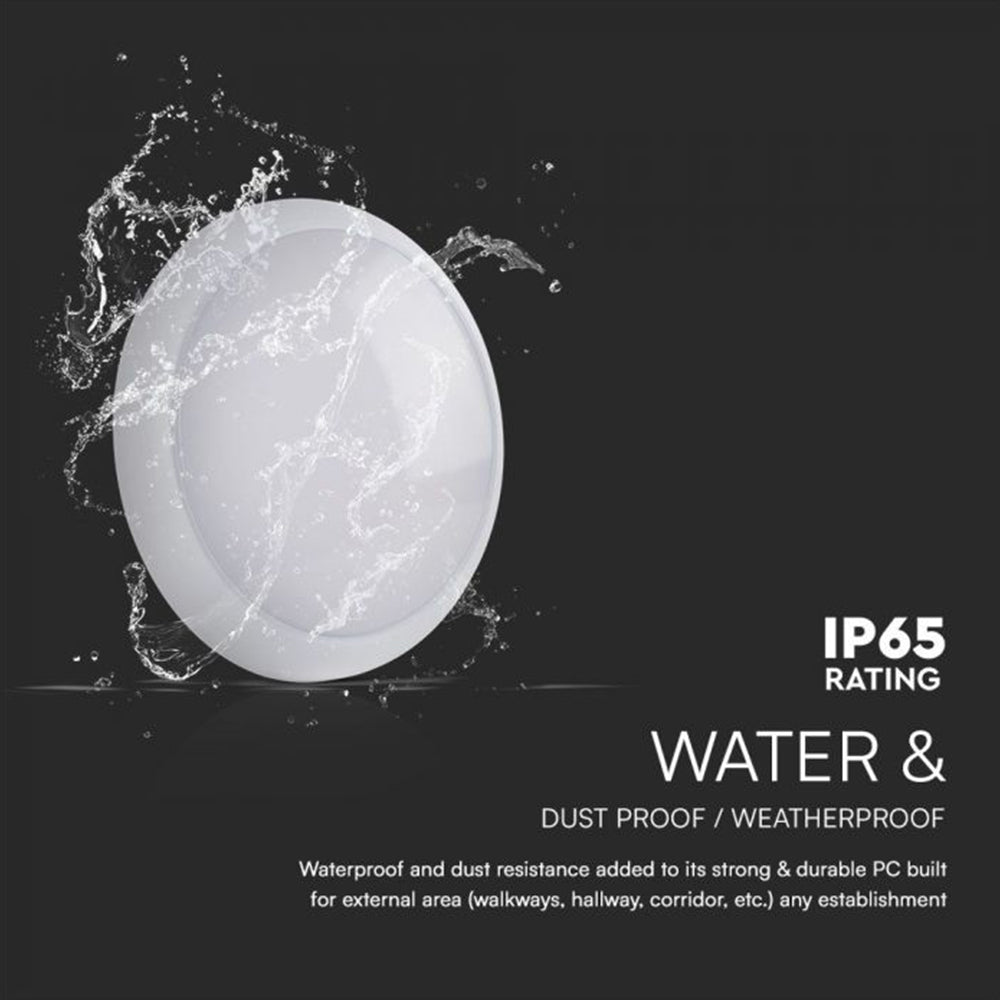

IP65 Ingress protection
IK protection IK08

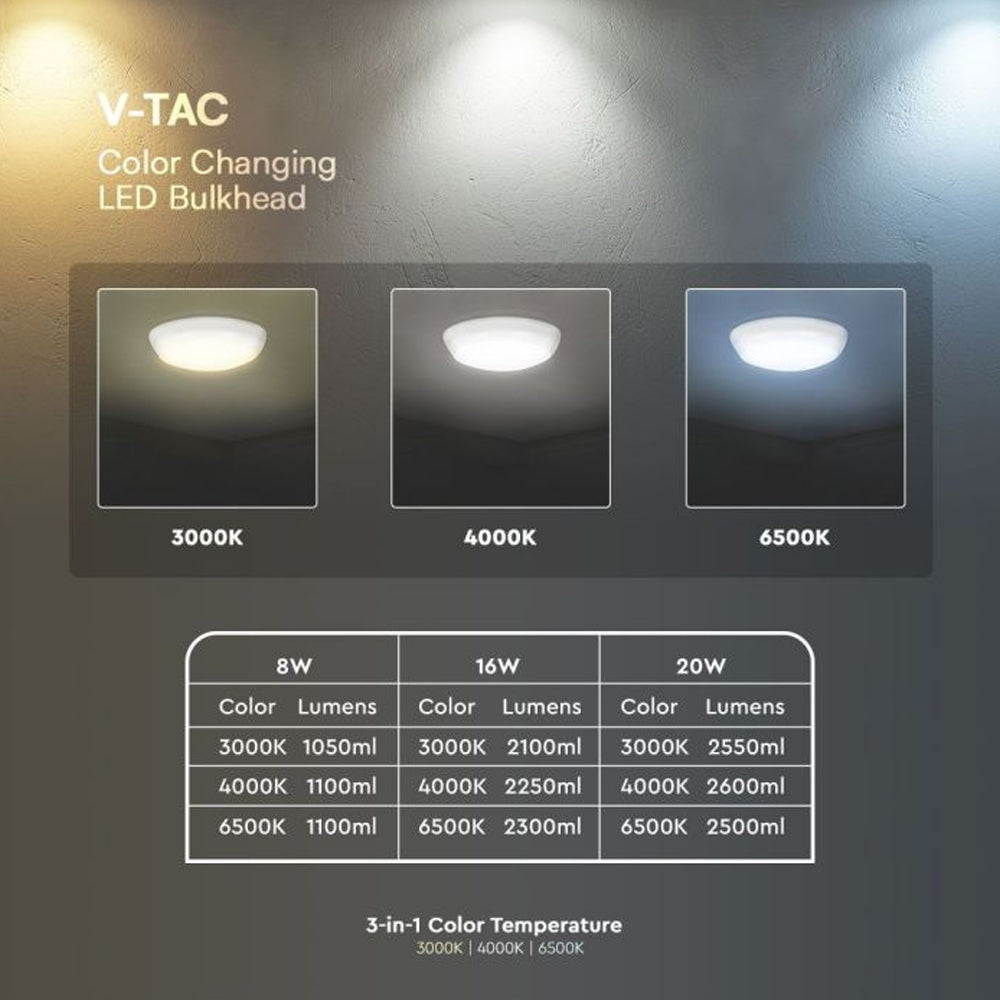

Lumen output ranging from 1050lm-2600lm on preferred wattages
Side conduit entry for easy installation
Applications:
Passage, Exterior walls, Airport, Malls, roof, fence etc
Download
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 801-24 |
| IP Rating | IP65 |
| IK Rating | IK08 |

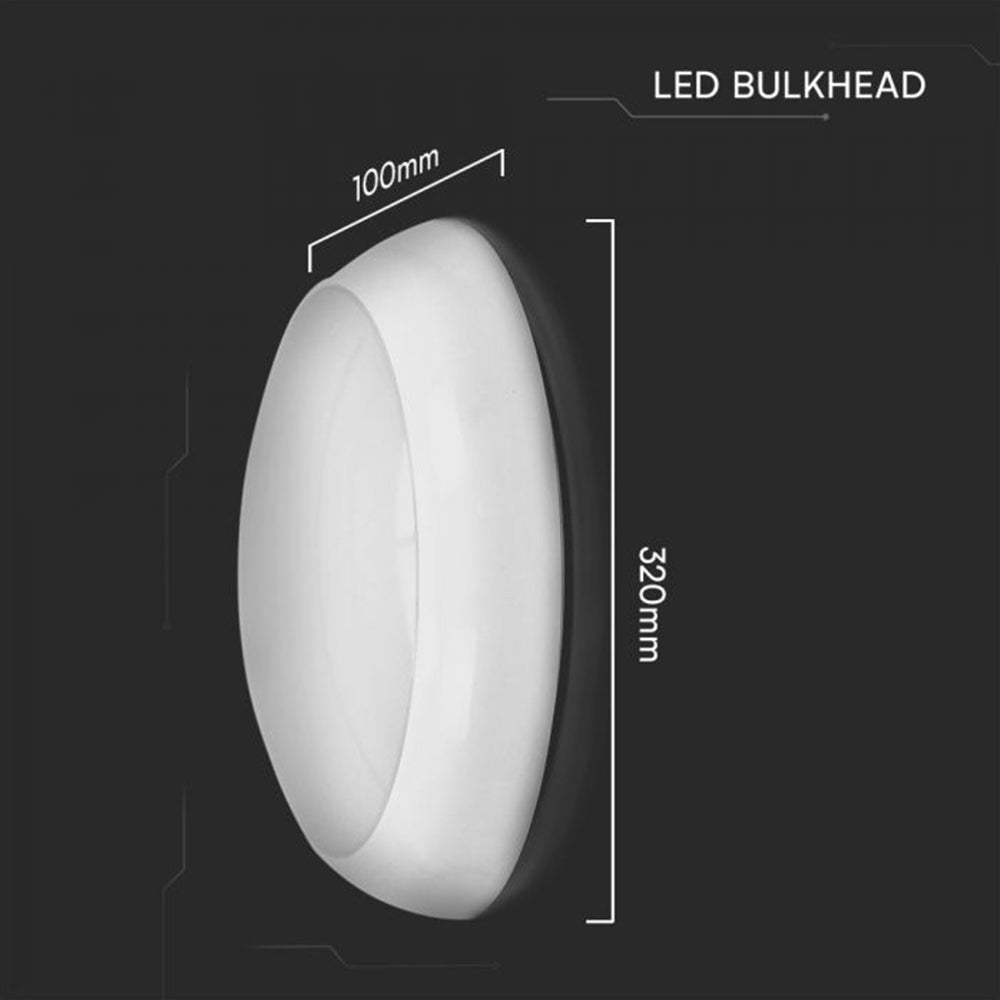

| Diameter (mm) | 320 |
| Height (mm) | 100 |
| Shape | Round |
| Finish | White |
| LED Chip Type | SMD-Samsung Chip |
| Voltage (v) | 220-240V |
| Diffuser | Opal |
| Dimmable | No |
| Wattage (W) | 8/16/20 |
| Rated Life (h) | 30,000 |
| Beam Angle | 110 |
| Colour Temperature (K) | 3000/4000/6500 |
| Lumens (lm) | 1050-2500 |
| Efficacy (lm/w) | 130 |
| CRI | 80 |
| PF | 0.9 |
| Body Type | PC |
