Description
Illuminate your space with the versatile VTAC LED Mini Panels, available in a range of wattages from 3W to 24W. These energy-efficient, round panel lights feature a 3-in-1 color temperature option, allowing you to choose between Warm White, Neutral White, and Cool White. Perfect for residential and commercial use, these panels provide a sleek, modern look while delivering exceptional brightness and longevity.
Key Features:

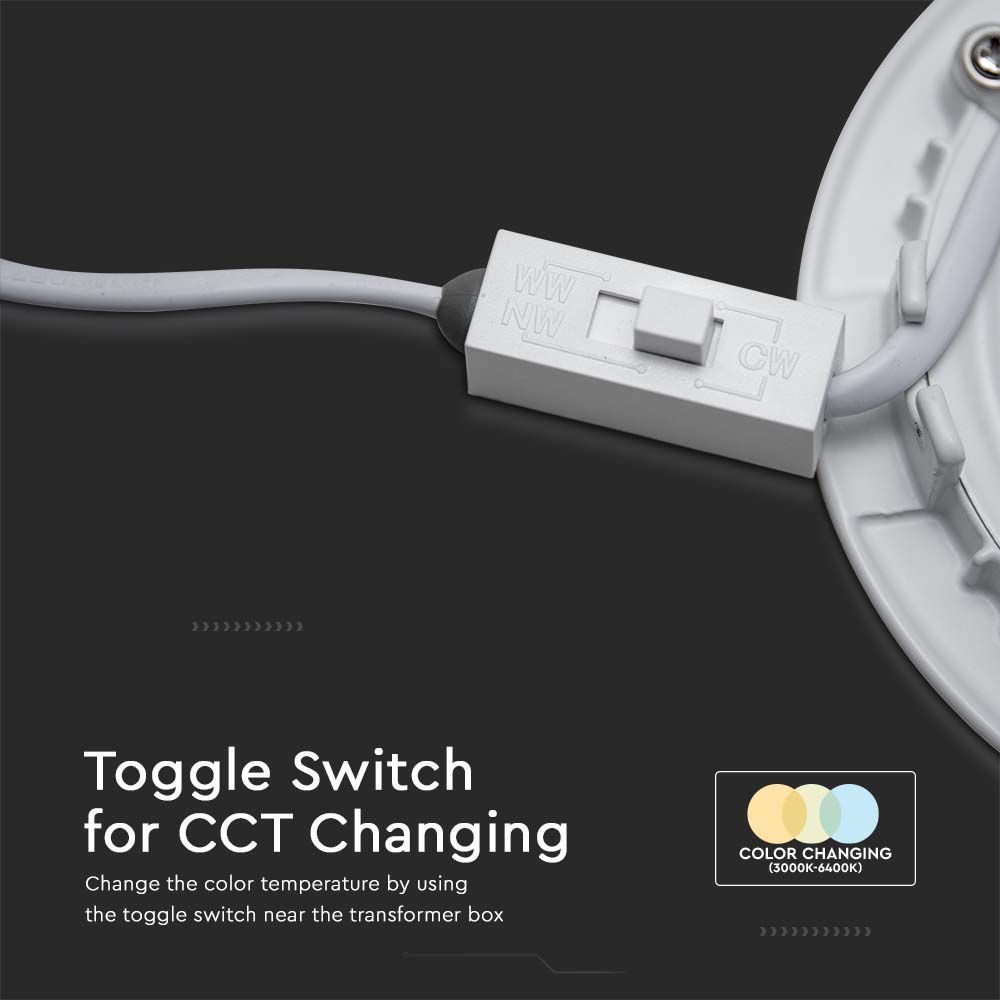

- Adjustable Color Temperature: Switch between Warm White (3000K), Neutral White (4000K), and Cool White (6500K) to create the perfect ambiance for any room.
- Energy Efficient: Save on your electricity bills with our LED technology, offering long life (up to 30,000 hours) and minimal energy consumption.
- Variety of Wattages: Choose from multiple wattages—3W, 6W, 9W, 12W, 18W, 22W, and 24W—to suit your lighting needs.

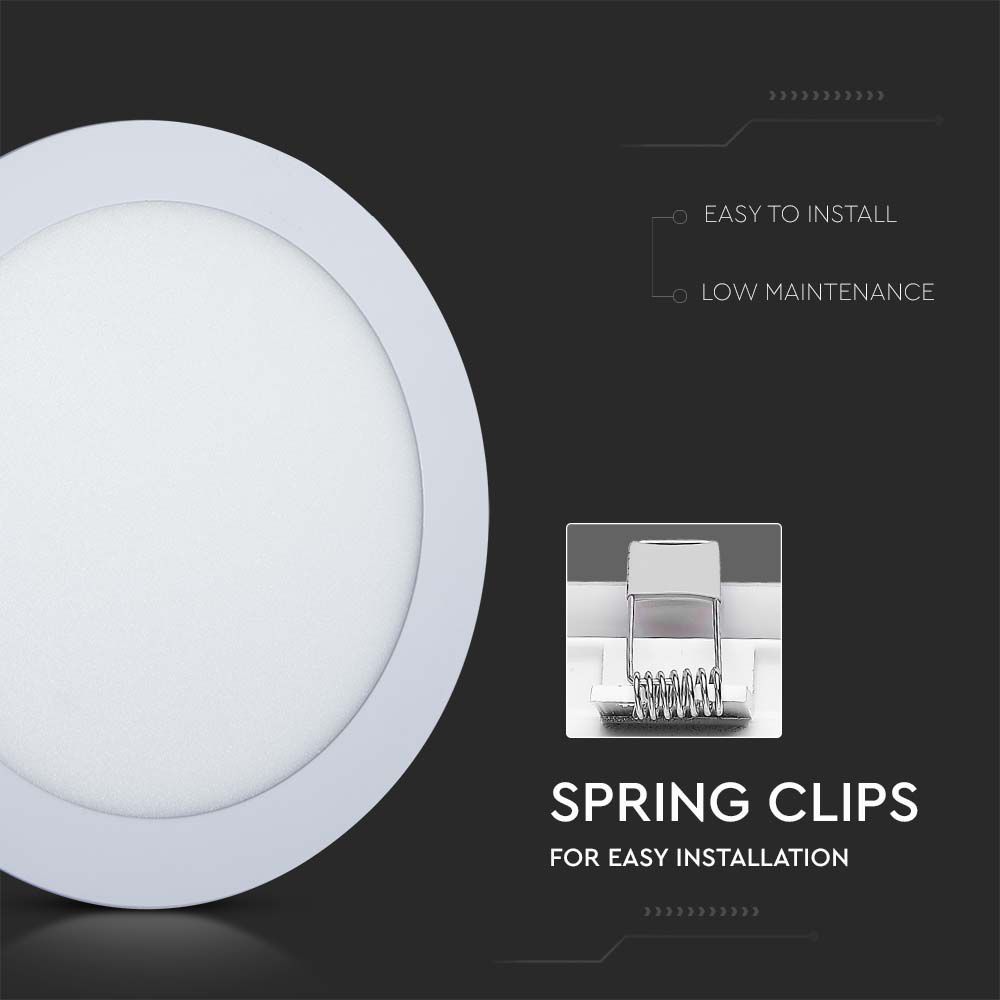

- Easy Installation: Designed for simple surface mounting, these panels fit seamlessly into any space.
- Durable Construction: Made from high-quality aluminum, ensuring a sleek finish and long-lasting performance.
- Wide Beam Angle: With a beam angle of 120°, these lights provide excellent coverage and reduce dark spots.
- Environmentally Friendly: RoHS compliant, free from hazardous substances, and no UV emissions.
- Dimmable Options: While the current models are not dimmable, our advanced LED technology allows for future compatibility.
Download
Specifications
| Brand | V-TAC |
|---|---|
| SKU |
23326,6982,6983,6984, 6985,23327,23328 |

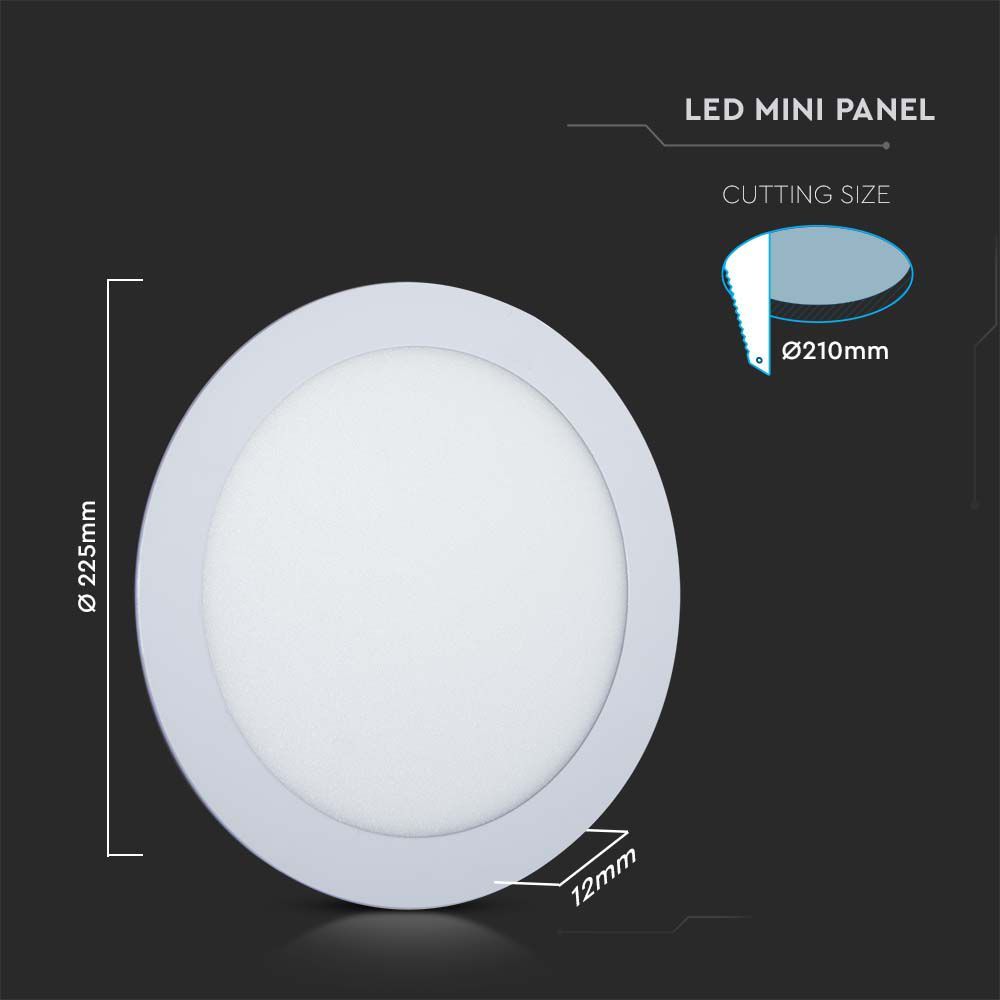

| Length (mm) |
3W = 84, 6W = 120, 9W = 145,12W=170, 18W =225, 22W = 240, 24W = 300 |
| Height (mm) |
3W = 12, 6W = 12, 9W = 18,12W=12, 18W =12, 22W = 12, 24W = 12 |
| Diameter (mm) |
3W = 84, 6W = 120, 9W = 45,12W=170, 18W =225, 22W = 240, 24W = 300 |
| Cut-out (mm) |
3W = 73, 6W = 110, 9W = 133,12W=160, 18W =210, 22W = 220, 24W = 280 |
| Material | Aluminium |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |

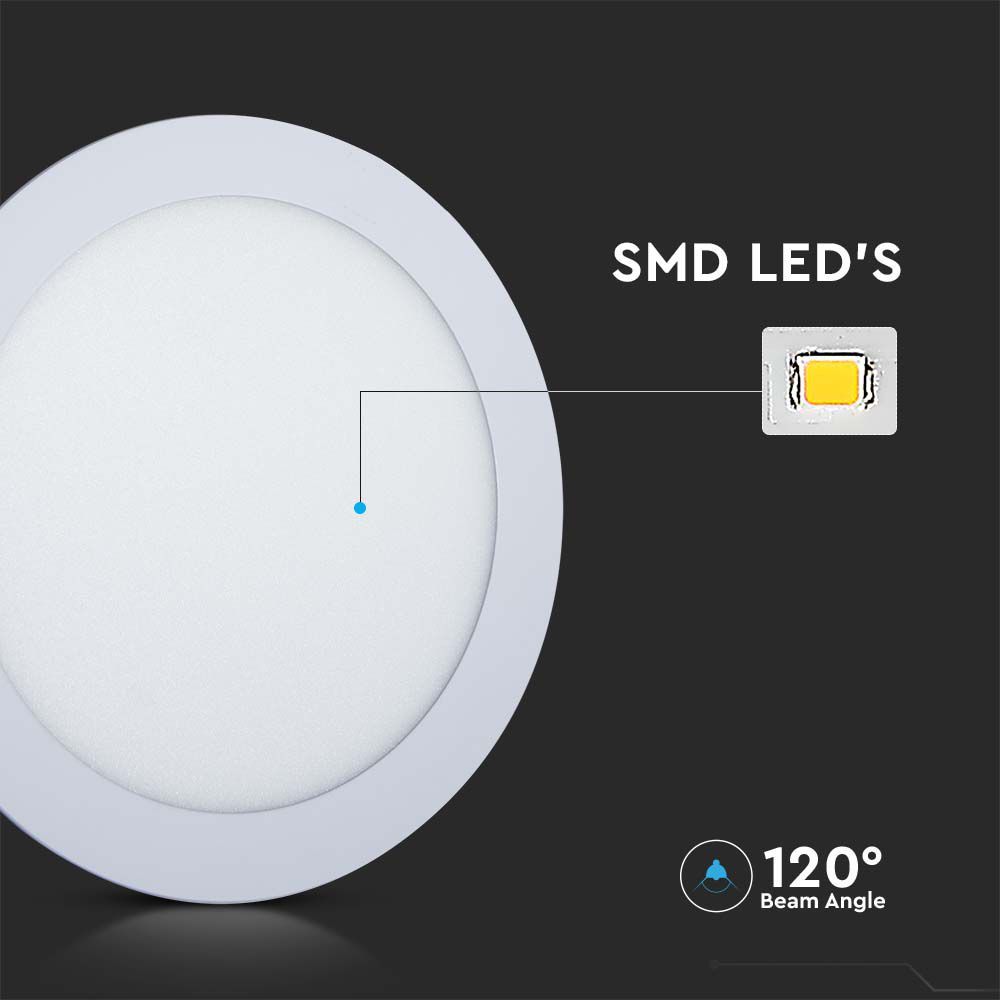

| Lamp Technology | SMD LED |
| Lamp Included | Yes |
| Dimmable | No |
| Rated Life (Hours) | 30,000 |
| Beam Angle (°) | 120 |

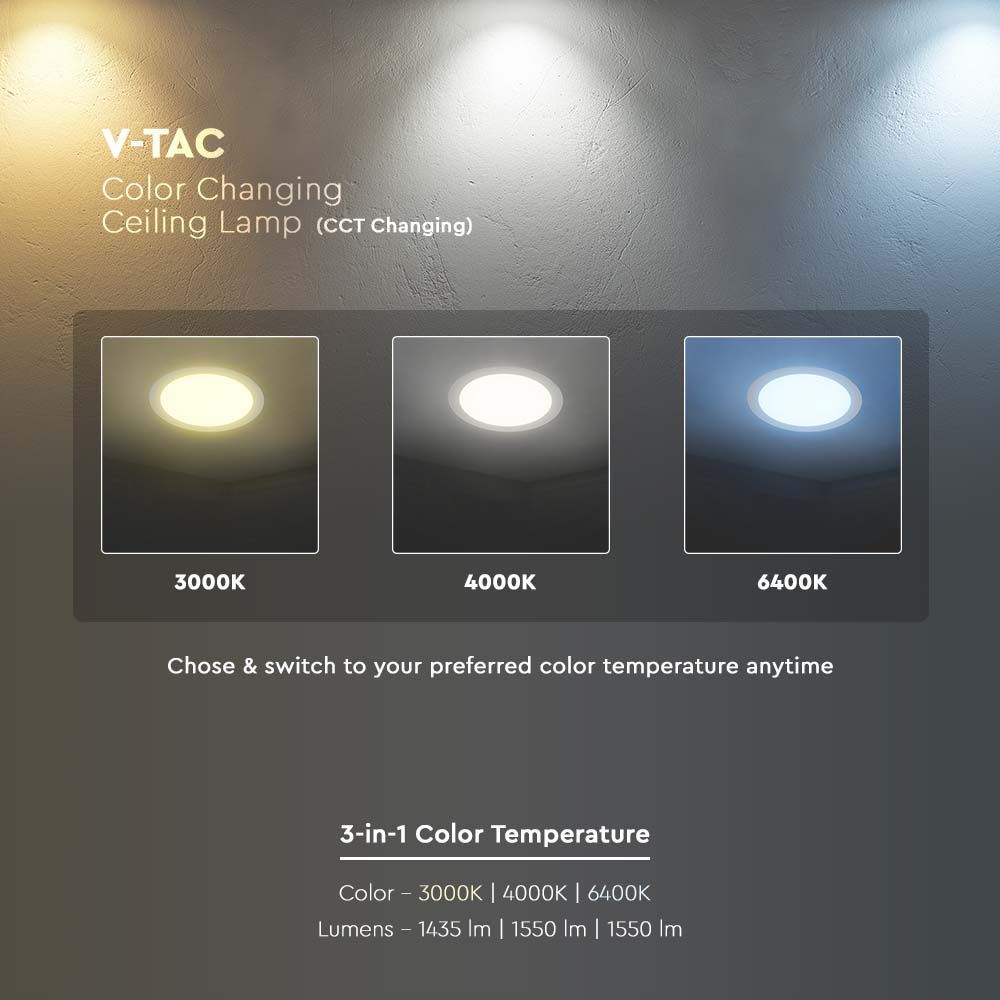

| Colour Temperature (K) | 3000, 4000, 6500 |
| Light Colour | Warm White, Neutral White, Cool White |
| Wattage (W) | 3, 6, 9, 12, 18, 22, 24 |
| CRI | 80 |
| Commodity Code | 94051140 |
| Driver Type | External Non-Dimmable |
