Description
The V-TAC VT-8022 Infrared Light Sensor is designed for efficient motion detection with a robust IP65 waterproof rating, making it suitable for both indoor and outdoor applications. This sensor can handle a maximum load of 400W LED, providing reliable performance for various lighting setups. With adjustable time delays and detection angles, you can customize the sensor to meet your specific needs.
Features:
- Model: V-TAC VT-8022
- IP Rating: IP65, ensuring waterproof and dustproof performance
- Wattage: Supports up to 400W LED

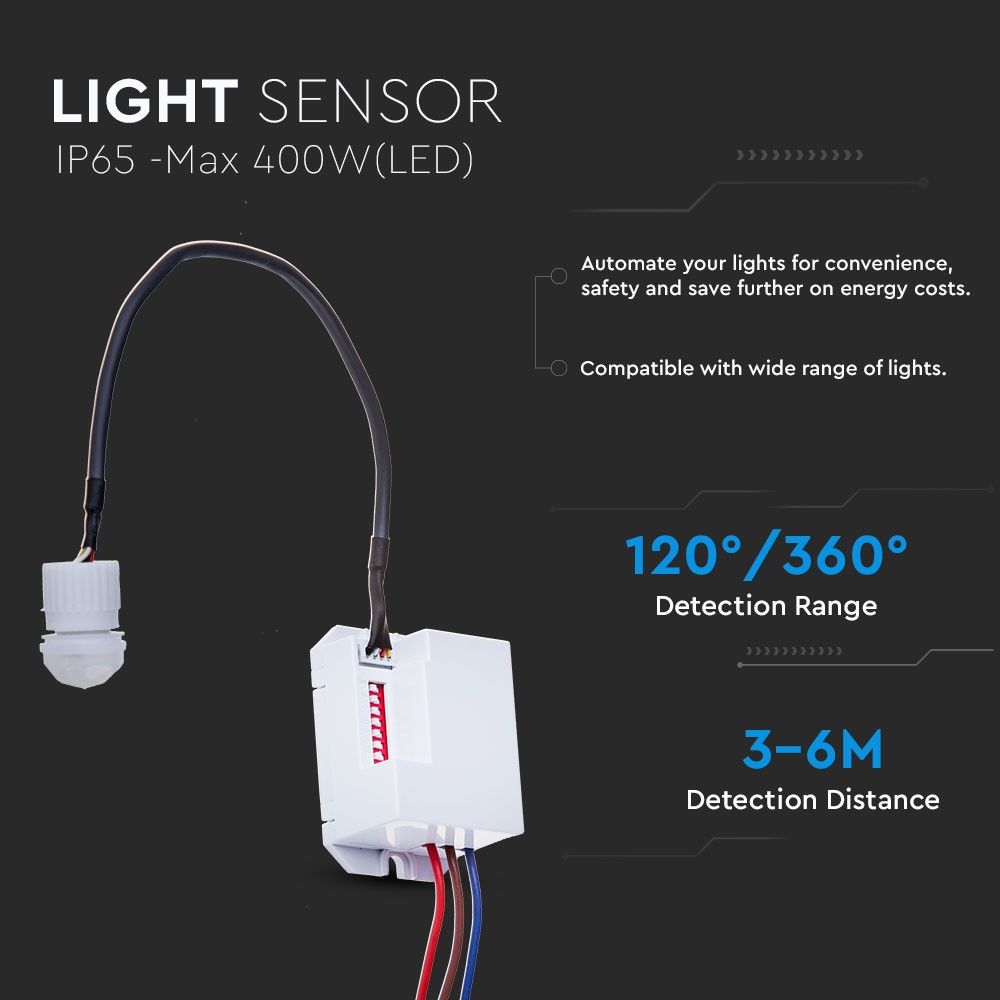

- Detection Range: Adjustable 120° or 360° coverage
- Detection Distance: Effective up to 6 meters

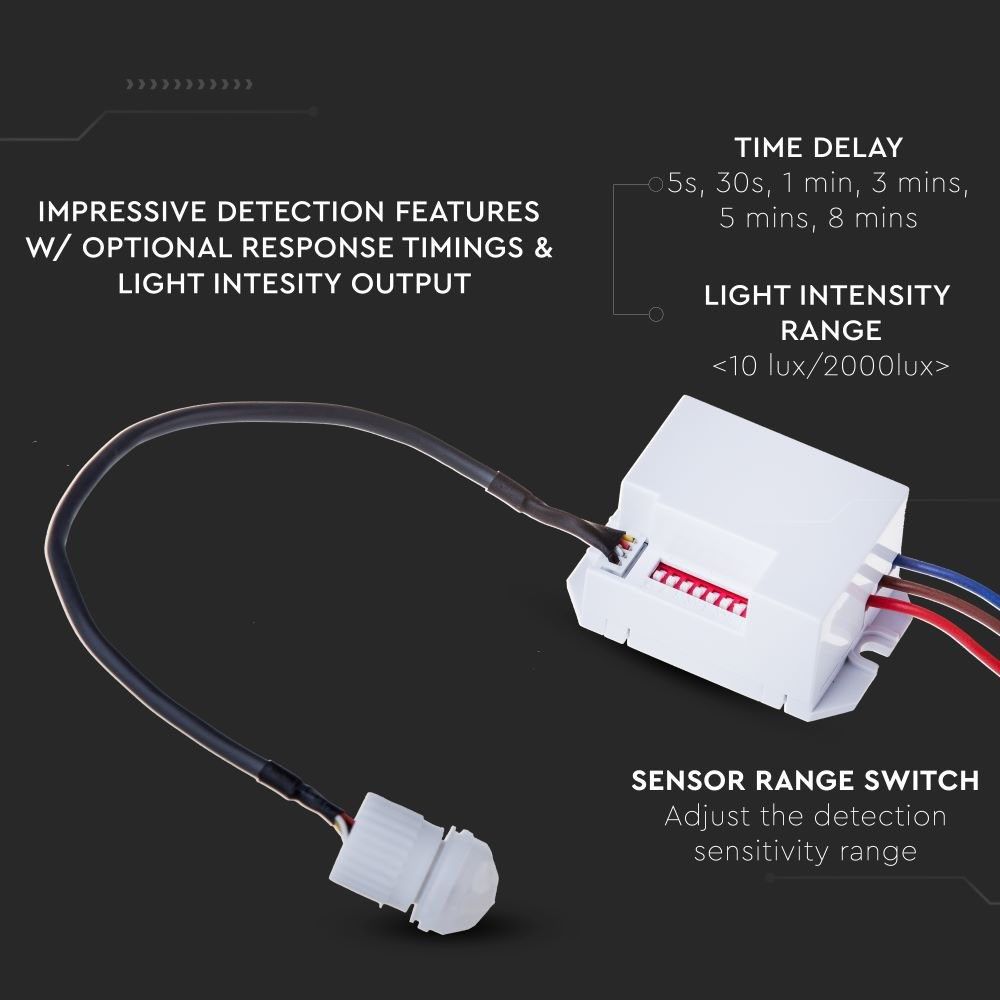

- Time Delay: Options of 5 seconds, 30 seconds, 1 minute, 3 minutes, 5 minutes, or 8 minutes
- Ambient Light Sensitivity: Adjustable between 10LUX and 2000LUX

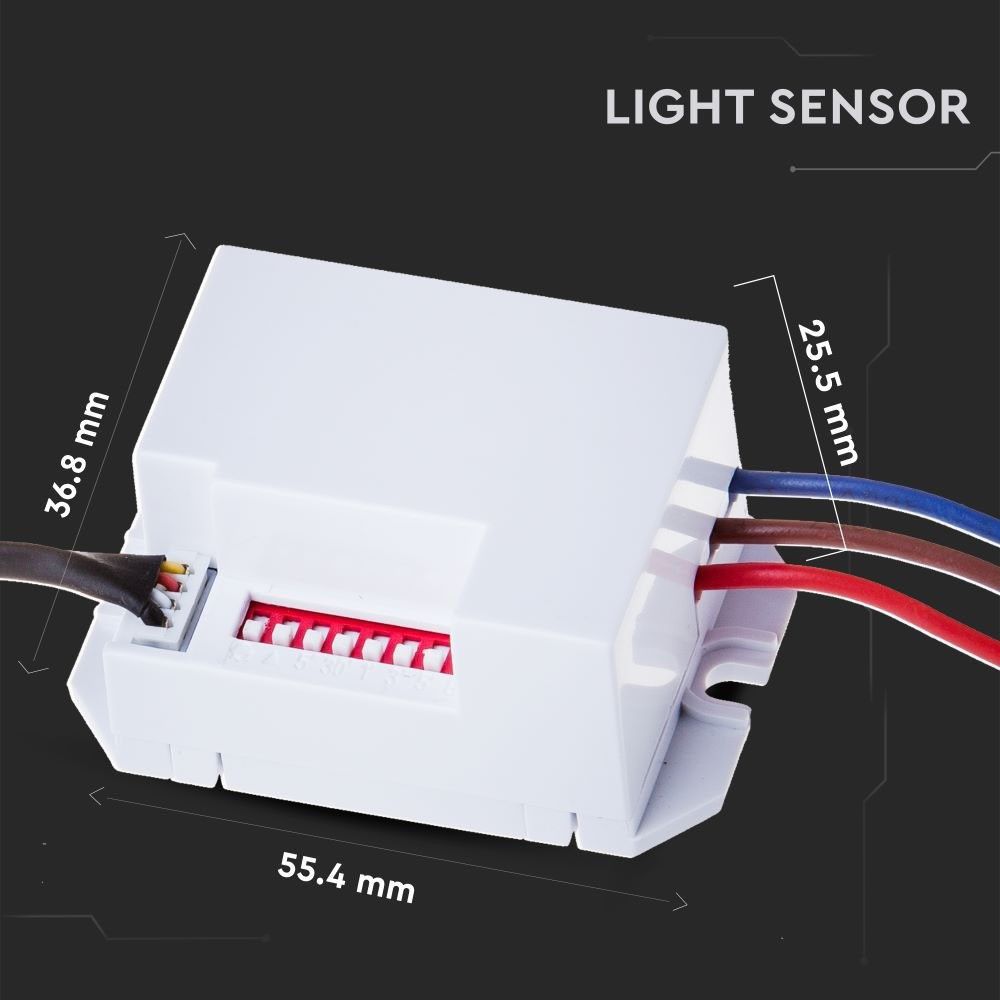

- Compact Size: Dimensions of 36.8x25.5x55.4mm for easy installation
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 5082 |
| Length (mm) | 36.8 |
| Height (mm) | 55.4 |
| Width (mm) |
25.5
|
| Material | Plastic |
| Finish | White |
| IP Rating | IP65 |
| Voltage (V) | AC 220-240V |
| Sensor Working Angle (°) | 120/360 |
| Sensor Type | Infrared Light Sensor |
| Sensor Range (m) | 3/6 |
| Sensor Operation Time (min) | 8 |

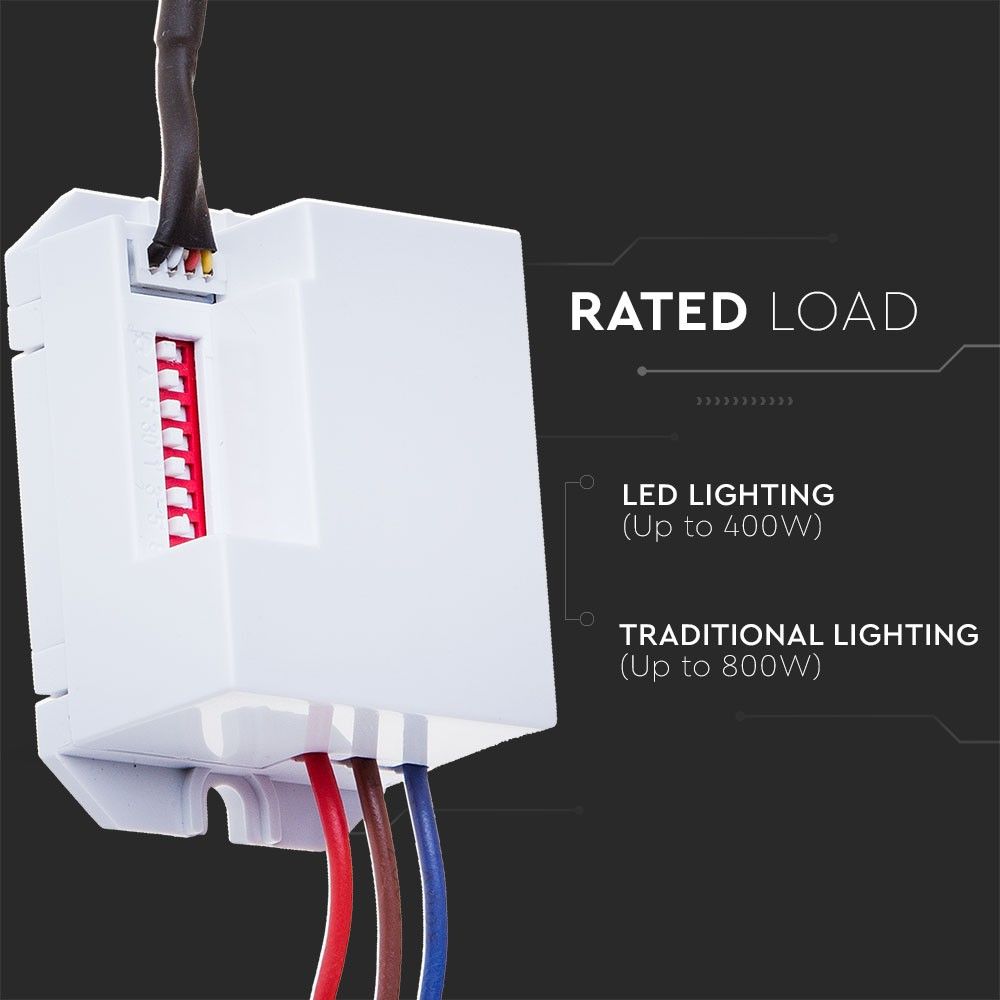

| Rated Load | 400 |
| Place of application | Indoors and outdoors |
