Description

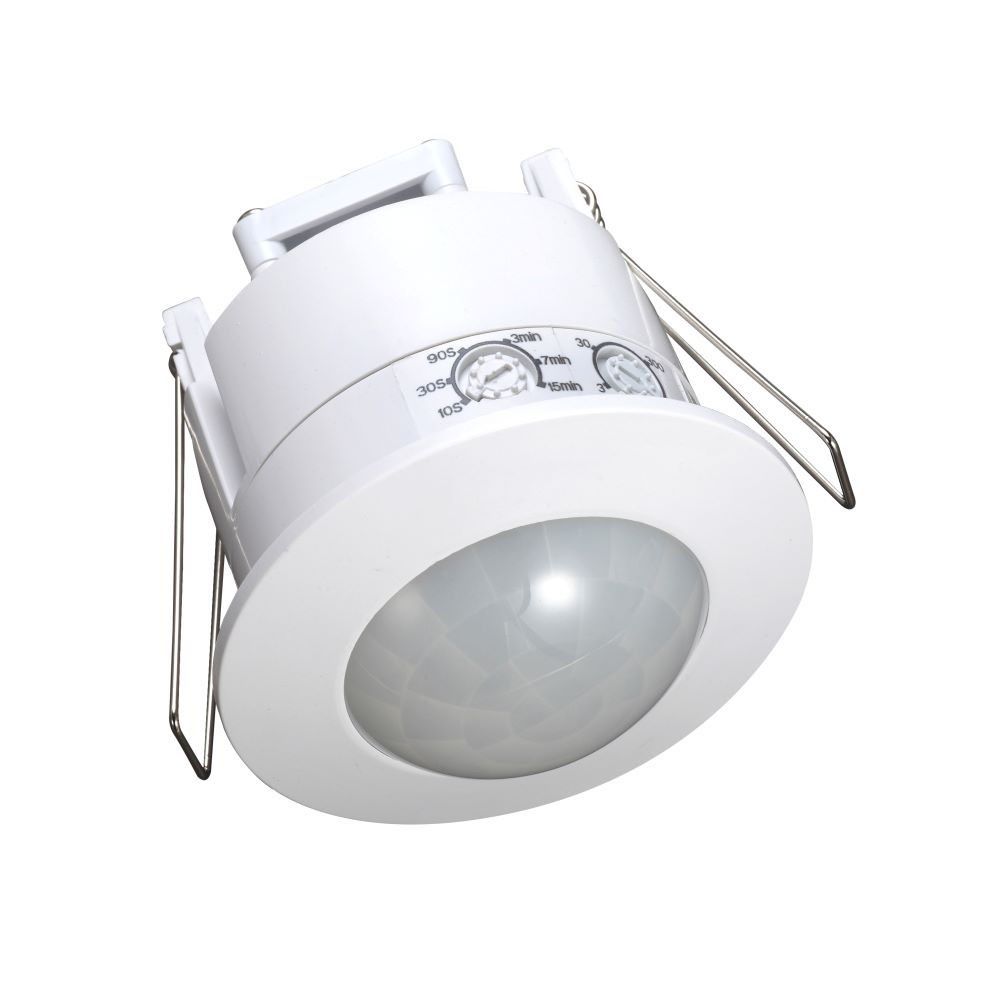

The V-TAC VT-8051 PIR Ceiling Sensor is an innovative motion detector designed for indoor spaces. With a sleek white finish and a compact design, it provides reliable motion detection to enhance your lighting control. Featuring a manual override, this sensor allows you to easily switch the lights on or off, making it perfect for various applications.
Features:

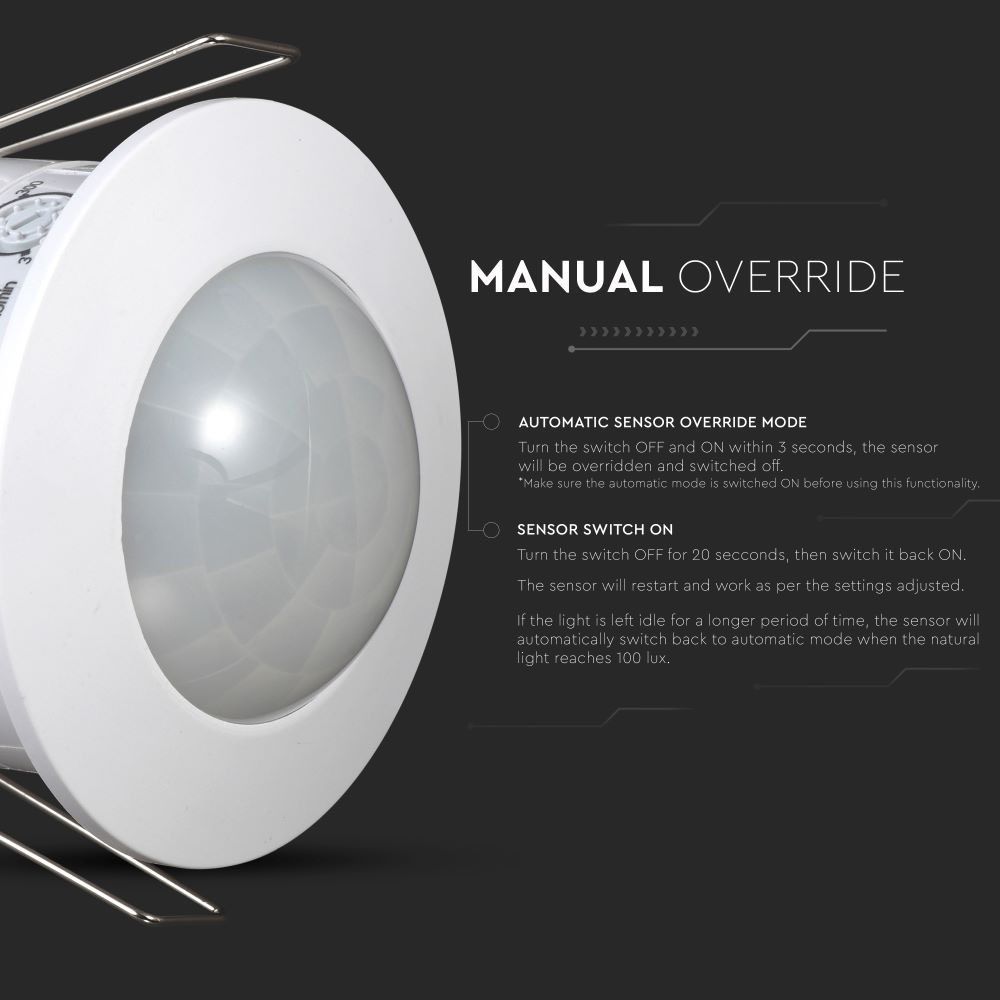

- Manual Override: Easily switch the sensor on/off for manual control.

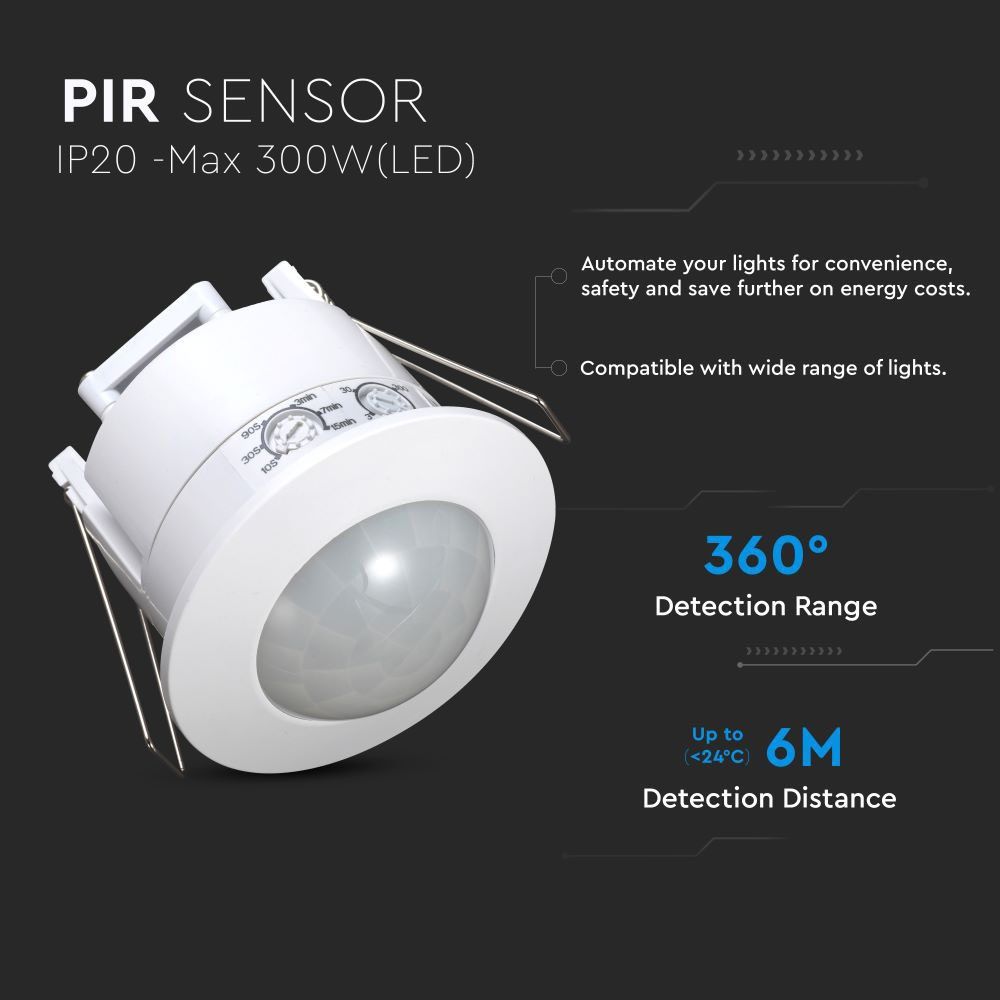

- 360° Detection Range: Ensures comprehensive motion detection from all angles.

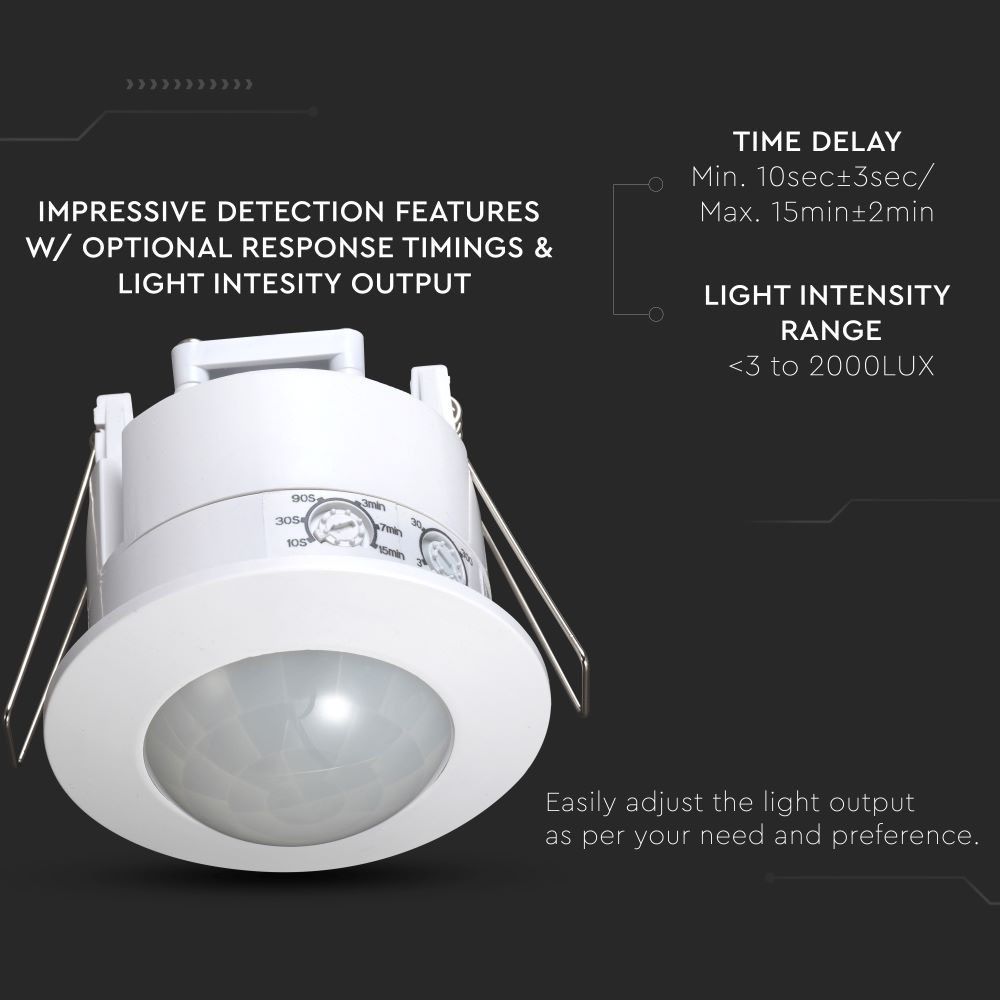

- Time Delay Adjustment: Customize the delay between 10 seconds to 15 minutes.

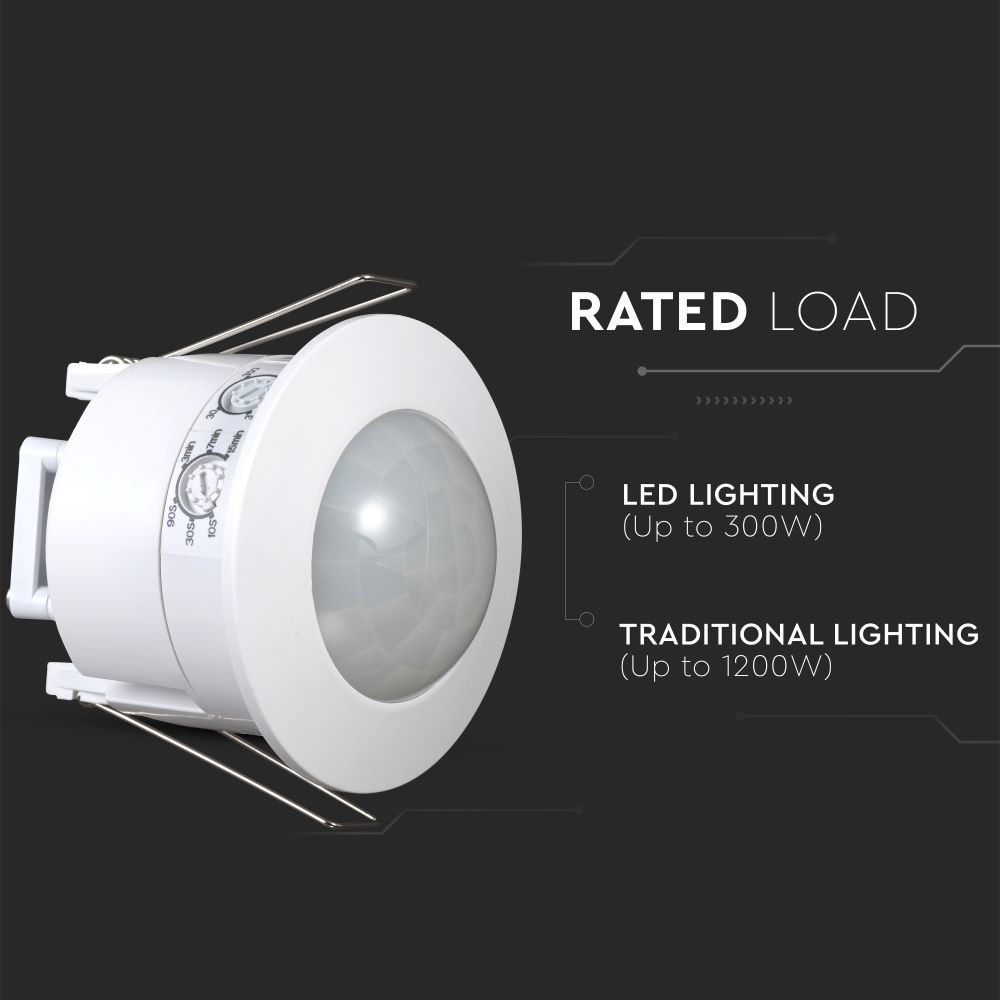

- Rated Load: Supports a maximum load of 300W LED lighting.
- IP Rating: IP20, suitable for indoor use.
- Ambient Light Sensitivity: Adjustable from <3 to 2000 LUX for optimal performance.

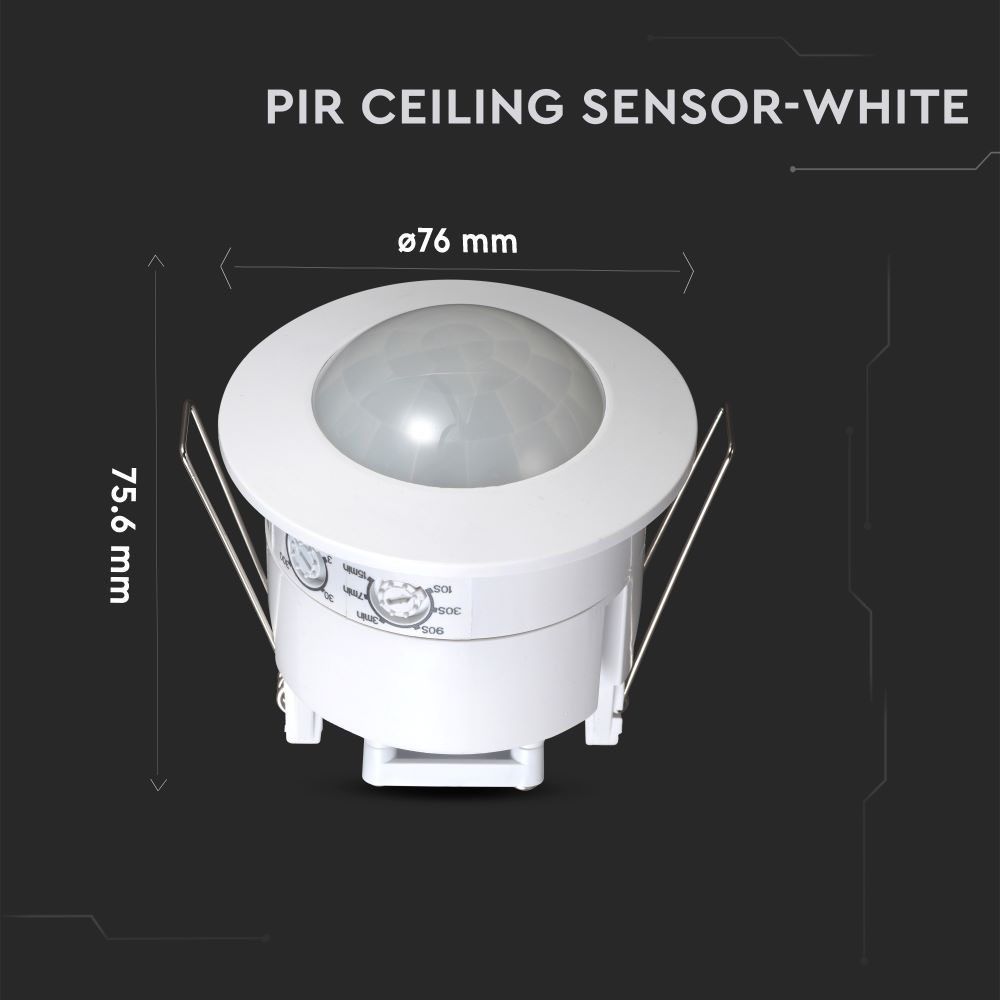

- Compact Size: Dimensions of 76mm x 75.6mm for seamless installation.
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 1356 |
| Length (mm) | 76 |
| Height (mm) | 75.6 |
| Width (mm) |
76
|
| Material | PC |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | AC 220-240V |
| Sensor Working Angle (°) | 360° |
| Sensor Type | Infrared |
| Sensor Range (m) | 6 |
| Sensor Operation Time (min) | 15 |
| Rated Load | Max 300W LED |
| Place of assembly | Ceiling mounted, Recessed mount in the ceiling |
| Place of application | Indoors and outdoors |
