Description
Introducing the VT-8092 PIR Ceiling Sensor, designed for both indoor and outdoor applications. Available in sleek black and classic white, this sensor features advanced infrared technology to detect motion within a 360° range, ensuring optimal energy efficiency for your lighting systems. With a maximum load of 400W for LED lights, this sensor is perfect for residential and commercial environments.
Features:

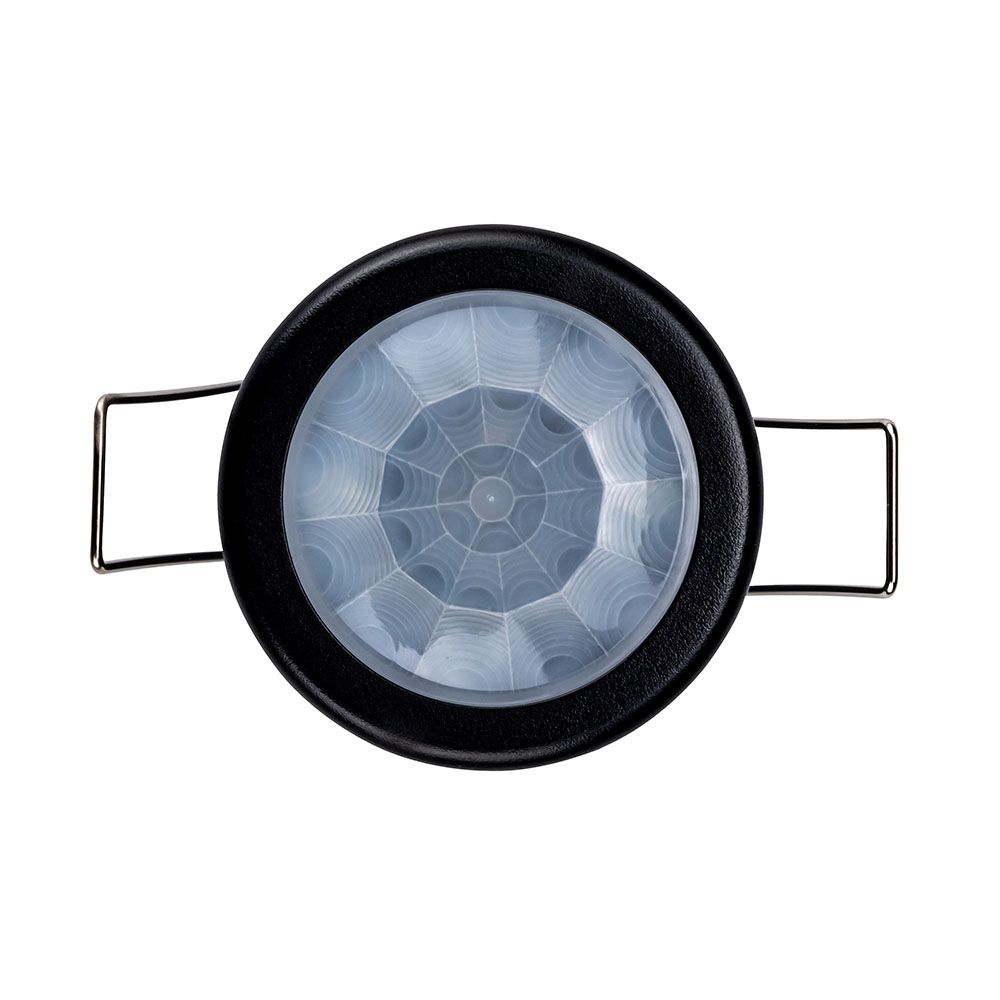

- Color Options: Available in black and white to fit any décor.
- IP Rating: IP20, suitable for indoor installations.
- Wattage Capacity: Supports a maximum load of 400W LED.

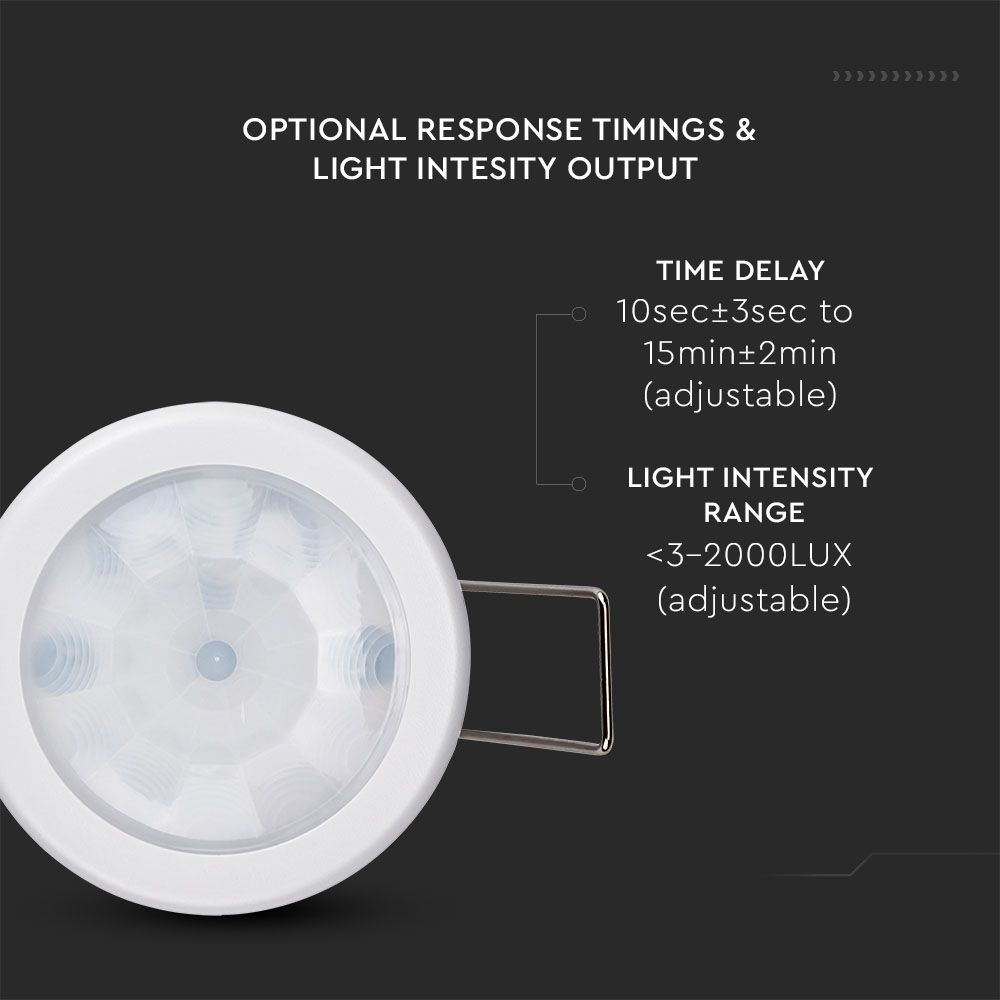

- Adjustable Ambient Light: Operates within <3-2000 LUX for versatile lighting control.
- Time Delay Settings: Customizable from 10 seconds to 15 minutes.

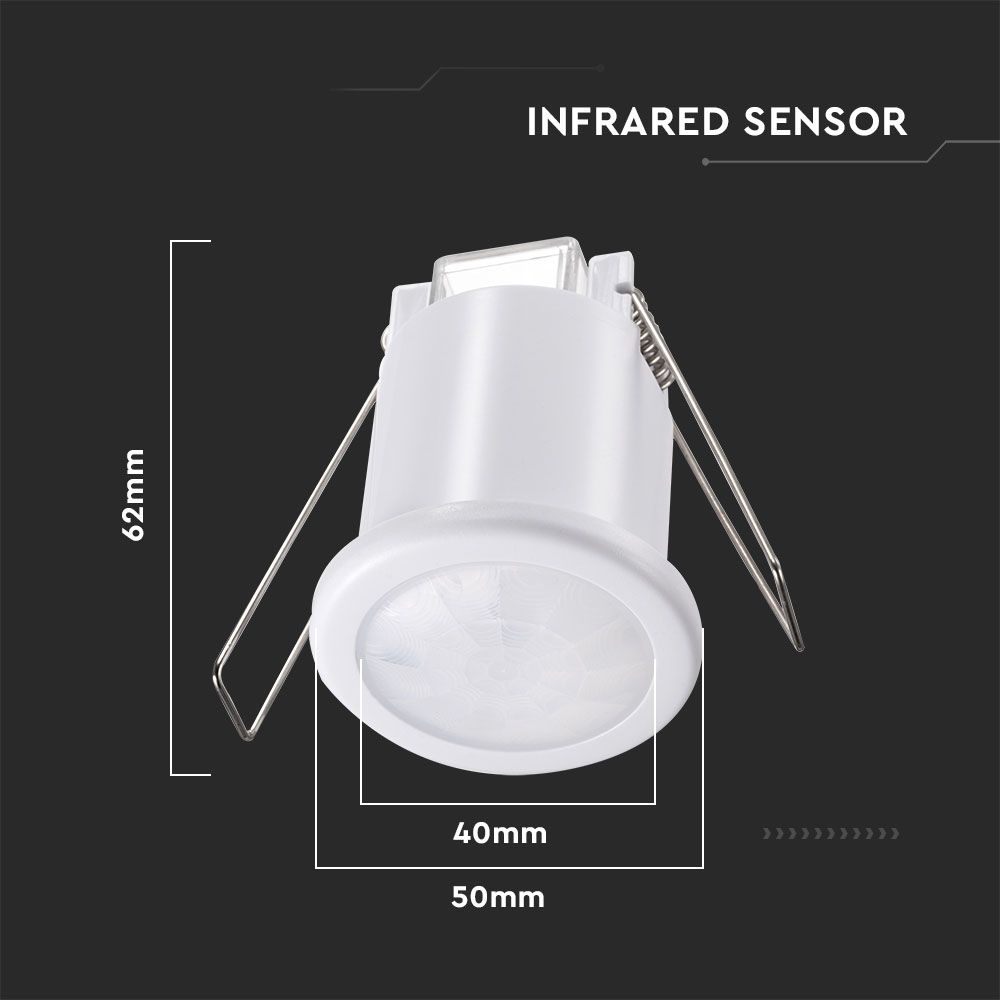

- Compact Design: Dimensions of 50x62mm with a cutting size of 40mm for easy installation.

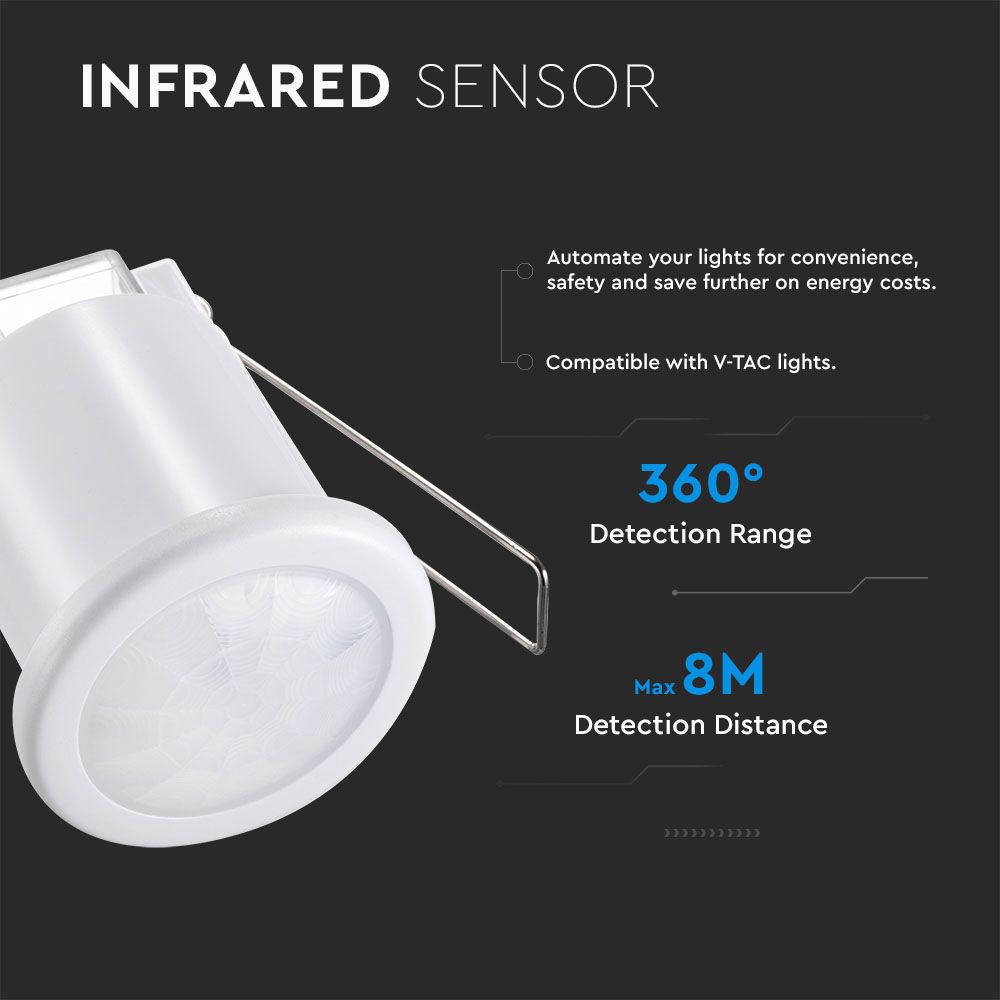

- Detection Range: Covers up to 8 meters, accommodating various spaces.
- Durability: Constructed from robust PC material for long-lasting use.
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 6609,6608 |
| Length (mm) | 60 |
| Height (mm) | 70 |
| Width (mm) |
80
|
| Depth (mm) | 50 |
| Cut-out (mm) | 40 |
| Material | PC |
| Finish | White,Black |
| IP Rating | IP20 |
| Voltage (V) | AC 220-240V |
| Sensor Working Angle (°) | 360° |
| Sensor Type | Infrared |
| Sensor Range (m) | 8 |
| Sensor Operation Time (min) | 15 |
| Rated Load | Max 400W LED |
| Place of assembly | Ceiling mounted, Recessed mount in the ceiling |
| Place of application | Indoors and outdoors |
