Description

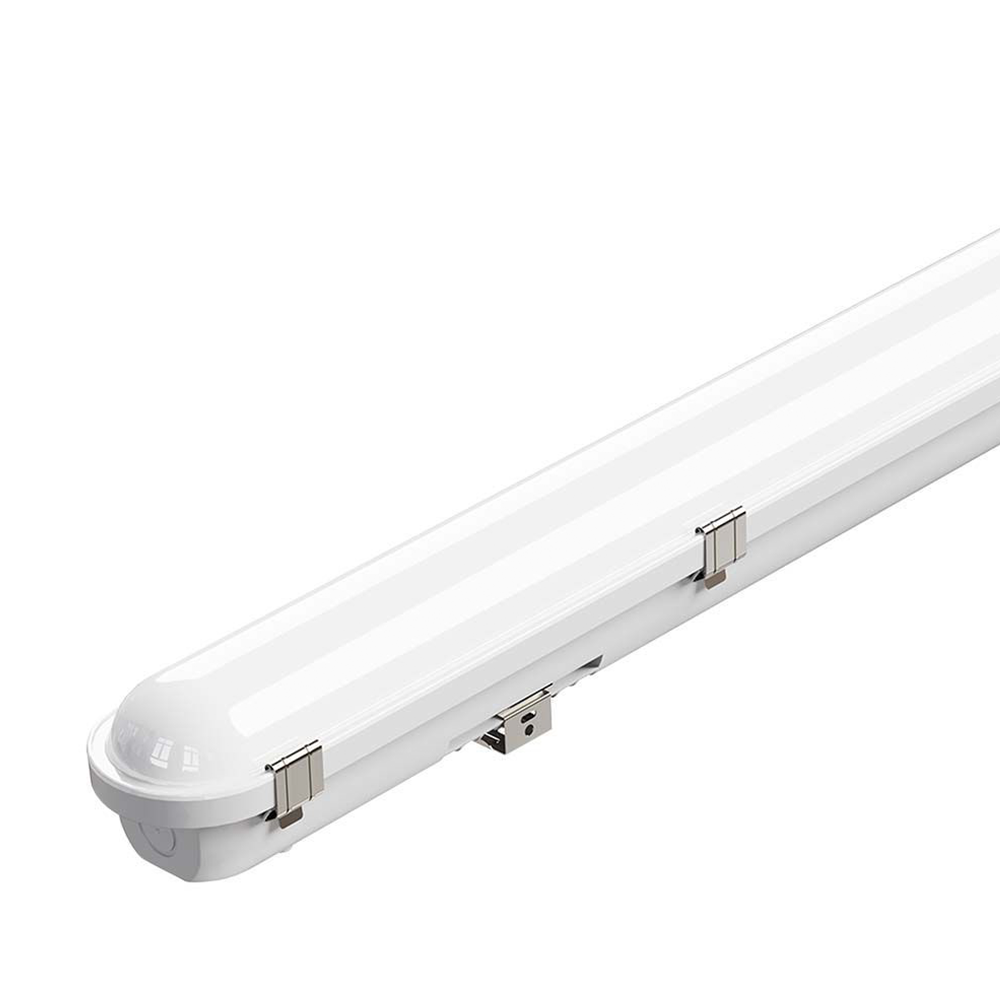

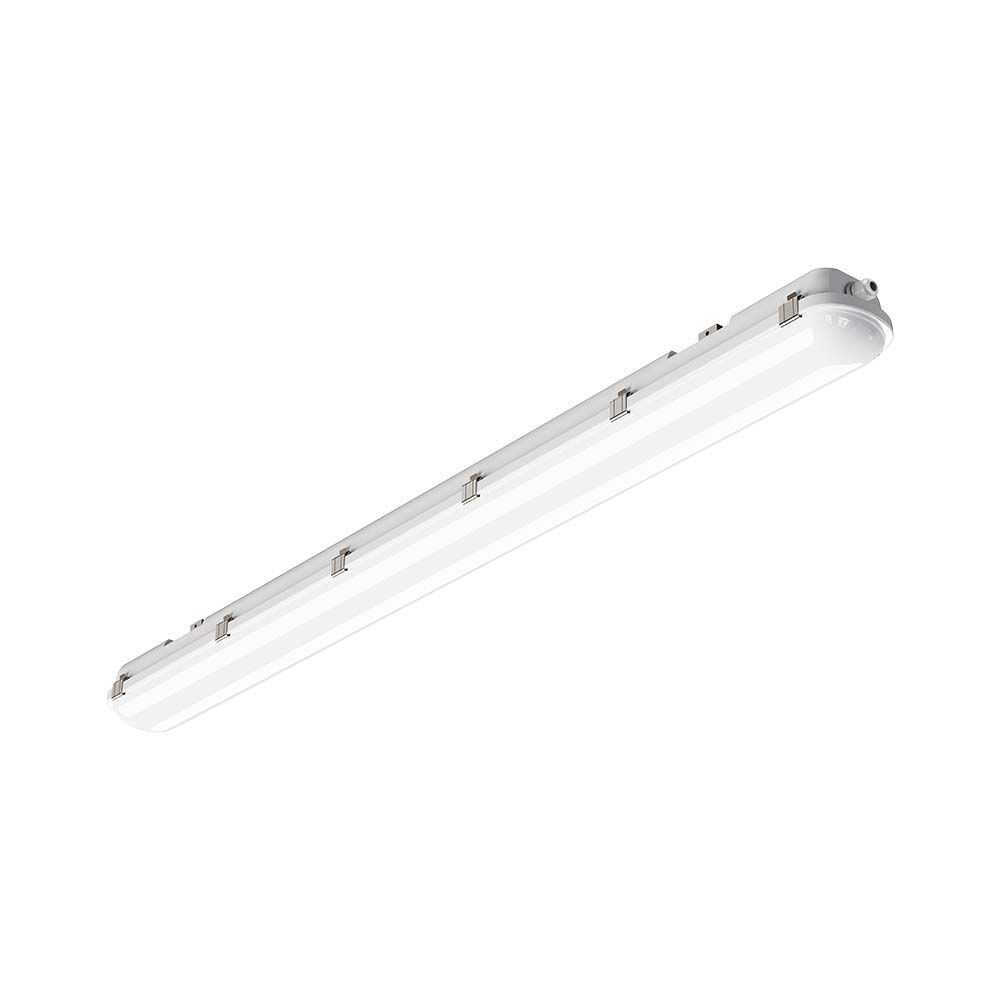

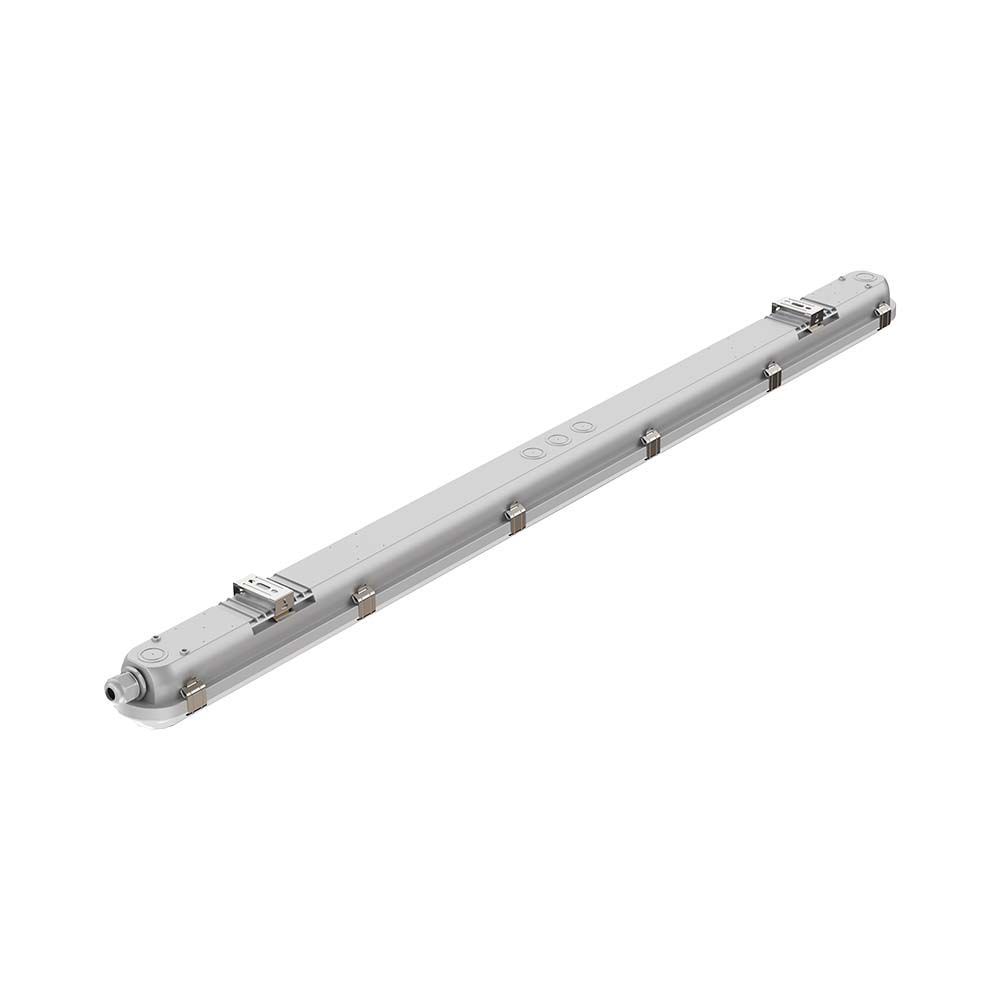

Introducing the VTAC VT-41004 LED Batten Fitting Series. Available in 20W, 25W, and 30W configurations, this robust lighting solution features premium SMD-Samsung chips and a versatile 3-in-1 color temperature setting (3000K, 4000K, 6500K). With an impressive IP65 and IK10 rating, it’s designed for durability and high performance in various indoor and outdoor environments.
Key Features:

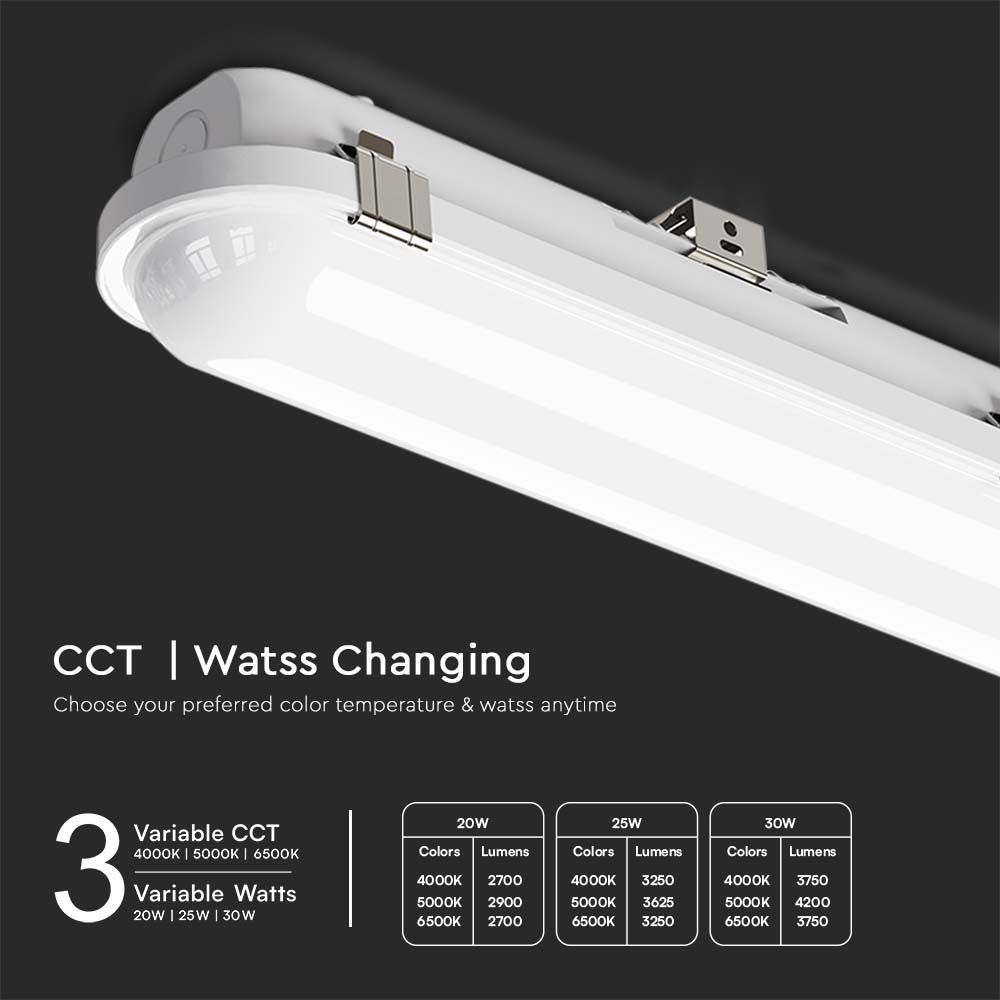

- Versatile 3-in-1 Color Temperature: Switch between warm, neutral, and cool white to suit your lighting needs.
- High Lumens Output: Delivers up to 4200 lumens, providing bright and effective illumination.
- Long Lifespan: Rated for 50,000 hours of operation.

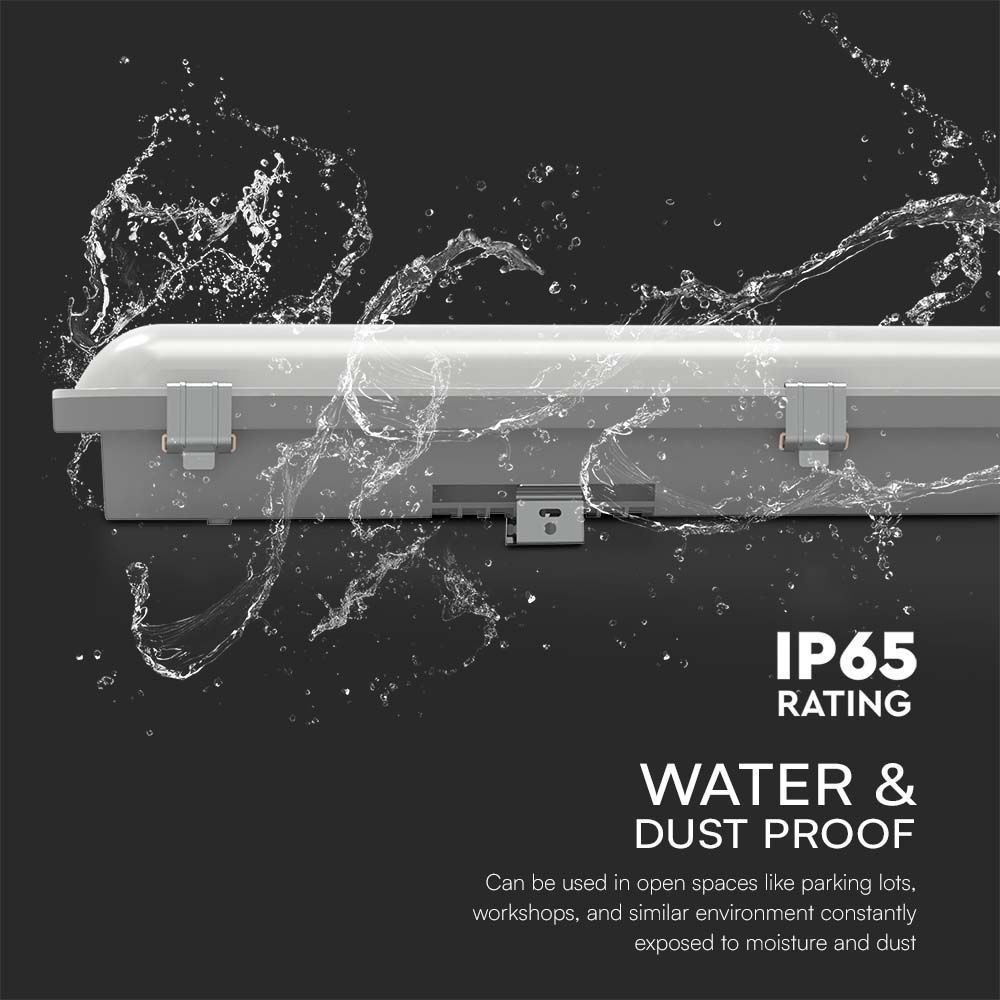

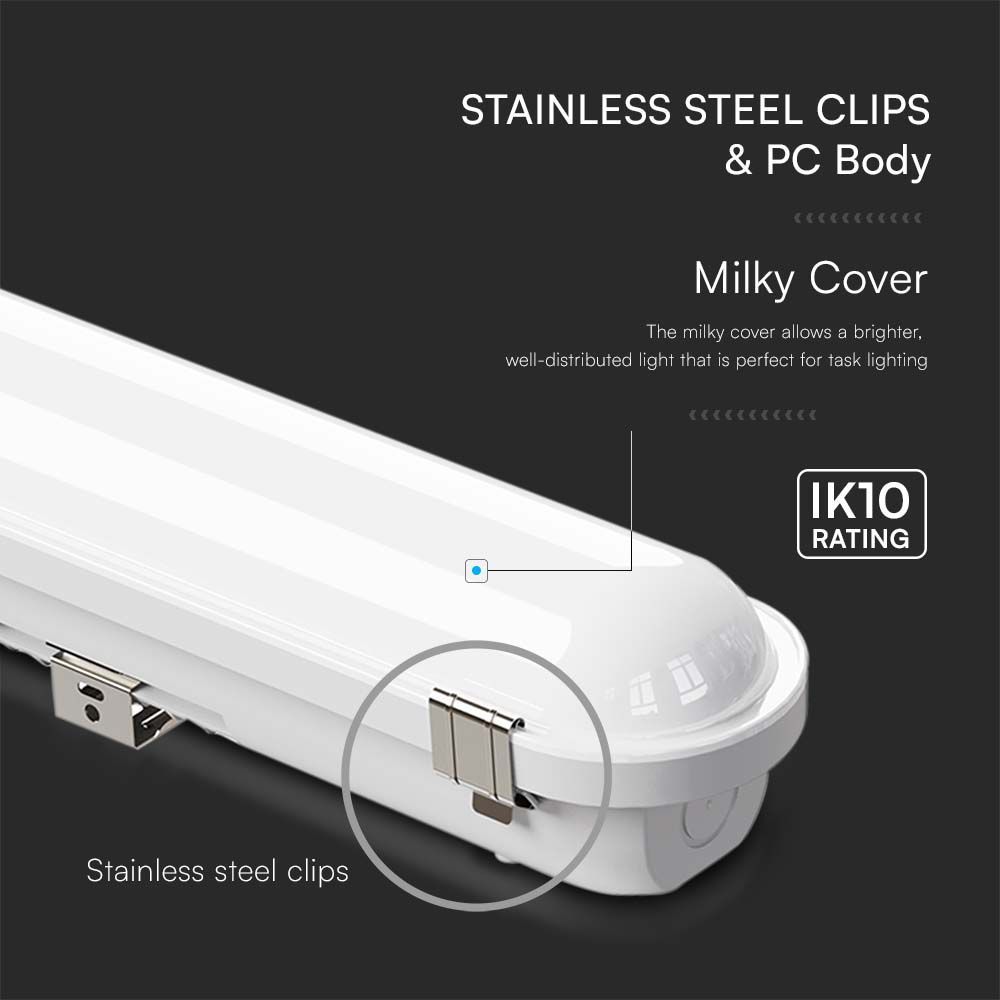

- Robust Design: IP65 rated for water and dust resistance, and IK10 rated for impact protection.
- Sensor Version (VT-41004S): Includes a microwave sensor for automatic operation.
- Sensor + Emergency Version (VT-41004SE): Combines sensor functionality with emergency battery backup.
Download
Motion sensor + Emergency Datasheet
Specifications
| Brand | V-TAC |
|---|---|
| SKU |
23071,23072,23073,23074,23075, 23076,23077,23078,23079,23080,23081,23082 |
| Length (mm) | 4ft = 1200, 5ft = 1500, 6ft = 1800 |
| Height (mm) | 72 |
| Width (mm) | 80 |
| Material | Polycarbonate |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | 230V 50Hz |
| On/Off Cycles | 15,000 |
| Sensor Type | Microwave Sensor |

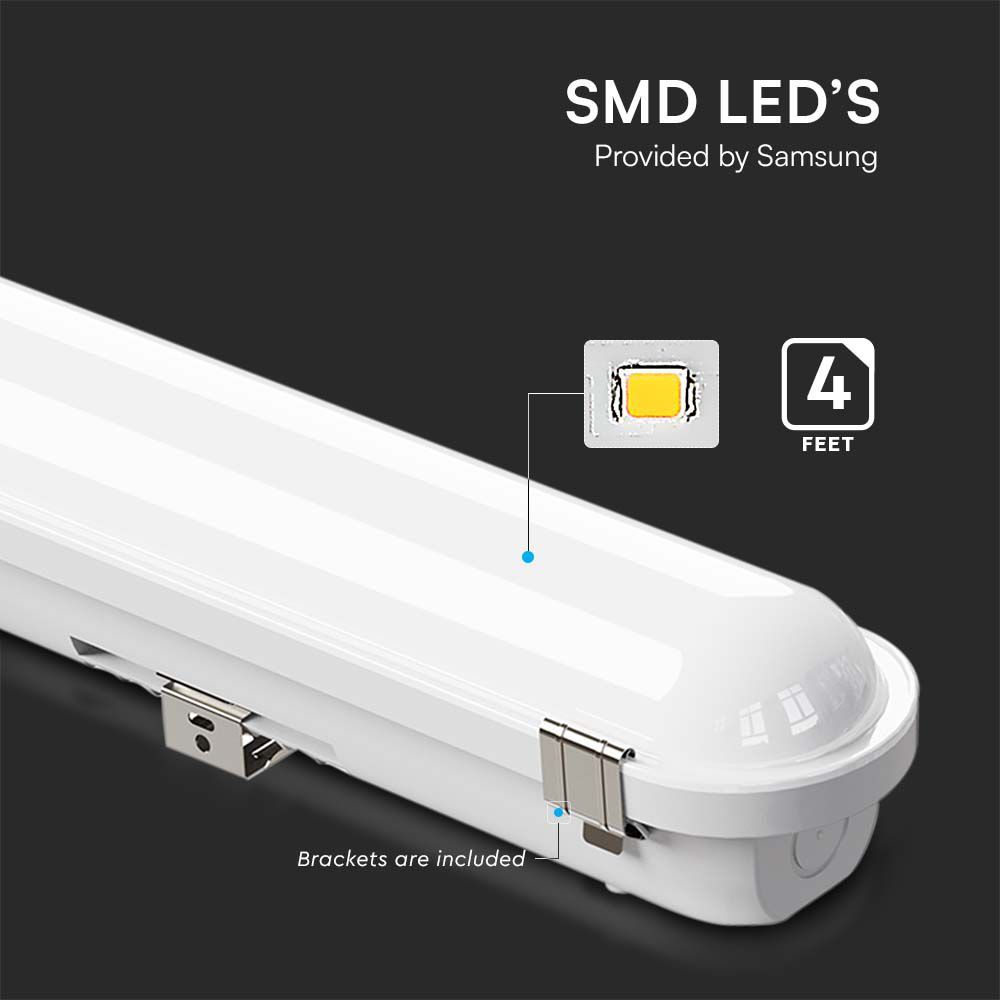

| LED Chip | SMD Samsung |
| Dimmable | No |
| Rated Life (Hours) | 50,000 |

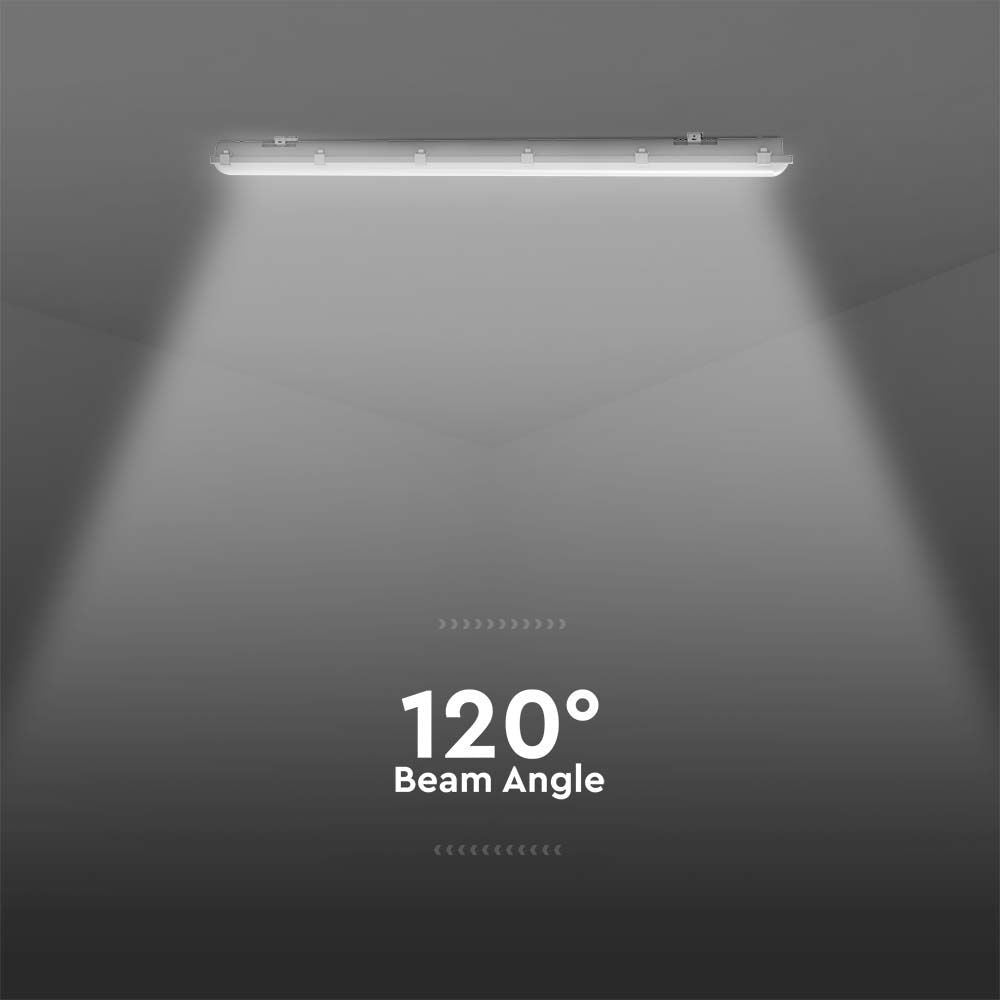

| Beam Angle (°) | 120 |
| Colour Temperature (K) | 3-in-1 (3000K, 4000K, 6400K) |
| Light Colour | Warm, Neutral, & Cool white |
| Lumens (lm) |
20/25/30 = 2900/3625/4200, 30/40/50 = 4350/5800/7000, 40/50/60 = 5800/7250/8400 |
| Wattage (W) | 20, 25, 30, 40, 50, 60 |
| CRI | 80 |
| Warranty (Years) | 5 |
| Commodity Code | 8539500000 |
