Description

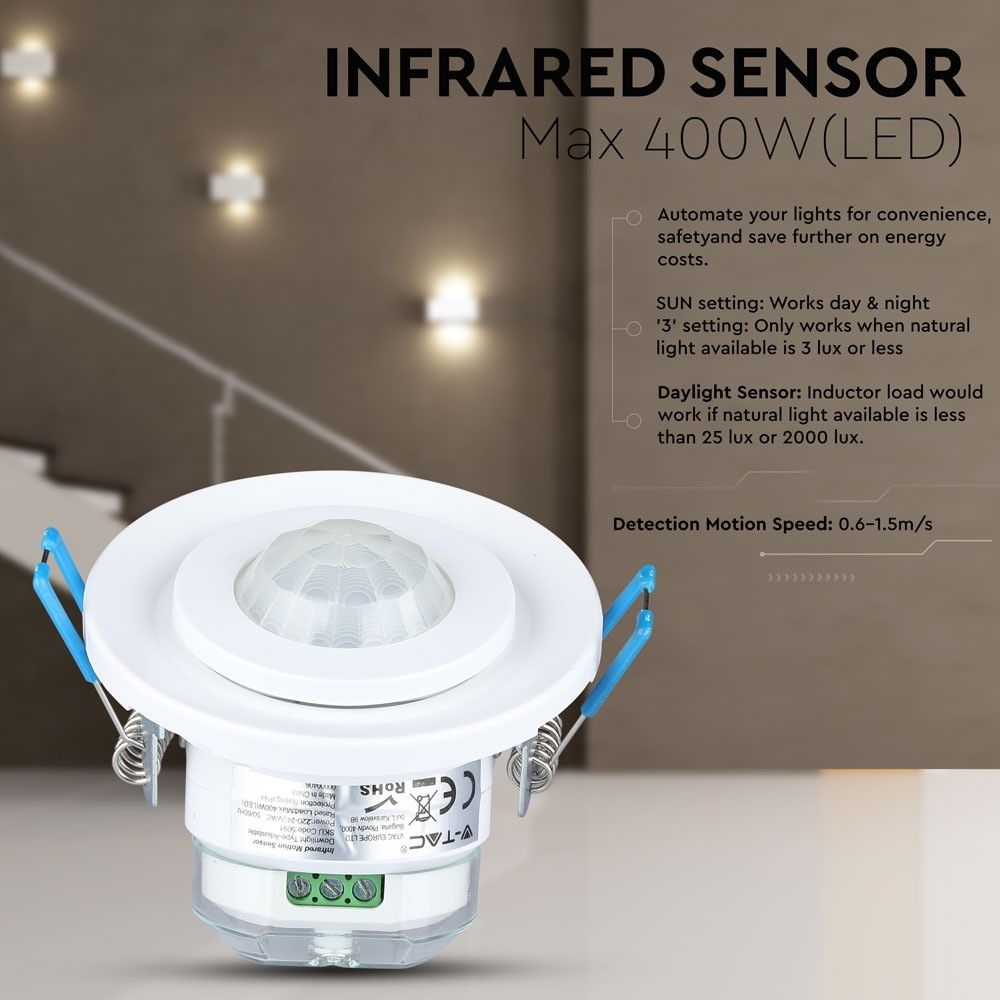

The VTAC VT-8030 is a versatile PIR infrared motion detector designed for both indoor and outdoor applications. With a 360° detection range and a moving head for adjustable angles, this ceiling sensor is perfect for ensuring comprehensive coverage. Rated for a maximum load of 400W LED, it features a time delay adjustable from 10 seconds to 15 minutes and operates within a temperature range of -25°C to +50°C. Its IP20 rating makes it ideal for indoor installations, providing reliability and efficiency in any setting.
Features
- Type: PIR Infrared Motion Detector
- Installation Type: Recessed
- Color: White
- Detection Range: 360°

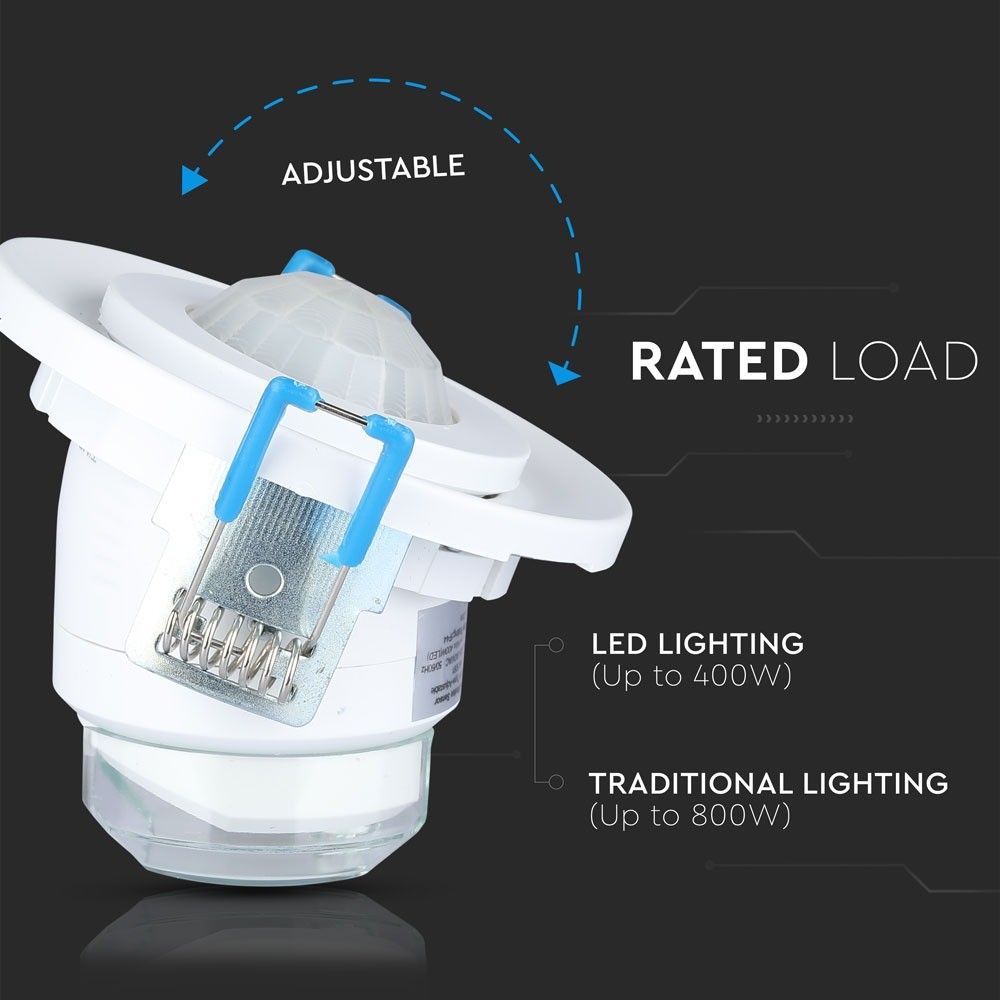

- Maximum Load: 400W LED
- Time Delay: Adjustable from 10 seconds to 15 minutes
- Detection Distance: Up to 8m

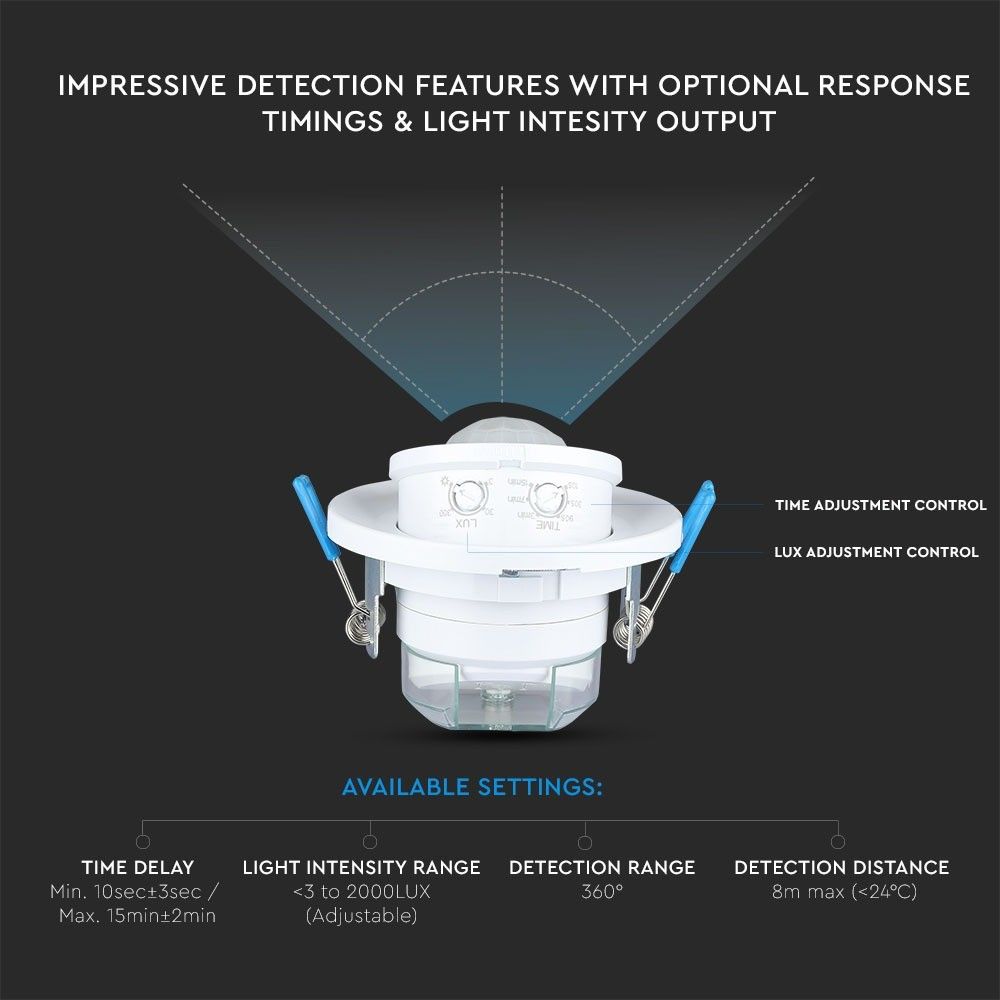

- Ambient Light Sensitivity: Adjustable from <3 to 2000 LUX
- Operating Temperature: -25°C to +50°C
- IP Rating: IP20
- Dimensions: 98 x 73 x 82 mm
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 5091 |
| Length (mm) | 98 |
| Height (mm) | 73 |
| Width (mm) |
82
|
| Material | PC |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | AC 220-240V |
| Sensor Working Angle (°) | 360° |
| Sensor Type | PIR Infrared Motion Detector |
| Sensor Range (m) | 8 |
| Sensor Operation Time (min) | 15 |
| Rated Load | Max 400W LED |
| Place of assembly | Ceiling mounted, Recessed mount in the ceiling |
| Place of application | Indoors |
