Description
The VT-8036 Microwave Sensor is a versatile and reliable solution for both indoor and outdoor lighting applications. Available in both white and black finishes, this sensor is designed to provide superior motion detection capabilities while being waterproof with an IP65 rating. Capable of handling a maximum load of 200W LED, it features adjustable time delays and a detection range of 180°/360°, ensuring efficient operation in various environments.
Features

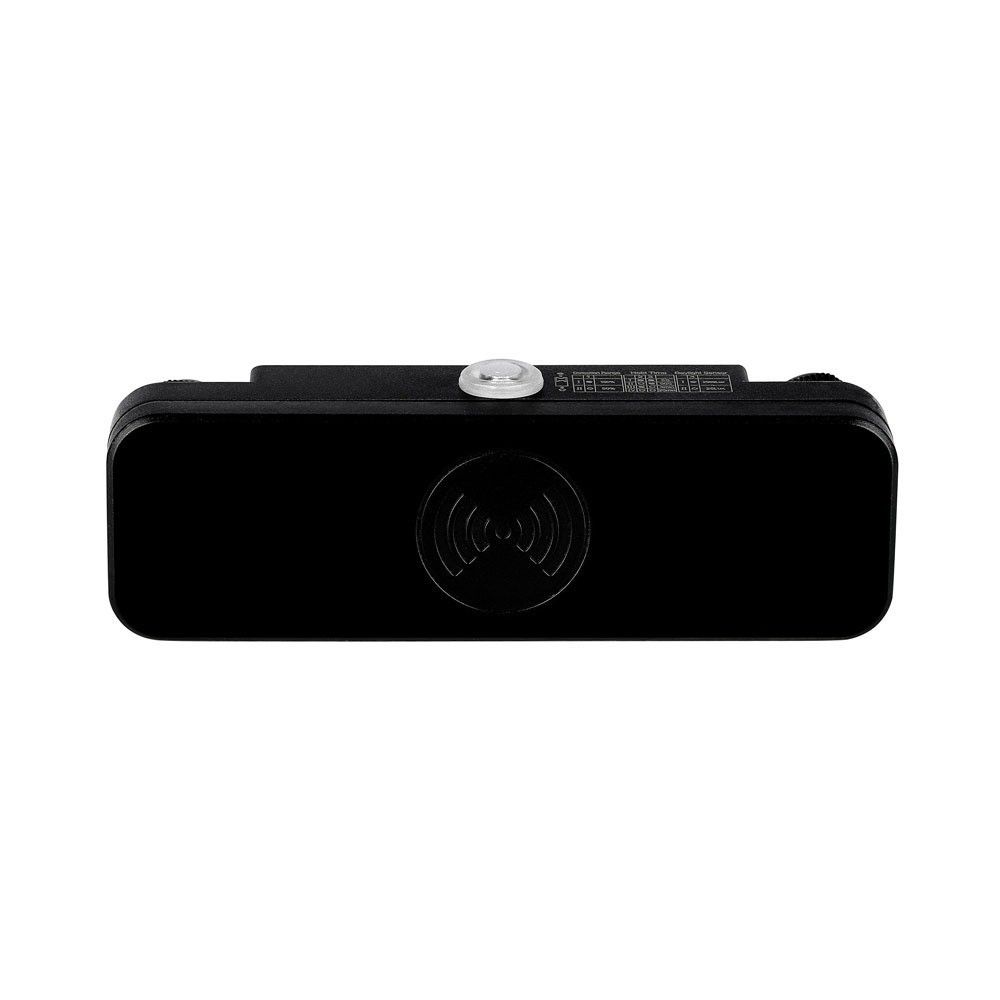

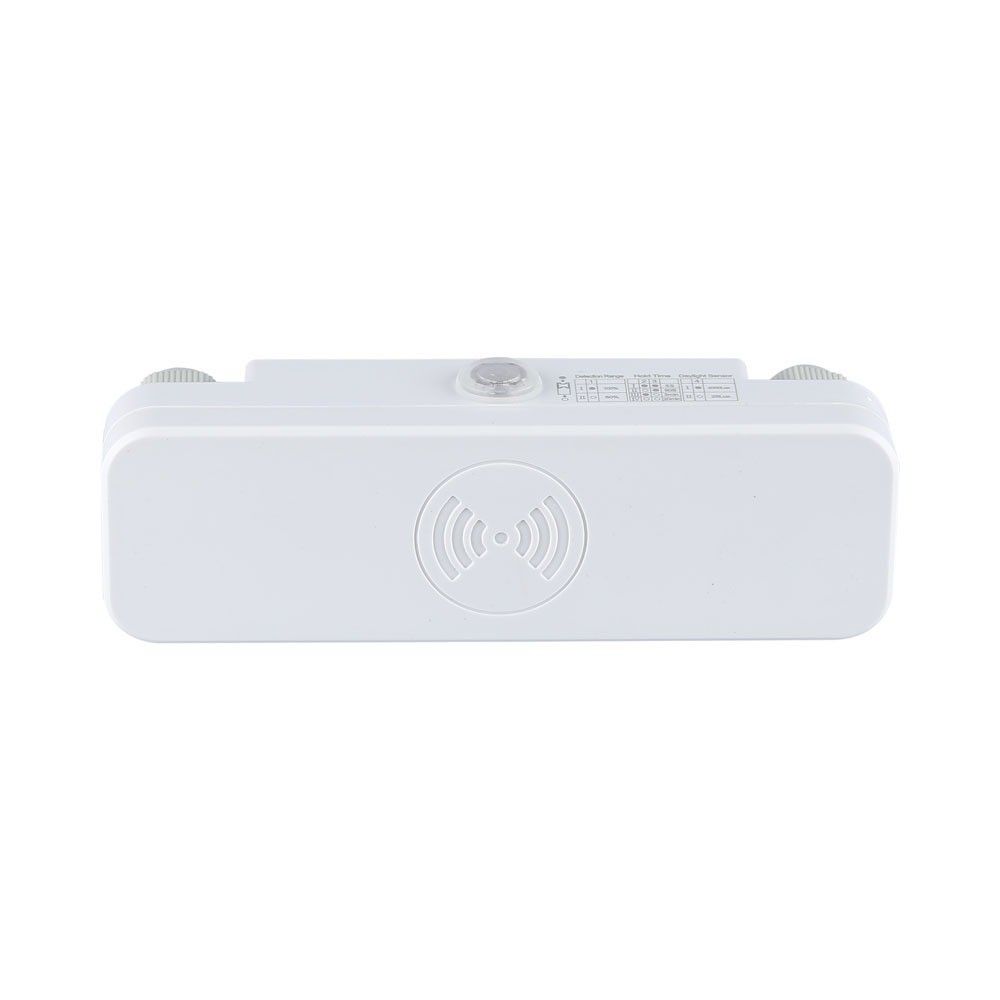

- Model Options: VT-8036-W (White) & VT-8036-B (Black)
- IP Rating: IP65 (Waterproof for outdoor use)

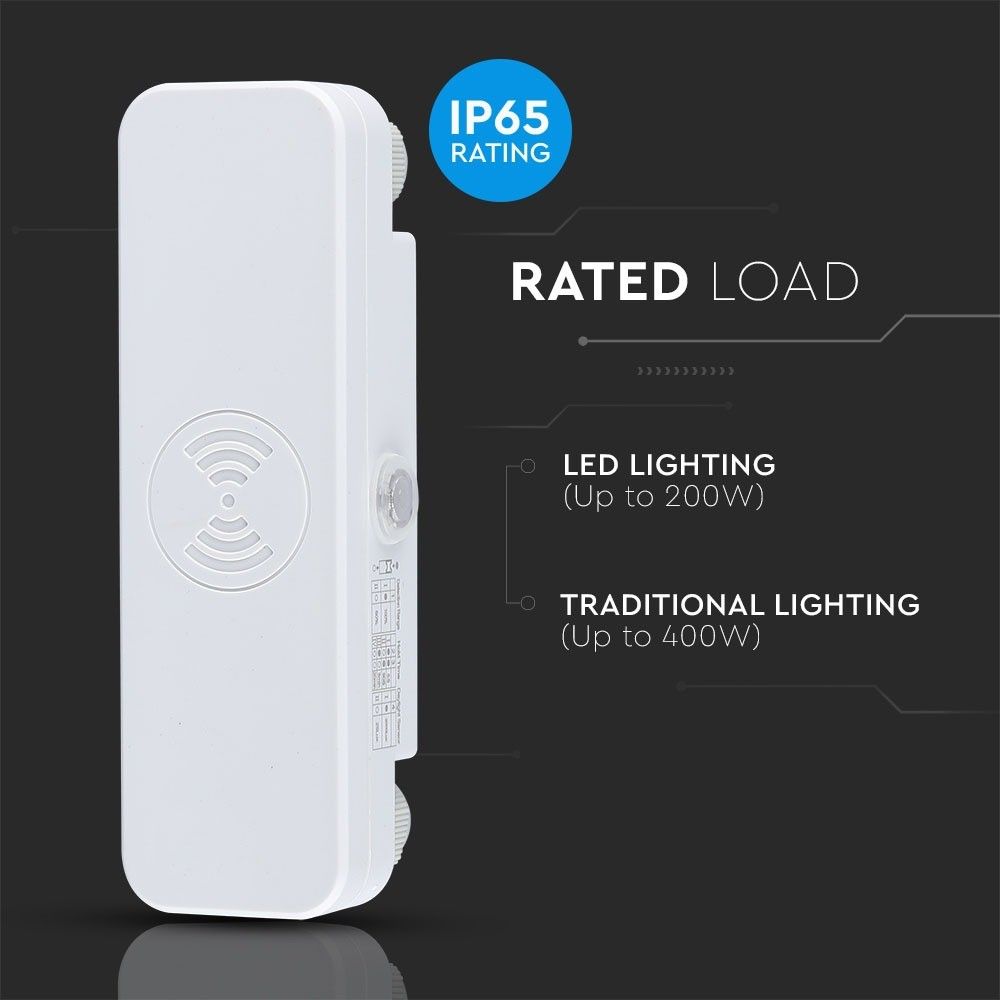

- Wattage: Max 200W LED
- Detection Range: 180°/360°

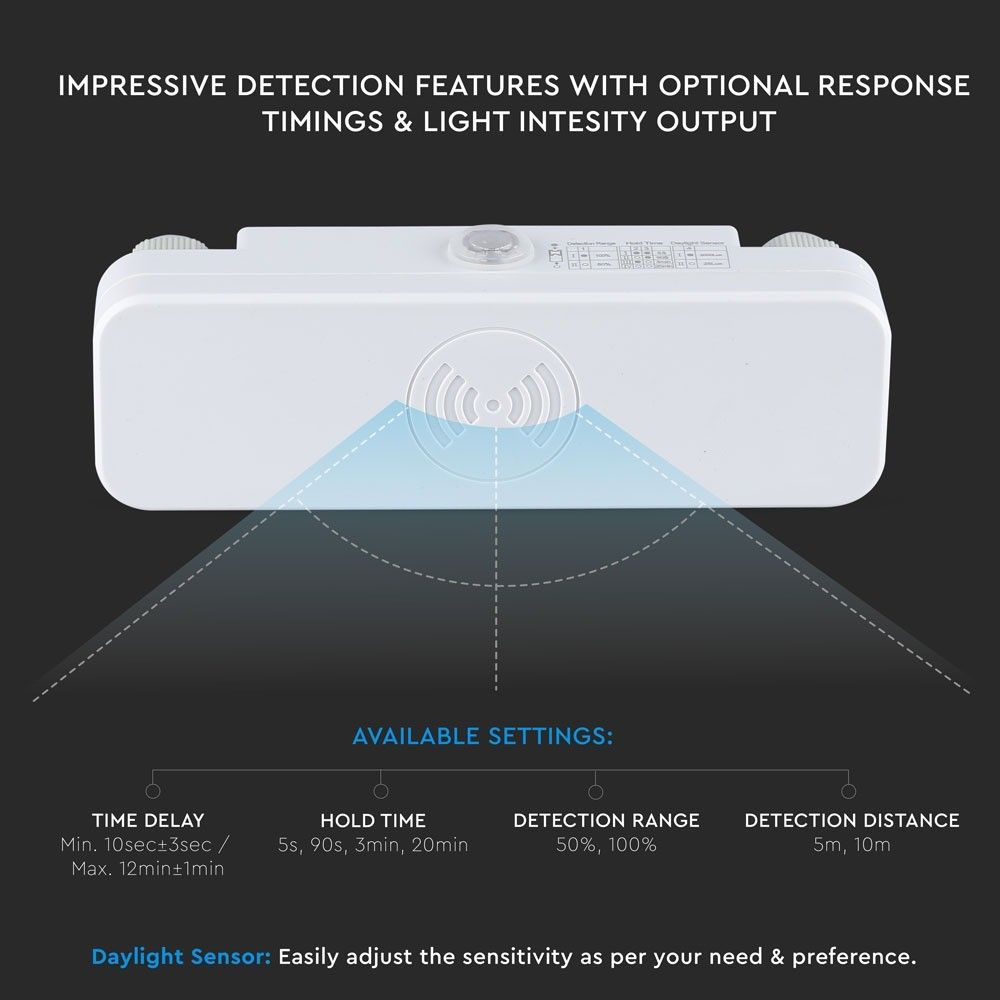

- Detection Distance: Adjustable between 5m and 10m
- Time Delay: Adjustable from a minimum of 10 seconds to a maximum of 15 minutes
- Detection Motion Speed: 0.6-1.5 m/s
- Ambient Light Sensitivity: <25-2000 LUX (adjustable)
- Installation Type: Surface-mounted
- Operation Temperature: -25°C to +50°C
- Body Material: Plastic
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 5571,5572 |
| Length (mm) | 115 |
| Height (mm) | 35 |
| Width (mm) | 25 |
| Material | Plastic |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | AC 220-240V |
| Rated Life (Hours) | 20,000 |
| Sensor Working Angle (°) | 180/360 |
| Sensor Type | Microwave |
| Sensor Range (m) | 5m/10m |
| Sensor Operation Time (min) | 15 |
| Rated Load | Max 200W LED |
| EAN Code | 3800157620246, 3800157620253 |
