Description

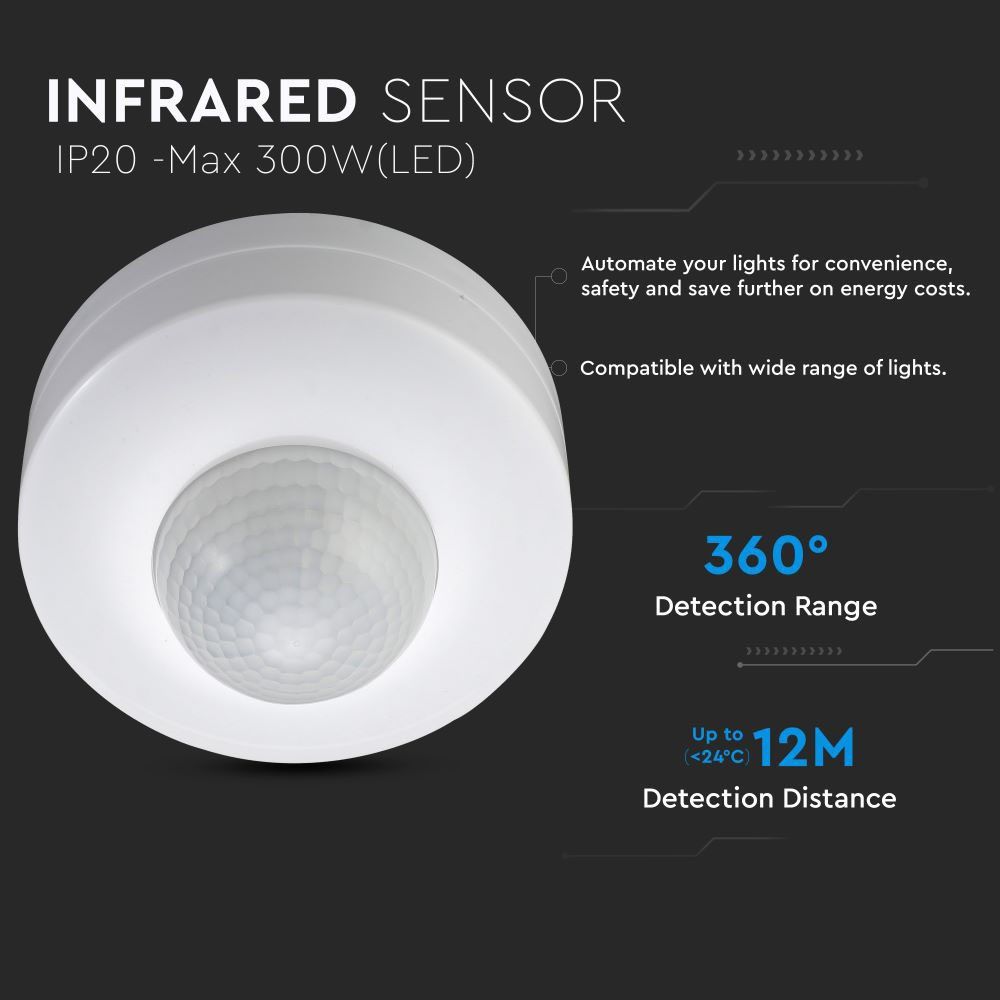

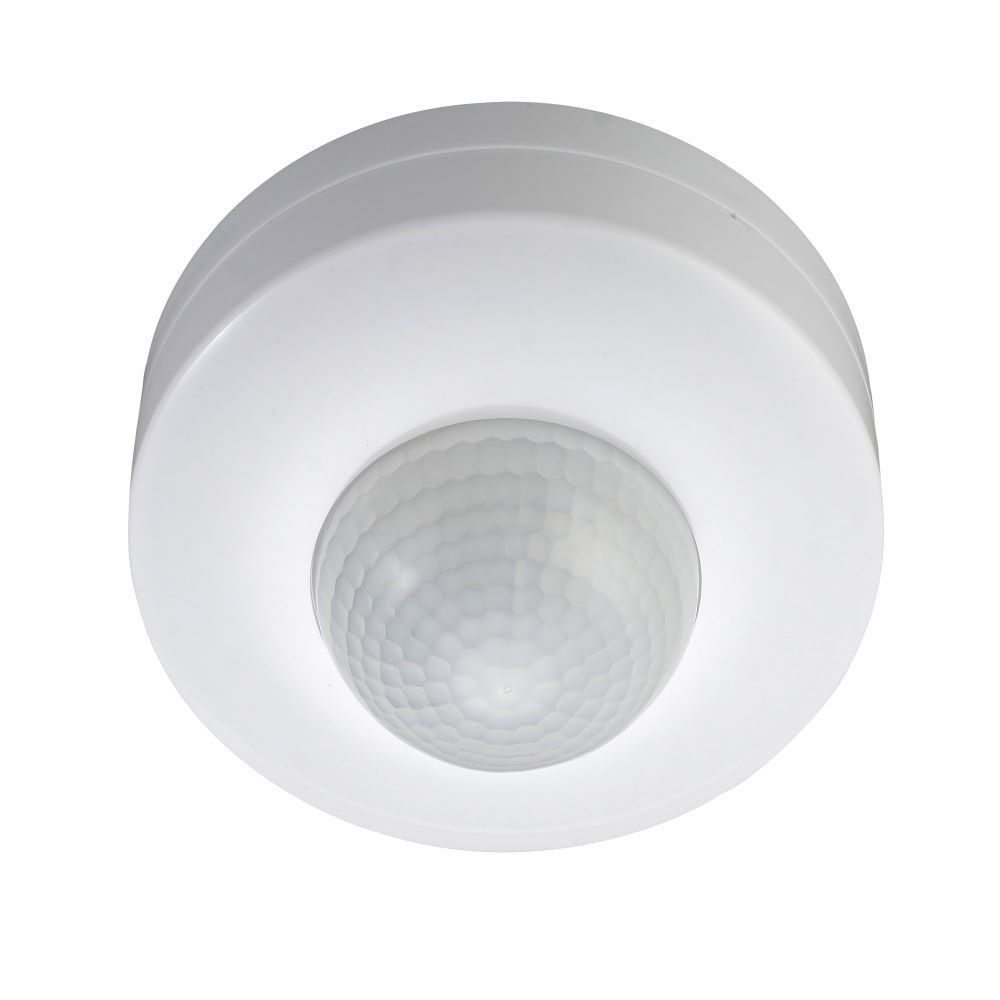

The VT-8049 Infrared Motion Sensor is designed for reliable indoor security and automation. With a sleek white finish, it supports a maximum load of 300W LED. This sensor features a 360° detection range and an adjustable time delay from 10 seconds to 15 minutes, making it ideal for various applications. Its operating temperature range of -25°C to +50°C ensures performance in diverse environments. The unit is constructed from durable polycarbonate and boasts an IP20 rating, suitable for indoor use.
Features
- Maximum Load: 300W LED
- IP Rating: IP20
- Detection Range: 360°
- Time Delay: Adjustable from 10 seconds to 15 minutes
- Sensor Type: Infrared
- Operating Temperature: -25°C to +50°C
- Installation Type: Surface Mounted
- Detection Motion Speed: 0.6-1.5 m/s
- Ambient Light Sensitivity: <3-2000 LUX (adjustable)
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 1355 |
| Length (mm) | 88 |
| Height (mm) | 55 |
| Width (mm) |
88
|
| Material | PC |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | AC 220-240V |
| Sensor Working Angle (°) | 360° |
| Sensor Type | Infrared Motion Sensor |
| Sensor Range (m) | 12 |
| Sensor Operation Time (min) | 15 |
| Rated Load | Max 300W LED |
| Place of assembly | Ceiling mounted, Recessed mount in the ceiling |
| Place of application | Indoors |
