Description

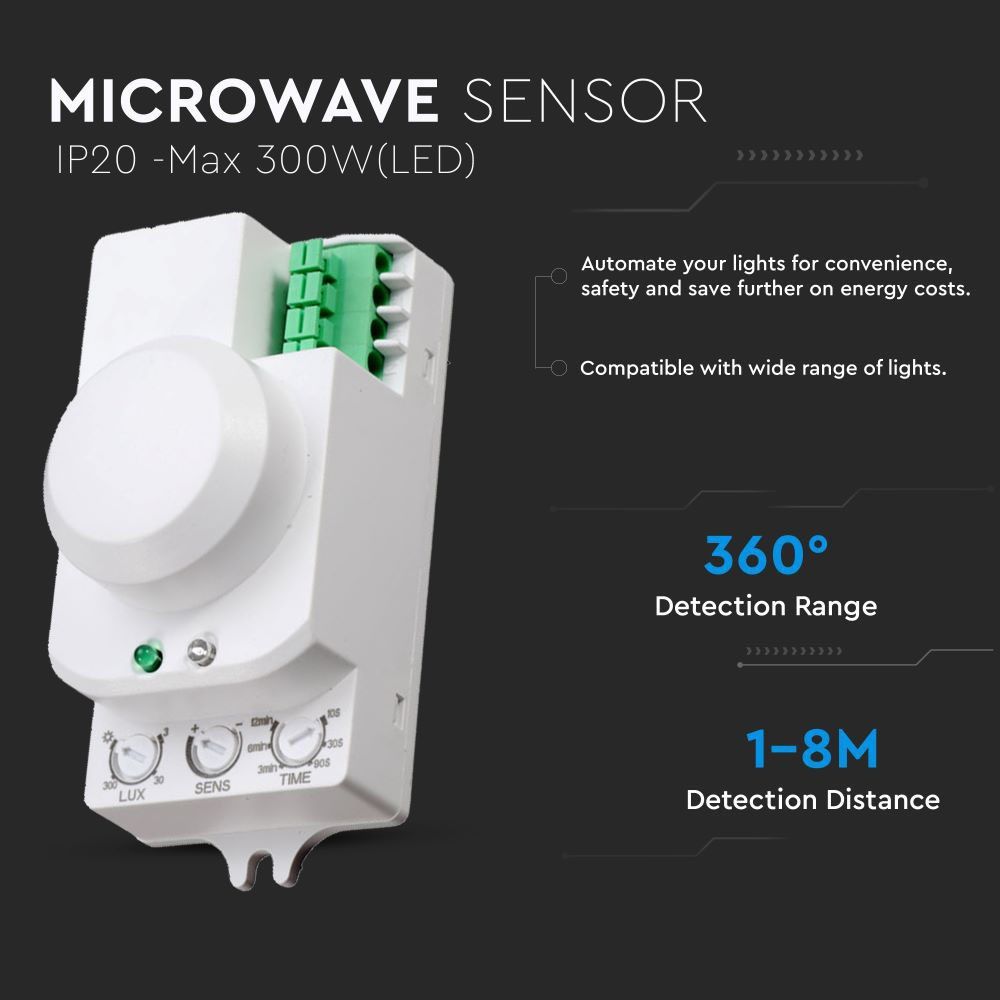

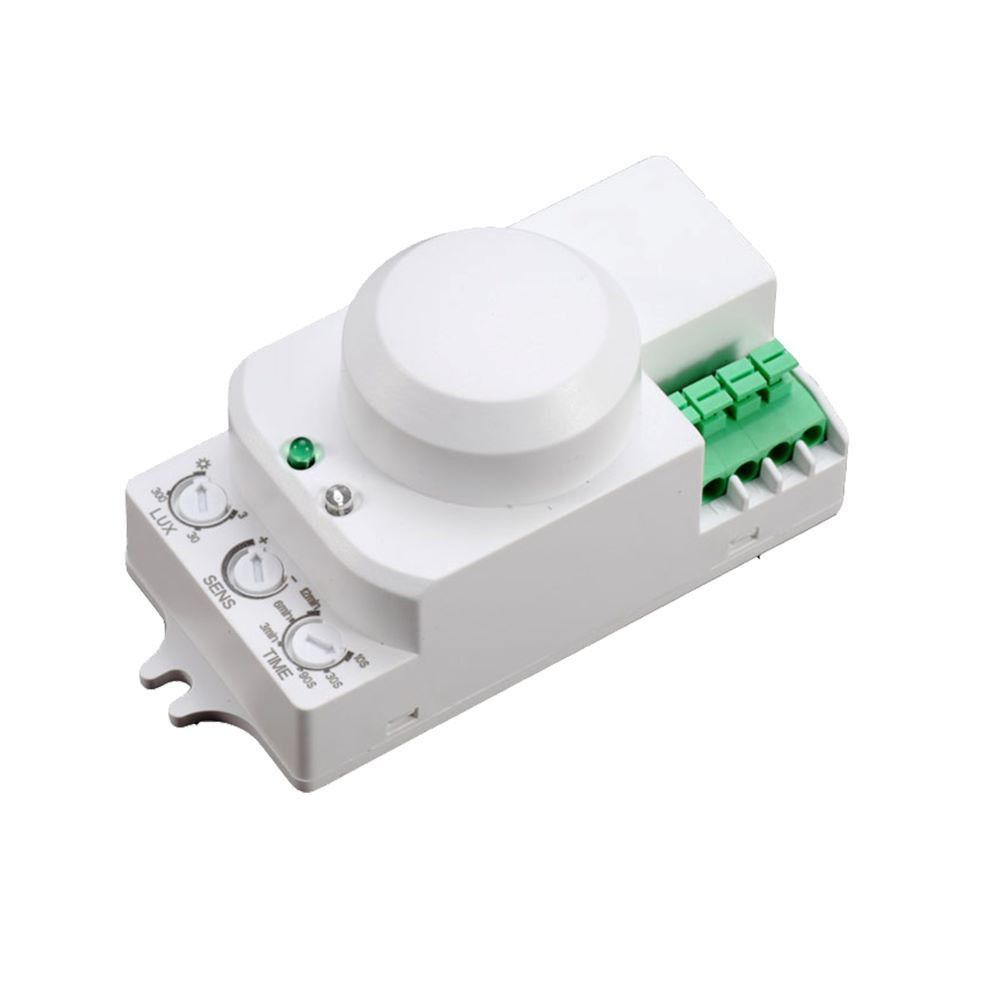

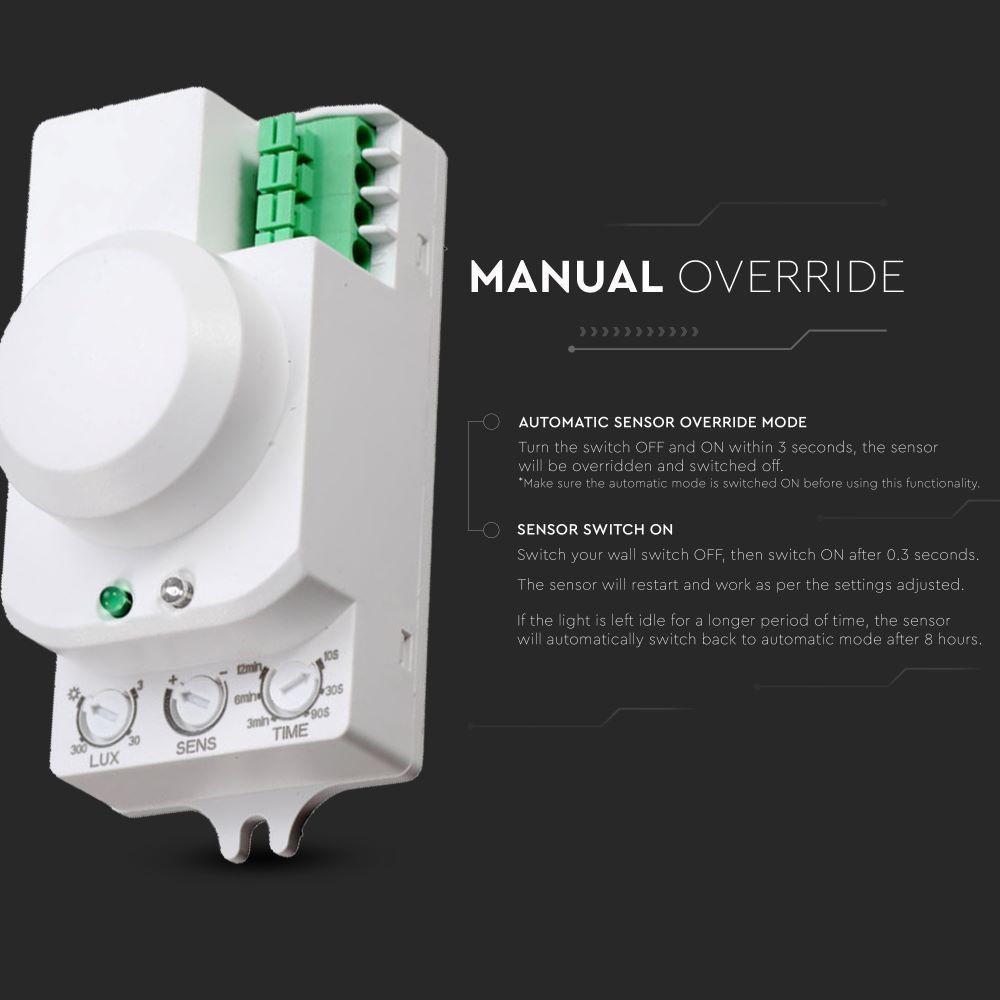

The VT-8077 Microwave Sensor offers advanced motion detection with a manual override function, making it an ideal choice for LED lighting applications. Designed to support a maximum load of 300W, this sensor provides 360° detection for comprehensive coverage. The adjustable time delay ranges from a minimum of 10 seconds to a maximum of 12 minutes, allowing you to customize its responsiveness. With a detection distance of 1 to 8 meters and sensitivity to motion speeds between 0.6 and 1.5 m/s, the VT-8077 ensures reliable operation in various indoor settings.
Features:
- Model: VT-8077
- Input Power: AC 220-240V, 50/60Hz
- Unit Color: White
- Detection Range: 360°

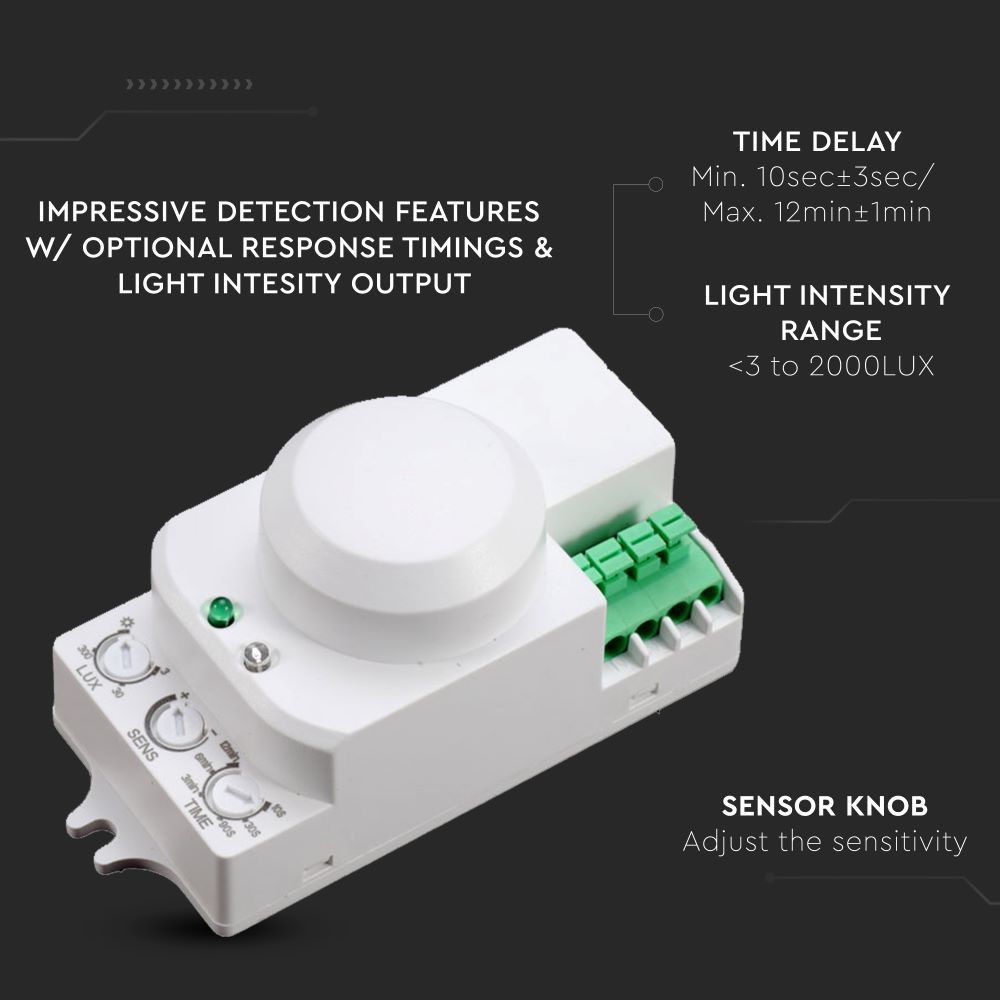

- Time Delay: Min 10 sec ±3 sec, Max 12 min ±1 min

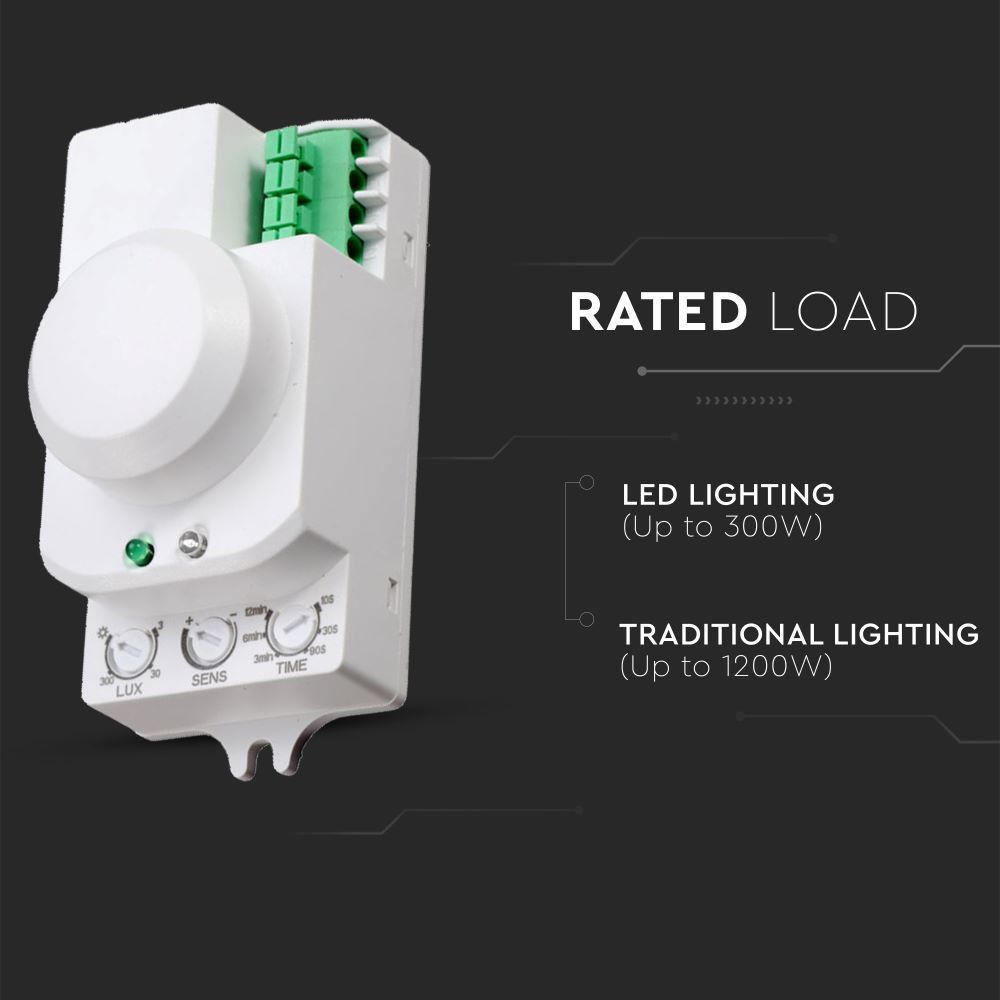

- Rated Load: Max 300W LED
- Detection Motion Speed: 0.6-1.5 m/s
- Ambient Light: <3-2000 LUX (adjustable)
- Detection Distance: 1-8 m (radius, adjustable)
- IP Rating: IP20
- Sensor Type: Microwave
Downloads
Specifications
| Brand | V-TAC |
|---|---|
| SKU | 1446 |
| Length (mm) | 50 |
| Height (mm) | 130 |
| Width (mm) | 60 |
| Material | Plastic |
| Finish | White |
| IP Rating | IP20 |
| Voltage (V) | AC 220-240V |
| Rated Life (Hours) | 20,000 |
| Sensor Working Angle (°) | 360 |
| Sensor Type | Microwave |
| Sensor Range (m) | 8 |
| Sensor Operation Time (min) | 12 |
| Rated Load | Max 300W LED |
| EAN Code | 3800157634755 |
